ABB ACS-CP-C Basic Control Panel for Inverter Drives

ABB ACS-CP-C Basic Control Panel for Inverter Drives

Description

The ABB ACS-CP-C is a basic control panel designed for use with various ABB inverter drive series. This keypad module provides a simple, reliable interface for local control, monitoring, and...

28 people are viewing this right now

Availability: In stock

SKU: ACS-CP-C
Vendor: ABB
Category: Control Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

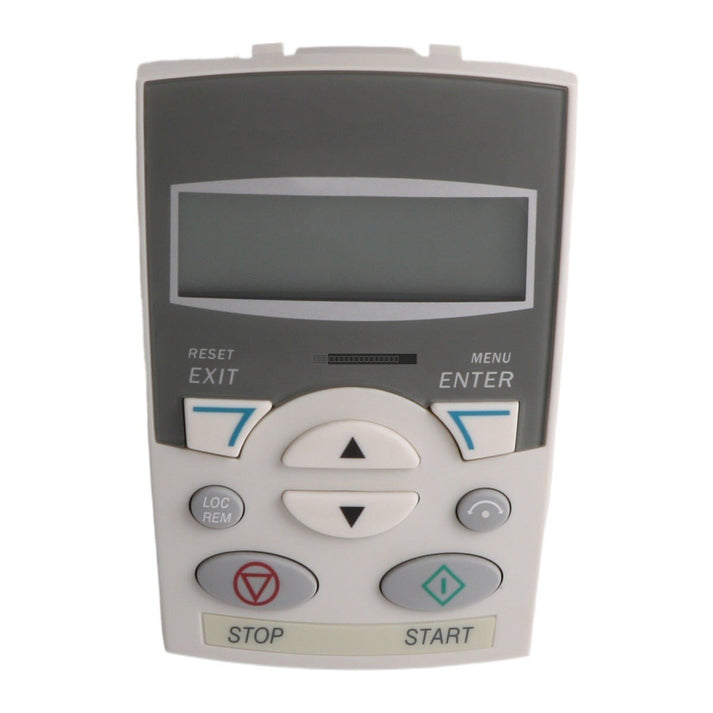

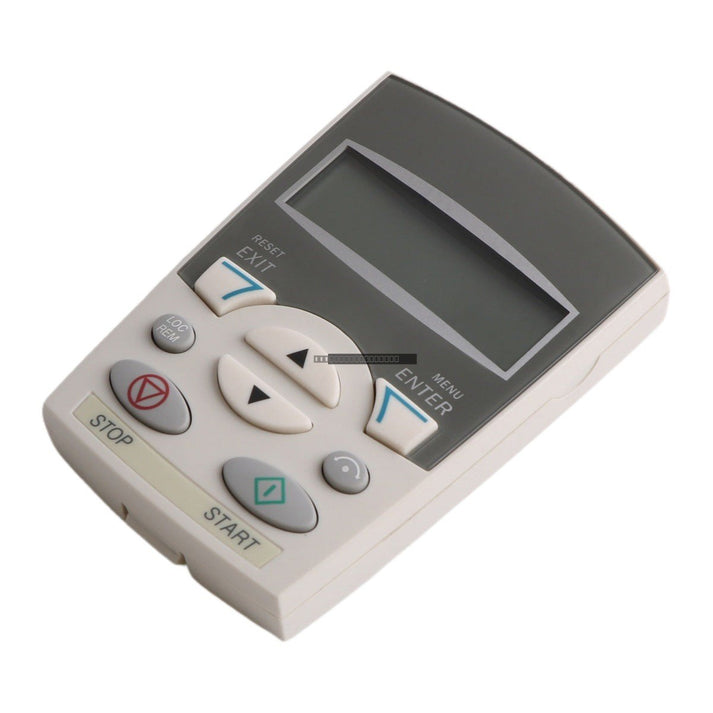

The ABB ACS-CP-C is a basic control panel designed for use with various ABB inverter drive series. This keypad module provides a simple, reliable interface for local control, monitoring, and parameter configuration. It features a numeric LCD display and includes a built-in copy function, which allows for the efficient transfer of drive parameters between units, simplifying commissioning and maintenance tasks in industrial environments.

Features

  • Numeric 4-digit, 7-segment LED display for clear parameter and status monitoring.
  • Integrated copy function for rapid parameter backup and restoration across compatible drives.
  • Compact, user-friendly interface for local drive control and programming.
  • Supports a wide range of ABB drive series including ACS310, ACS320, ACS350, ACS355, and ACS550.

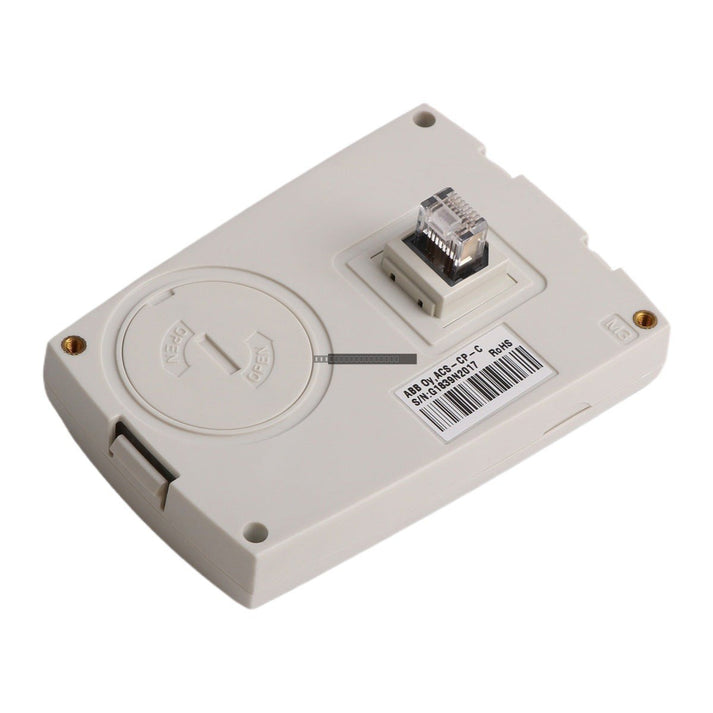

  • Standard 8-pin RJ-45 connector for secure and reliable communication with the drive.

Applications

This control panel is intended for use in industrial automation systems where local interaction with ABB variable frequency drives is required. It is commonly utilized in machine building, HVAC systems, and pump/fan control applications where quick access to drive diagnostics and parameter adjustment is necessary.

Technical Specifications

Product Model ACS-CP-C
Display Type 1-line, 7-segment LED, 4 digits
Supply Voltage 5 V DC +/- 5%
Current Consumption 30 mA (typical), 50 mA (max)
Isolation 500 V AC
Operating Temperature 0 degC to +55 degC
Storage Temperature -40 degC to +70 degC
Relative Humidity 5% to 95% (non-condensing)
Connector 8-pin RJ-45

Installation Guidelines

  • Ensure the drive is powered down before attempting to attach or remove the control panel.
  • The module is designed for direct mounting onto the drive front interface; ensure the RJ-45 connector is fully seated to prevent communication errors.
  • Avoid installing the unit in areas with excessive vibration, high humidity, or extreme temperature fluctuations outside the specified operating range.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
  • Keep the control panel cable away from high-voltage power lines to minimize electromagnetic interference (EMI).

FAQ

Is this control panel compatible with all ABB drives?
No, it is specifically designed for the ACS310, ACS320, ACS350, ACS355, and ACS550 series. Please verify your drive model before installation.

Does the ACS-CP-C support parameter copying?
Yes, this model includes a built-in copy function, allowing you to save parameters from one drive and upload them to another.
