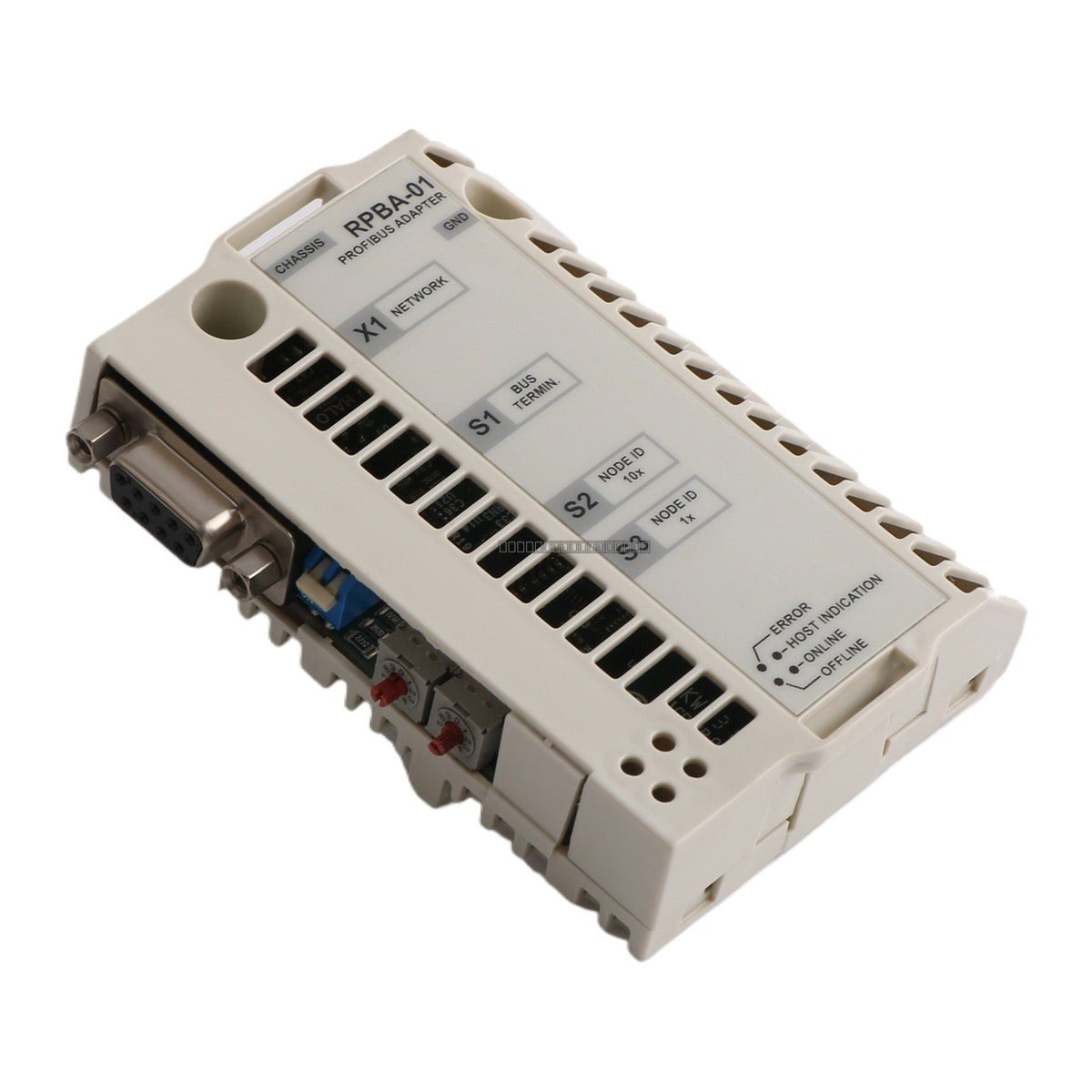

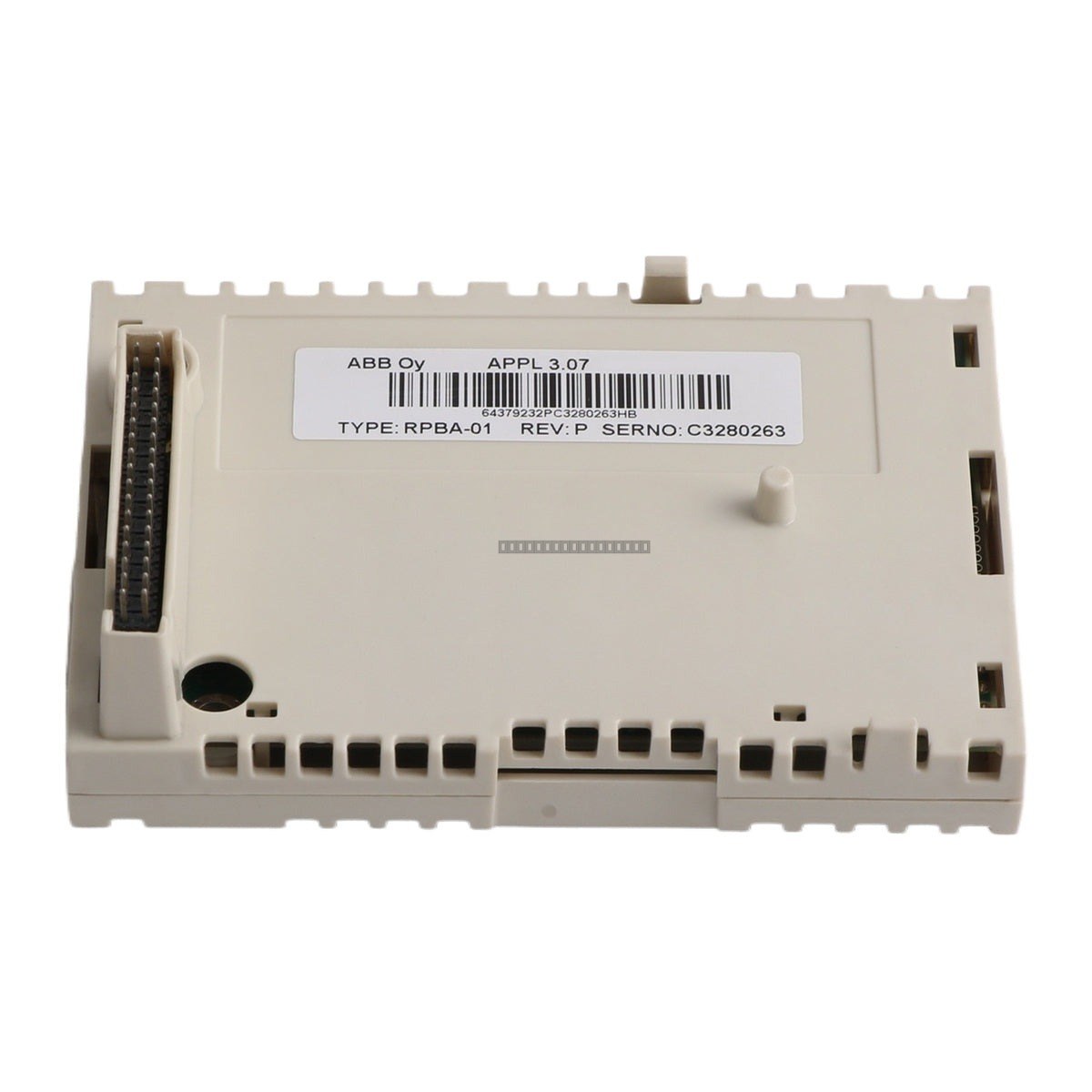

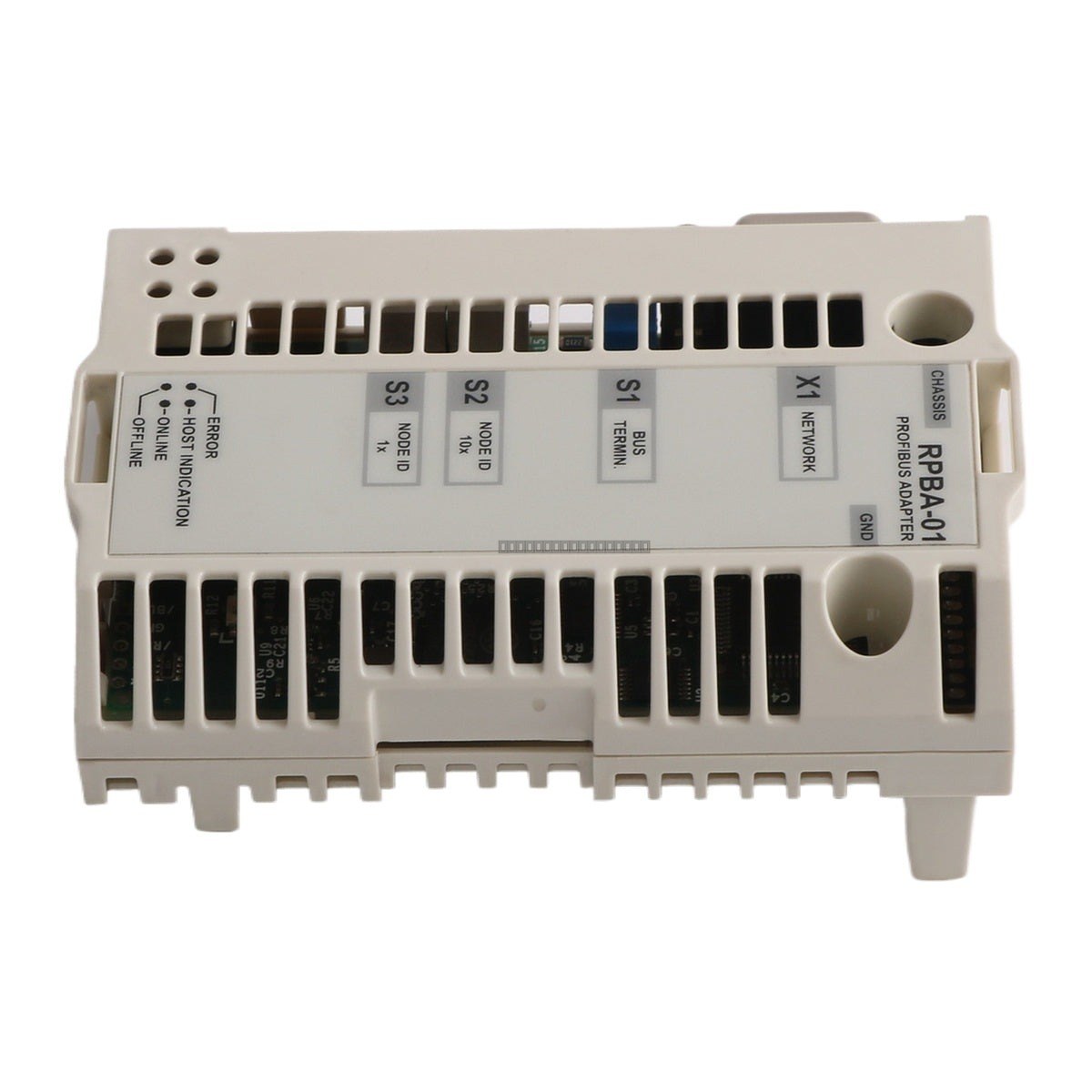

ABB RPBA-01 PROFIBUS DP Adapter Module

ABB RPBA-01 PROFIBUS DP Adapter Module

The ABB RPBA-01 is a fieldbus adapter module designed for the R-series drive family, enabling seamless integration into PROFIBUS DP networks. This module facilitates high-speed communication between the ABB drive...

21 people are viewing this right now

Availability: Low stock: 5 left

SKU: RPBA-01
Vendor: ABB
Category: Fieldbus Adapter Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB RPBA-01 is a fieldbus adapter module designed for the R-series drive family, enabling seamless integration into PROFIBUS DP networks. This module facilitates high-speed communication between the ABB drive and the fieldbus controller, supporting baud rates from 9.6 kbit/s up to 12 Mbit/s.

Features

  • Supports PROFIBUS DP protocol for industrial automation connectivity.
  • Compact IP20-rated design for internal cabinet mounting.
  • Provides 244 bytes of cyclic data exchange capacity.
  • Galvanic isolation of 500 V DC to protect against electrical interference.
  • Wide operating temperature range suitable for demanding industrial environments.

Applications

The RPBA-01 is primarily utilized in industrial drive control systems where ABB R-series drives require integration into a PROFIBUS network for centralized monitoring, parameter configuration, and real-time process control.

Technical Specifications

Model RPBA-01
Protocol PROFIBUS DP
Data Capacity 244 Bytes
Baud Rate 9.6 kbit/s to 12 Mbit/s
Power Supply 24 V DC ±20 %
Isolation 500 V DC
Operating Temperature -25 to +70 degC
Storage Temperature -40 to +85 degC
Humidity 5 to 95 % RH (non-condensing)
Protection Class IP20

Installation Guidelines

  • Ensure the drive is powered down before installing or removing the adapter module.
  • The module is designed for direct mounting onto the drive's option slot.
  • Use shielded PROFIBUS cables to minimize electromagnetic interference (EMI) in high-noise environments.
  • Ensure proper grounding of the cable shield at the connector level to maintain signal integrity.
  • Verify that the PROFIBUS address is correctly set via the drive parameters after physical installation.
  • Maintain adequate ventilation around the drive to ensure the module operates within its specified temperature range.

FAQ

What is the primary function of the RPBA-01?
The RPBA-01 acts as a communication gateway, allowing ABB R-series drives to communicate with a PROFIBUS DP master controller.

Is the RPBA-01 compatible with all ABB drives?
The RPBA-01 is specifically designed for the ABB R-series drive family. Please verify compatibility with your specific drive firmware and hardware version before installation.
