ABB SDCS-AMC-DC-2 COAT 3ADT220090R0040 Control Unit Board

ABB SDCS-AMC-DC-2 COAT 3ADT220090R0040 Control Unit Board

Description

The ABB SDCS-AMC-DC-2 COAT (3ADT220090R0040) is a high-performance control unit board designed for industrial drive applications. This printed circuit board serves as a core component in the control architecture, providing...

25 people are viewing this right now

Availability: In stock

SKU: SDCS-AMC-DC-2 COAT 3ADT220090R0040
Vendor: ABB
Category: Control Unit Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

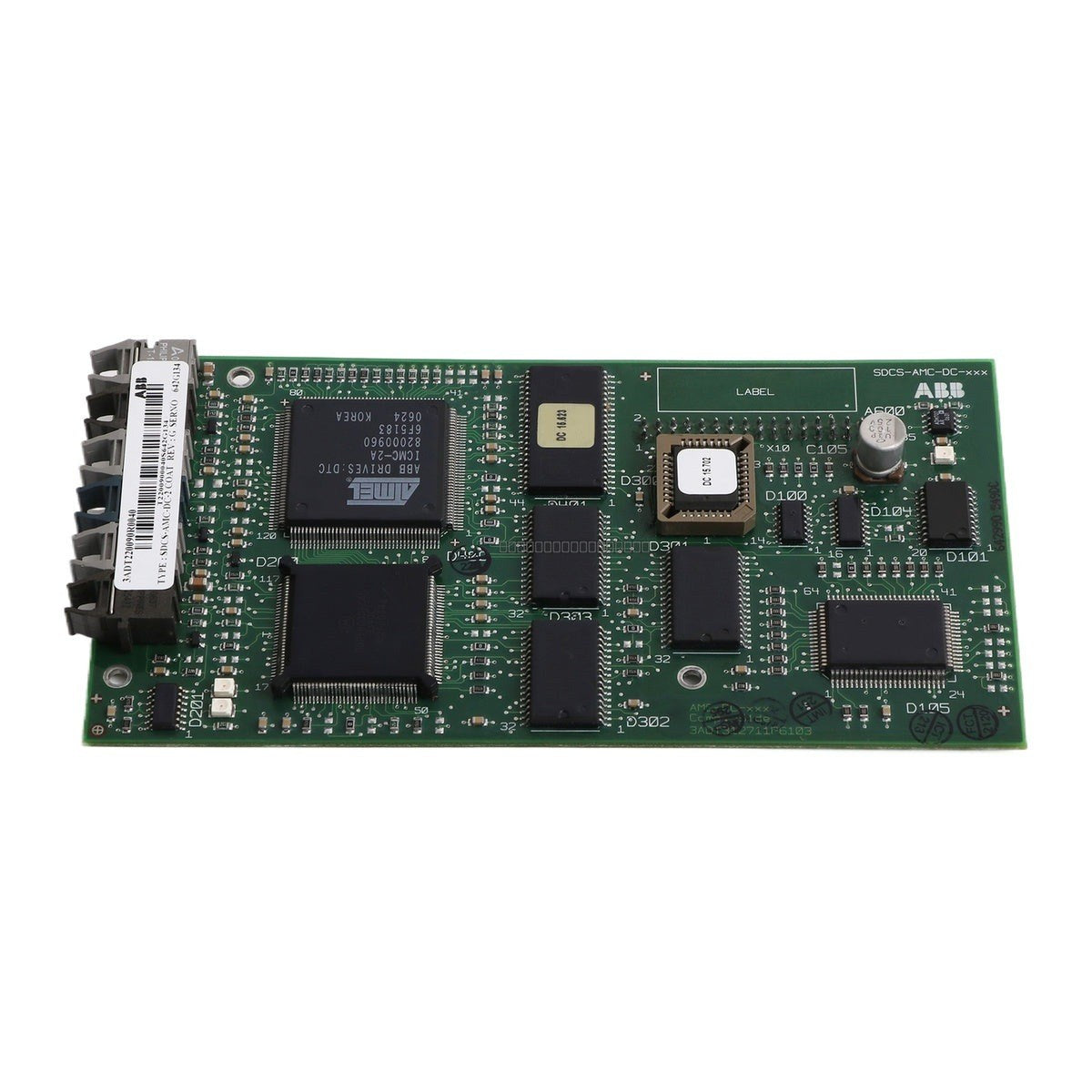

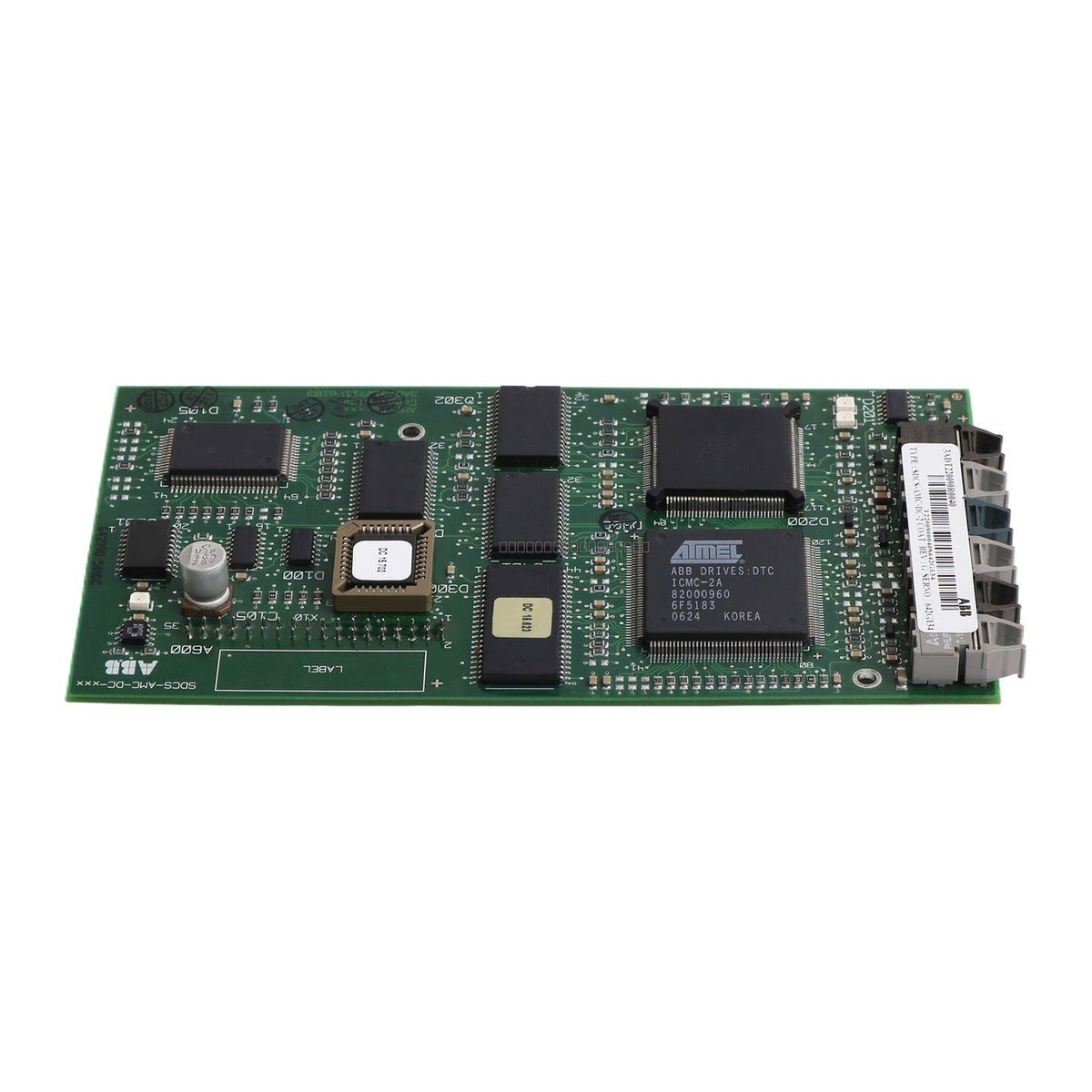

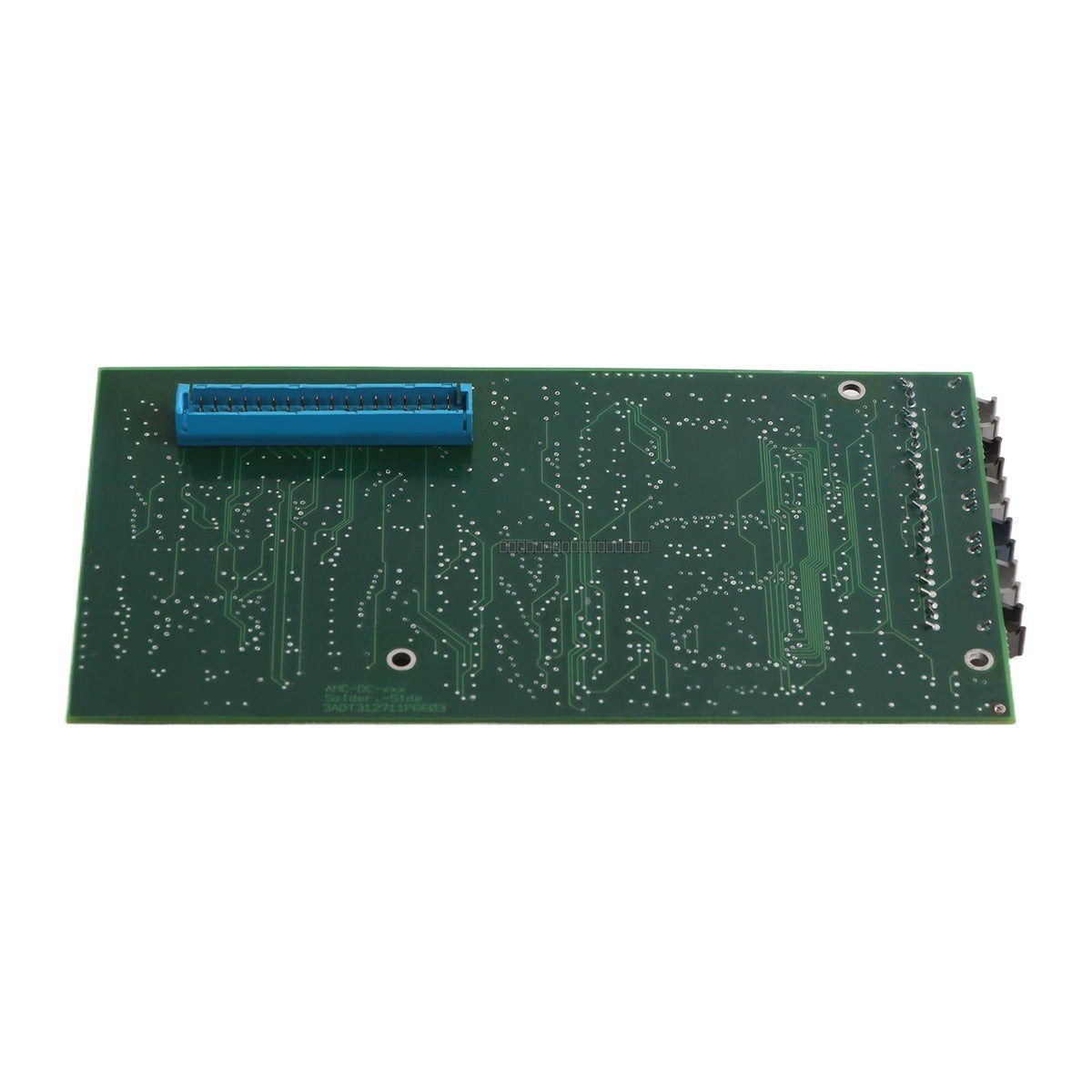

The ABB SDCS-AMC-DC-2 COAT (3ADT220090R0040) is a high-performance control unit board designed for industrial drive applications. This printed circuit board serves as a core component in the control architecture, providing precise regulation and signal processing capabilities for DC drive systems. It features a 36-pin connector interface for reliable integration into the drive control rack.

Features

  • Advanced 24-bit control resolution for high-precision regulation.
  • Fast loop update time of 250µs to ensure responsive drive performance.
  • High accuracy for both speed and torque control loops.
  • Integrated analog and digital I/O support for versatile field connectivity.
  • Conformal coating (COAT) for enhanced protection in harsh industrial environments.

Technical Specifications

Model SDCS-AMC-DC-2 COAT
Order Code 3ADT220090R0040
Input Voltage 24V DC (±15%)
Control Resolution 24-bit
Loop Update Time 250µs
Speed Control Accuracy ±0.01% of setpoint
Torque Control Accuracy ±0.5% of rated torque
Analog Inputs ±10V / 4-20mA
Digital Inputs 24V DC
Operating Temperature -40 degC to +70 degC
Storage Temperature -50 degC to +85 degC
Relative Humidity 5-100% (condensing)

Installation Guidelines

  • Ensure the drive system is fully powered down and locked out before installing or removing the control unit board.
  • Handle the PCB by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
  • Verify that the 36-pin connector is properly aligned and fully seated to prevent intermittent signal loss.
  • Ensure the module is installed in a clean, dry environment within the specified temperature range to maintain long-term reliability.
  • Check that all signal cables are properly routed and shielded to minimize electromagnetic interference (EMI).

FAQ

What does the COAT suffix indicate?
The COAT suffix indicates that the printed circuit board has been treated with a conformal coating, providing additional protection against moisture, dust, and corrosive contaminants in industrial environments.

Is this board compatible with standard 24V DC control signals?
Yes, the digital inputs are designed for standard 24V DC logic levels, and the analog inputs support standard ±10V or 4-20mA signals.
