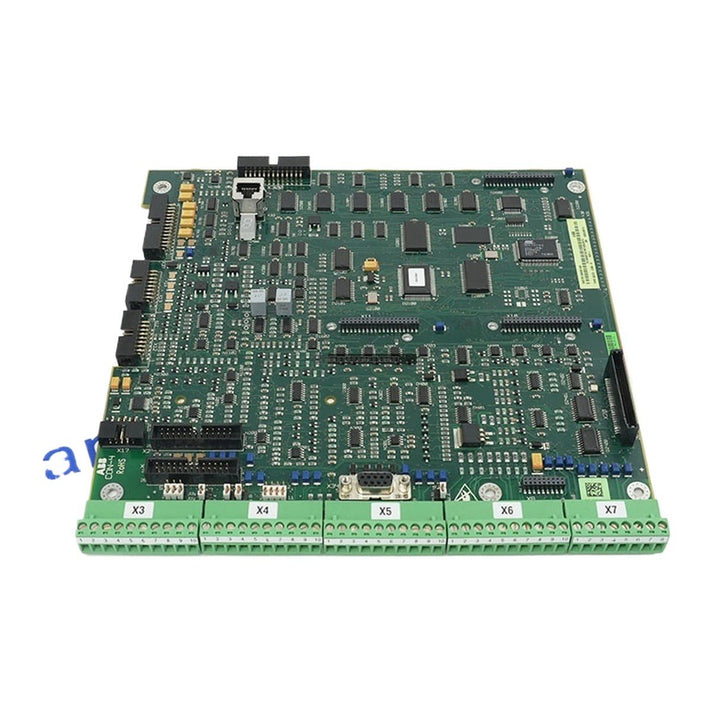

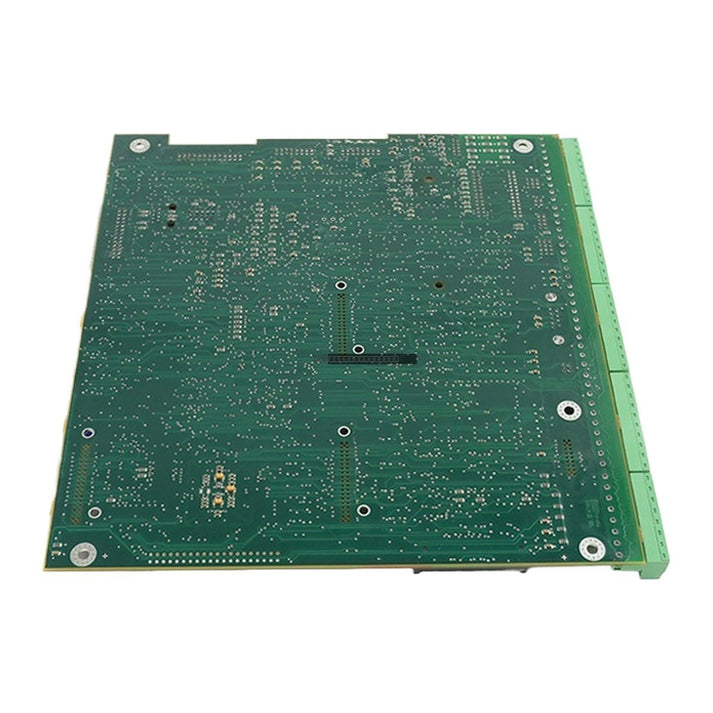

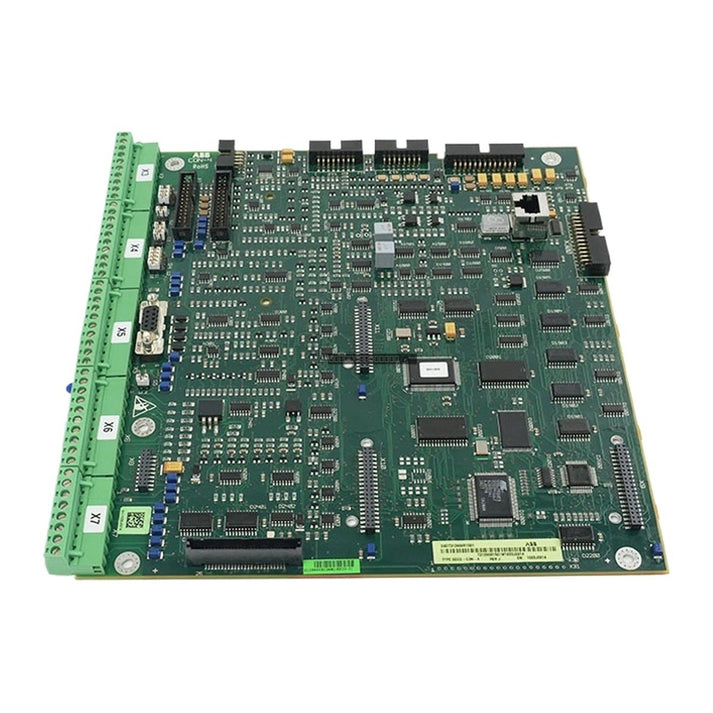

ABB SDCS-CON-4 3ADT313900R1501 Control Board

ABB SDCS-CON-4 3ADT313900R1501 Control Board

The ABB SDCS-CON-4 (3ADT313900R1501) is the primary control board designed for the DCS800 series of industrial DC drives. Serving as the central processing unit, this module manages firmware execution, motor...

24 people are viewing this right now

Availability: Low stock: 10 left

SKU: SDCS-CON-4 3ADT313900R1501
Vendor: ABB
Category: Control Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB SDCS-CON-4 (3ADT313900R1501) is the primary control board designed for the DCS800 series of industrial DC drives. Serving as the central processing unit, this module manages firmware execution, motor regulation, parameter storage, and system communication. It is also compatible with legacy DCS600 series drives, making it a versatile component for drive maintenance and system upgrades.

Features

  • Central processing for motor control and drive management.
  • Integrated FlashPROM for firmware and parameter storage.
  • On-board power supply monitoring with CPU reset protection at 4.75V.
  • Galvanically isolated digital I/O via optocouplers.
  • Configurable analog I/O for versatile process interfacing.
  • Supports communication protocols including PROFIBUS, MODBUS, and Ethernet.

Applications

  • Metals Industry: Rolling mills, pipe mills, and wire drawing applications.
  • Pulp and Paper: Winder drives and various processing machinery.
  • Material Handling: Conveyors, lifting equipment, and cable cars.
  • Non-Motor Applications: Electrolysis plants, magnet power supplies, and battery charging systems.

Technical Specifications

Model SDCS-CON-4 3ADT313900R1501
Supply Voltage 24V DC
Power Consumption 15-20W (typical)
Digital I/O 8 Inputs / 8 Outputs
Analog I/O 4 Inputs / 4 Outputs
Operating Temperature 0 degC to +55 degC
Storage Temperature -40 degC to +70 degC
Humidity 5-95% RH (non-condensing)

Installation Guidelines

  • ESD Precautions: This board contains highly sensitive electronic components. Always utilize a grounded wrist strap when handling to prevent electrostatic discharge damage.
  • Mounting: Install the module into the designated CPU rack of the DCS800 system. Ensure proper seating with compatible backplanes such as the SDCS-PIN-46 or SDCS-PIN-48.
  • Fiber Optics: When using fiber optic links, maintain a minimum bend radius of 35 mm and ensure fiber ends remain clean and untouched.
  • Safety: Never perform maintenance or wiring modifications while power is applied to the drive, as external circuits may remain energized.
  • Testing: Do not perform insulation resistance or high-voltage withstand tests on the drive module, as these will damage the internal circuitry.

FAQ

What is the primary function of the SDCS-CON-4?

The SDCS-CON-4 acts as the brain of the DCS800 drive, handling all internal logic, firmware, and communication between the drive and external control systems like PLCs.

Can this board store parameters?

Yes, parameters are stored in the onboard FlashPROM. While some parameters are saved automatically, others handled by cyclic communication must be saved using the ParApplSave service.

Is this board compatible with older drive series?

Yes, the SDCS-CON-4 is compatible with DCS600 series drives and is frequently used to modernize legacy drive control systems.
