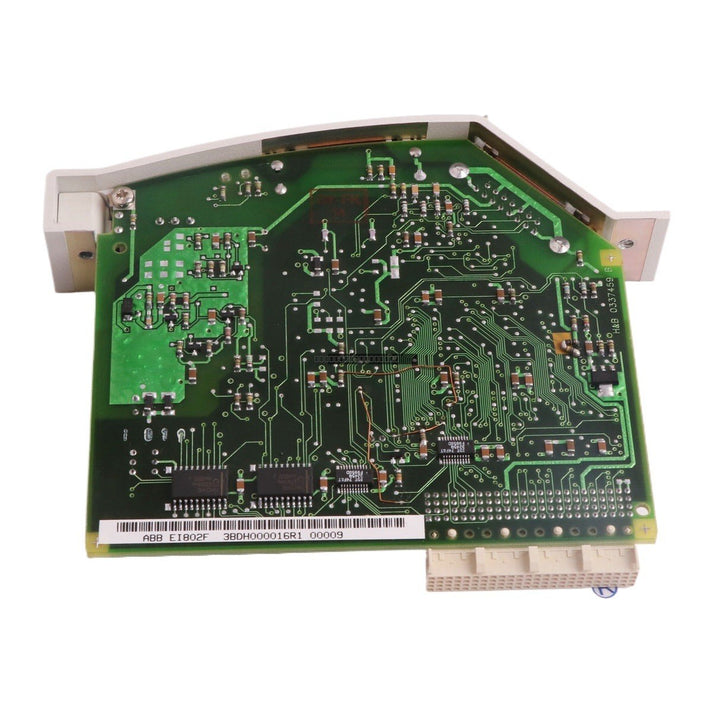

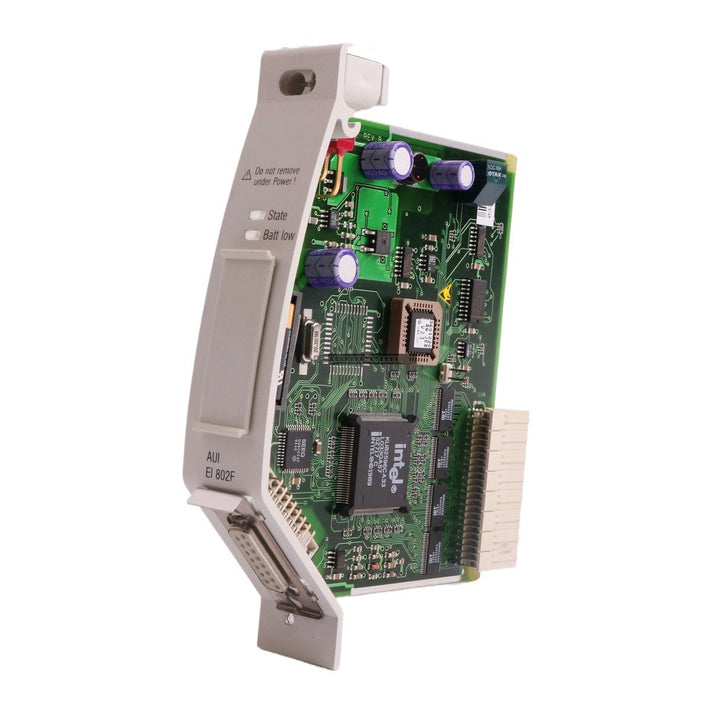

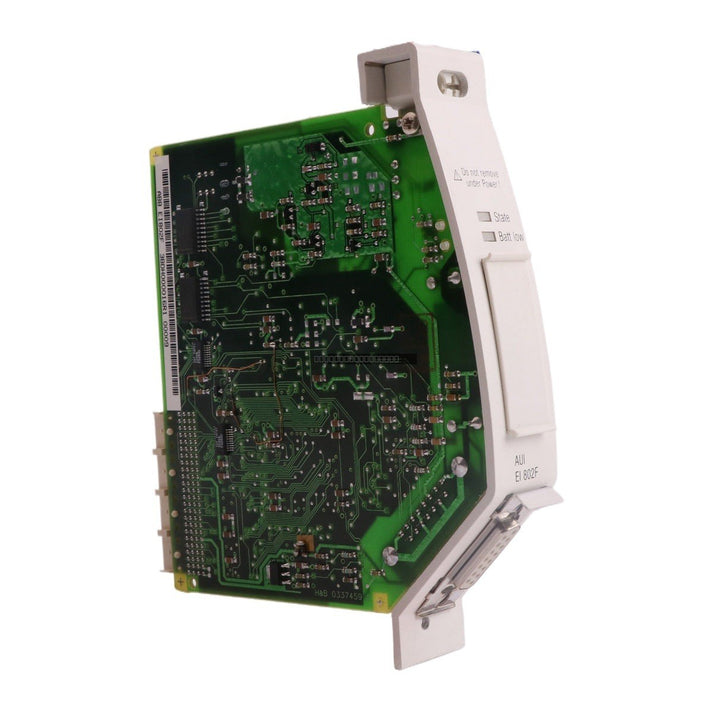

The ABB EI802F is an Ethernet Module designed for the Freelance 2000 control system. This module provides AUI (Attachment Unit Interface) connectivity, facilitating communication within the industrial automation network. It is engineered to support the robust data exchange requirements of the Freelance H&B (Hartmann & Braun) architecture.

Features

• Designed for integration with ABB Freelance 2000 systems.
• Provides AUI interface for network connectivity.
• Compact form factor suitable for standard control cabinet mounting.
• Reliable communication interface for distributed control environments.

Applications

This module is primarily utilized in industrial process control applications where Freelance 2000 controllers require Ethernet-based communication via AUI. It is commonly found in power generation, water treatment, and chemical processing facilities that rely on the Freelance platform for process management.

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before installing or removing the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Verify that the module is firmly seated in the designated slot to ensure proper backplane connection.
• Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified range for the Freelance system.

FAQ

What is the primary function of the EI802F module?
The EI802F serves as an Ethernet interface module with AUI support, enabling network communication for ABB Freelance 2000 control systems.

Is this module compatible with other Freelance versions?
The EI802F is specifically designed for the Freelance 2000 series. Please verify your system's hardware compatibility list or consult the original documentation before installation.

What does the AUI interface denote?
AUI stands for Attachment Unit Interface, which is a physical interface used for connecting Ethernet equipment, often requiring an external transceiver to convert to standard media types like 10Base-T or fiber.
