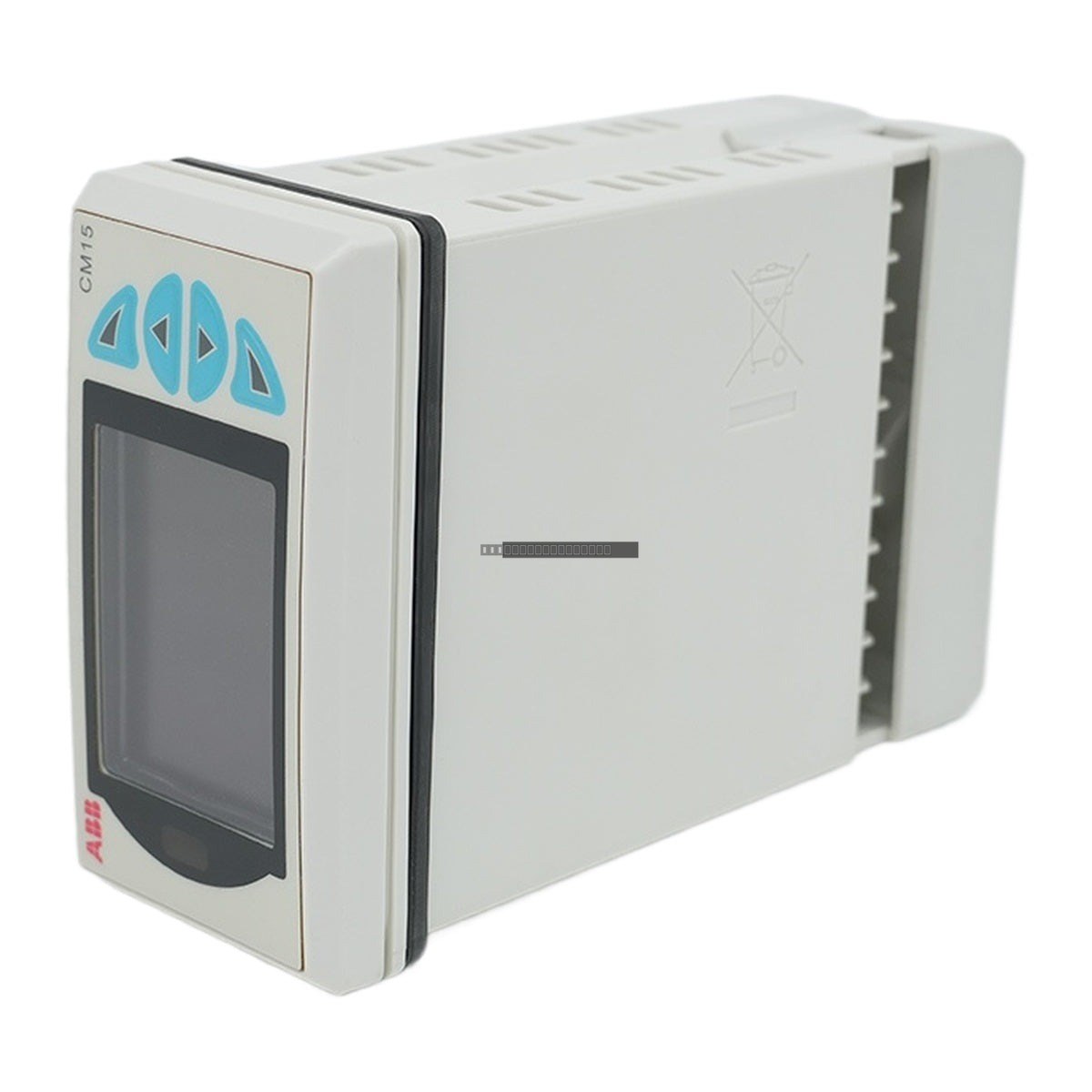

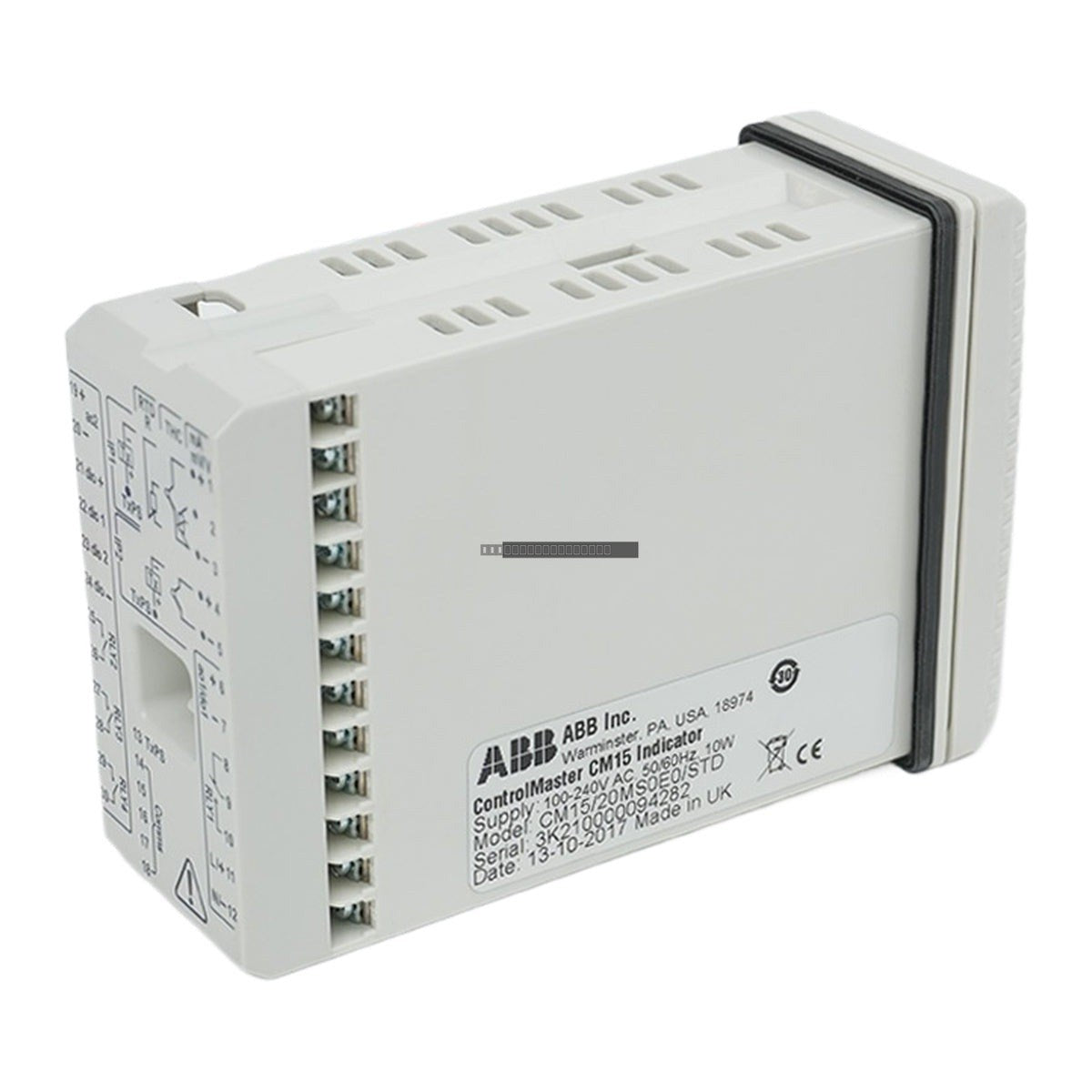

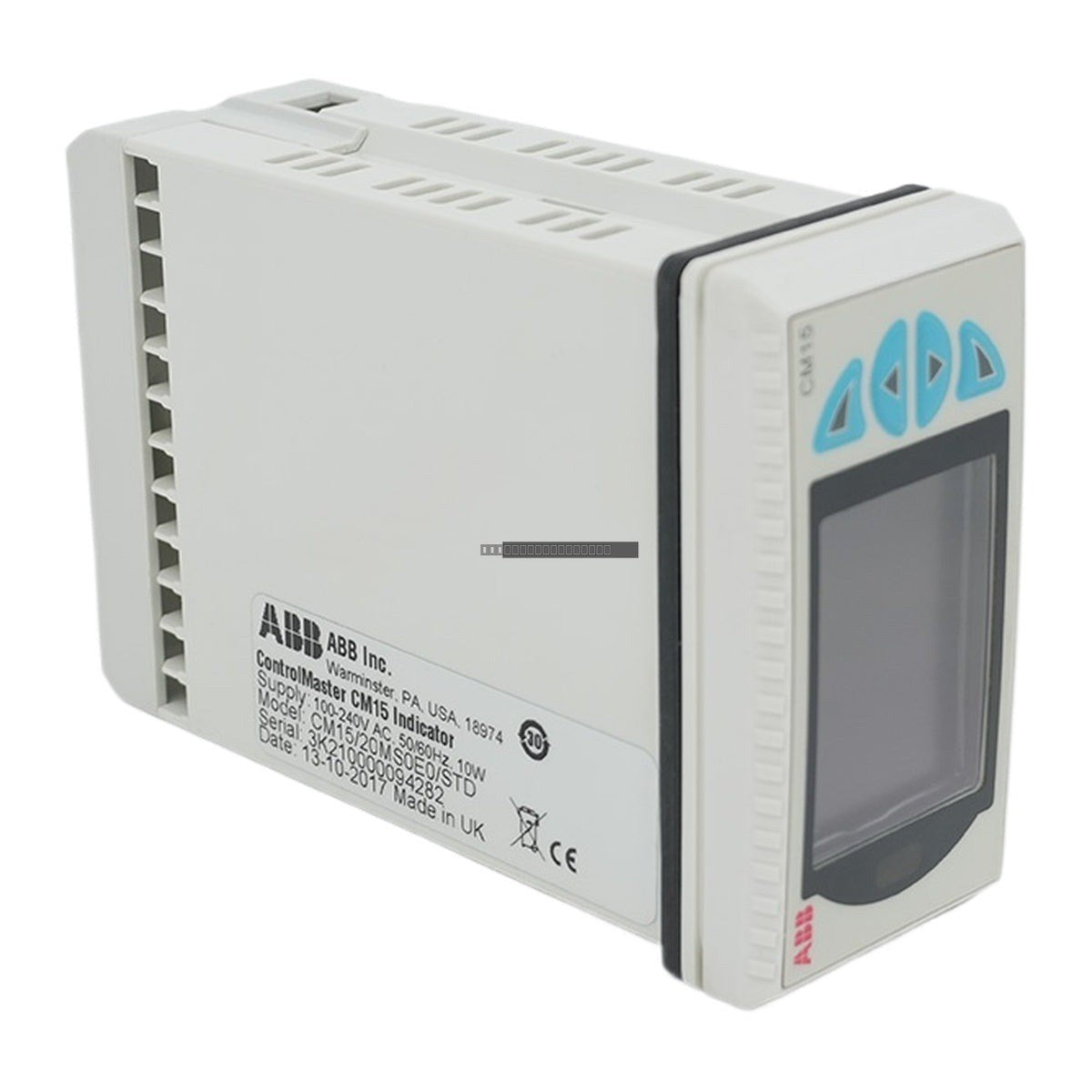

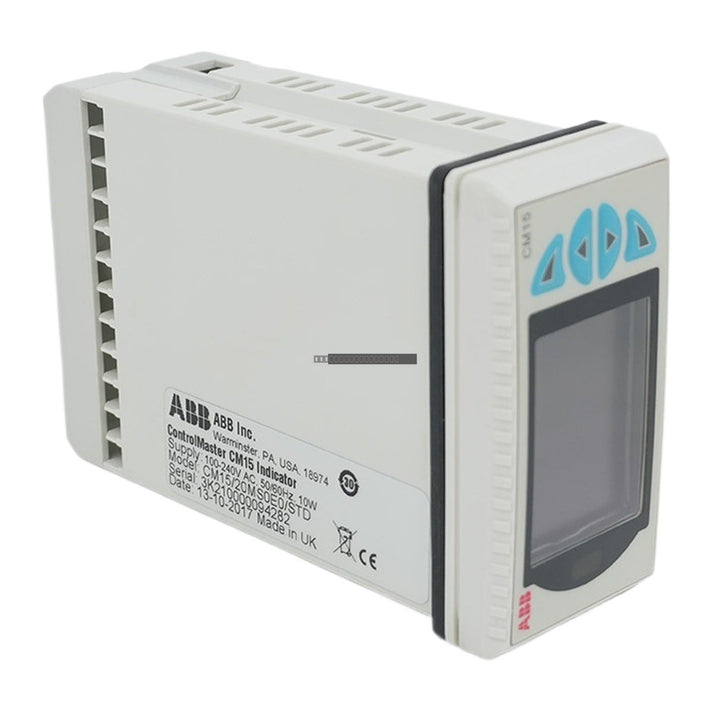

ABB CM15/20MS0E0/STD ControlMaster Universal Process Indicator

ABB CM15/20MS0E0/STD ControlMaster Universal Process Indicator

Description

The ABB ControlMaster CM15/20MS0E0/STD is a high-performance, 1/8 DIN universal process indicator designed for demanding industrial monitoring applications. Featuring a vibrant 5.5 cm (2.2 in.) full-color TFT display, it provides...

18 people are viewing this right now

Availability: Low stock: 9 left

SKU: CM15/20MS0E0/STD
Vendor: ABB
Category: Universal Process Indicator
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The ABB ControlMaster CM15/20MS0E0/STD is a high-performance, 1/8 DIN universal process indicator designed for demanding industrial monitoring applications. Featuring a vibrant 5.5 cm (2.2 in.) full-color TFT display, it provides clear, full-text presentation of process variables, alarm statuses, and diagnostic information, eliminating the need for complex scrolling menus. This unit is engineered for intuitive operation, rapid commissioning, and flexible integration into various control environments.

Features

  • Full-color TFT display with customizable templates for process visualization.
  • Universal input capability supporting thermocouples, RTDs, mA, V, mV, and frequency signals.
  • Advanced math, logic, and totalization functions for complex process requirements.
  • 4 tactile membrane keys for user-friendly configuration and operation.
  • Robust 1/8 DIN form factor suitable for panel mounting.
  • Integrated diagnostic logging to facilitate rapid troubleshooting and status monitoring.

Applications

  • Water & Wastewater: Ideal for flow totalization and precision level monitoring.
  • Food & Beverage: Suitable for monitoring batching, mashing, and malting parameters.
  • Chemical & Pharmaceutical: Provides high-precision variable tracking where reliability is critical.
  • General Manufacturing: Used in research labs and electrical engineering for versatile process indication.

Technical Specifications

Model CM15/20MS0E0/STD
Form Factor 1/8 DIN Panel Mount
Display 5.5 cm (2.2 in.) Full-color TFT
Power Supply 90 to 264 V AC, 50/60 Hz (Alternative: 10 to 36 V DC)
Analog Inputs 2
Analog Outputs 2
Digital I/O 2
Relays 4
Transmitter Power 24 V DC, 2 loops, 45 mA max
Operator Interface 4 tactile membrane keys

Installation Guidelines

  • Ensure the panel cutout is prepared to 1/8 DIN dimensions before mounting.
  • Use shielded cabling for all analog and frequency input signals to minimize EMI interference.
  • Verify power supply voltage matches the unit specifications (90-264 V AC or 10-36 V DC) before connection.
  • Ensure adequate ventilation around the unit to maintain operating temperature limits.
  • Always disconnect power before performing any wiring or module maintenance.
  • Follow standard ESD precautions when handling the device to protect internal circuitry.

FAQ

What is the primary function of the CM15/20MS0E0/STD?

It serves as a universal process indicator that accepts various sensor inputs and displays them on a high-resolution color screen, providing real-time monitoring and alarm management for industrial processes.

Does this unit support flow measurement?

Yes, the CM15 is capable of accepting frequency signals from flowmeters, allowing for direct flow rate display and totalization.

How are alarms managed?

The device features a dedicated diagnostic and alarm status display that provides clear, full-text information on active conditions, allowing operators to identify and troubleshoot issues quickly.
