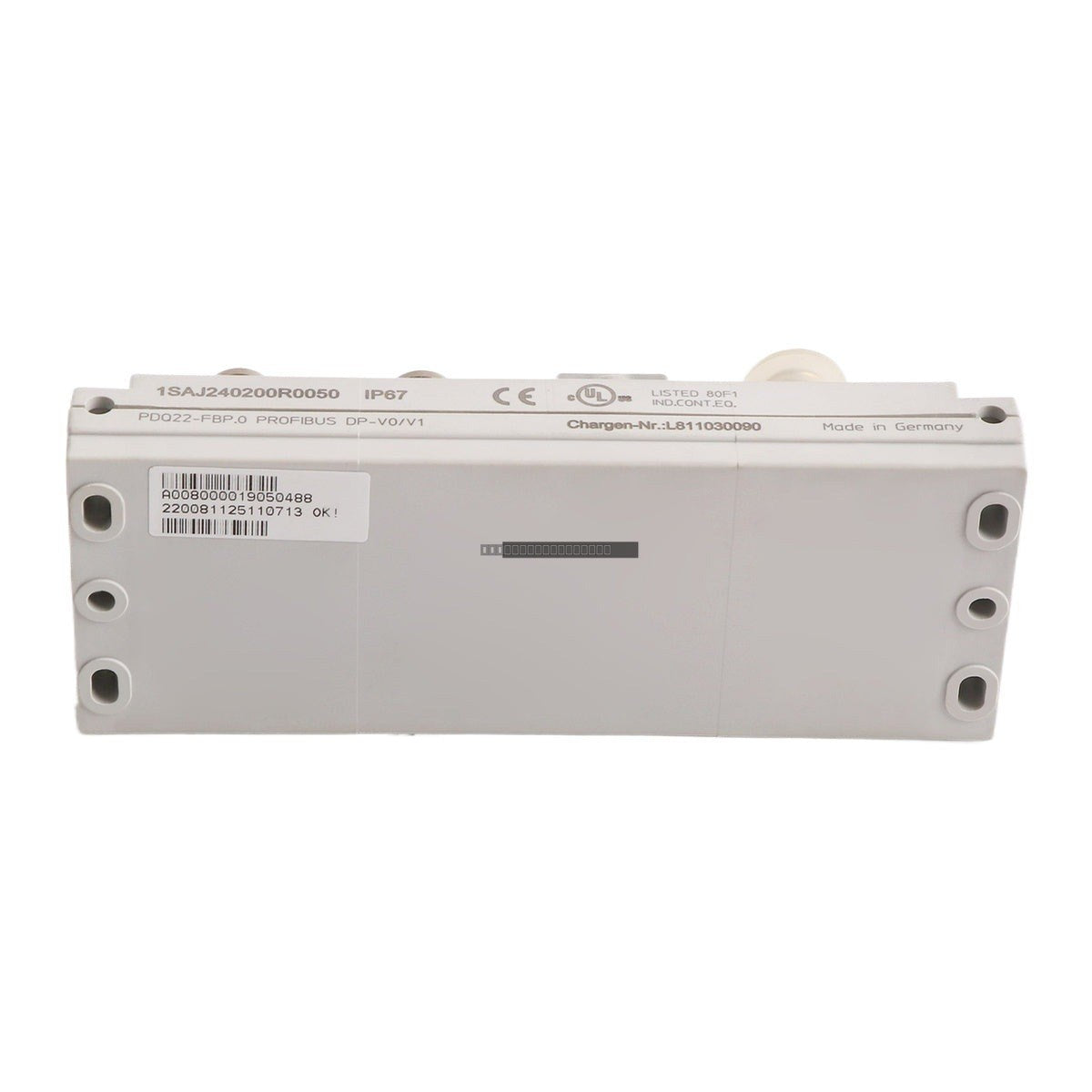

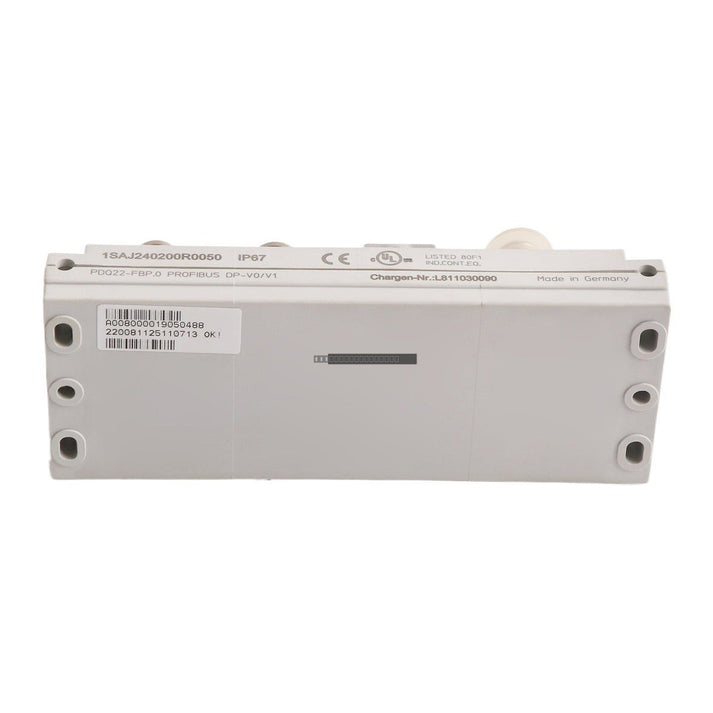

ABB PDQ22-FBP.0 1SAJ240200R0050 PROFIBUS Fieldbus Interface

ABB PDQ22-FBP.0 1SAJ240200R0050 PROFIBUS Fieldbus Interface

Description

The ABB PDQ22-FBP.0 (1SAJ240200R0050) is a PROFIBUS fieldbus interface designed for seamless integration within industrial communication networks. This quad connector module facilitates reliable data exchange between field devices and the...

26 people are viewing this right now

Availability: Low stock: 5 left

SKU: PDQ22-FBP.0 1SAJ240200R0050
Vendor: ABB
Category: Fieldbus Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

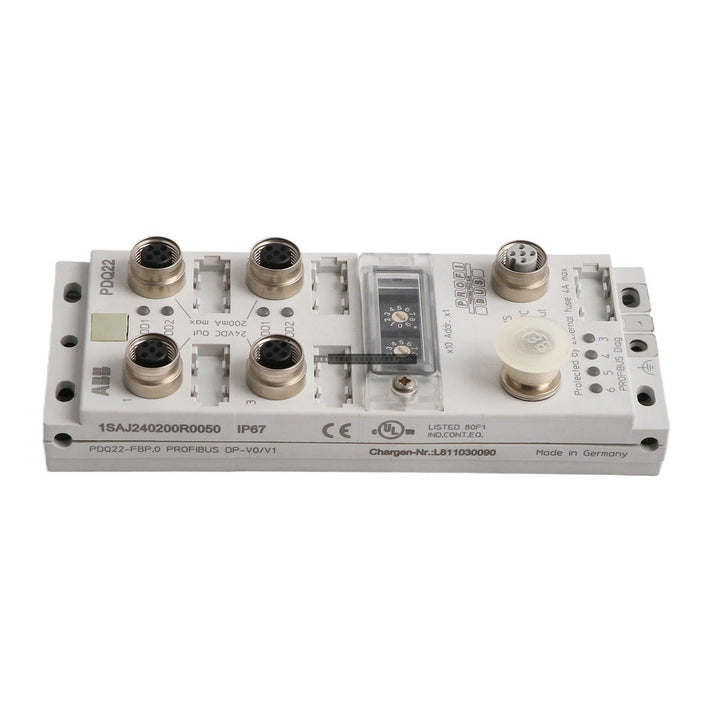

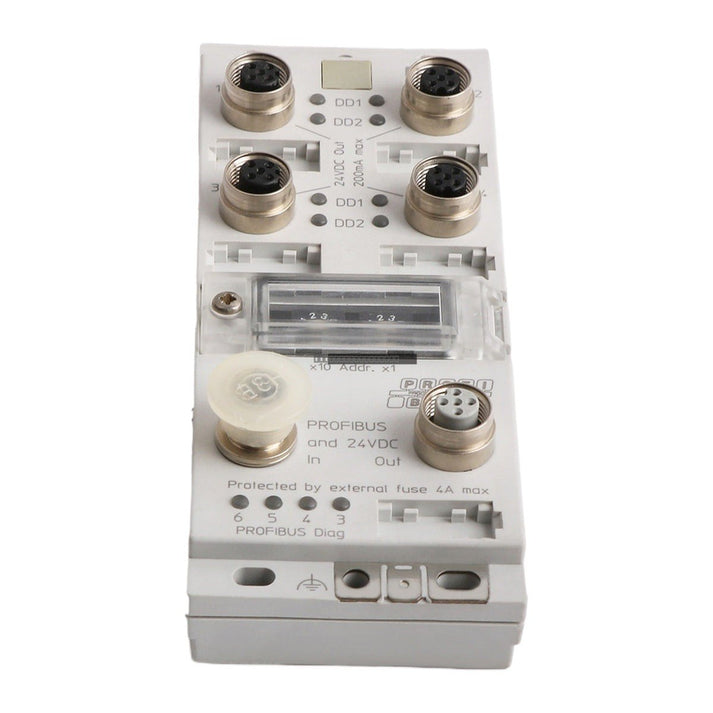

The ABB PDQ22-FBP.0 (1SAJ240200R0050) is a PROFIBUS fieldbus interface designed for seamless integration within industrial communication networks. This quad connector module facilitates reliable data exchange between field devices and the PROFIBUS DP master, ensuring robust connectivity in automated control environments.

Features

  • Supports a wide range of baud rates from 9.6 kbit/s up to 12 Mbit/s.
  • Compact design optimized for efficient space utilization in control cabinets.
  • Low power dissipation of 0.75 W, supporting energy-efficient system operation.
  • Integrated diagnostic capabilities for fieldbus communication monitoring.
  • Designed for standard 24 V DC industrial power supply environments.

Technical Specifications

Product Model PDQ22-FBP.0
Order Code 1SAJ240200R0050
Supply Voltage 24 V DC
Current Consumption 24 mA
Power Dissipation 0.75 W
Baud Rate 9.6 kbit/s – 12 Mbit/s
Operating Temperature 0 to +55 degC
Storage Temperature -20 to +70 degC

Installation Guidelines

  • Ensure the power is disconnected before installing or removing the module to prevent electrical damage.
  • Mount the device in an environment free from excessive vibration and dust.
  • Maintain proper clearance for cooling to ensure the module operates within its specified temperature range.
  • Use shielded PROFIBUS-compliant cabling to minimize electromagnetic interference (EMI) in high-noise industrial areas.
  • Verify that the 24 V DC supply is stable and correctly polarized before energizing the unit.

FAQ

What is the primary function of the PDQ22-FBP.0?

The PDQ22-FBP.0 acts as a PROFIBUS fieldbus interface, allowing field devices to communicate effectively over a PROFIBUS DP network.

What is the maximum baud rate supported by this interface?

This module supports communication speeds up to 12 Mbit/s.

Is this module suitable for high-temperature environments?

The device is rated for an operating temperature range of 0 to +55 degC. Ensure the installation location does not exceed these limits for reliable performance.
