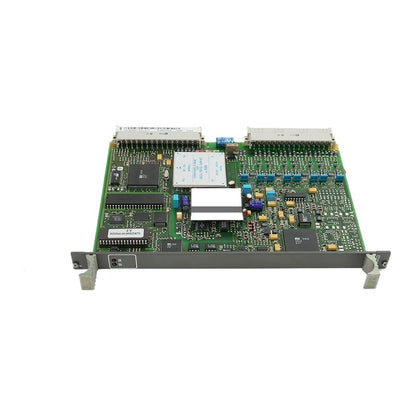

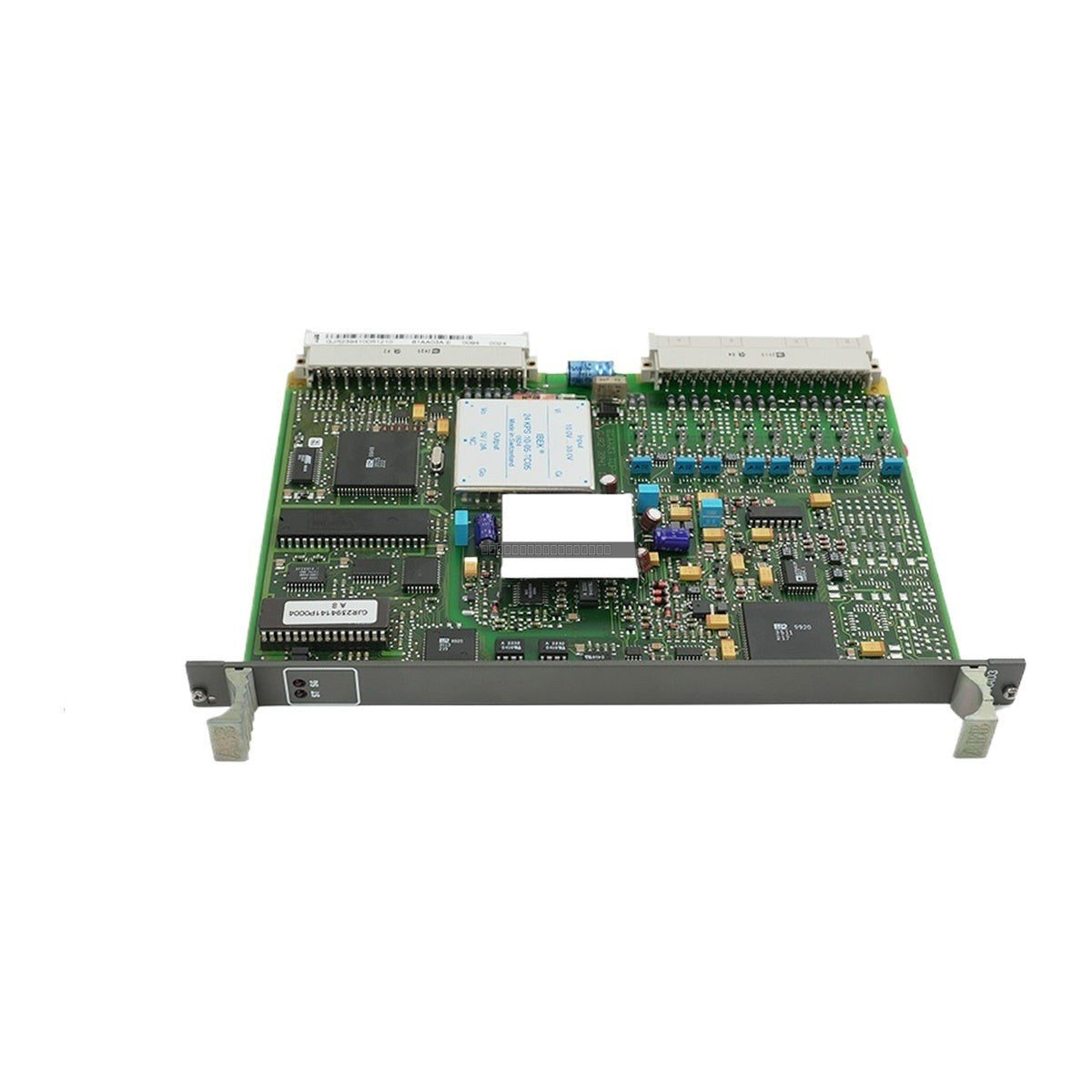

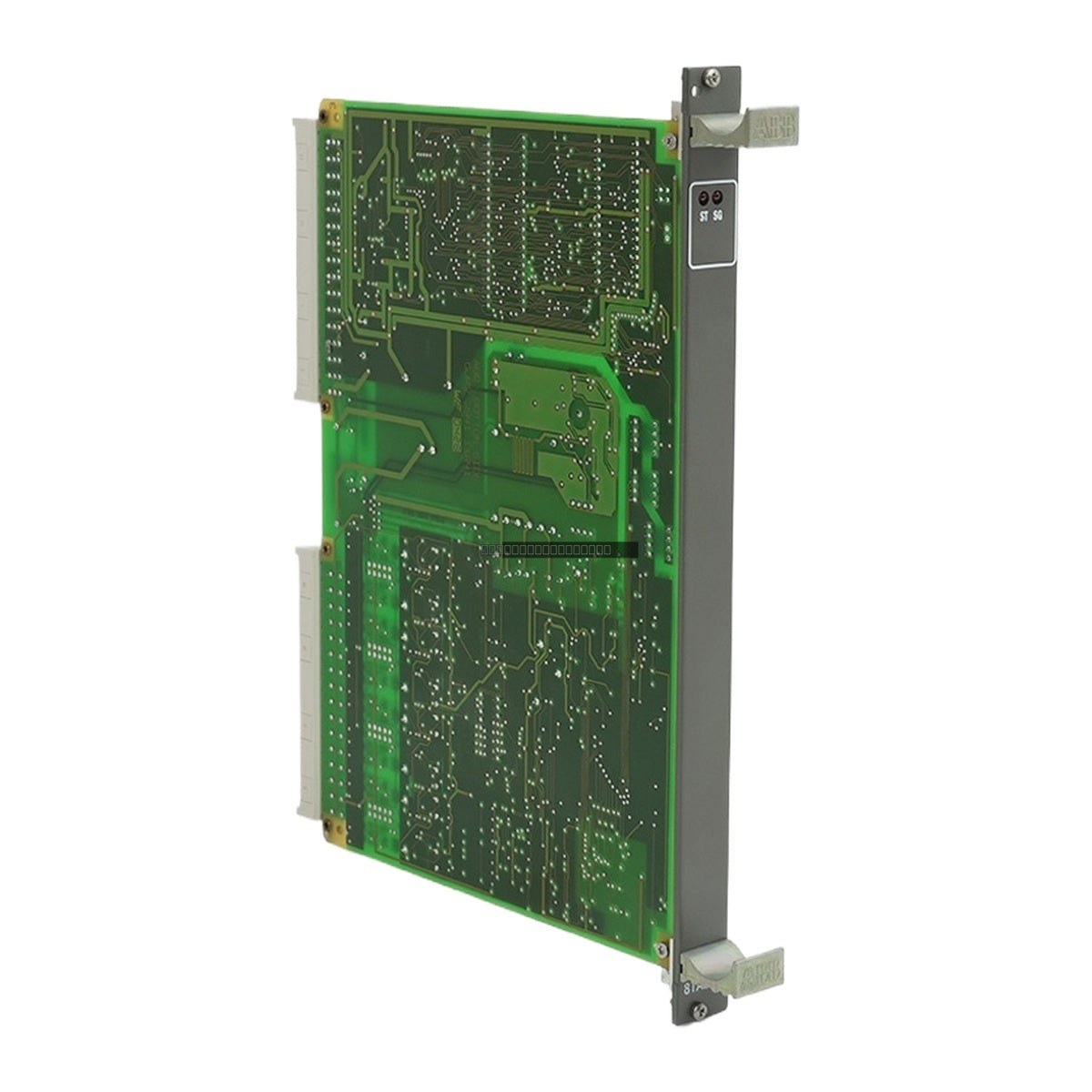

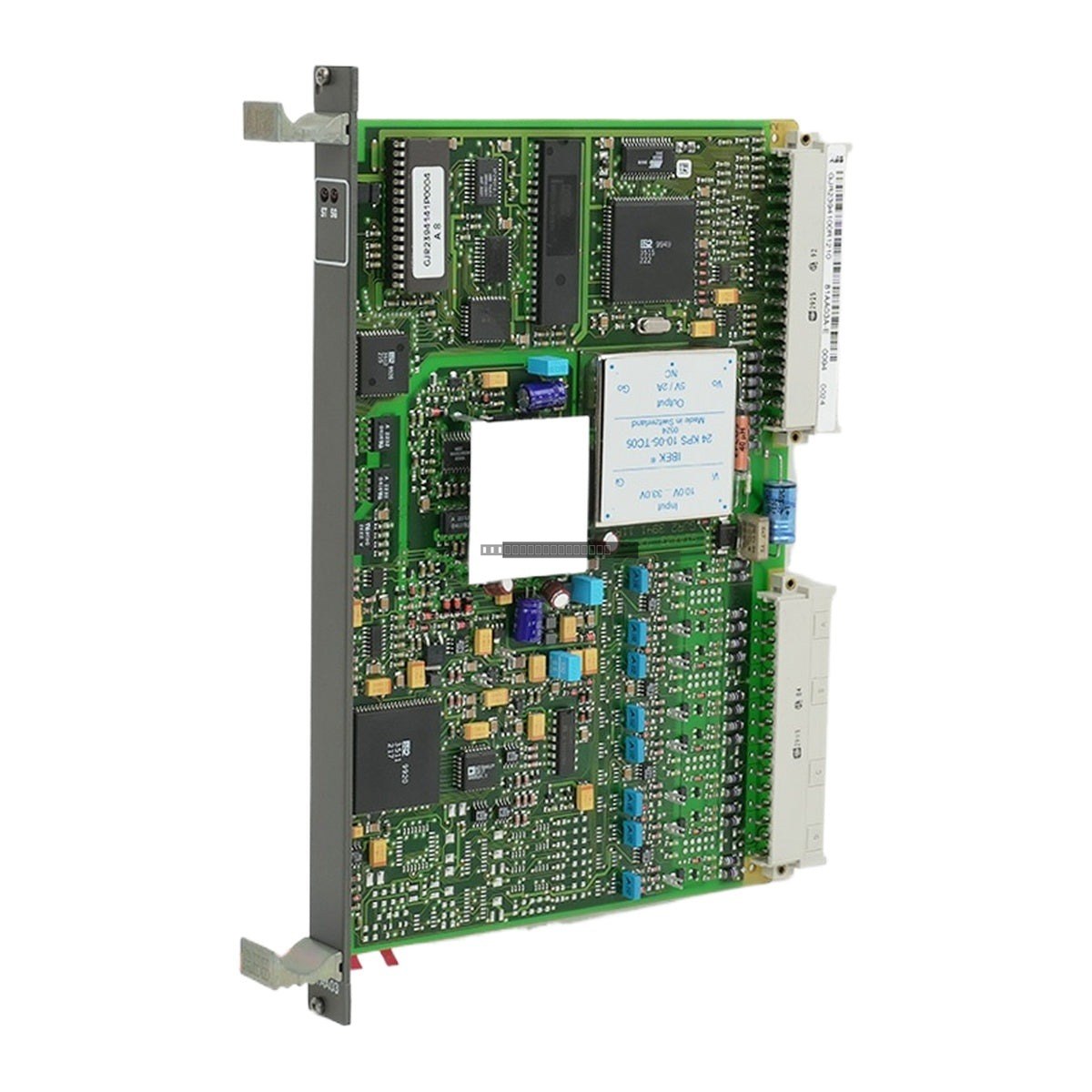

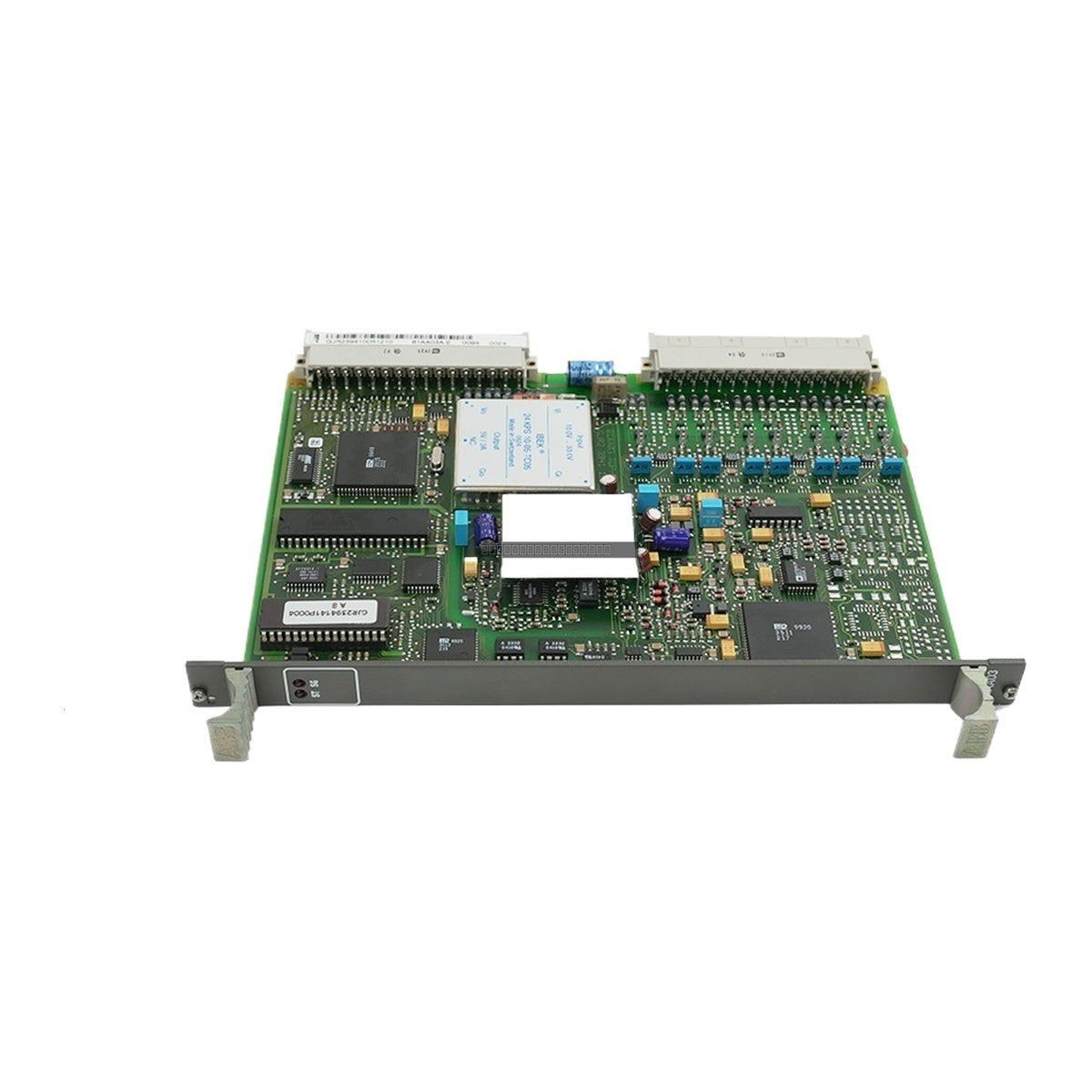

The ABB GJR2394100R1210 (81AA03A-E) is an 8-channel analog output module engineered for the Procontrol P14 distributed control system. This module serves as a critical interface for industrial automation, converting digital control commands from the station bus into precise analog current signals required for field device operation.

Features

  • 8-channel analog output configuration
  • Compatible with Procontrol P14 system architecture
  • Selectable output ranges: 0 to 20 mA or 4 to 20 mA
  • Integrated channel-to-bus isolation for signal integrity
  • Designed for high-reliability industrial control applications

Applications

This module is typically deployed in large-scale industrial environments including power generation facilities, steel production plants, and chemical processing units. It is primarily used to drive field actuators, control valves, and other analog-controlled instrumentation requiring standard current loop signals.

Technical Specifications

Model GJR2394100R1210 (81AA03A-E)
Channels 8
Output Range 0-20 mA / 4-20 mA
Logic Supply 24 V DC
Load Resistance ≤ 750 Ohm
Isolation 500 V DC (channel-to-bus)
Operating Temperature -25 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5-95% RH (non-condensing)

Installation Guidelines

  • Ensure the system power is completely disconnected before inserting or removing the module from the rack.
  • Verify that the module is correctly seated in the designated Procontrol P14 rack slot to ensure proper backplane connection.
  • Use shielded twisted-pair cabling for analog signal runs to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the control cabinet to prevent ground loops and signal noise.
  • Ensure adequate ventilation within the cabinet to maintain ambient temperatures within the specified -25 to +70 degC range.
  • Handle the module using ESD-safe procedures to prevent damage to internal electronic components.

FAQs

What is the primary function of the ABB 81AA03A-E?

The 81AA03A-E is an analog output module designed to convert digital signals from the Procontrol P14 station bus into 0-20 mA or 4-20 mA current signals for controlling field instrumentation.

How many channels does this module support?

This module features 8 independent analog output channels.

What is the required logic supply voltage?

The module operates on a 24 V DC logic supply.

Does this module provide electrical isolation?

Yes, the module provides 500 V DC isolation between the output channels and the system bus.
