ABB Procontrol P14 HESG447220R4 70EB02C-ES Input Module for Contacts

ABB Procontrol P14 HESG447220R4 70EB02C-ES Input Module for Contacts

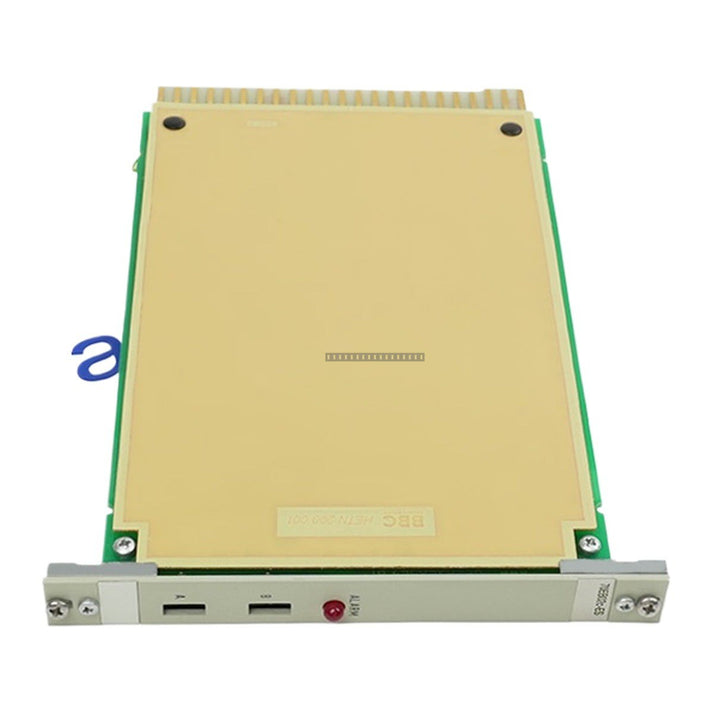

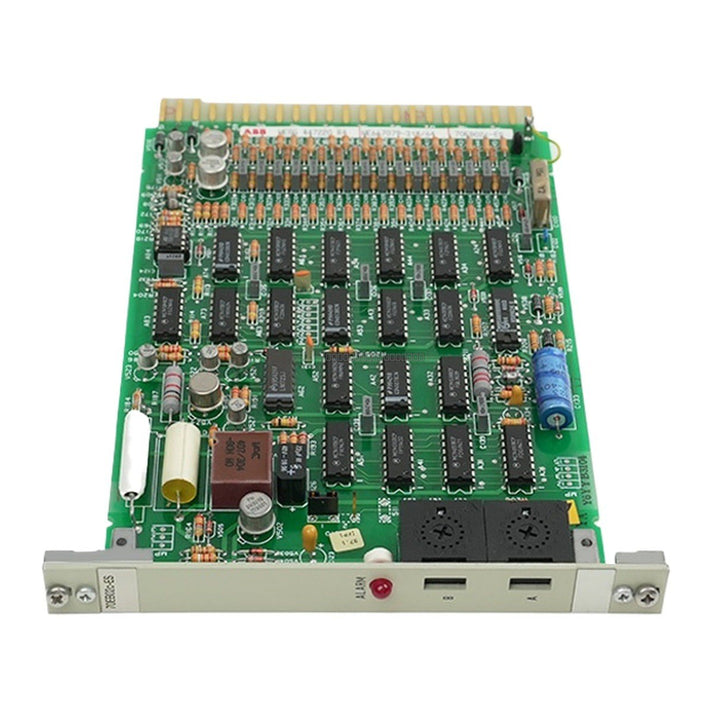

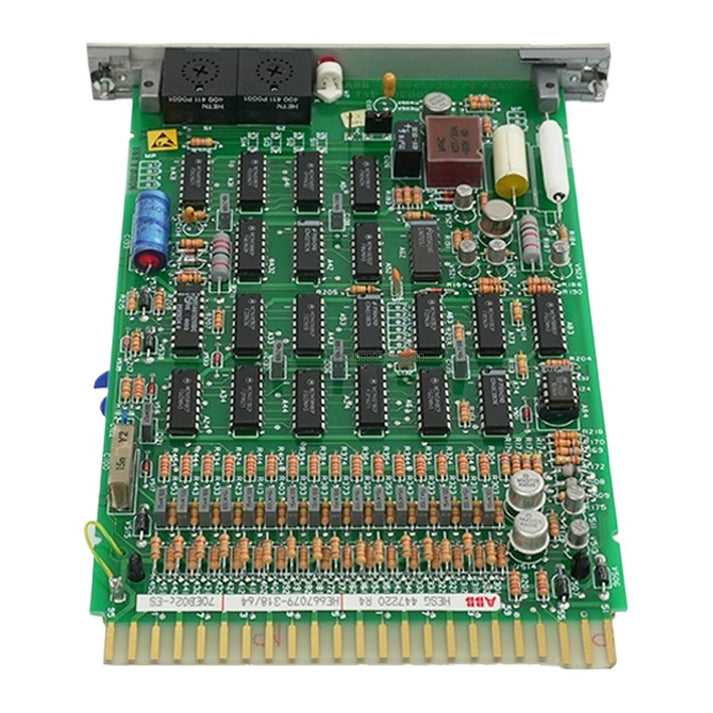

The ABB HESG447220R4 70EB02C-ES is a high-reliability input module designed for the Procontrol P13/P14 automation platform. This module is specifically engineered to interface with contact-based signals, providing 16 channels for...

23 people are viewing this right now

Availability: Low stock: 3 left

SKU: HESG447220R4 70EB02C-ES
Vendor: ABB
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB HESG447220R4 70EB02C-ES is a high-reliability input module designed for the Procontrol P13/P14 automation platform. This module is specifically engineered to interface with contact-based signals, providing 16 channels for VDC logic monitoring in demanding industrial environments, including power generation and distribution facilities.

Features

  • 16-channel input capacity for contact signal monitoring.
  • Designed for integration within the Procontrol P13/P14 distributed control system architecture.
  • Supports both single-throw and double-throw contact configurations.
  • Provides 48Vdc wetting for dry contact devices.
  • High-speed data update rate of 50µs.
  • Integrated diagnostic capabilities for system monitoring.

Applications

The Procontrol P13 platform is widely utilized in critical infrastructure, including fossil fuel, gas turbine, combined cycle, hydropower, and nuclear power plants. This module is suitable for open-loop and closed-loop control, turbine protection, and substation automation applications.

Technical Specifications

Model HESG447220R4 70EB02C-ES
Channels 16
Input Voltage Range 24Vdc to 48Vdc
Logic '0' Level -24Vdc to 0Vdc
Logic '1' Level +2Vdc to +30Vdc
Max Input Voltage 50V
Input Resistance 9kΩ to -24V
Data Update Rate 50µs
Input Response 22Hz
Output Format 16-bit Binary Word

Installation Guidelines

  • Ensure the system power is completely disconnected before installing or removing the module from the rack.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
  • Verify that the field wiring matches the specified voltage levels (24Vdc/48Vdc) to avoid damage to the input channels.
  • Ensure the module is securely seated in the designated Procontrol rack slot to maintain proper bus communication.
  • Route signal cables away from high-voltage or high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the ABB 70EB02C-ES?

It is a 16-channel input module designed to process contact signals, serving as a critical interface component within the ABB Procontrol P13/P14 DCS.

What type of contacts does this module support?

The module is designed to interface with both single-throw and double-throw contact devices, utilizing 48Vdc wetting for reliable operation with dry contacts.
