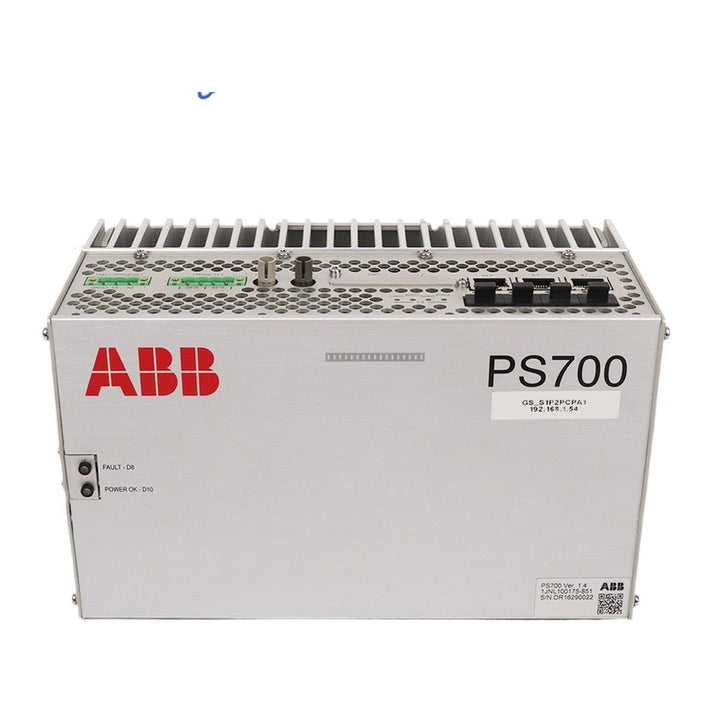

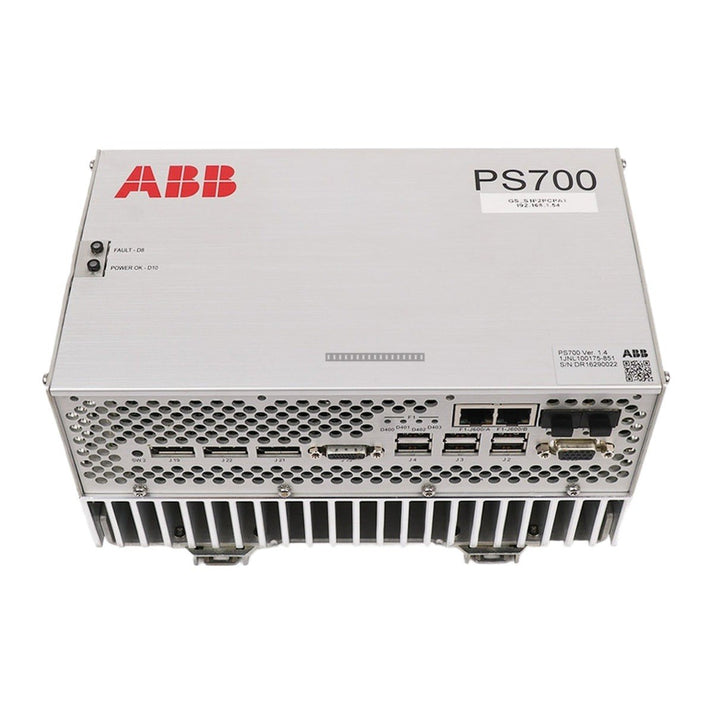

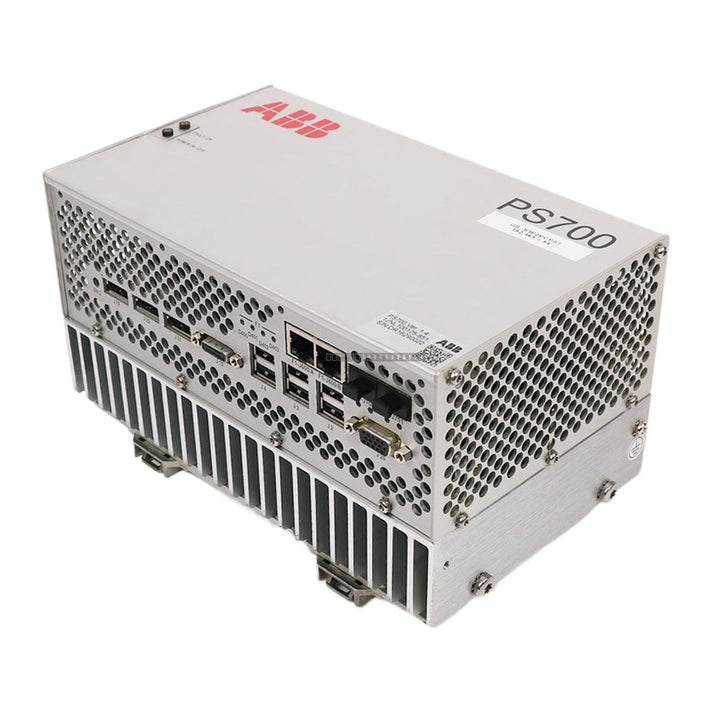

ABB PS700 1JNL100175-851 Mach 3 Distributed I/O Unit

ABB PS700 1JNL100175-851 Mach 3 Distributed I/O Unit

The ABB PS700 1JNL100175-851 is a high-performance Mach 3 Distributed I/O unit designed for demanding industrial automation environments. This module provides a robust interface for both digital and analog signal...

23 people are viewing this right now

Availability: Low stock: 8 left

SKU: PS700 1JNL100175-851
Vendor: ABB
Category: Distributed I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB PS700 1JNL100175-851 is a high-performance Mach 3 Distributed I/O unit designed for demanding industrial automation environments. This module provides a robust interface for both digital and analog signal processing, ensuring reliable data acquisition and control within distributed architectures.

Features

  • Integrated support for PROFINET IO and Modbus TCP protocols.
  • High-speed data communication at 100Mbps (full duplex).
  • Synchronized cycle times of 1ms or less with minimal jitter.
  • High-resolution 16-bit analog signal processing.
  • Galvanic isolation rated at 1500V AC for enhanced system protection.

Technical Specifications

Product Model PS700 1JNL100175-851
Input Voltage 24V DC (19.2-30V)
Power Consumption 12W (typical), 18W (max)
Digital Channels 32
Analog Channels 8 (16-bit resolution)
Operating Temperature -25 degC to +60 degC
Storage Temperature -40 degC to +85 degC
Humidity 5-95% RH (non-condensing)
Vibration Resistance 5g at 10-150Hz

Installation Guidelines

  • Ensure the module is mounted in a clean, dry environment with adequate ventilation to maintain operating temperatures within the specified range.
  • Always disconnect power before installing or removing the module from the backplane to prevent electrical damage.
  • Use shielded cabling for all I/O connections to minimize electromagnetic interference (EMI) in high-noise industrial areas.
  • Verify that the 24V DC power supply is stable and within the 19.2-30V range before energizing the unit.
  • Ensure proper grounding of the chassis to the system earth to maintain signal integrity and safety.

FAQ

What communication protocols are supported by this unit?

The PS700 1JNL100175-851 supports PROFINET IO and Modbus TCP protocols for seamless integration into standard industrial networks.

What is the primary function of this module?

This is a Mach 3 Distributed I/O unit, which serves as a remote interface to collect digital and analog signals and communicate them to a central controller over an Ethernet-based network.
