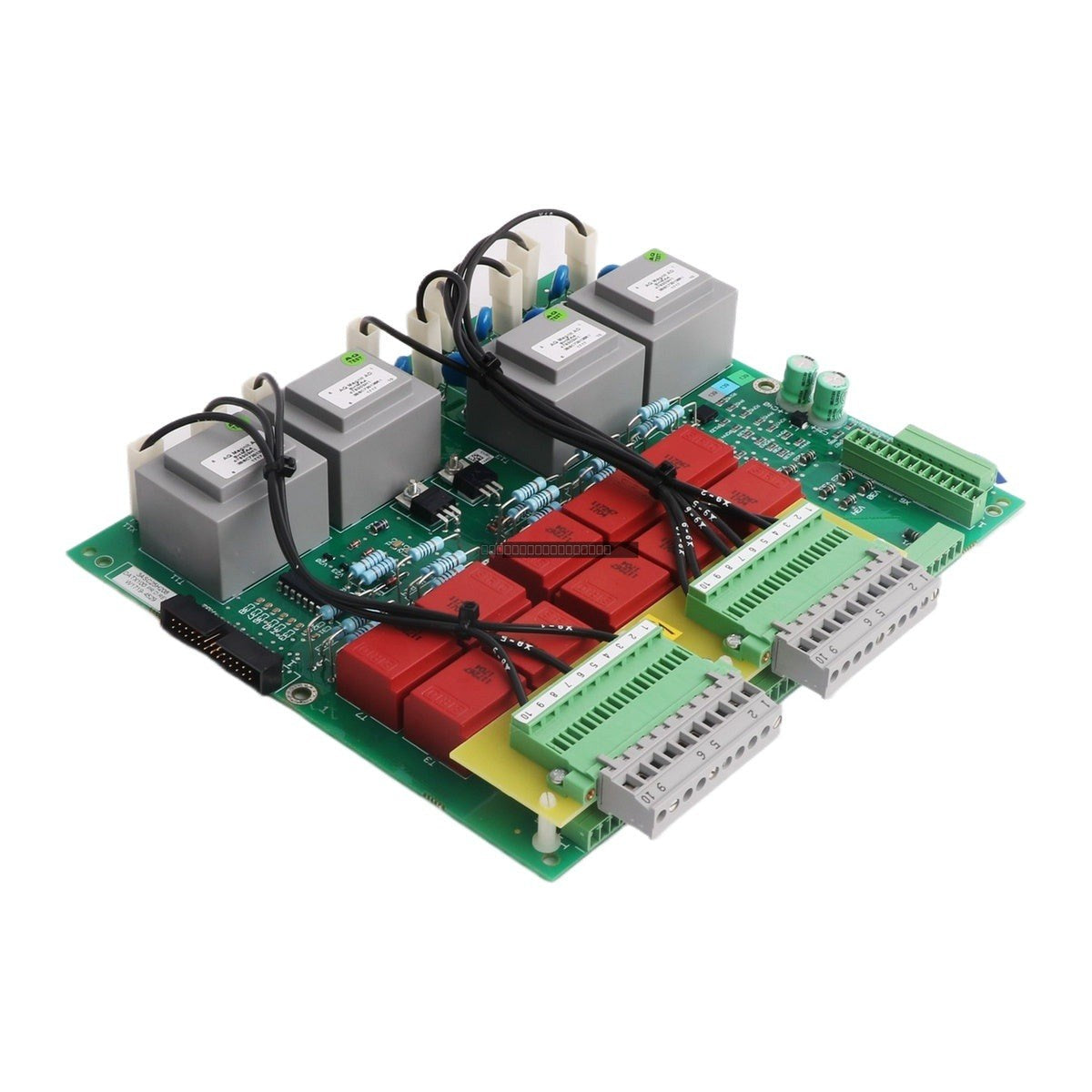

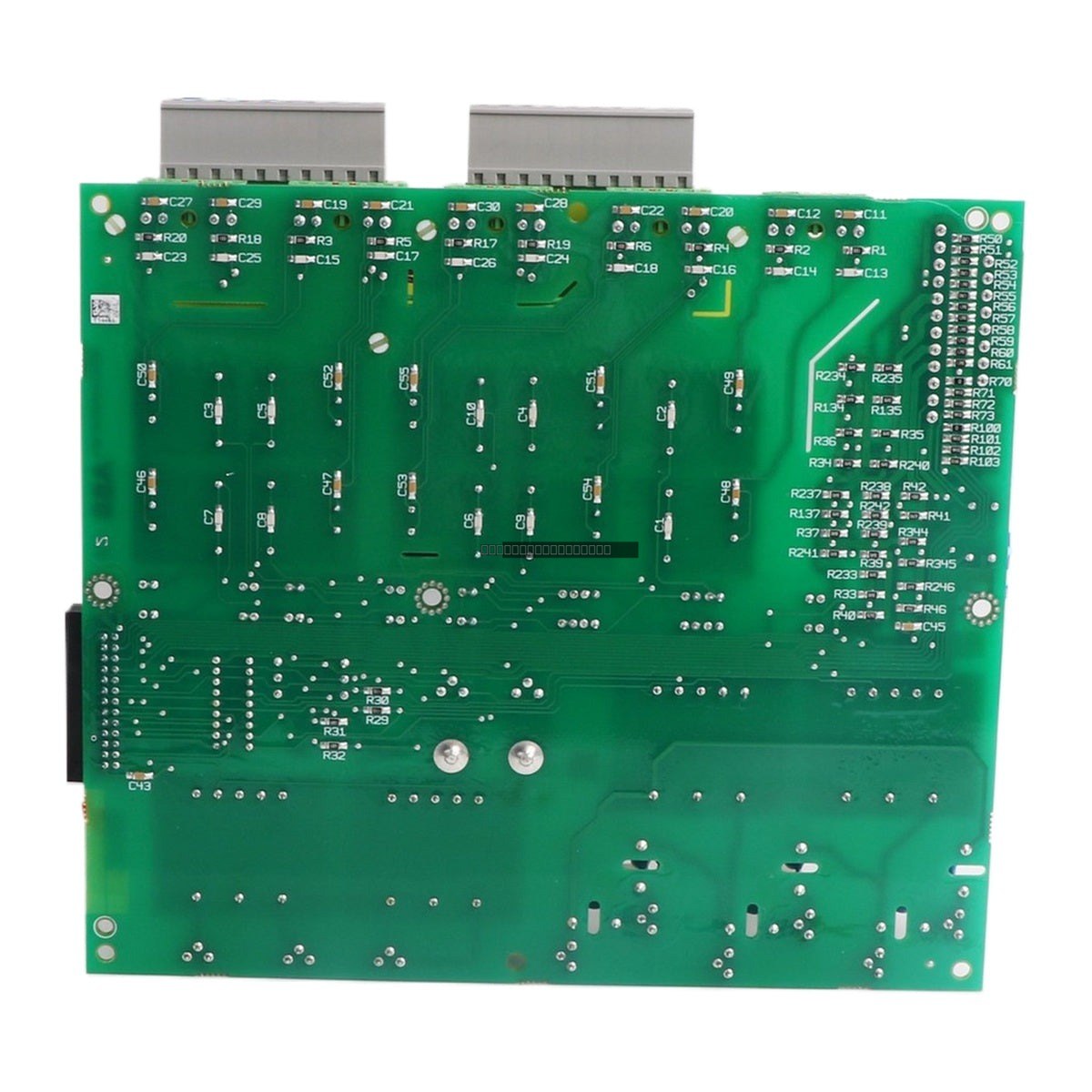

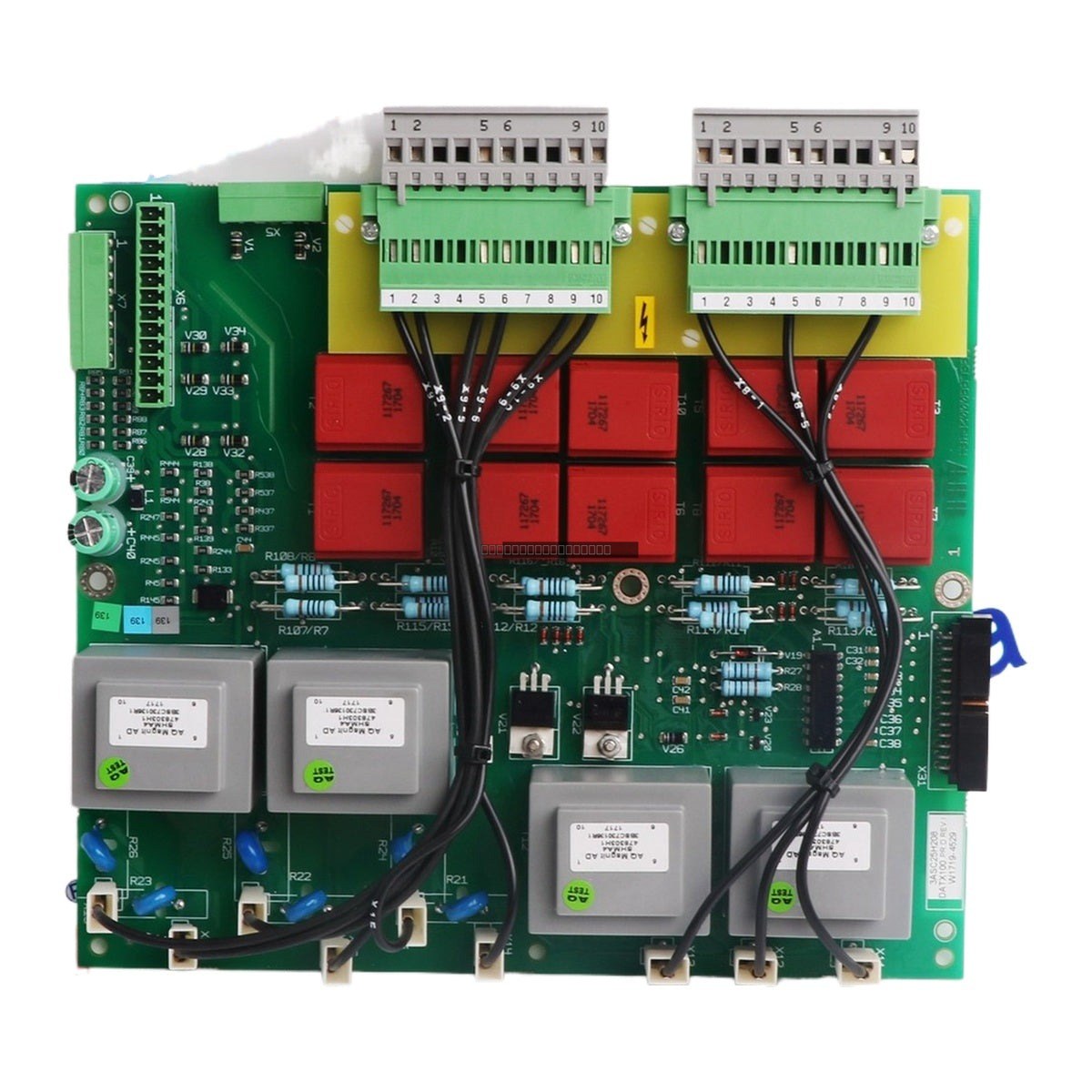

ABB DATX100 3ASC25H208 Pulse Transformer Board

ABB DATX100 3ASC25H208 Pulse Transformer Board

The ABB DATX100 (3ASC25H208) is a pulse transformer board designed for integration within ABB robotic control systems. This component provides critical signal isolation and pulse transformation, ensuring reliable communication and...

28 people are viewing this right now

Availability: Low stock: 8 left

SKU: DATX100 3ASC25H208
Vendor: ABB
Category: Pulse Transformer Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB DATX100 (3ASC25H208) is a pulse transformer board designed for integration within ABB robotic control systems. This component provides critical signal isolation and pulse transformation, ensuring reliable communication and power distribution within the robot's internal control architecture.

Features

  • Optimized for high-frequency pulse applications within the 1–50 kHz range.
  • Robust isolation voltage rating of typically 4 kV or greater.
  • Designed for standard primary voltage inputs ranging from 5 V to 24 V DC.
  • Capable of handling peak currents between 2 A and 5 A.
  • Engineered for precise signal integrity in demanding industrial environments.

Technical Specifications

Product Model DATX100 3ASC25H208
Spare Part Number 3ASC25H208
Component Type Pulse Transformer Board
Manufacturer ABB
Isolation Voltage >= 4 kV
Frequency Range 1 - 50 kHz
Primary Voltage 5 - 24 V DC
Peak Current 2 - 5 A
Tariff Code 8537101190

Installation Guidelines

Installation of the DATX100 board should be performed by qualified personnel familiar with ABB robotic control hardware. Ensure the following practices are observed:

  • Always disconnect the main power supply to the robot controller before attempting to install or remove the board.
  • Observe standard ESD (Electrostatic Discharge) precautions when handling the PCB to prevent damage to sensitive components.
  • Ensure the board is securely seated in its designated slot and that all connectors are fully engaged.
  • Verify that the environment is free from excessive vibration, moisture, and conductive dust.
  • Check that all wiring connections are tight and routed away from high-power EMI sources to maintain signal integrity.

FAQ

What is the primary function of the DATX100 board?
The DATX100 is a pulse transformer board used in ABB robotic systems to provide electrical isolation and signal transformation for control pulses.

Is this part compatible with all ABB robots?
This board is specific to systems requiring the DATX100 / 3ASC25H208 configuration. Please verify your existing part number or consult your robot's technical manual to ensure compatibility.
