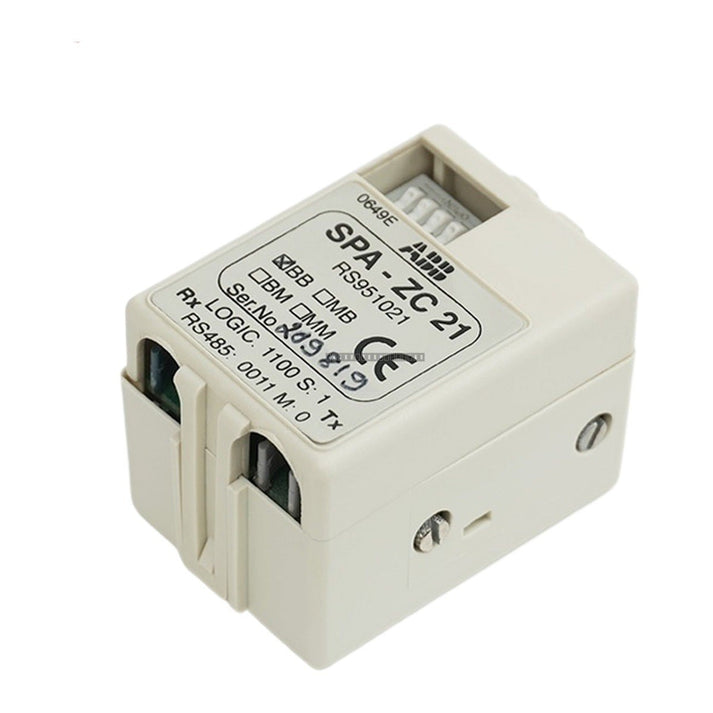

ABB SPA-ZC21 Bus Connection Module

ABB SPA-ZC21 Bus Connection Module

The ABB SPA-ZC21 is a specialized bus connection module designed to interface SPACOM secondary devices with a fiber-optic SPA bus. This unit functions as an electrical-to-optical converter, facilitating communication between...

23 people are viewing this right now

Availability: Low stock: 8 left

SKU: SPA-ZC21
Vendor: ABB
Category: Bus Connection Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB SPA-ZC21 is a specialized bus connection module designed to interface SPACOM secondary devices with a fiber-optic SPA bus. This unit functions as an electrical-to-optical converter, facilitating communication between substation secondary devices and higher-level monitoring or control systems.

Features

  • Standardized SPA to RS-485 conversion
  • Supports multiple relay configurations
  • Flexible optical interface options for glass or plastic fiber
  • Selectable data transfer rates (300 to 19,200 bit/s)
  • Integrated DIP switch configuration for master/slave and communication mode selection

Technical Specifications

Model SPA-ZC21
Function Bus connection module
Host Interface 9-pin D-sub male
Baud Rate 300 – 19,200 bit/s
Isolation 1500 V DC
Operating Temperature -25 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5 – 95 % RH (non-condensing)
Tariff Code 8537101190

Installation Guidelines

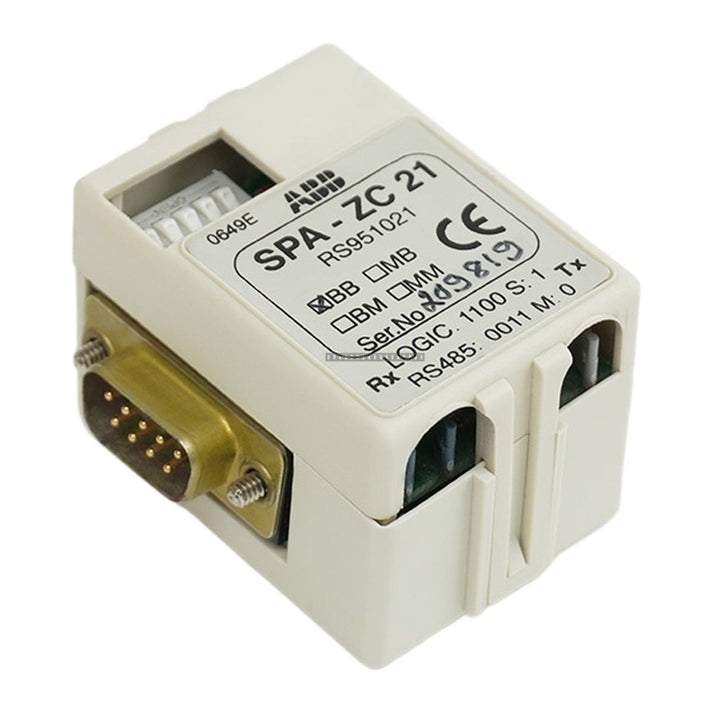

  • The module is designed to plug directly into the 9-pin D-type subminiature connector on the rear plate of the host SPACOM device.
  • Ensure the device is powered down before installation or removal of the module.
  • Configure the communication mode (SPA or RS485) and echo checking (Slave/Master) using the front-panel DIP switches prior to commissioning.
  • If fiber routing requires adjustment, the internal PCB can be rotated 180 degrees by removing the two cross-slotted screws and reassembling the cover accordingly.
  • Handle with standard ESD precautions to prevent damage to internal circuitry.

FAQ

What is the primary function of the SPA-ZC21?

It connects substation secondary devices, such as relays, to a fiber-optic SPA bus system, allowing seamless data transmission between the device and a higher-level system.

What devices is it compatible with?

The module is compatible with any SPACOM device equipped with a 9-pin D-type connector.

Does the module require configuration?

Yes, the module requires configuration via front-panel DIP switches for communication mode (SPA vs RS485) and echo checking (Master/Slave). Additionally, the internal PCB orientation may be adjusted to match specific fiber-optic cable requirements.
