Description

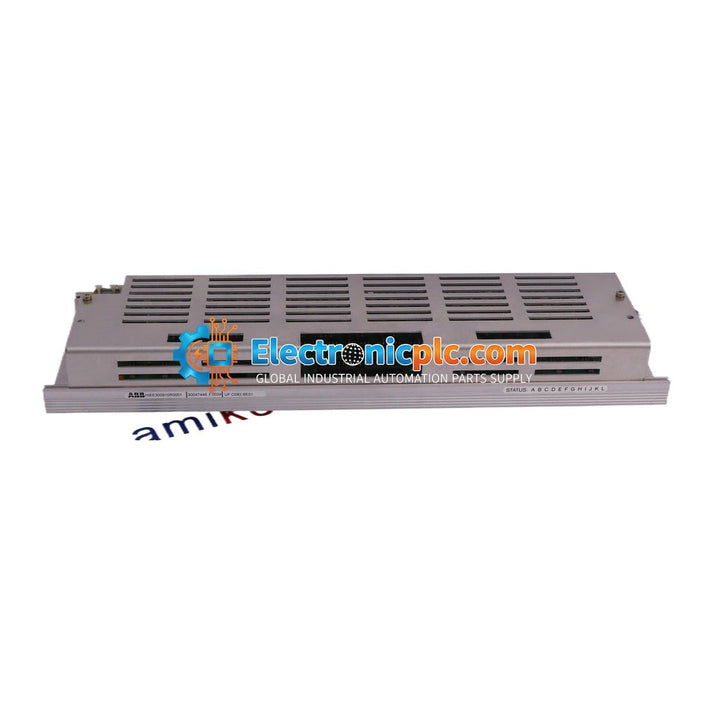

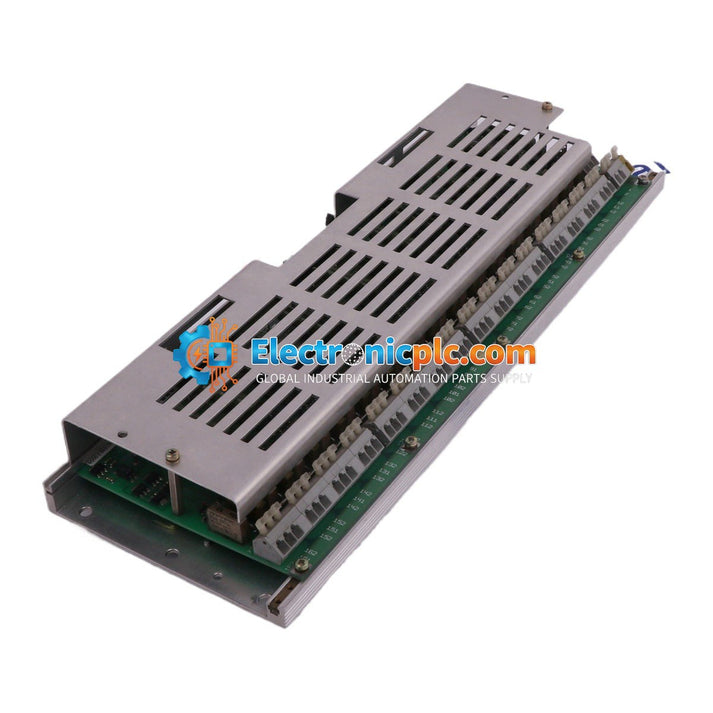

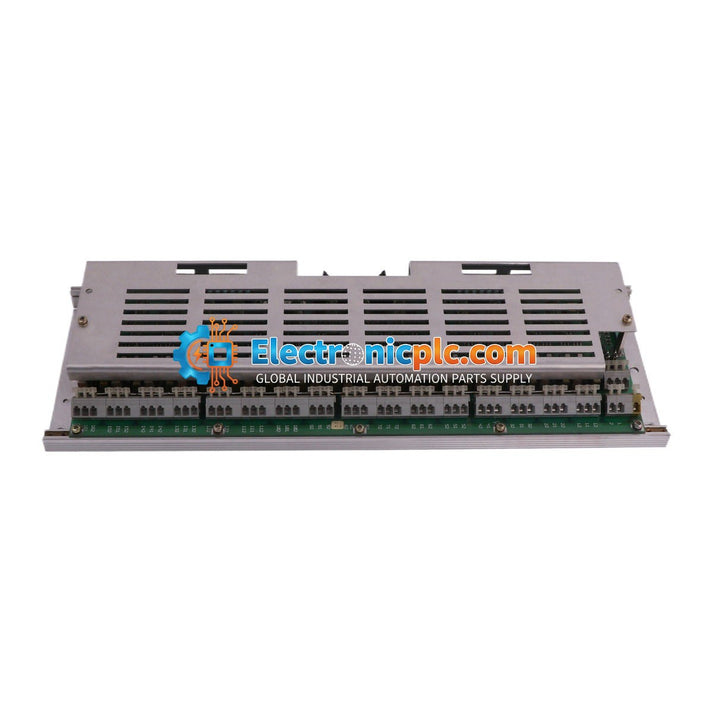

The ABB HIEE300910R0001 is a high-reliability Binary Input Module designed for use within ABB UNITROL excitation systems. This module serves as a critical interface component, facilitating the conversion of external digital signals into processed data for the excitation control system. It is engineered to ensure precise monitoring and control of generator excitation parameters, contributing to the overall stability and performance of power generation equipment.

Features

• Designed specifically for integration with ABB UNITROL excitation control platforms.
• Reliable processing of binary input signals for system monitoring and protection.
• Robust industrial construction suitable for demanding power plant environments.
• Compatible with spare model reference UFC092BE01.

Applications

This module is primarily utilized in power generation facilities, specifically within the excitation control cabinets of synchronous generators. It is essential for monitoring status signals from auxiliary equipment, protection relays, and control switches, ensuring the excitation system responds accurately to operational requirements.

Technical Specifications

Installation Guidelines

• Ensure the excitation system is fully powered down before attempting to install or remove the module.
• Handle the module using standard ESD (Electrostatic Discharge) safety precautions to prevent damage to internal circuitry.
• Verify that the module is correctly seated in the designated rack slot and that all locking mechanisms are engaged.
• Ensure all signal wiring is properly terminated and routed away from high-voltage power cables to minimize electromagnetic interference (EMI).
• Verify that input signal voltage levels match the module specifications before applying power.

FAQ

What is the primary function of the HIEE300910R0001?

This module functions as a binary input interface for ABB UNITROL excitation systems, allowing the controller to receive and process digital status signals from the field.

Is this module compatible with other ABB systems?

The HIEE300910R0001 is specifically designed for the UNITROL excitation series. Please verify your system documentation or the spare model reference (UFC092BE01) to confirm compatibility with your specific excitation controller version.
