The Honeywell 900H03-0001 is an 8-channel AC output module designed for the ControlEdge HC900 platform. It enables the controller to switch higher-voltage AC field loads such as motor starters, solenoids, and indicator lamps...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

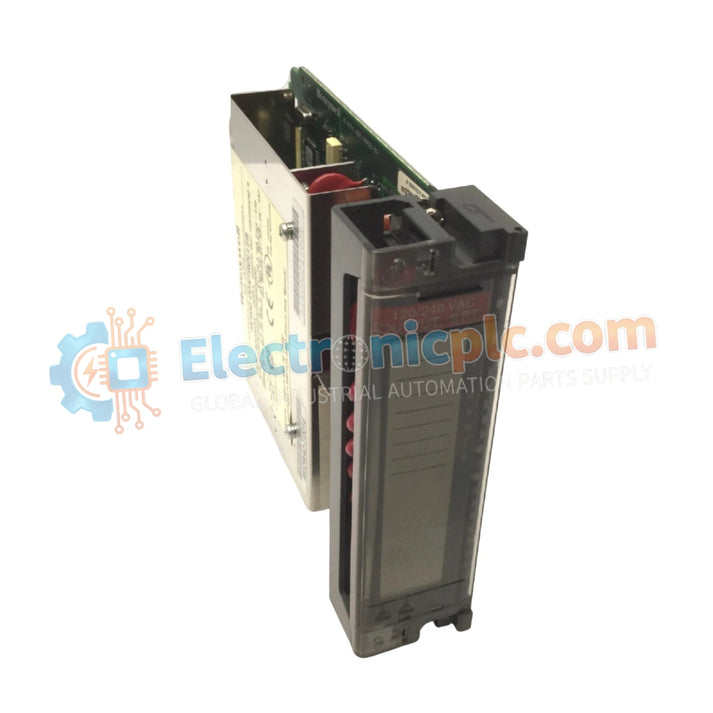

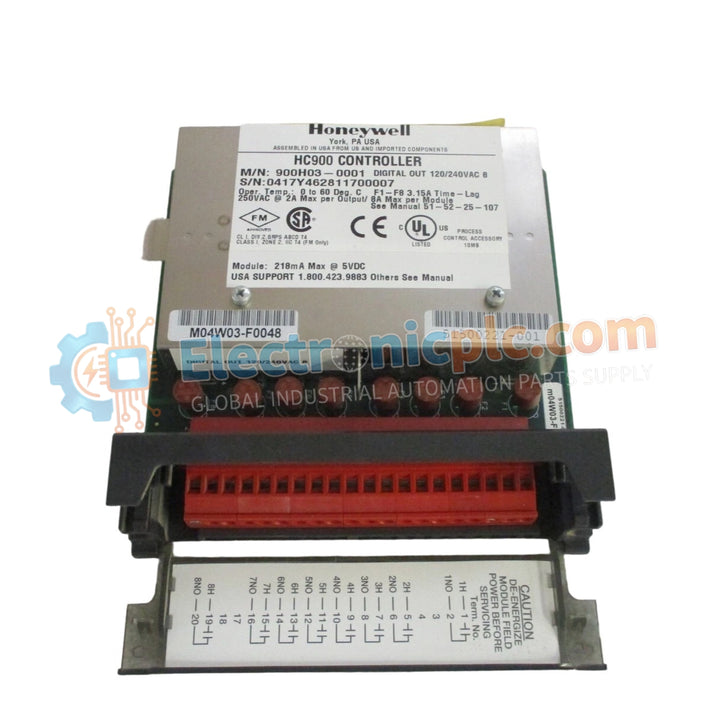

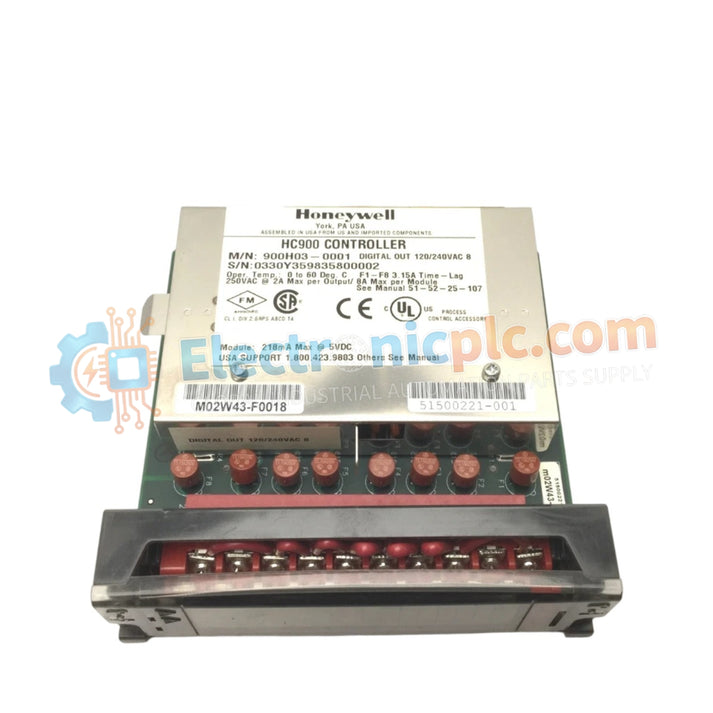

The Honeywell 900H03-0001 is an 8-channel AC output module designed for the ControlEdge HC900 platform. It enables the controller to switch higher-voltage AC field loads such as motor starters, solenoids, and indicator lamps directly from the I/O rack.
This module acts as the interface between low-voltage HC900 control logic and industrial AC power circuits, ensuring reliable switching performance in demanding process environments. We supply this unit in 100% Brand New, original condition, ensuring OEM-level quality and system compatibility.
| Parameter | Specification |
|---|---|
| Brand / Manufacturer | Honeywell |
| Model Number | 900H03-0001 |
| Product Type | AC Output Module |
| Channel Capacity | 8 Independent Channels |
| Output Voltage Range | 120 VAC to 240 VAC |
| Logic (Internal) Power | 24 VDC (backplane supplied) |
| Output Type | Switching (Sinking type) |
| Operating Temperature | -20°C to +70°C |
| System Compatibility | Honeywell ControlEdge HC900 |
Wide Voltage Flexibility
Supports both 120 VAC and 240 VAC loads, allowing deployment across different regional power standards without hardware changes.
High-Temperature Operation
Reliable performance in environments ranging from -20°C to +70°C, suitable for outdoor cabinets and industrial plants without climate control.
Optical Isolation Protection
Each channel is electrically isolated using high-speed opto-coupling technology, protecting the HC900 backplane from AC switching noise and transients.
Inductive Load Handling
Designed to manage inrush currents from inductive devices such as contactors and solenoids while maintaining stable thermal performance under frequent switching.
Is this 900H03-0001 a genuine Honeywell module?
Yes, we supply 100% Brand New original Honeywell hardware, with factory serial numbers and packaging.
Does it support hot-swapping (RIUP)?
Yes, it supports Removal and Insertion Under Power (RIUP) in HC900 systems when proper procedures are followed.
What terminal block is required?
A standard 20-pin HC900-compatible terminal block is typically used, with appropriate insulation for AC voltage safety.
How does the sinking output work for AC loads?
It completes the switching path for the AC circuit within the HC900 architecture, enabling controlled energization of field devices according to system wiring configuration.
