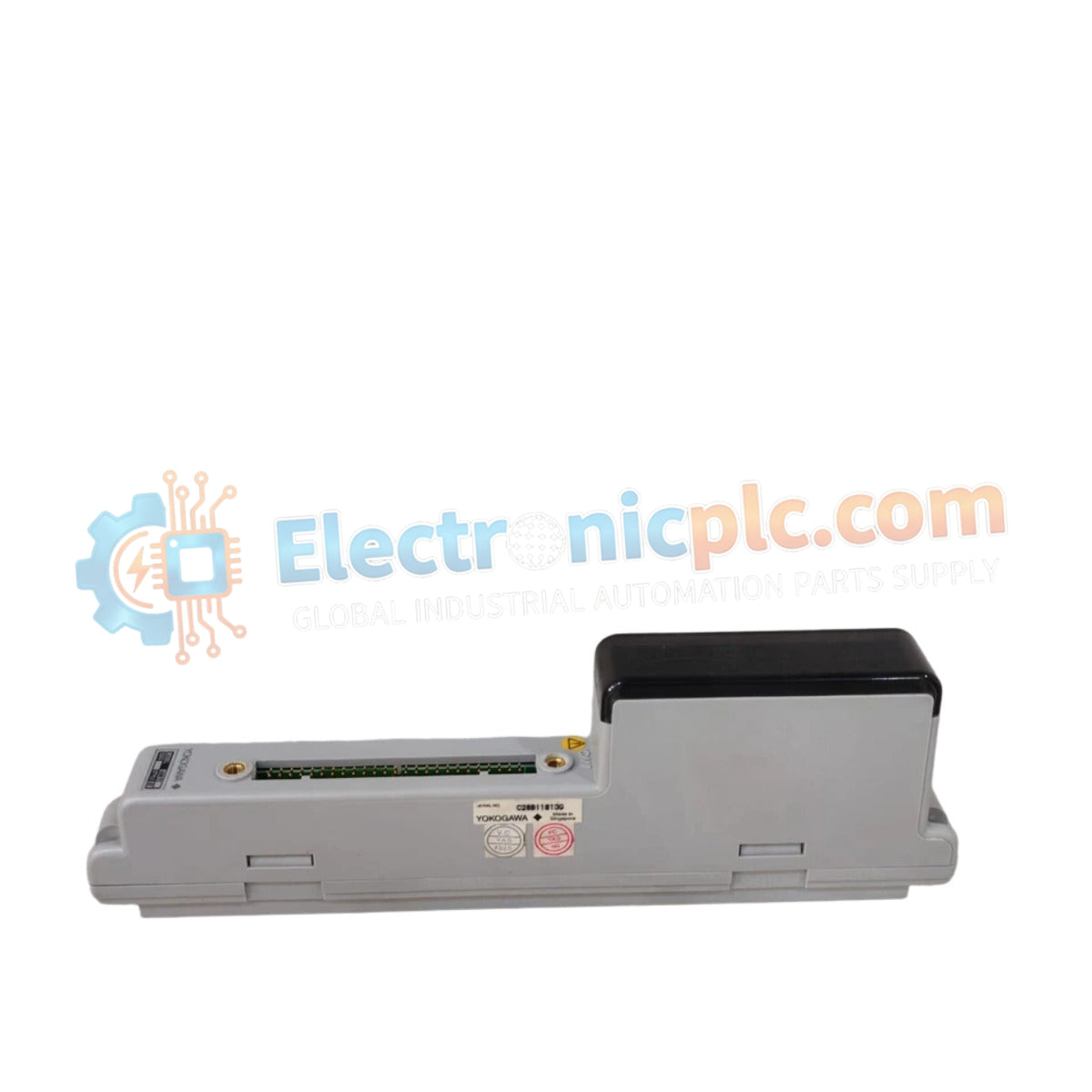

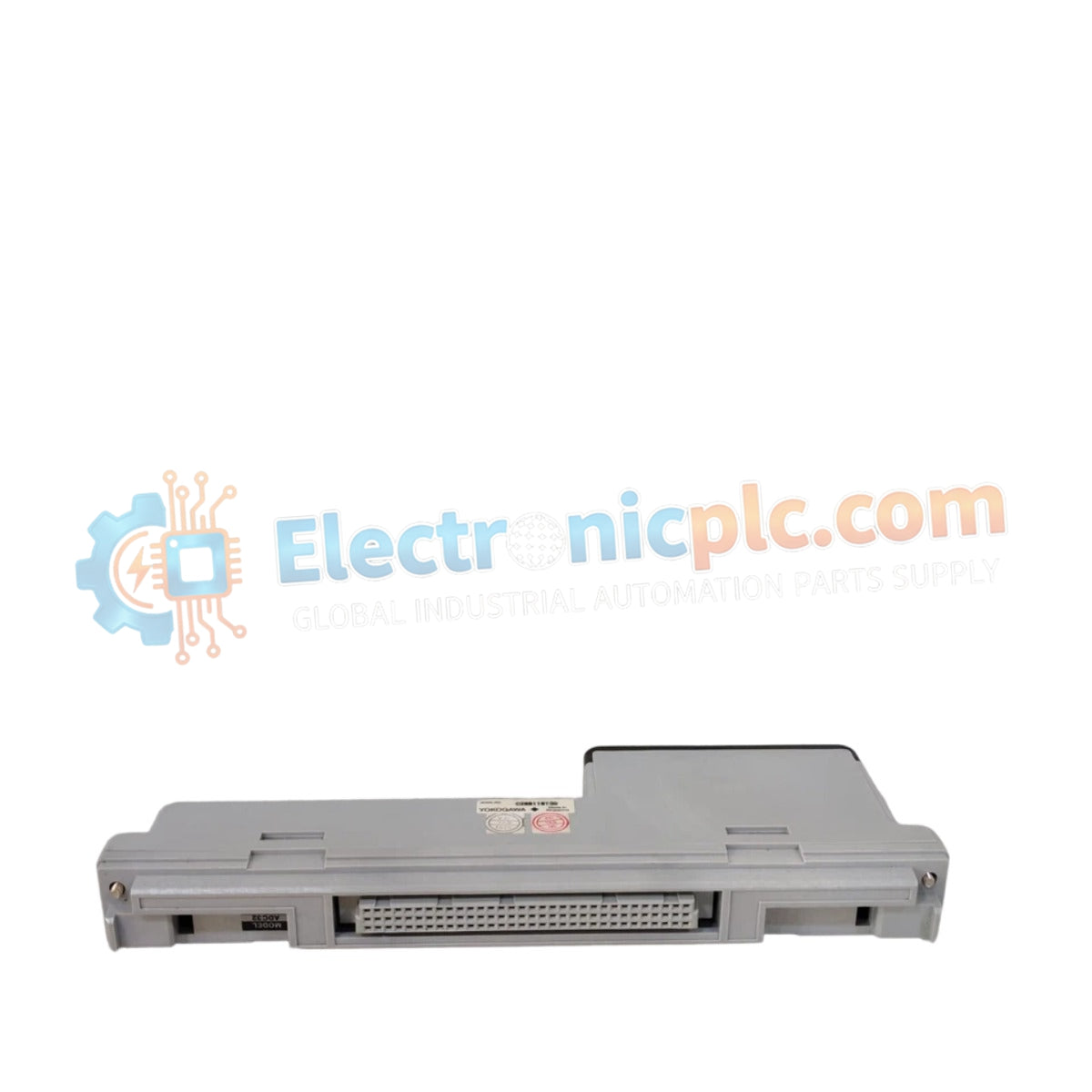

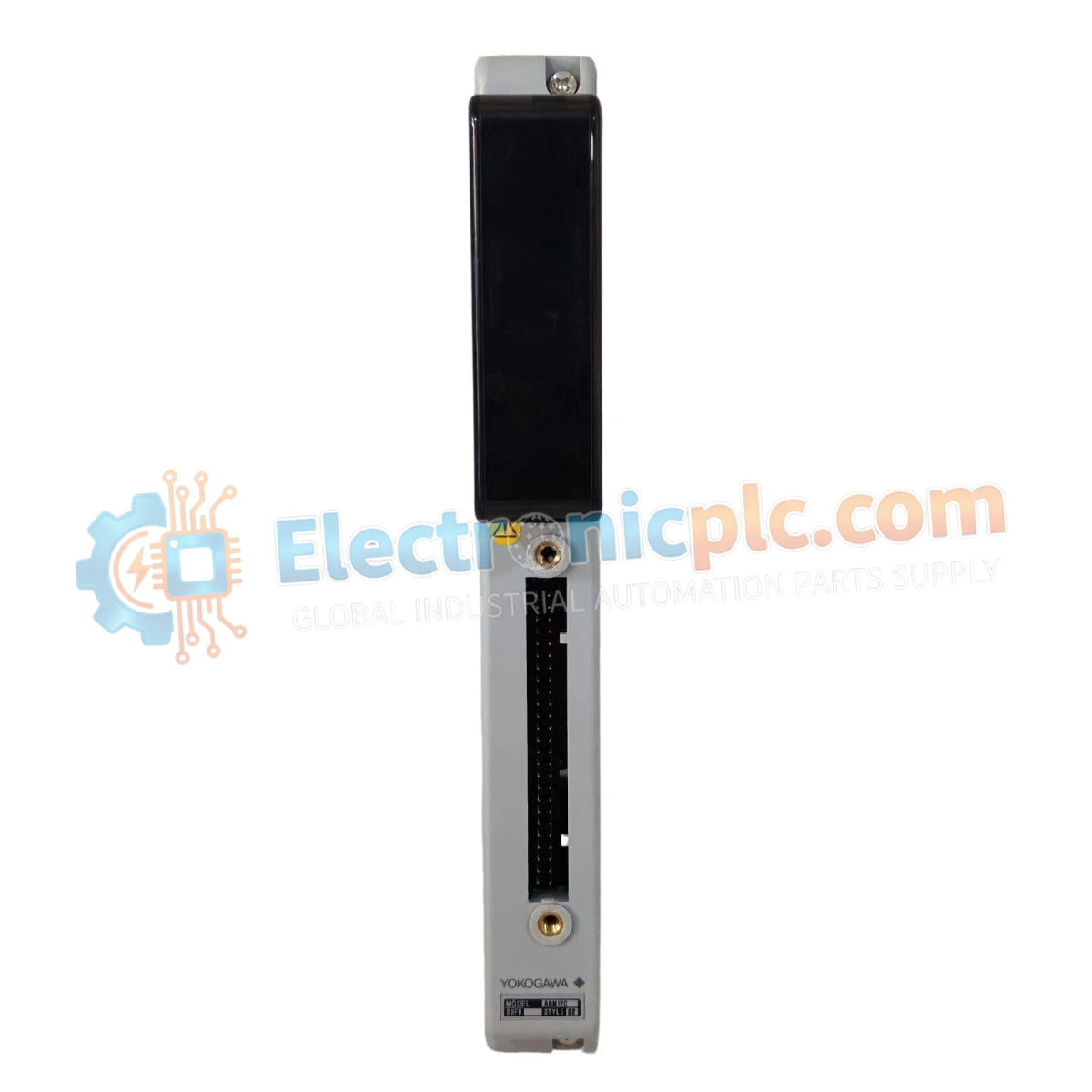

Configured for discrete control command execution in distributed control systems, the Yokogawa ADM12 (ADM12 Contact Output I/O Card) provides direct physical/electrical execution for relay-based field device control. This module facilitates the interface between the control system’s logic processor and field-level final control elements, ensuring high-reliability switching for industrial actuators, alarms, and signaling equipment.

Hardware Specifications

Process Control & Connectivity

The ADM12 is engineered to maintain high-integrity signal output by utilizing electromechanical or solid-state relay switching logic. This design provides galvanic isolation between the field-side devices and the low-voltage control bus, protecting the system from high-voltage spikes or electrical faults propagating from field loops. The card is specifically designed for binary state transitions, offering robust performance when driving solenoids, contactors, or other inductive loads.

Frequently Asked Questions

Q: Is the ADM12 module hot-swappable?

A: No. Standard operational procedures for this card type require isolating the field-side power supply and the control bus before physical removal to prevent electrical arcing at the backplane connectors.

Q: Can this module drive high-current AC loads directly?

A: The module is designed for specific load ratings defined in the technical manual. If the load exceeds the relay contact specifications, an external interposing relay must be utilized to maintain system longevity.

Field Installation Guidelines

• Mounting: Ensure the ADM12 is fully seated within the rack assembly. The 2.5 x 22.9 x 7.6 cm form factor requires proper ventilation spacing to ensure stable operation of the relay components.
• Wiring: Use shielded cabling for all contact output circuits. Terminate shields at the cabinet ground bus to minimize electromagnetic interference (EMI) that can be induced on long cable runs.
• Grounding: Secure the module chassis to the system ground bus to ensure low-impedance protection against surge events.
• Commissioning: Verify all contact closures under a no-load condition before finalizing connections to field-level actuators to confirm the control logic maps correctly to the physical hardware outputs.
