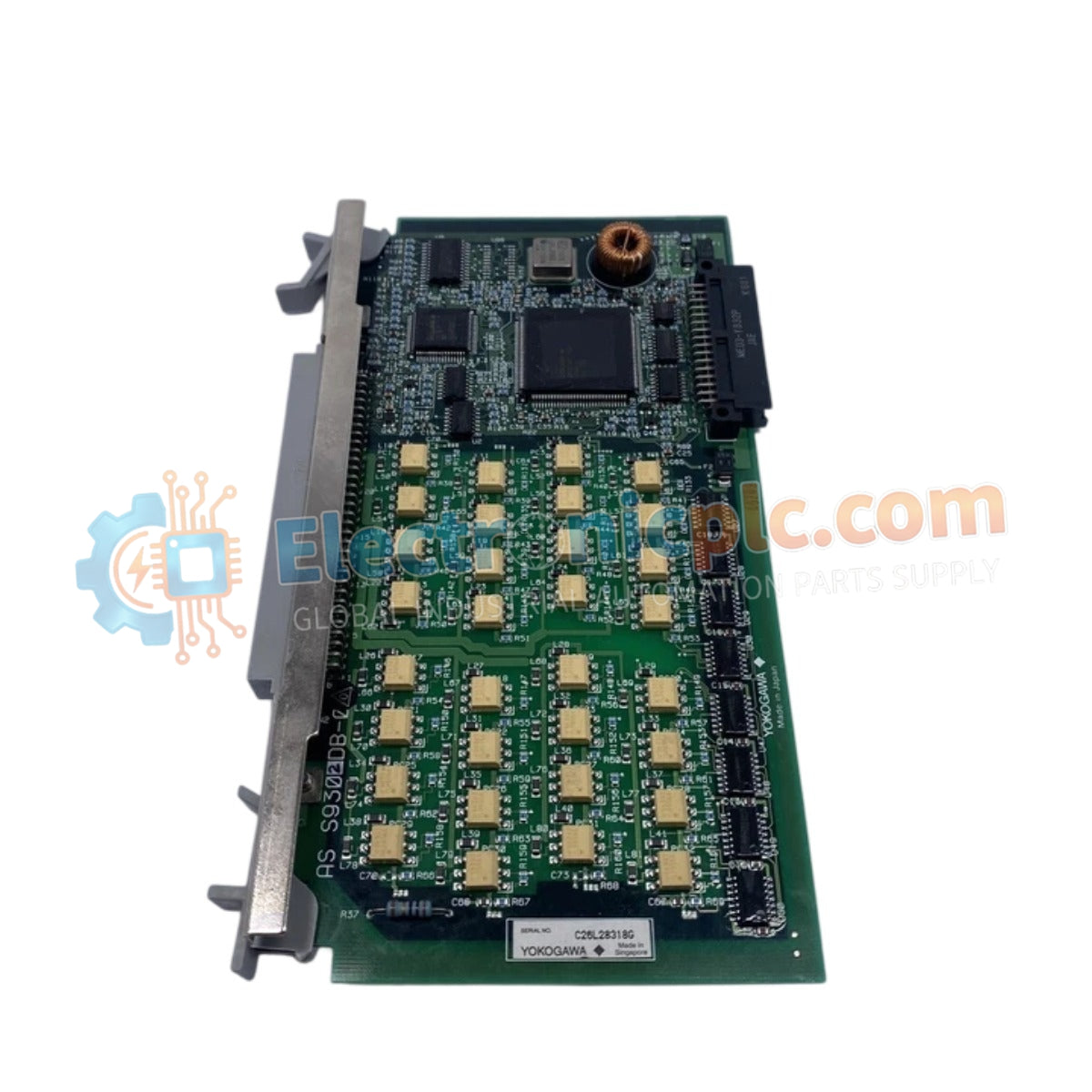

The YOKOGAWA ADM52-2 is a high-reliability Contact Output I/O Card designed for precision signal switching in industrial control environments. This module functions as a critical interface for discrete command execution, enabling the control system to actuate field-level devices such as solenoids, alarm indicators, and interposing relays with deterministic accuracy.

Hardware Specifications

Process Control & Connectivity

The ADM52-2 utilizes electromechanical relay logic to provide physical isolation between the low-voltage control backplane and high-voltage field loops. This isolation is essential for protecting the control system’s sensitive processors from transient voltage spikes, electromagnetic interference, and ground faults that frequently originate in field wiring. By maintaining a clean separation of circuits, the module ensures robust and repeatable output performance even in electrically noisy industrial applications.

Frequently Asked Questions

Q: Is the ADM52-2 module compatible with high-speed PWM (Pulse Width Modulation) applications?

A: No. Because the ADM52-2 utilizes electromechanical relays for switching, it is not suitable for high-speed PWM or rapid-cycling tasks due to mechanical wear and response time limitations. It is intended for steady-state ON/OFF control commands.

Q: How does the "Contact Output" design protect the control processor?

A: The relay contact provides galvanic isolation. If a field-side power supply fault occurs, the high voltage is physically blocked by the open relay contact, preventing it from reaching the backplane logic components.

Field Installation Guidelines

• Mounting: Ensure the ADM52-2 is fully seated into the designated rack slot. Given its 2.5 cm width profile, verify that the module guide rails are aligned to prevent damage to the backplane connector pins.
• Wiring: For all contact output circuits, use appropriately rated shielded cable. Ensure the shield is grounded at the cabinet entry to mitigate induced EMI.
• Grounding: Secure the module to the cabinet grounding rail to ensure the chassis remains at a reference potential, which is critical for consistent electromagnetic compatibility (EMC).
• Commissioning: Prior to connecting live field loads, use an ohmmeter to verify that the relay contacts open and close in accordance with the control software logic to confirm correct hardware addressing.
