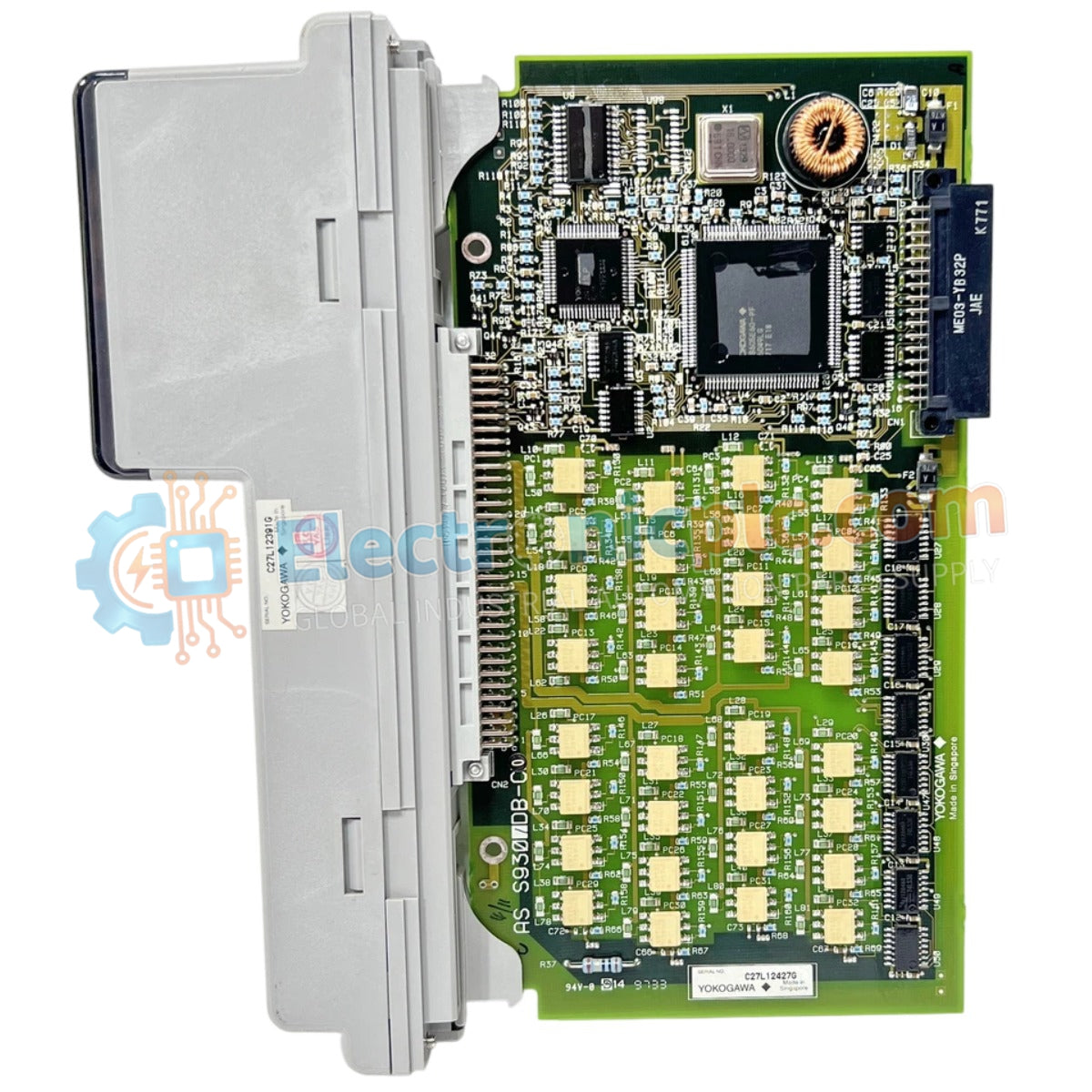

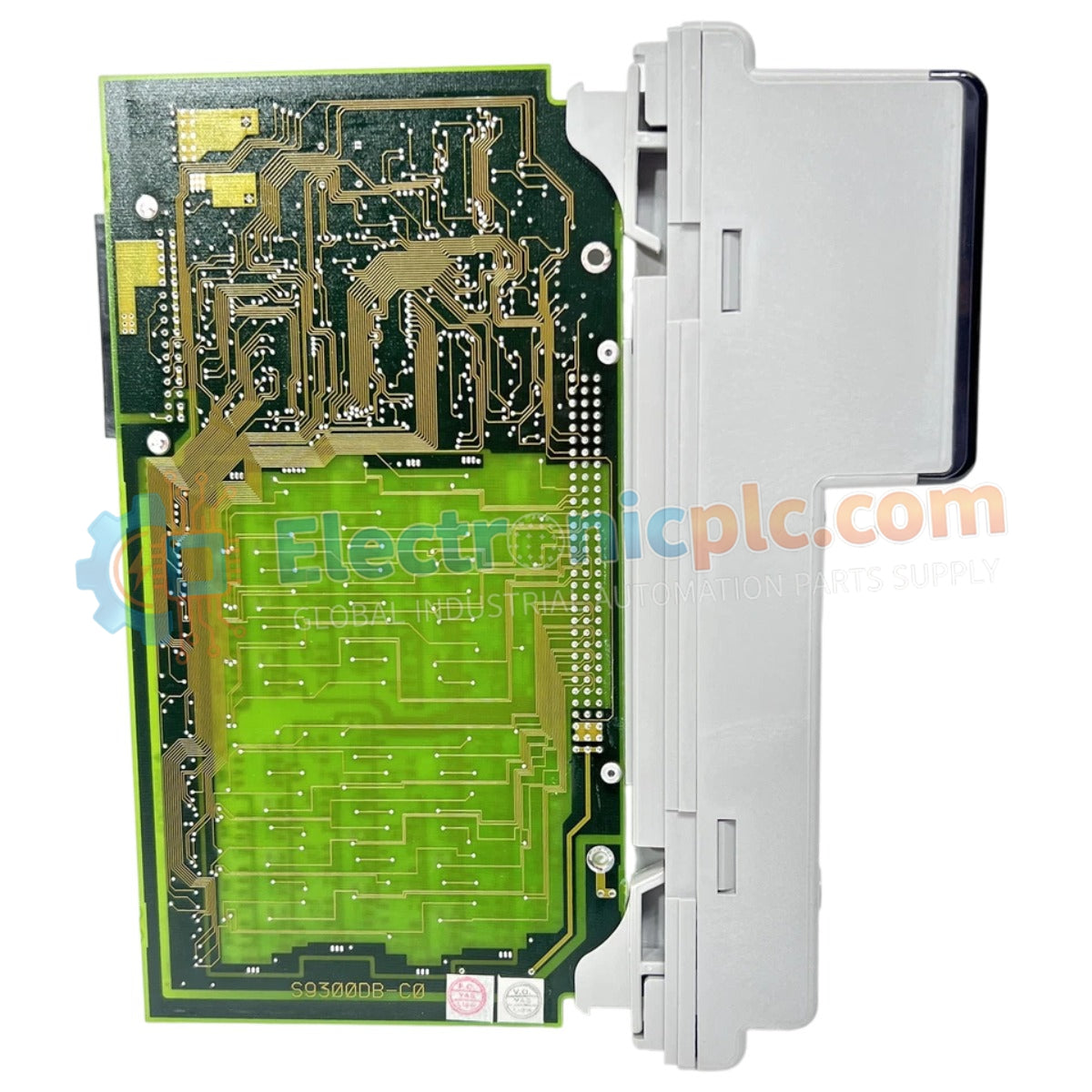

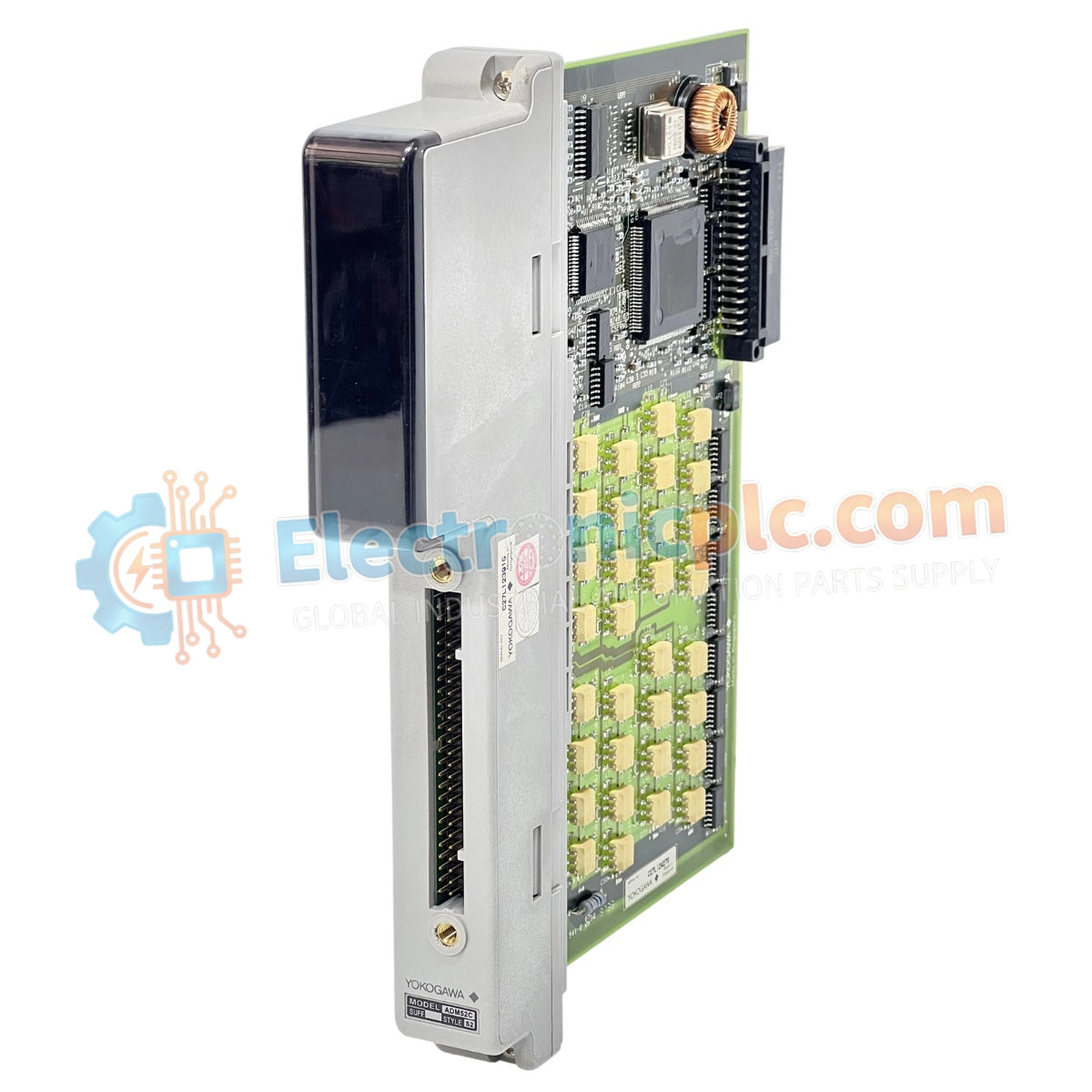

The Yokogawa ADM52C-S2, also cataloged as the ADM52C Digital Output Module, operates as a dedicated hardware component for discrete signal switching within DCS control system platforms. This module provides direct physical and electrical execution of 32 digital output channels, enabling deterministic control state management across distributed process networks.

Hardware Specifications

DCS Process Control Characteristics

The ADM52C-S2 maintains data integrity by utilizing 4-20 mA HART loop protocol standards for field device communication. Integrated channel-to-channel isolation prevents ground loops and electrical interference between digital signal paths. Furthermore, the architecture supports cold junction compensation (CJC) logic for auxiliary temperature sensing inputs, ensuring accurate signal linearization before processing within the DCS control algorithm.

Frequently Asked Questions

Q: Does the ADM52C-S2 support hot-swapping during normal system operation?

A: Yes, the module supports hot-swapping; however, ensure the backplane power is stable and follow the correct software removal sequence to prevent output signal instability or system alarms.

Q: Is the module status indicated by front-panel LEDs?

A: Yes, the module features individual channel status indicators to provide real-time diagnostic feedback regarding the energized state of each digital output.

Field Installation Guidelines

• Verify that the DIN-rail is securely mounted and grounded to ensure adequate electrical continuity for the module housing.
• Check the backplane connector pins for debris or damage before inserting the module; alignment must be precise to avoid pin deformation.
• Ensure that the field wiring connected to the 32-point terminal block is properly labeled and strain-relieved to prevent tension on the module connector.
• Maintain a minimum clearance of 20 mm between digital output wiring and high-current power cables to prevent electromagnetic crosstalk.
• Confirm that the voltage levels of the connected field devices match the module output specifications to prevent internal circuit damage.
