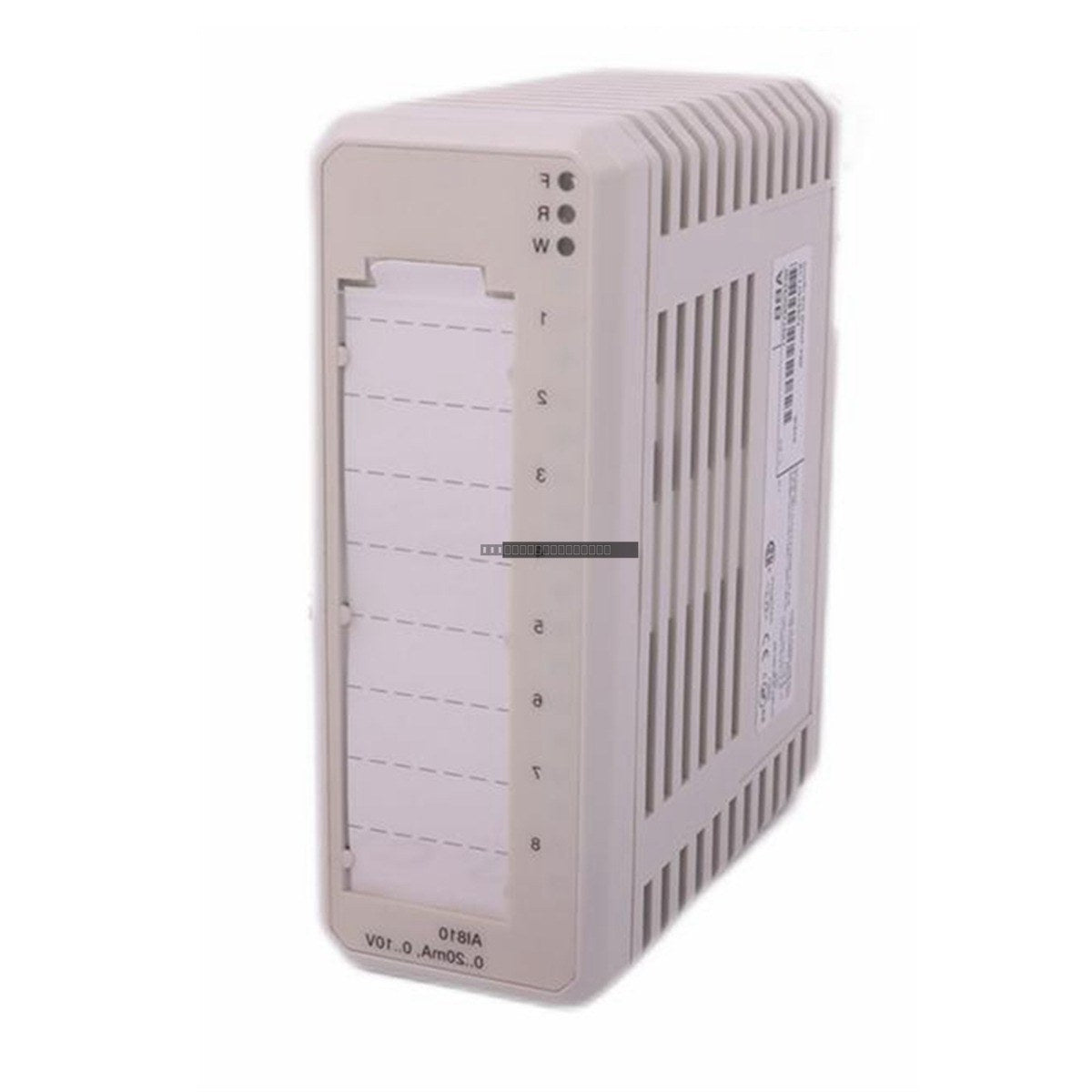

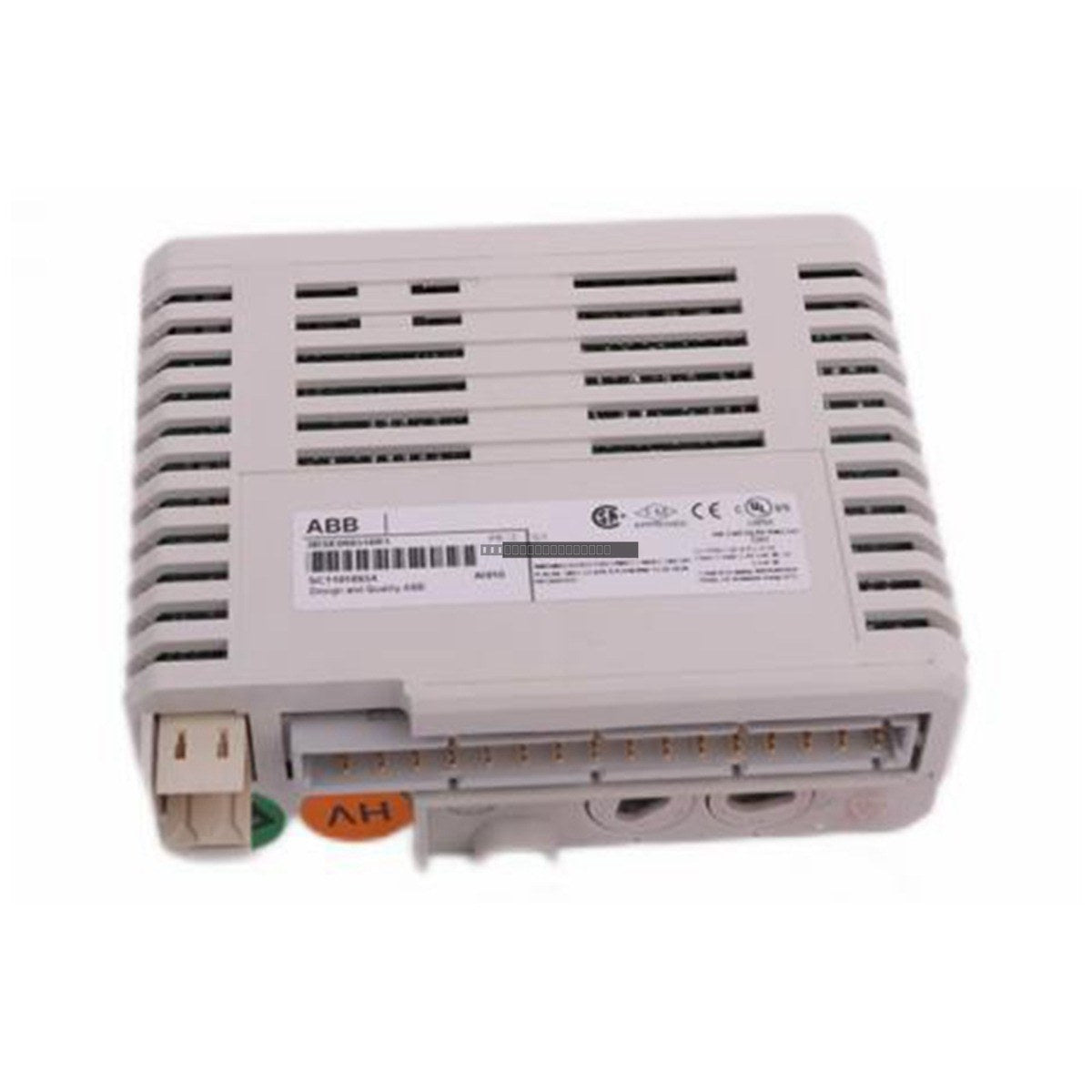

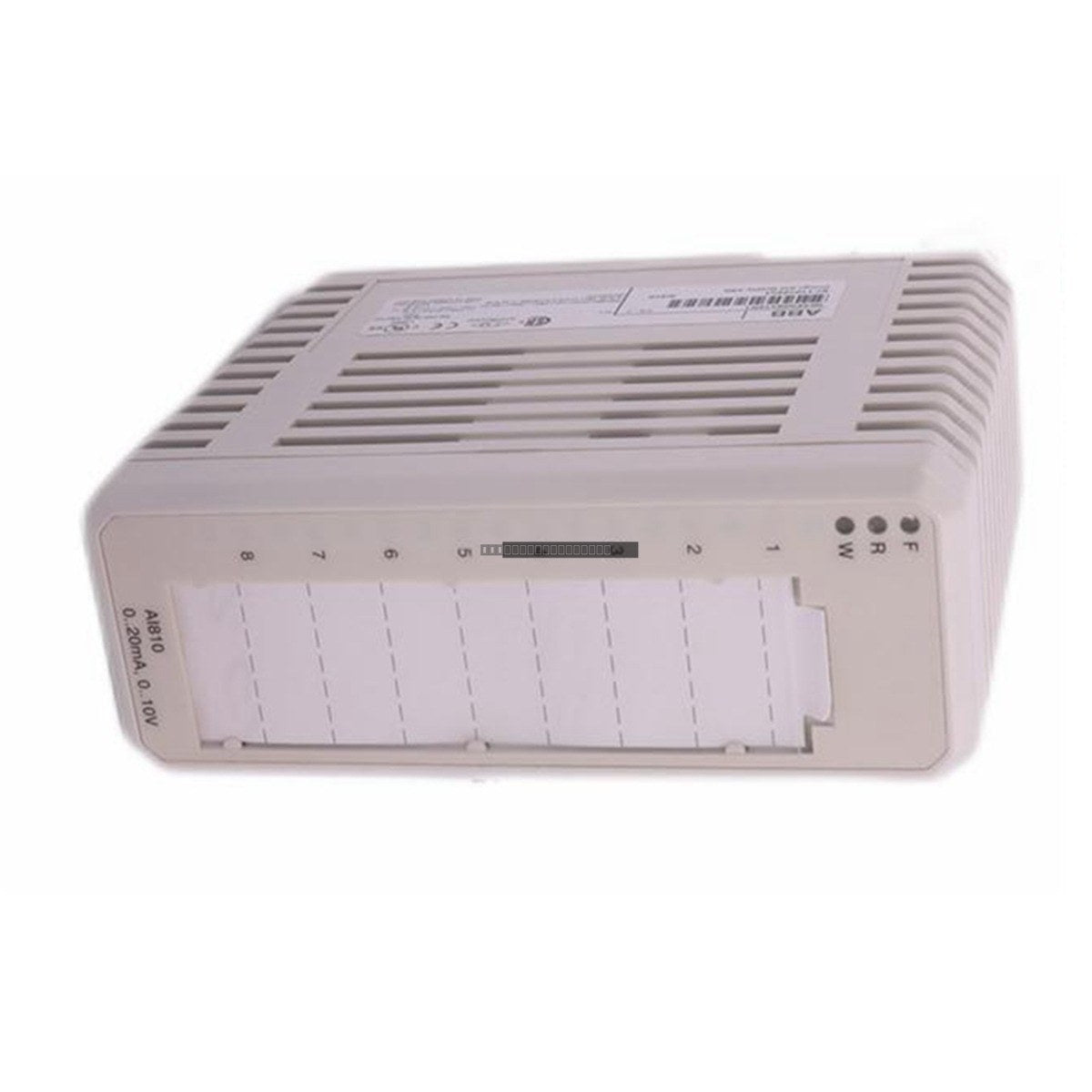

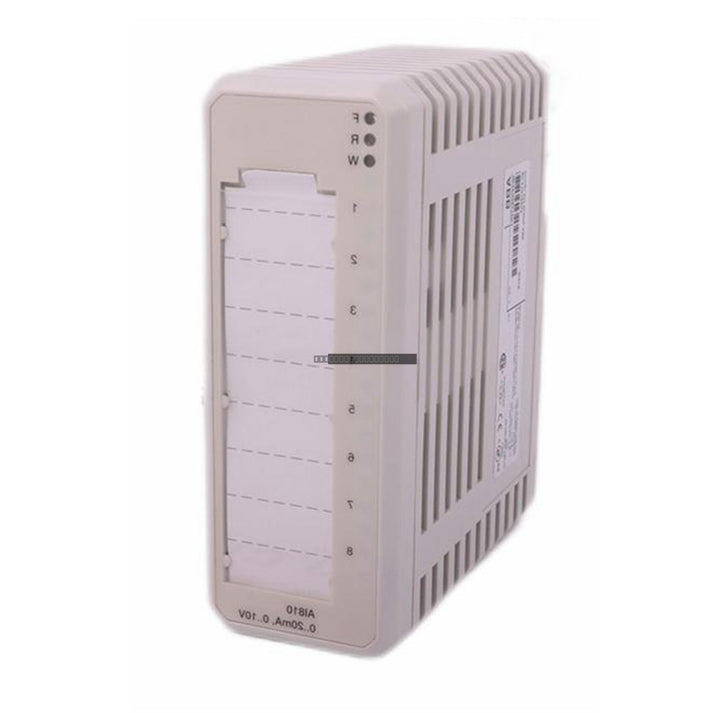

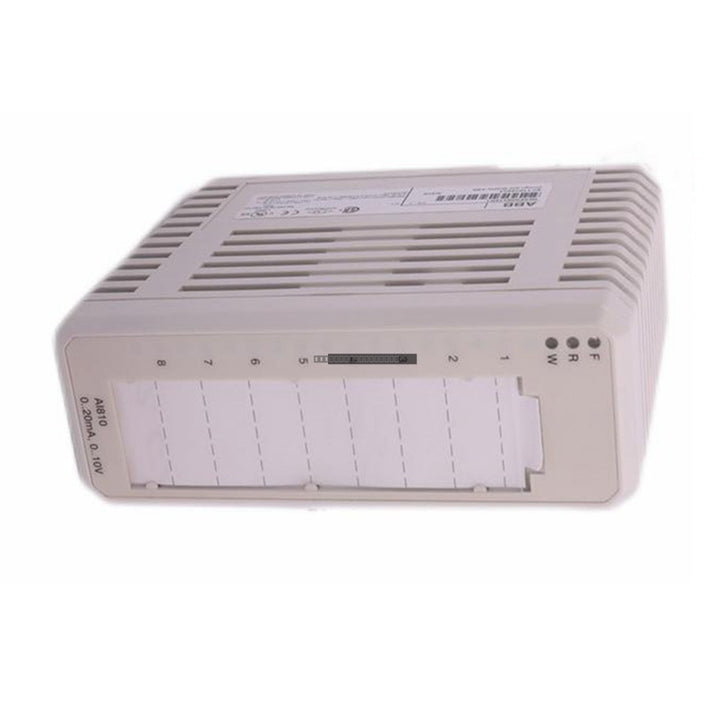

ABB AI810 3BSE008516R1 Analog Input Module

ABB AI810 3BSE008516R1 Analog Input Module

The ABB AI810 (3BSE008516R1) is an 8-channel analog input module designed for the ABB S800 I/O platform. It provides high-precision signal acquisition for industrial control systems, supporting both current and...

22 people are viewing this right now

Availability: Low stock: 2 left

SKU: 3BSE008516R1
Vendor: ABB
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The ABB AI810 (3BSE008516R1) is an 8-channel analog input module designed for the ABB S800 I/O platform. It provides high-precision signal acquisition for industrial control systems, supporting both current and voltage inputs with independent configuration per channel.

Features

  • 8 single-ended unipolar input channels.
  • Configurable for 0–20 mA, 4–20 mA, 0–10 V, or 2–10 V DC signals.
  • 12-bit resolution for accurate process measurement.
  • Integrated HART communication support for transparent digital data transmission.
  • Robust protection with PTC current-limiting resistors, capable of withstanding 30 V DC overvoltage.
  • Galvanic isolation of the channel group from ground.

Applications

  • Refinery process control (pressure, level, and flow monitoring).
  • Turbine auxiliary systems (lube oil, cooling, and steam flow).
  • Boiler control and combustion management.
  • Renewable energy infrastructure (pitch control and hydraulic pressure monitoring).

Technical Specifications

Model AI810 (3BSE008516R1)
Channels 8
Resolution 12-bit
Input Signals 0–20 mA, 4–20 mA, 0–10 V, 2–10 V DC
Input Resistance (Current) 250 Ohm (PTC included)
Input Resistance (Voltage) 290 kOhm
Max Input Voltage 30 V DC (non-destructive)
NMRR (50/60 Hz) > 40 dB
Power Dissipation 1.5 W
Modulebus Consumption 70 mA (+5 V) / 40 mA (+24 V)

Installation Guidelines

  • Ensure the system is powered down before installing or removing the module from the Module Termination Unit (MTU).
  • The AI810 is compatible with various MTUs including TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838, and TU850.
  • Use shielded cabling for field inputs to minimize EMI interference, especially in high-noise industrial environments.
  • Maintain proper grounding practices for the S800 I/O rack to ensure signal integrity.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the module components.

FAQ

What is the primary function of the AI810 module?

The AI810 is an analog input module that converts field signals (voltage or current) into digital values for processing by the ABB S800 I/O system.

Does this module support HART?

Yes, the AI810 supports HART communication, allowing digital data to be transmitted alongside analog process values.

What is the maximum field cable length?

The module supports field cable lengths up to 600 meters (656 yards).
