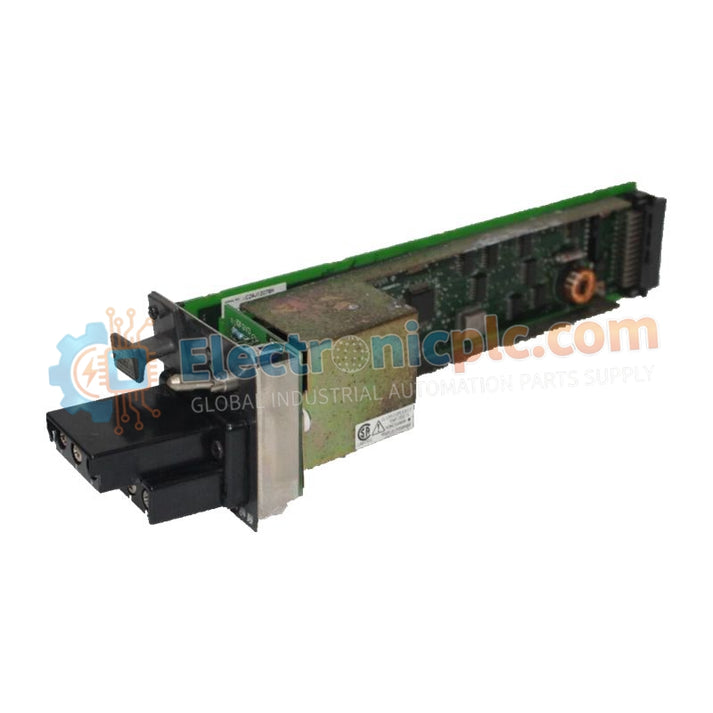

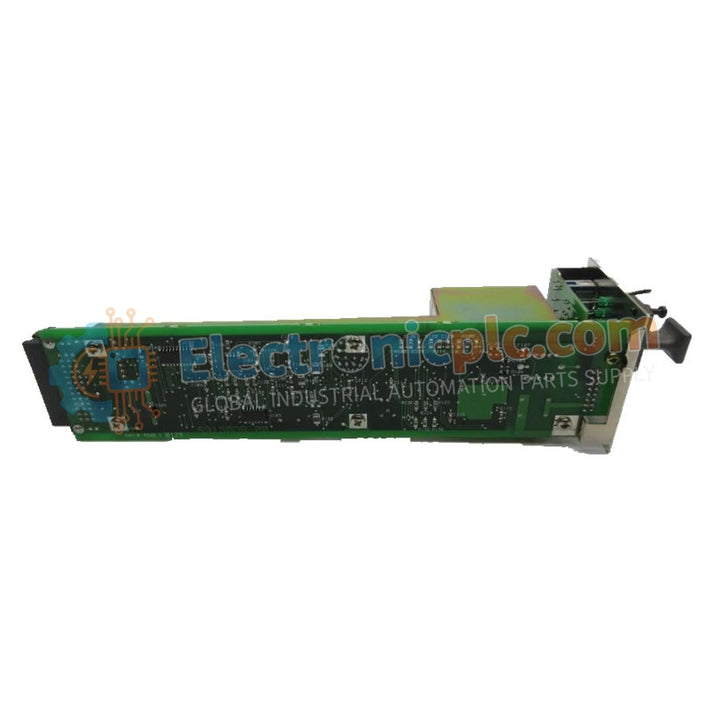

The AIP512-S2 (AIP512) is a high-performance interface module developed by Yokogawa Electric Corporation to enable seamless communication between CENTUM VP / CENTUM CS 3000 controllers and remote I/O nodes.
Utilizing the proprietary ESB...
Availability: Low stock: 99 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.
The AIP512-S2 (AIP512) is a high-performance interface module developed by Yokogawa Electric Corporation to enable seamless communication between CENTUM VP / CENTUM CS 3000 controllers and remote I/O nodes.
Utilizing the proprietary ESB (Extended Serial Backplane) bus protocol, the module functions as a high-speed bridge that expands I/O capacity across the distributed control network. It consolidates signals from multiple field devices onto a single high-bandwidth communication channel, improving signal integrity and overall system responsiveness.
Designed for industrial durability, the AIP512-S2 incorporates secure M4 screw terminal connections for vibration-resistant wiring. With a transmission rate of 128 Mbps, it supports real-time data exchange for mission-critical process variables. Its compact size and efficient power consumption make it ideal for high-density control cabinets where thermal management and space optimization are essential.
| Parameter | Specification |
|---|---|
| Interface Protocol | ESB Bus (Proprietary Extended Serial Backplane) |
| Data Transfer Rate | 128 Mbps |
| Physical Connection | Twisted pair cabling via M4 screw terminals |
| Maximum Cable Length | 10 meters (33 feet) |
| Power Demand | 15 W |
| Current Consumption | 0.5 A |
| Operational Temperature | -20°C to +55°C (-4°F to 131°F) |
| Module Weight | 0.21 kg |
| External Dimensions | 225 mm × 140 mm × 92 mm |
The AIP512-S2 is typically installed in large-scale Distributed Control Systems (DCS) where I/O racks are physically separated from the main processor cabinet.
Common industry applications include:
Chemical processing plants
Power generation facilities
Offshore oil and gas platforms
Petrochemical complexes
It ensures high-speed, deterministic communication between the controller layer and the field instrumentation layer.
What is the significance of the "S2" suffix for the AIP512-S2?
The “S2” designation typically indicates a specific hardware revision and compatibility level. In this model, it ensures compatibility with modern CENTUM VP hardware standards and provides improved electromagnetic interference (EMI) resistance compared to earlier versions.
Can the 10-meter distance limitation be exceeded?
No. The electrical ESB bus is designed for short-distance, high-speed backplane extension. If the controller-to-I/O distance exceeds 10 meters, an optical ESB repeater (such as ANT401 or ANT502) must be used to convert the electrical signal to fiber optics for extended transmission.
