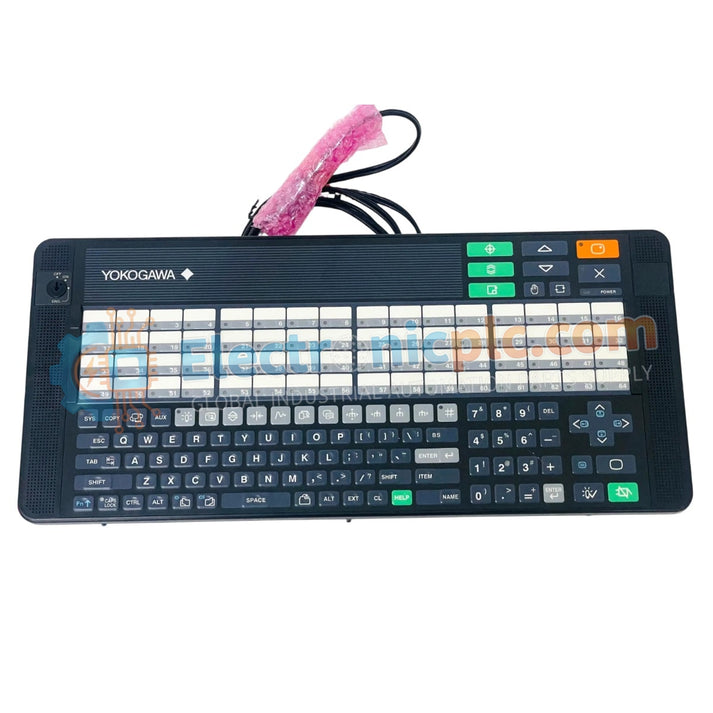

The YOKOGAWA AIP830-111/EIM, also cataloged as the AIP830-111 Operation Keyboard, operates as a dedicated hardware component for single-loop control execution and real-time process monitoring within distributed control system platforms.

Suffix Breakdown & Model Matrix

• AIP830-111: Base model identifier for the operation keyboard assembly.
• -1: Indicates the inclusion of the Mode Switch configuration.
• 1: Denotes the Type B Confirmation Key specification.
• /EIM: Specifies the inclusion of the English Instruction Manual.

Hardware Specifications

Process Control and DCS Connectivity

The AIP830-111/EIM integrates directly into Yokogawa control environments, utilizing a dual-port USB architecture to manage operational inputs and auditory feedback. To ensure robust performance, the unit employs USB 1.1 full-speed standards for the integrated sound interface, facilitating clear alarm notifications. The hardware is designed to maintain consistent command execution across 4-20 mA HART loop protocol environments by ensuring low-latency communication between the operator interface and the control station backplane. The module provides channel-level interface stability, minimizing signal degradation during frequent operator interaction.

Frequently Asked Questions

Q: Is the AIP830-111/EIM compatible with hot-swapping on the host USB port?

A: While the interface supports standard USB connectivity, hot-swapping is restricted to maintain the stability of the active control session and prevent potential bus re-enumeration issues within the DCS station.

Q: Does the sound interface require external power beyond the USB bus?

A: No, the sound interface operates on bus-powered USB 1.1 standards, drawing the necessary 5 VDC from the host USB connection to execute alarm signals.

Field Installation Guidelines

1. Environmental Positioning: Install the keyboard on a level, stable surface within the operating temperature range of 5 deg C to 40 deg C. Avoid exposure to high humidity levels exceeding 80% RH.
2. USB Connection: Connect the unit directly to the dedicated USB host ports on the Human Interface System (HIS). Use of unpowered USB hubs is prohibited to ensure the 1 A current requirement is met without voltage drops.
3. Earthing: Ensure the host workstation is properly grounded to the plant instrument earth to prevent electrostatic discharge (ESD) from affecting the touch response and internal circuitry.
4. Maintenance: Keep the key surfaces and USB interface ports free of dust and contaminants. Use only non-abrasive, dry cleaning methods to prevent damage to the ruggedized key structure.
