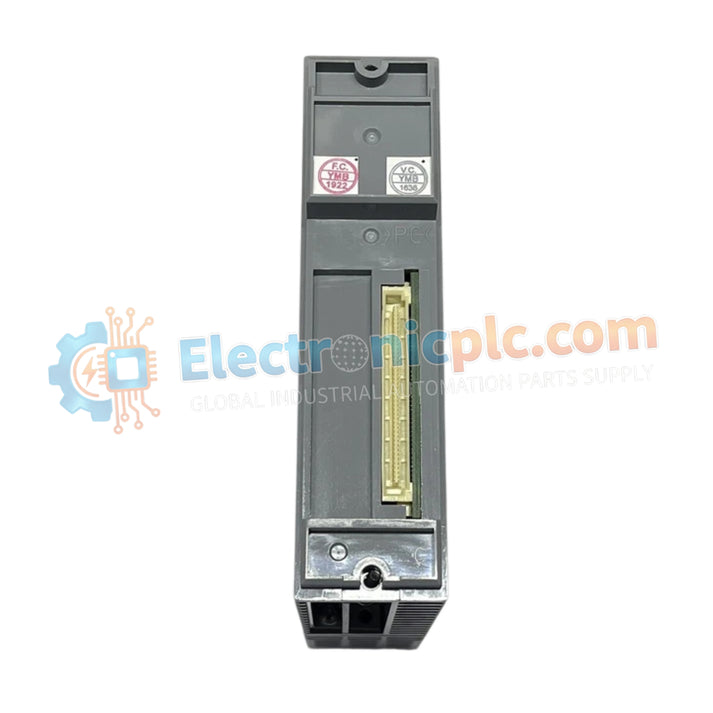

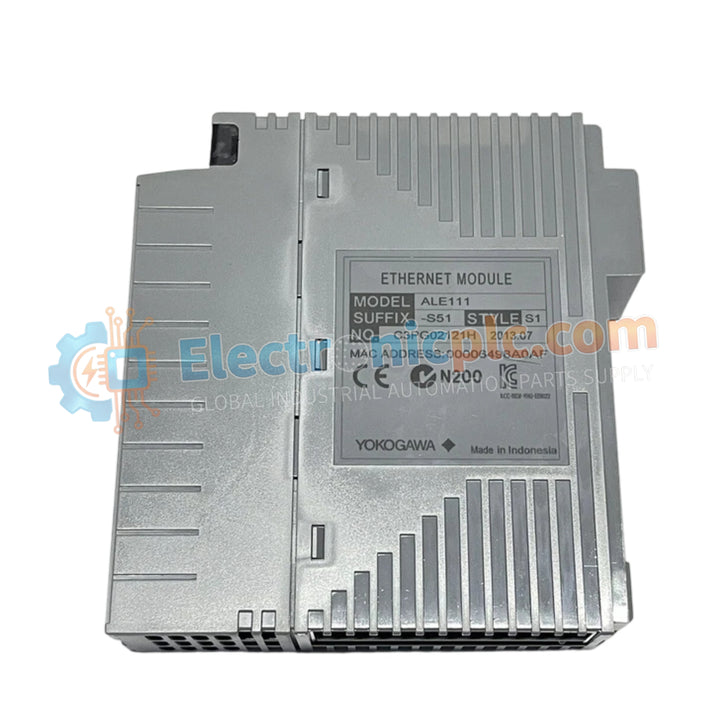

Configured for deterministic industrial network integration in CENTUM VP and related control platforms, the YOKOGAWA ALE111-S51 S1 (ALE111 Ethernet Communication Module) provides direct physical/electrical execution of high-speed data transmission between control stations and subsystem networks.

Hardware Specifications

DCS Process Loop Connectivity

The ALE111-S51 S1 facilitates robust connectivity by managing Ethernet-based data exchange within the distributed control architecture. The module design prioritizes low-latency throughput for process data, ensuring that communication between the controller and third-party instrumentation remains synchronized. By utilizing galvanic isolation on the transceiver front-end, the hardware prevents electrical interference from propagating through the Ethernet link, maintaining the stability of the primary control network during high-volume data polling sequences.

Frequently Asked Questions (FAQ)

Q: What is the maximum throughput supported by the ALE111-S51 module?

A: The module is designed to handle standard industrial Ethernet frame rates. Consult the system technical manual for specific packet processing limits and buffer management guidelines to ensure network determinism under high loads.

Q: Is this module compatible with live insertion into the backplane?

A: Module insertion must follow the manufacturer’s power-up and shutdown procedures for the specific control station node. Verify that the system is not in a critical control state before attempting to seat or replace the module on the backplane bus.

Field Installation Guidelines

• Mounting: Seat the module firmly into the dedicated field control station (FCS) slot. Ensure all backplane pins are aligned to prevent damage to the communication interface contacts.

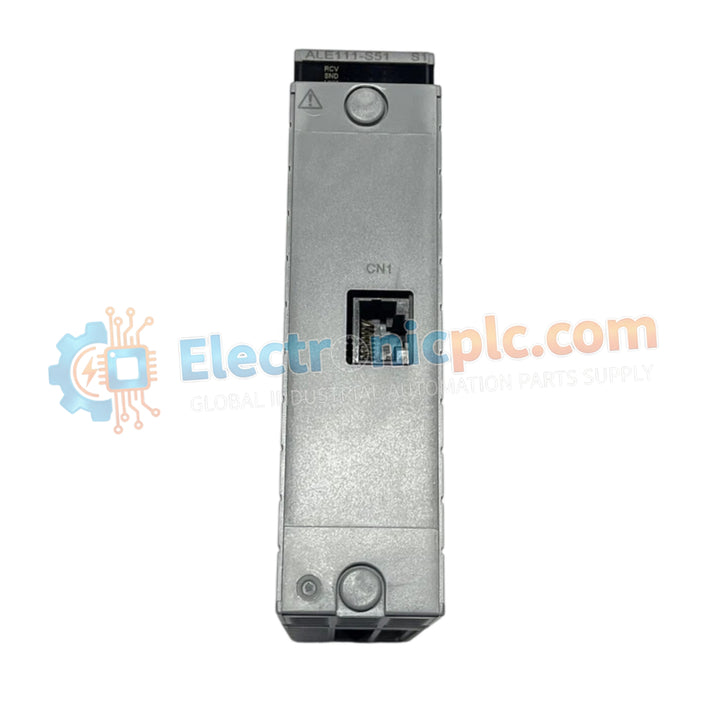

• Networking: Use industrial-grade, shielded Cat5e or Cat6 Ethernet cabling to connect the RJ45 interface. Ensure cables are routed away from high-voltage power conduits to avoid electromagnetic interference.
• Grounding: Verify that the FCS chassis is properly bonded to the main facility earth ground. Effective shielding of the Ethernet cabling relies on the ground plane integrity of the module’s housing and the backplane assembly.
• LED Status: Observe the front-panel LED indicators upon power-up to confirm network link status and communication activity. If a status error is indicated, verify the port configuration settings in the engineering station software.
