Allen-Bradley 1746-C16 SLC 500 Chassis Interconnect Cable

Allen-Bradley 1746-C16 SLC 500 Chassis Interconnect Cable

Description

The Allen-Bradley 1746-C16 is a specialized ribbon cable designed for multi-chassis configurations within the SLC 500 modular control system. Measuring 1.22 meters (4 feet / 50 inches), this cable provides...

20 people are viewing this right now

Availability: Low stock: 8 left

SKU: 1746-C16
Vendor: Allen-Bradley
Category: PLC Interconnect Cable
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

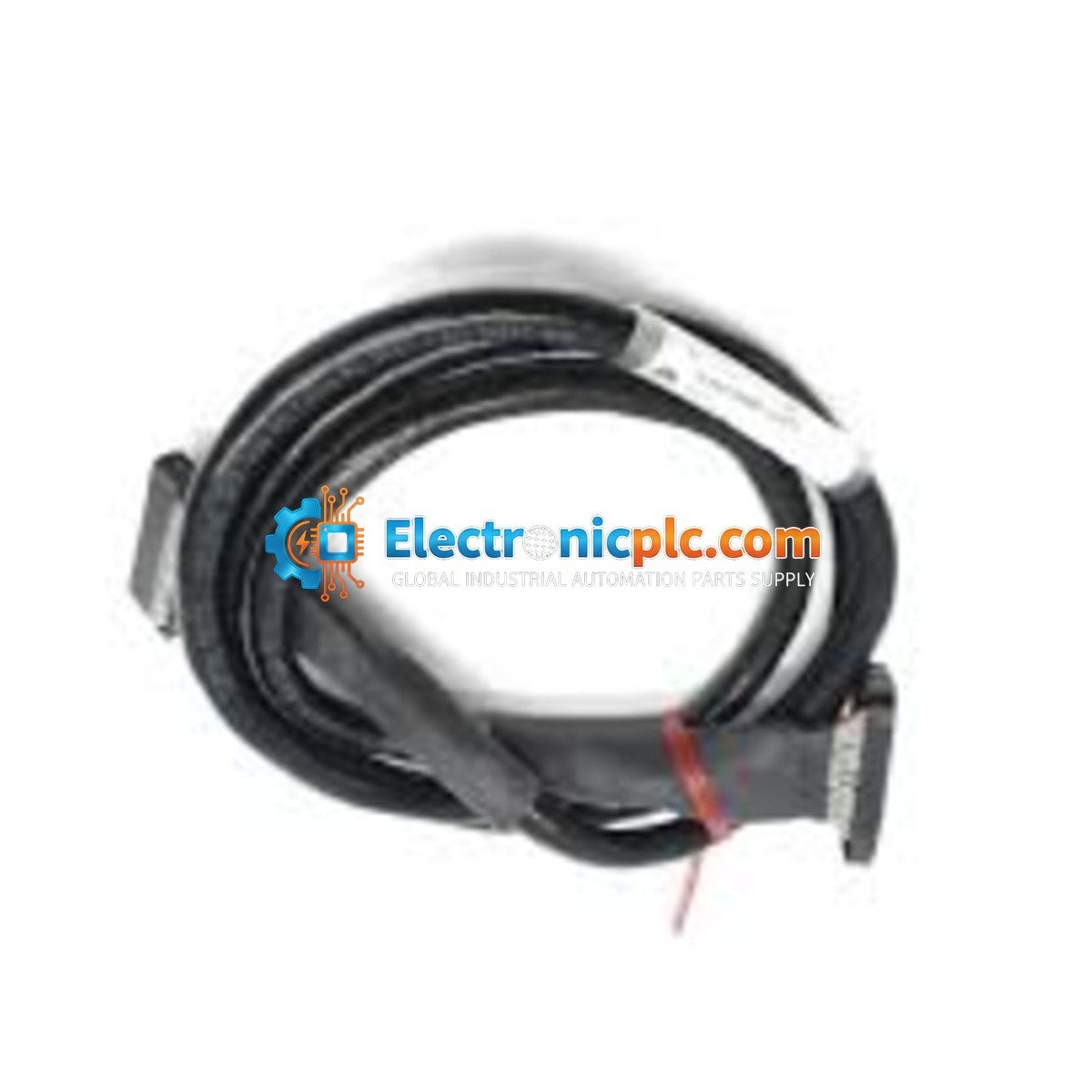

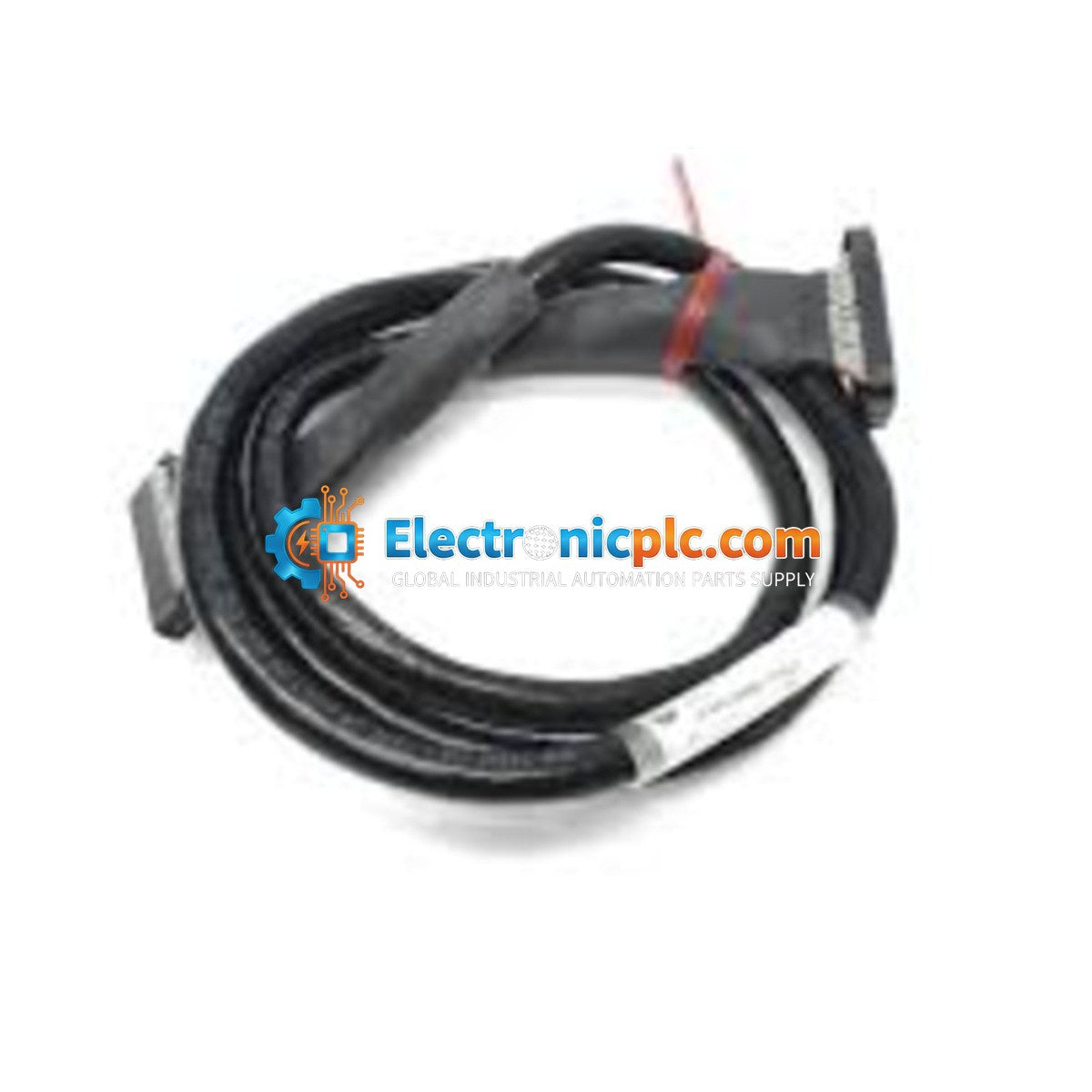

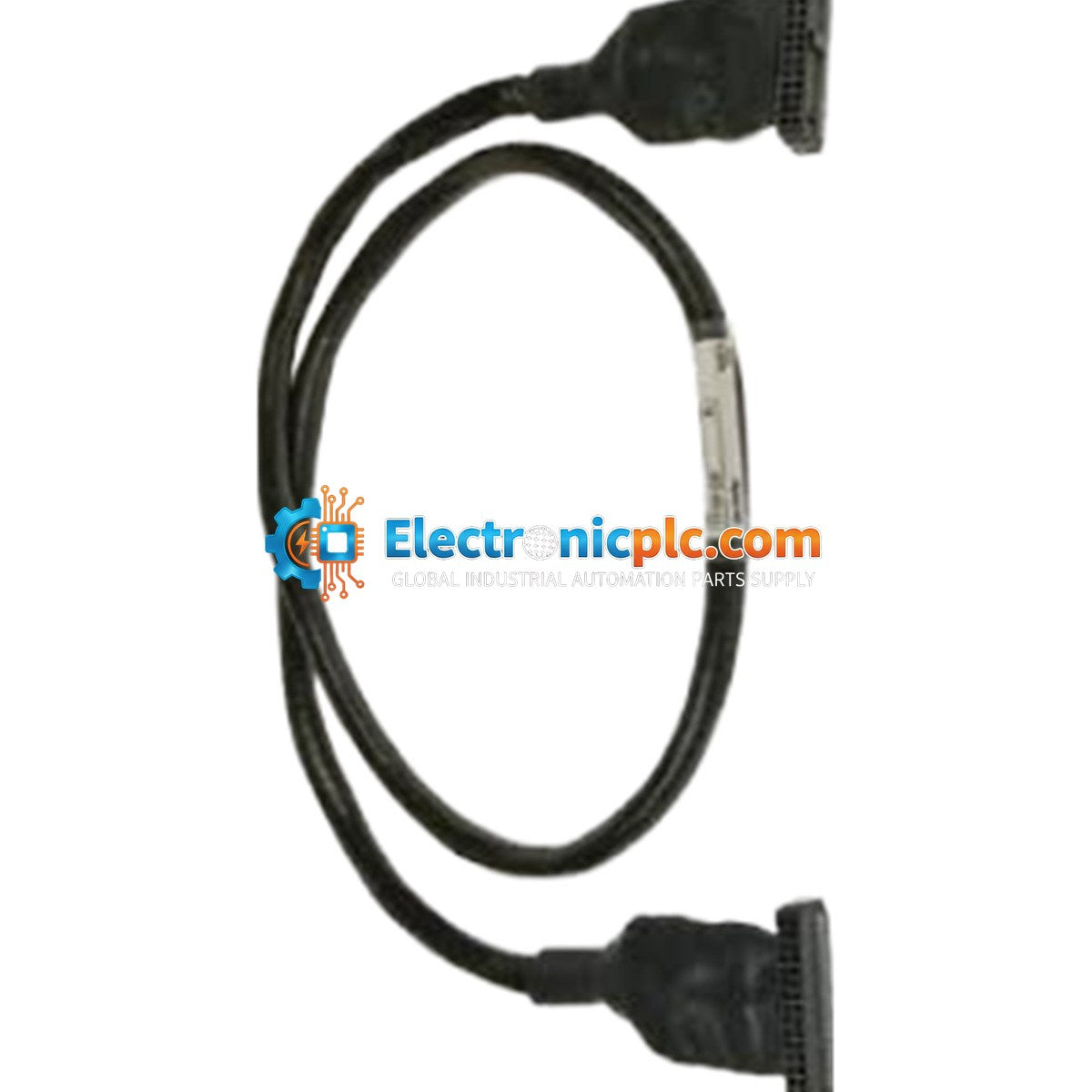

The Allen-Bradley 1746-C16 is a specialized ribbon cable designed for multi-chassis configurations within the SLC 500 modular control system. Measuring 1.22 meters (4 feet / 50 inches), this cable provides the necessary reach to connect a primary processor chassis to expansion chassis within the same industrial enclosure. It ensures reliable backplane communication, allowing the SLC 500 processor to manage I/O modules located in secondary racks.

Features

  • System Compatibility: Specifically designed for Allen-Bradley SLC 500 modular chassis systems.
  • Extended Reach: Longest available interconnect cable for the SLC 500 platform at 1.22 meters.
  • Robust Construction: Rigid ribbon cable design featuring integrated strain relief for industrial durability.
  • Keyed Connectors: Engineered with physical keys to ensure correct orientation and prevent improper backplane connection.

Applications

This cable is essential for expanding SLC 500 systems beyond a single rack. It is typically used in control cabinets where I/O requirements exceed the capacity of a single chassis, allowing for vertical or side-by-side expansion of the PLC architecture.

Technical Specifications

Brand Allen-Bradley
Product Line SLC 500
Hardware Type Chassis Interconnect Cable
Cable Length 1.22 meters (50 inches / 4 feet)
Max Linked Chassis 3 total (including primary)
Bend Radius Clearance 101.6 mm (4 inches)
Operating Temperature 0 to 60 degC (32 to 140 degF)

Installation Guidelines

  • Power Status: Always ensure the system power supply is disconnected before installing or removing the interconnect cable.
  • Orientation: The connector with the key on the top must be inserted into the right-hand socket of the exit chassis. The connector with the key on the inside must be inserted into the left-hand socket of the expansion chassis.
  • Clearance: Ensure a minimum bend radius clearance of 101.6 mm (4 inches) to prevent cable damage and signal interference.
  • Sequence: It is recommended to route and connect the cable before installing power supplies to ensure sufficient physical space and clearance.

FAQ

Is the 1746-C16 compatible with all SLC 500 chassis?

Yes, the 1746-C16 is designed for use with standard SLC 500 modular chassis to facilitate multi-rack communication.

Can I use this cable to connect more than three chassis?

No, the SLC 500 system architecture typically supports a maximum of three total chassis (one primary and two expansion) when using these interconnect cables.
