Allen-Bradley 1746-C9 SLC 500 Chassis Interconnect Cable

Allen-Bradley 1746-C9 SLC 500 Chassis Interconnect Cable

Description

The Allen-Bradley 1746-C9 is a 36-inch (3-foot) ribbon-style interconnect cable engineered for the SLC 500 modular control system. This cable facilitates reliable communication between the primary processor chassis and...

22 people are viewing this right now

Availability: Low stock: 9 left

SKU: 1746-C9
Vendor: Allen-Bradley
Category: PLC Cable
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

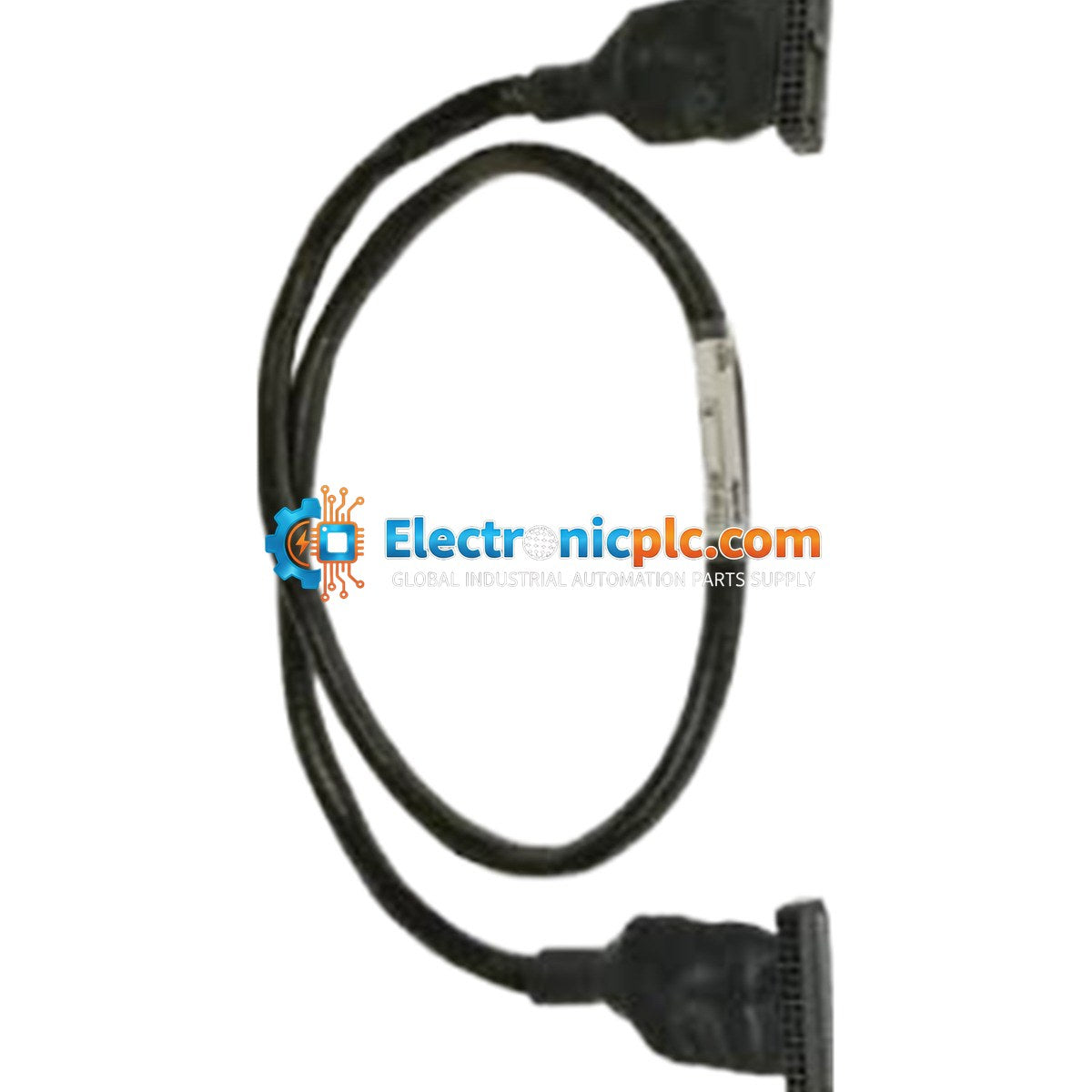

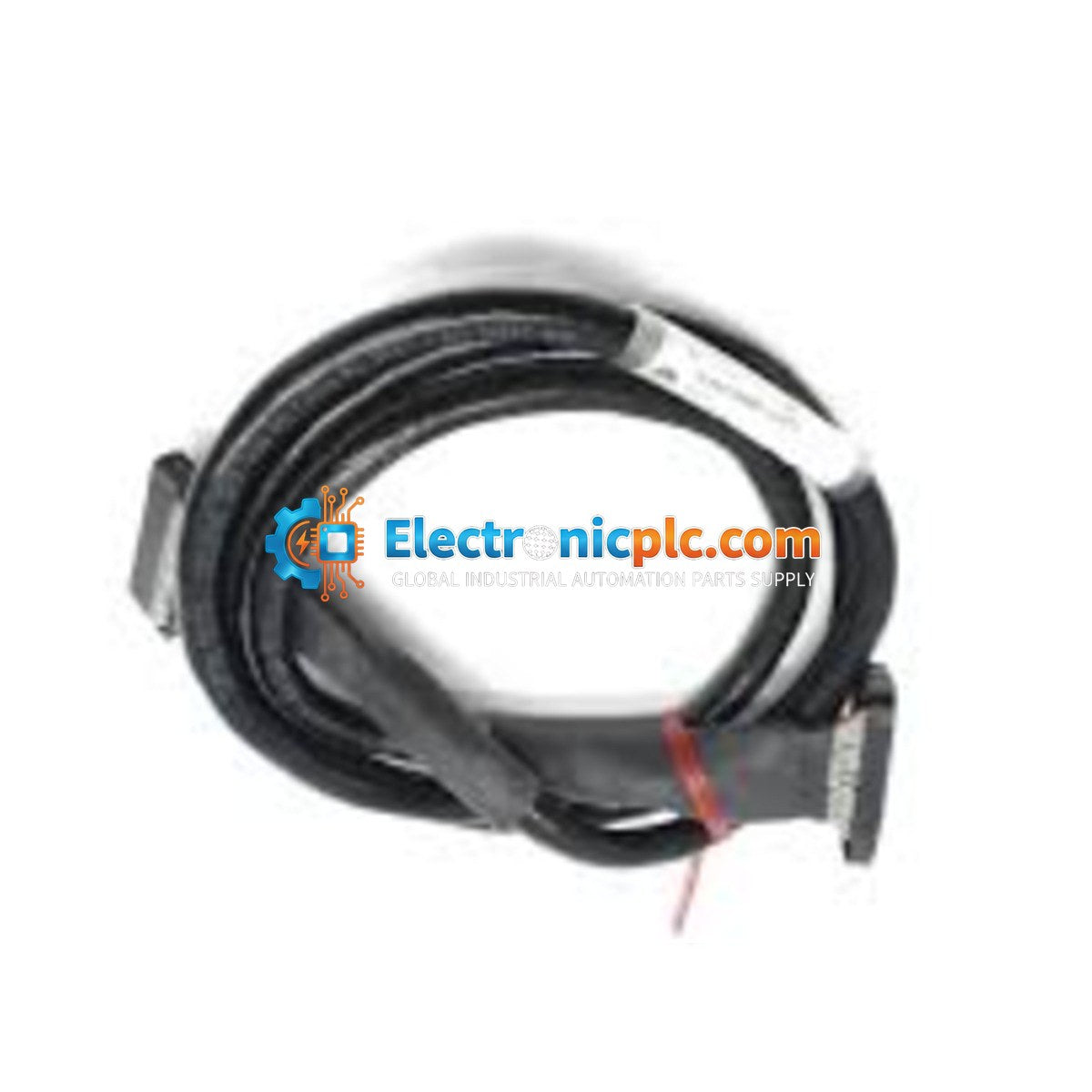

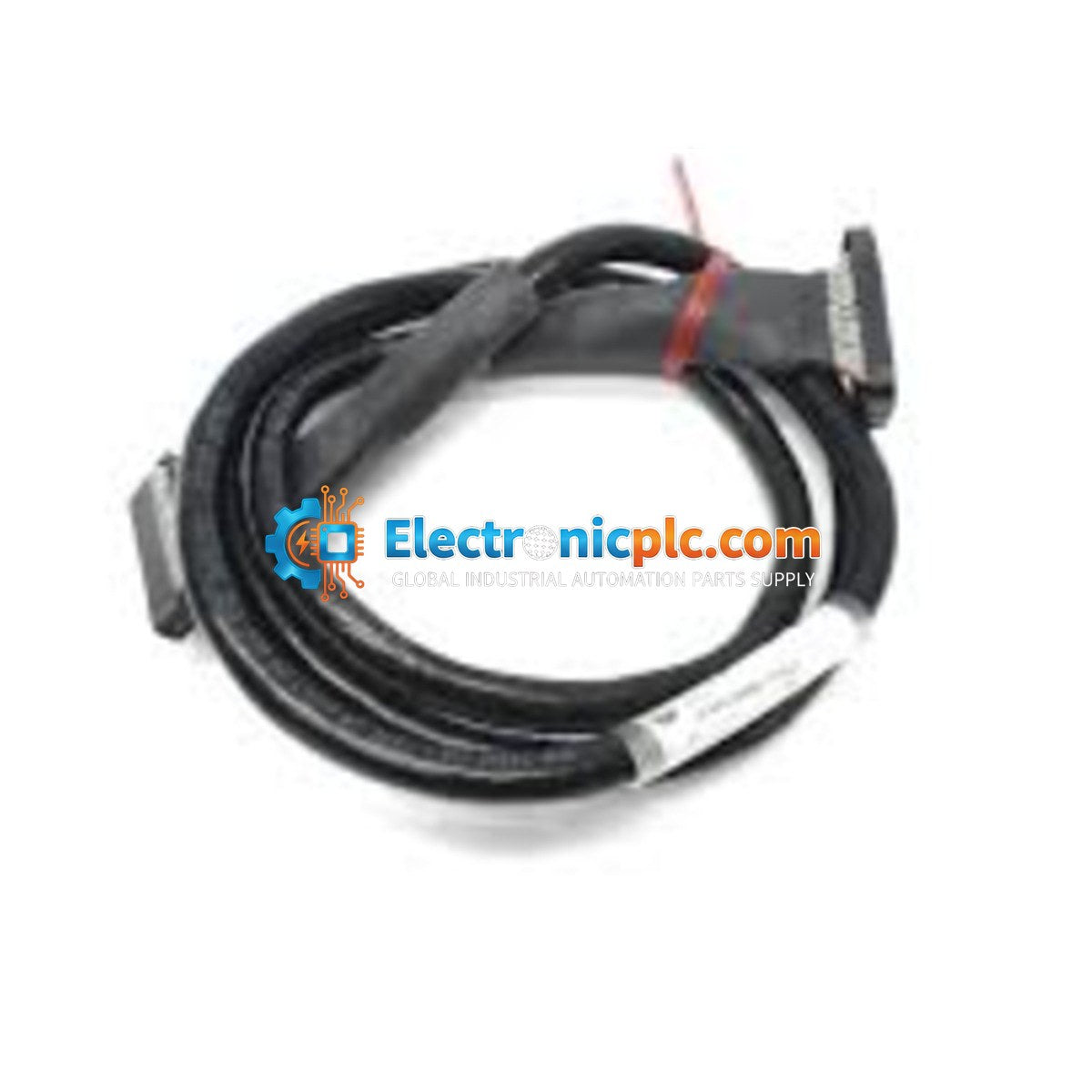

The Allen-Bradley 1746-C9 is a 36-inch (3-foot) ribbon-style interconnect cable engineered for the SLC 500 modular control system. This cable facilitates reliable communication between the primary processor chassis and secondary or tertiary expansion chassis within an industrial enclosure. It is a critical component for systems requiring distributed I/O across multiple racks, ensuring seamless data transfer between the SLC 5/01, 5/02, 5/03, 5/04, or 5/05 processors and remote I/O modules.

Features

  • System Expansion: Enables multi-chassis configurations, supporting up to 3 chassis in a single local system.
  • Compatibility: Fully compatible with all modular 1746 chassis, including 1746-A4, 1746-A7, 1746-A10, and 1746-A13.
  • Flexible Routing: Designed for chassis spacing between 6 and 36 inches, allowing for versatile panel layout and installation.
  • Robust Design: Ribbon-style construction optimized for industrial environments with a defined bend radius for durability.

Technical Specifications

Brand Allen-Bradley
Product Line SLC 500
Cable Length 0.91 meters (36 inches)
Max Expansion 3 chassis total per local system
Bend Radius Clearance 101.6 mm (4 inches)
Operating Temperature 0 to 60 degC (32 to 140 degF)
Weight 0.28 kg (0.63 lbs)

Installation Guidelines

  • Power Down: Always disconnect power from the SLC 500 system before connecting or disconnecting the chassis interconnect cable to prevent electrical damage.
  • Bend Radius: Ensure the cable is not bent tighter than the 101.6 mm (4-inch) minimum radius to avoid damaging the internal ribbon conductors.
  • Routing: Route the cable away from high-voltage AC lines and heavy electromagnetic interference (EMI) sources to maintain signal integrity.
  • Seating: Ensure the connectors are fully seated and locked into the chassis ports. Avoid applying excessive tension or pulling force on the cable ends.

FAQ

Can the 1746-C9 be used to connect more than three chassis?

No, the SLC 500 system architecture typically supports a maximum of three chassis (one local and two expansion) in a single local system configuration.

Is this cable compatible with all SLC 500 chassis?

Yes, the 1746-C9 is designed for use with all modular 1746 chassis, including the 4, 7, 10, and 13-slot versions.
