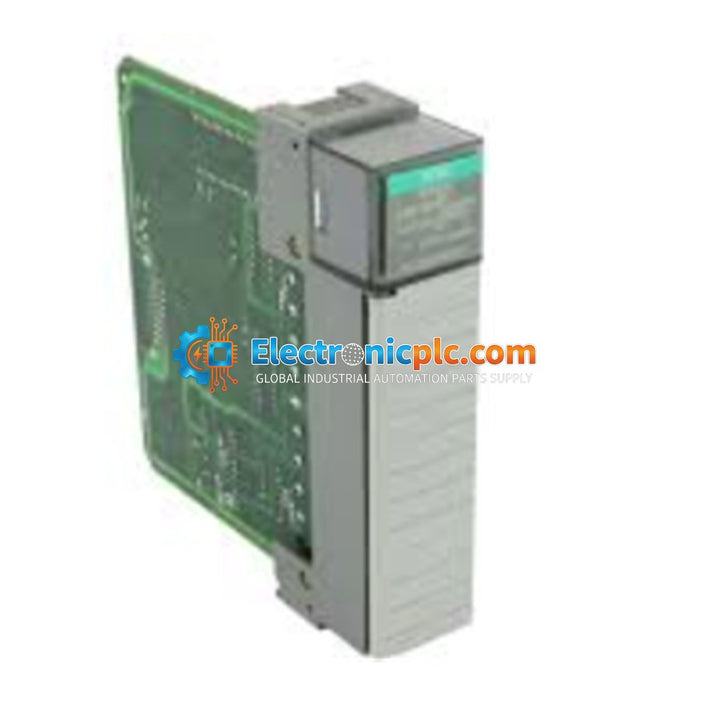

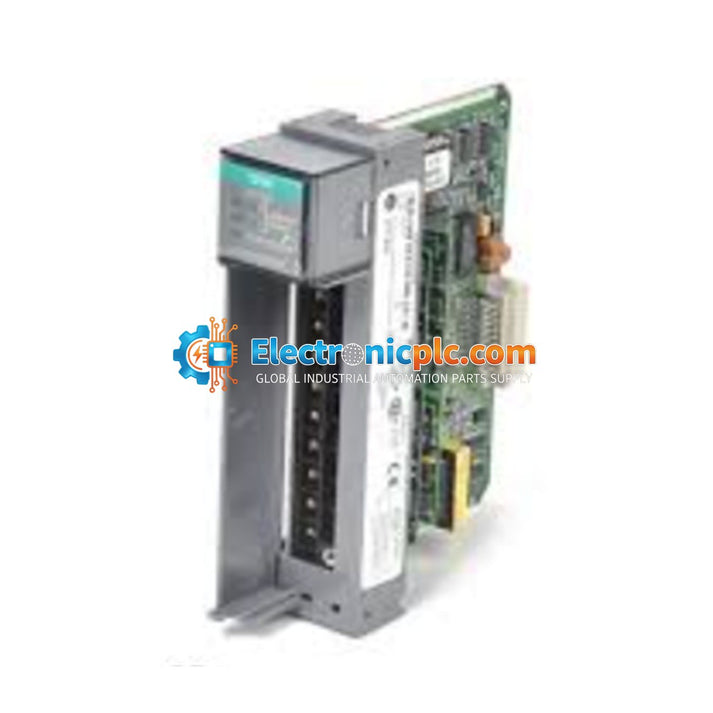

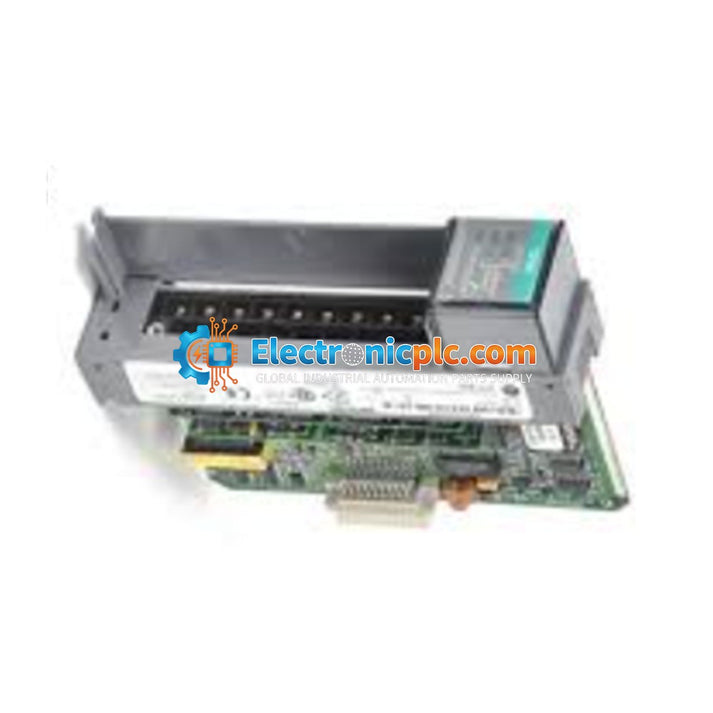

Allen-Bradley 1746-FIO4I SLC 500 Fast Analog Combination I/O Module

Allen-Bradley 1746-FIO4I SLC 500 Fast Analog Combination I/O Module

Description

The Allen-Bradley 1746-FIO4I is a high-speed analog combination I/O module engineered for the SLC 500 programmable controller platform. Designed for applications requiring rapid signal processing, this module provides two analog...

18 people are viewing this right now

Availability: Low stock: 3 left

SKU: 1746-FIO4I
Vendor: Allen-Bradley
Category: Analog I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-FIO4I is a high-speed analog combination I/O module engineered for the SLC 500 programmable controller platform. Designed for applications requiring rapid signal processing, this module provides two analog input channels and two analog output channels in a single-slot configuration. The module utilizes successive approximation conversion to achieve high-speed performance, making it suitable for control loops that demand faster response times than standard analog modules can provide.

Features

  • High-Speed Conversion: Utilizes successive approximation for a 7.5 microsecond conversion time.
  • I/O Configuration: Two configurable voltage/current inputs and two dedicated current output channels.
  • High Bandwidth: Features a 7 kHz bandwidth for rapid signal tracking.
  • Resolution: Provides 12-bit resolution for inputs and 14-bit resolution for outputs.
  • Compatibility: Fully compatible with both fixed and modular SLC 500 chassis systems.

Technical Specifications

Brand Allen-Bradley
Product Line SLC 500
Module Type Fast Analog Combination I/O
Input Channels 2 (Voltage or Current)
Output Channels 2 (Current: 0–20 mA)
Input Ranges 0 to 10V DC or 0 to 20 mA
Conversion Method Successive Approximation
Input Resolution 12-bit
Output Resolution 14-bit
Conversion Time 7.5 µs
Update Time 512 µs
Backplane Current (5V) 55 mA
Backplane Current (24V) 150 mA
Operating Temperature 0 to 60 degC (32 to 140 degF)

Installation Guidelines

  • Power Down: Always remove power from the SLC 500 chassis before inserting or removing the module to prevent electrical damage.
  • Slot Placement: The module can be installed in any available I/O slot of a modular SLC 500 chassis.
  • Wiring: Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI). Ensure the shield is grounded at one end only.
  • Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module.
  • Cooling: Ensure adequate ventilation within the enclosure to maintain the operating temperature within the specified 0 to 60 degC range.

FAQ

What is the primary advantage of the 1746-FIO4I over standard analog modules?

The 1746-FIO4I is designed for high-speed applications. Unlike standard modules that typically use Sigma-Delta conversion, this module uses a successive approximation method, resulting in a significantly faster 7.5 microsecond conversion time and a 7 kHz bandwidth.

Is this module compatible with all SLC 500 systems?

Yes, the 1746-FIO4I is compatible with both fixed and modular SLC 500 hardware platforms.
