Allen-Bradley 1746-FIO4V SLC 500 Fast Analog Input/Output Module

Allen-Bradley 1746-FIO4V SLC 500 Fast Analog Input/Output Module

Description

The Allen-Bradley 1746-FIO4V is a high-performance Fast Analog Input/Output module designed for the SLC 500 programmable logic controller system. This module provides specialized high-speed analog signal processing capabilities, featuring two...

19 people are viewing this right now

Availability: Low stock: 5 left

SKU: 1746-FIO4V
Vendor: Allen-Bradley
Category: Analog I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

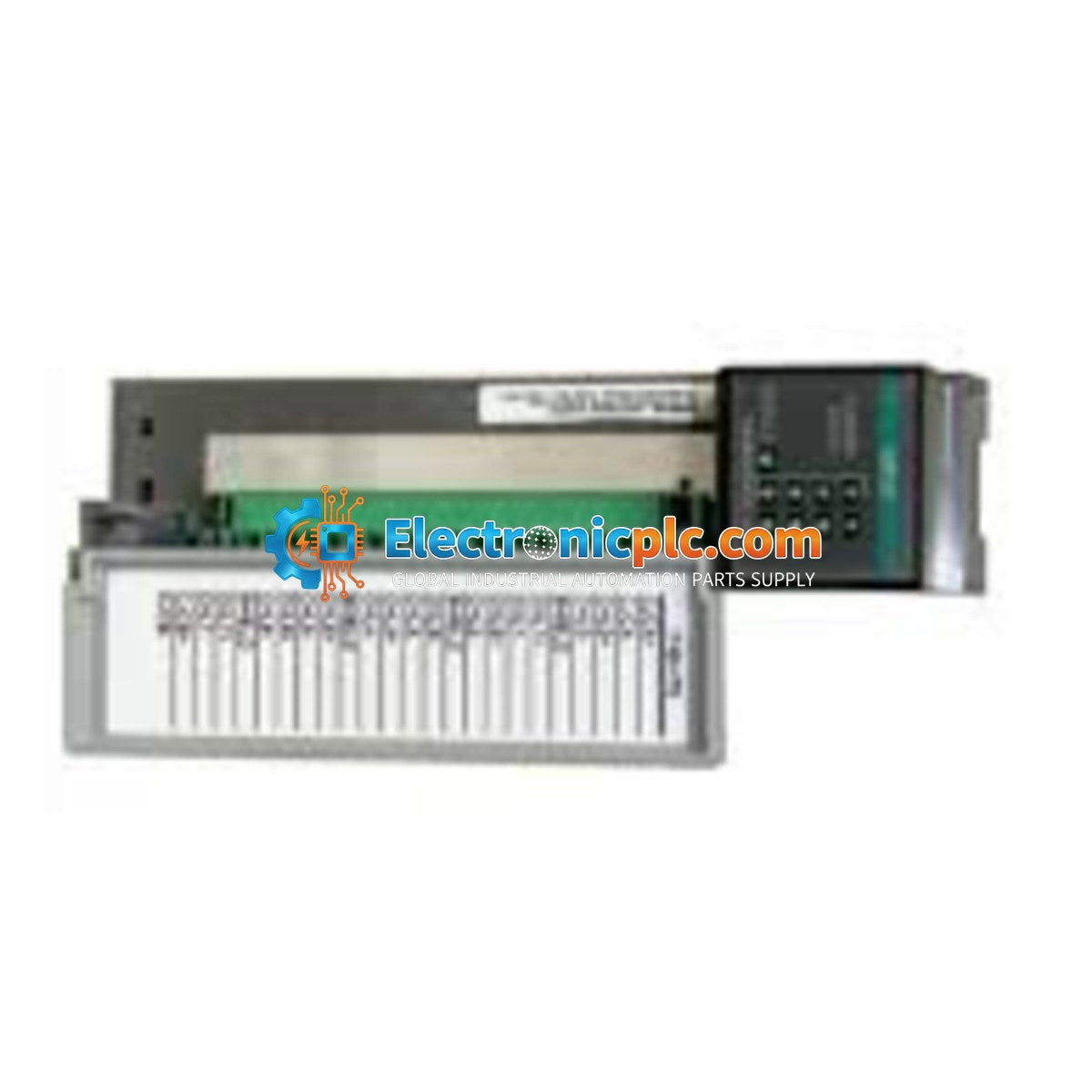

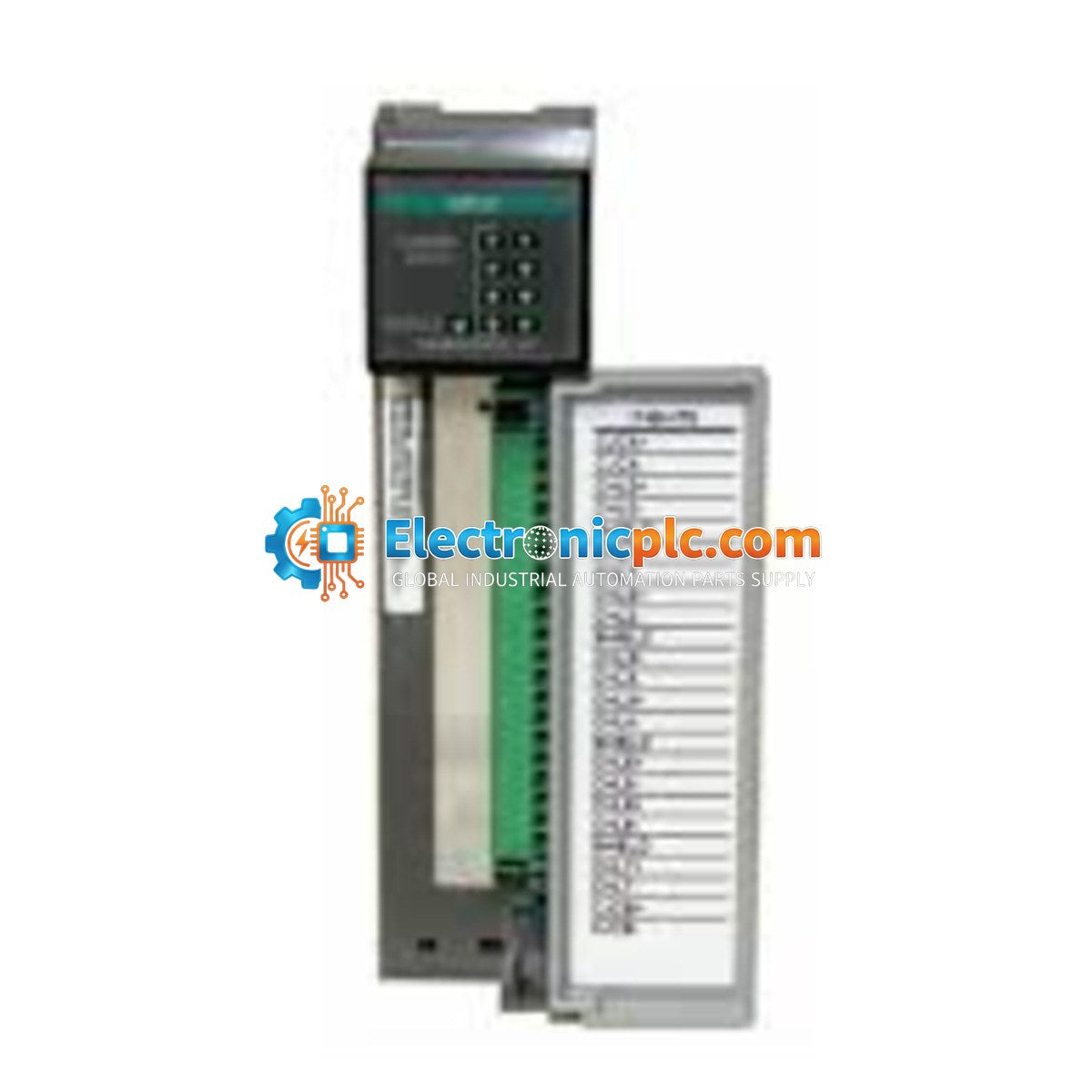

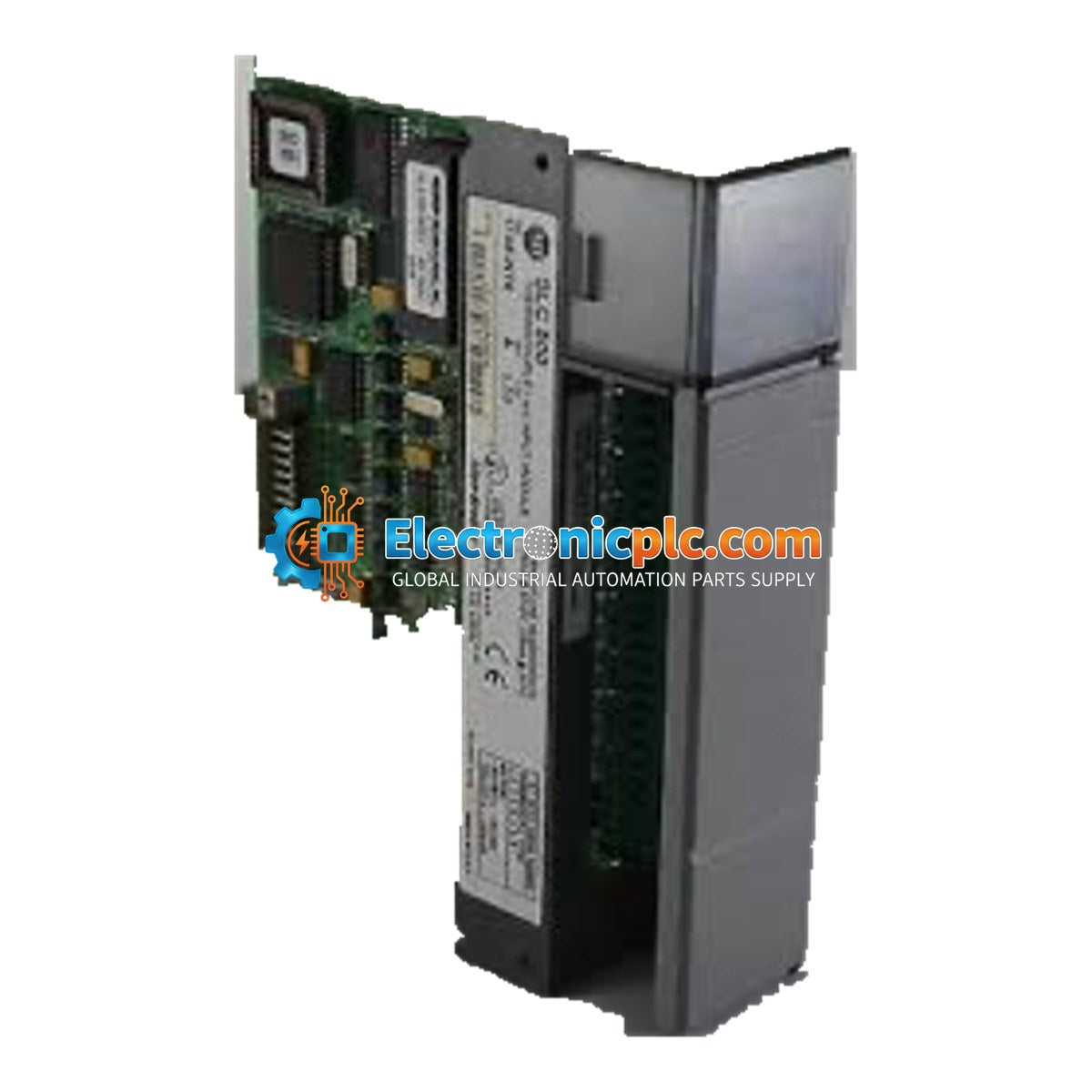

The Allen-Bradley 1746-FIO4V is a high-performance Fast Analog Input/Output module designed for the SLC 500 programmable logic controller system. This module provides specialized high-speed analog signal processing capabilities, featuring two fast analog input channels and two analog voltage output channels. It is engineered for applications requiring rapid response times and precision control, such as high-speed motion monitoring or fast-acting process loops.

Features

  • Two high-speed analog input channels supporting voltage and current ranges.
  • Two dedicated analog voltage output channels.
  • Fast response capability with a slew rate of 2V/ms.
  • Accuracy rating of ±0.2% of full scale for reliable process data.
  • Integrated into the SLC 500 backplane for seamless communication with the CPU.

Technical Specifications

Product Model 1746-FIO4V
Input Channels 2
Output Channels 2 (Voltage)
Input Ranges ±10V DC, 0-10V DC, 0-20mA, 4-20mA
Slew Rate 2V/ms
Accuracy ±0.2% of full scale
Backplane Power 5V DC
Isolation Voltage 500V AC (continuous)
Operating Temperature 0 degC to 60 degC (32 degF to 140 degF)
Storage Temperature -40 degC to 85 degC (-40 degF to 185 degF)
Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
  • Handle the module using proper ESD (Electrostatic Discharge) prevention measures to avoid damaging internal components.
  • Seat the module firmly into the designated SLC 500 I/O slot and secure it using the integrated mounting screws.
  • Use shielded twisted-pair cabling for analog signals to minimize noise interference, ensuring the shield is grounded at one end only.
  • Route signal cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
  • Verify that the backplane power supply is sufficient to support the additional load of the module.

FAQ

What is the primary function of the 1746-FIO4V?

The 1746-FIO4V is a specialized I/O module for the SLC 500 platform that provides fast analog input and voltage output signals, typically used in applications where standard analog modules are too slow to meet process requirements.

Can this module handle both current and voltage inputs?

Yes, the input channels support both voltage (±10V DC, 0-10V DC) and current (0-20mA, 4-20mA) configurations.

Is this module compatible with all SLC 500 chassis?

The 1746-FIO4V is designed for standard SLC 500 I/O chassis. Please verify your specific controller configuration and power budget before installation.
