Allen-Bradley 1746-HCA Motion Control Interface Cable

Allen-Bradley 1746-HCA Motion Control Interface Cable

Description

The Allen-Bradley 1746-HCA is a specialized interface cable engineered for the SLC 500 motion control system. This cable facilitates a high-integrity physical connection between 1746 series motion control modules, such...

15 people are viewing this right now

Availability: Low stock: 7 left

SKU: 1746-HCA
Vendor: Allen-Bradley
Category: Motion Control Interface Cable
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

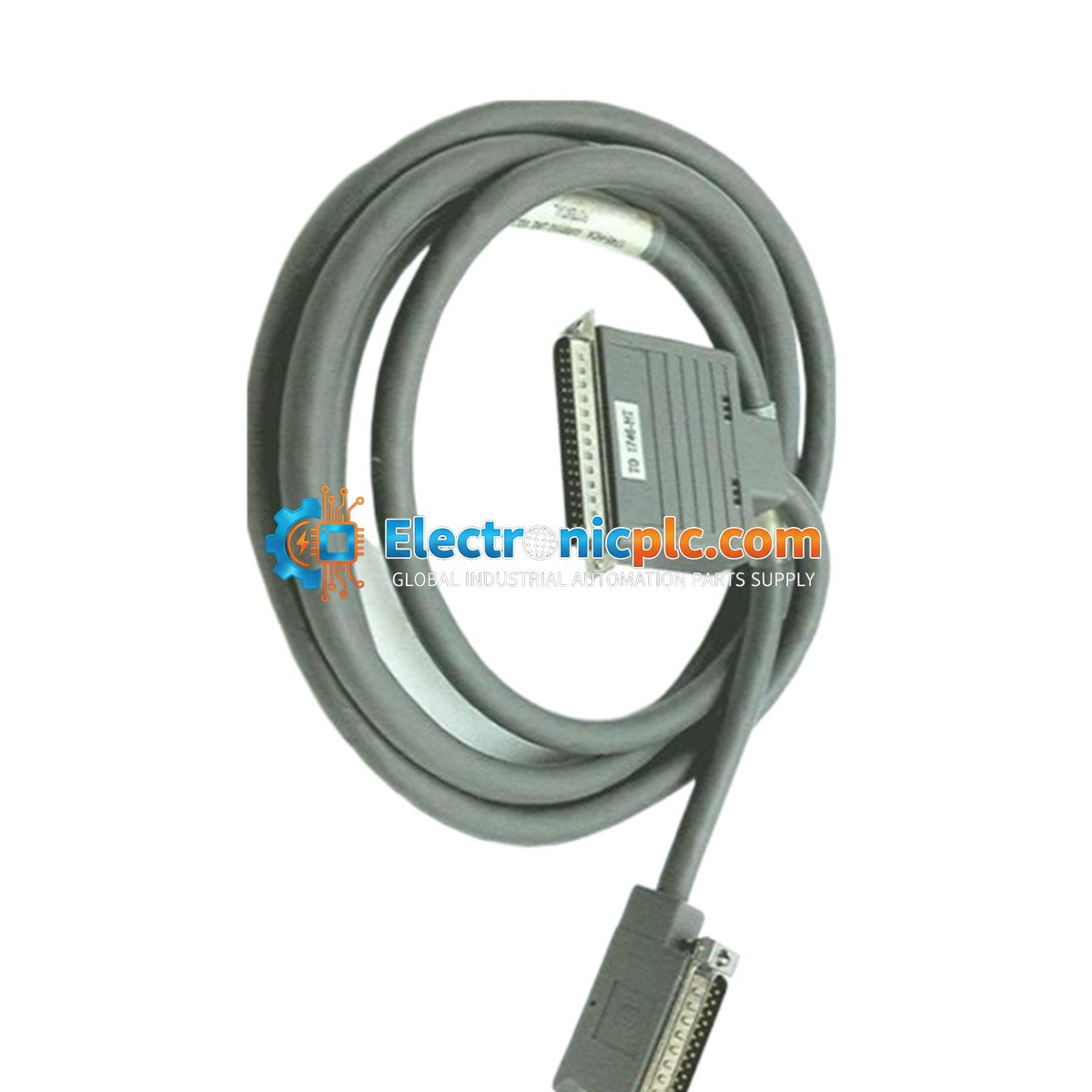

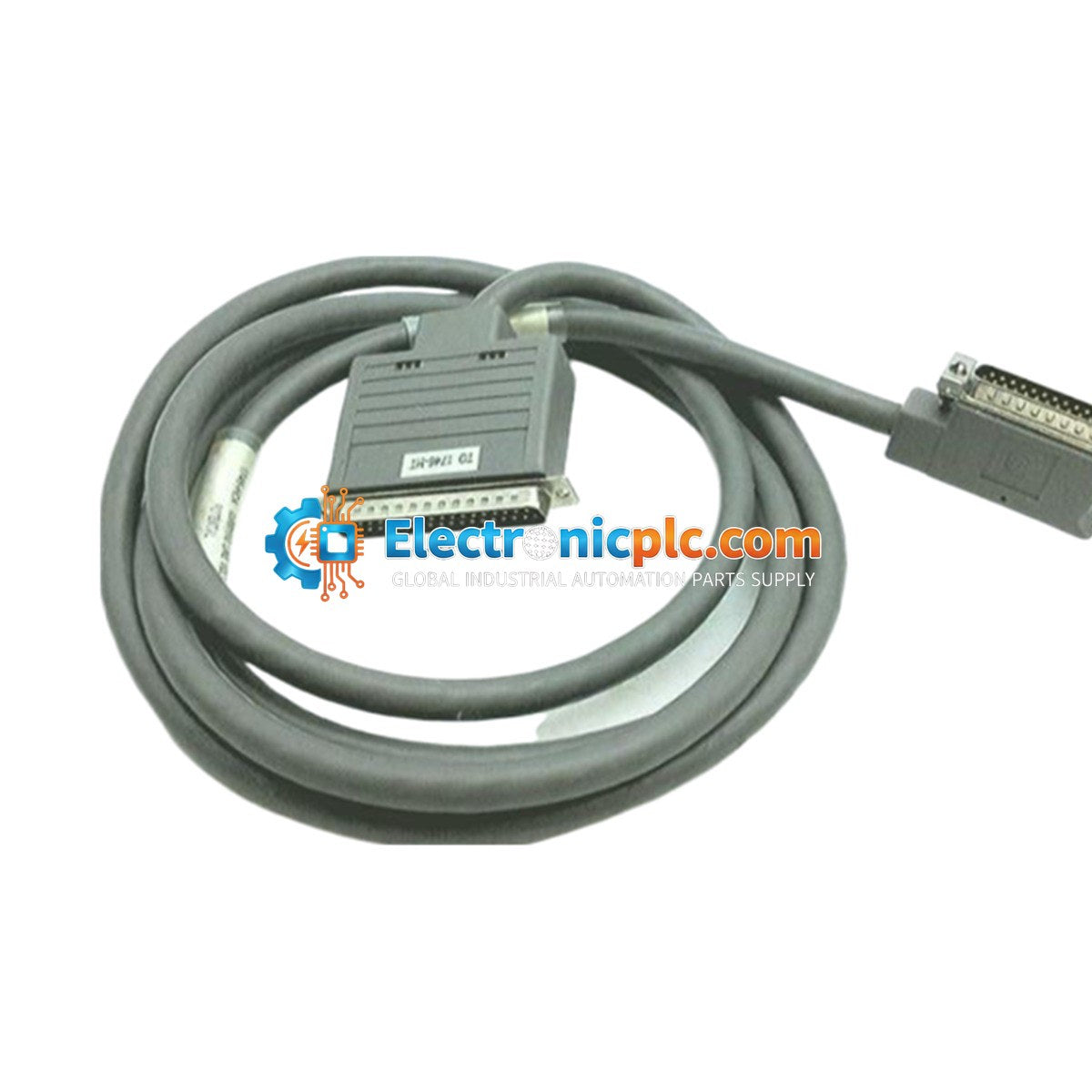

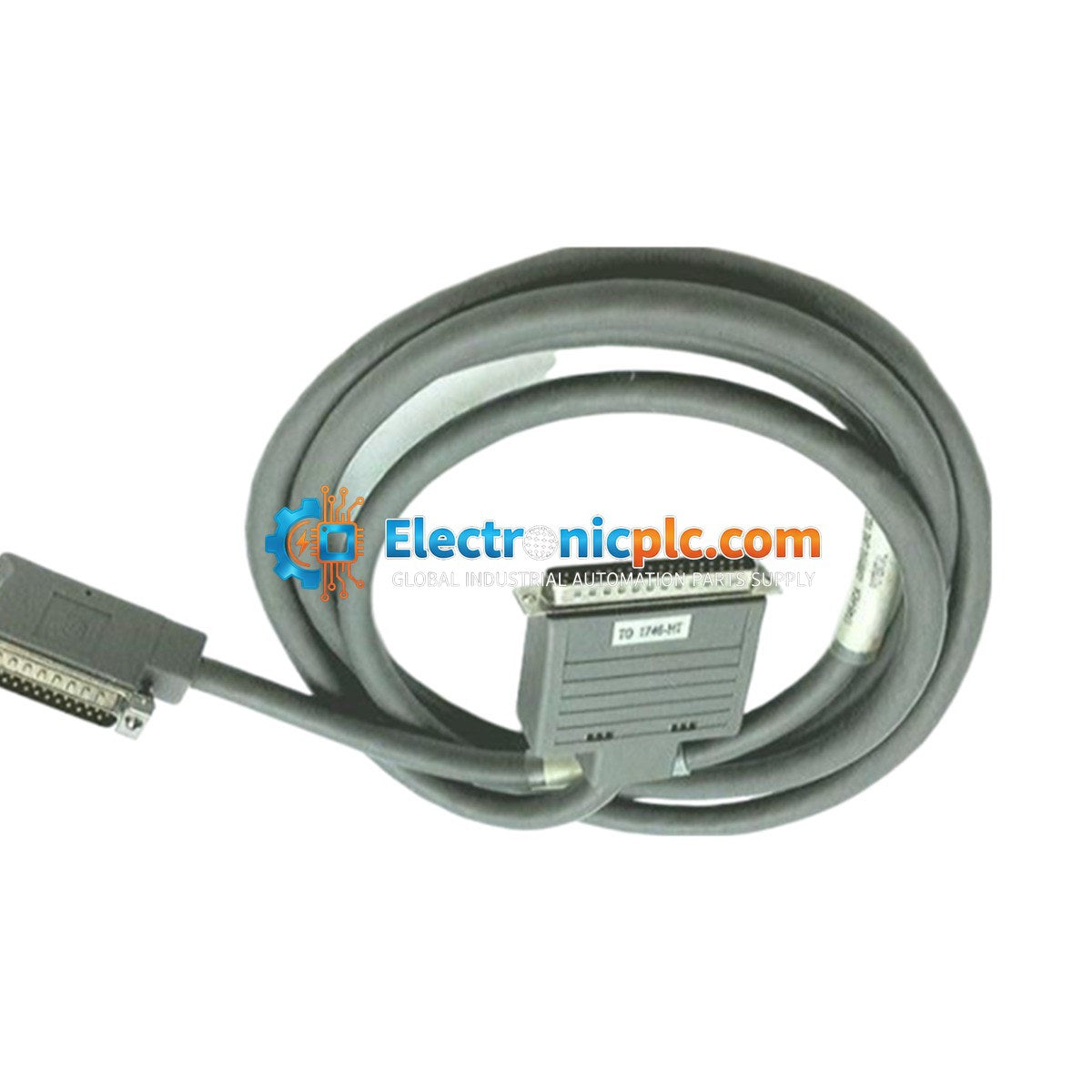

The Allen-Bradley 1746-HCA is a specialized interface cable engineered for the SLC 500 motion control system. This cable facilitates a high-integrity physical connection between 1746 series motion control modules, such as the 1746-HSCE or 1746-HSRV, and the 1746-HT termination panel. It is designed to ensure reliable transmission of high-speed encoder signals and drive command voltages between the PLC rack and field wiring.

Features

  • Secure Connectivity: Equipped with locking connectors at both ends to prevent accidental disconnection in high-vibration industrial environments.
  • Signal Integrity: Integrated shielding protects sensitive low-voltage, high-speed signals from electromagnetic interference (EMI) typically found near servo drives and power cabling.
  • Application Compatibility: Specifically designed for seamless integration with the 1746-HT termination panel within the SLC 500 ecosystem.
  • Robust Design: Built to withstand the demands of motor-driven machinery and motion control applications.

Applications

The 1746-HCA is primarily used in industrial automation systems requiring precise motion control, including servo drive interfacing and high-speed counter signal processing within SLC 500 rack-based configurations.

Technical Specifications

Brand Allen-Bradley
Product Line SLC 500
Hardware Type Motion Control Interface Cable
Cable Length 2.13 meters (7 feet)
Connector Type Keyed with locking mechanisms
Compatible Termination Panel 1746-HT
Weight 0.44 kg

Installation Guidelines

  • Power Down: Always ensure the PLC rack and associated drive equipment are de-energized before connecting or disconnecting the cable.
  • Routing: Route the cable away from high-voltage power lines and high-EMI sources to maintain signal integrity.
  • Securing: Ensure the locking mechanisms are fully engaged at both the module and the 1746-HT termination panel to prevent vibration-induced loosening.
  • Handling: Avoid sharp bends or excessive tension on the cable during installation to prevent internal conductor damage.

FAQ

Is this cable compatible with other SLC 500 modules?

The 1746-HCA is specifically designed for use with 1746 motion control modules and the 1746-HT termination panel. Please verify your specific module catalog number to ensure compatibility.

Does this cable require special grounding?

The cable's integrated shielding is designed to mitigate EMI. Ensure the associated 1746-HT termination panel is properly grounded according to your system's installation manual to maximize the effectiveness of the cable's shield.
