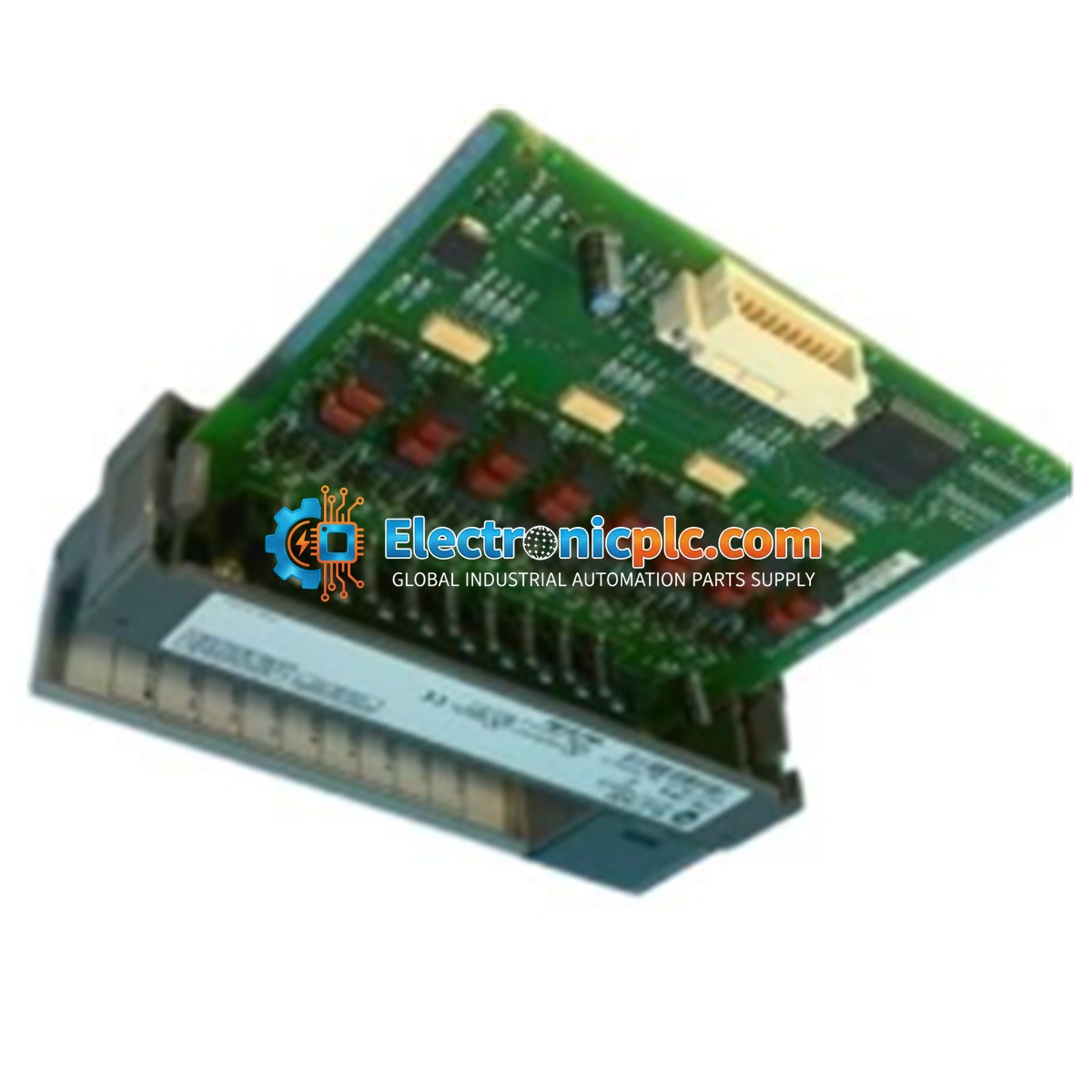

Allen-Bradley 1746-HS SLC 500 IMC 110 Motion Controller Module

Allen-Bradley 1746-HS SLC 500 IMC 110 Motion Controller Module

Description

The Allen-Bradley 1746-HS is a specialized Motion Controller Module designed for the SLC 500 programmable controller platform. Known as the IMC 110, this module provides high-speed motion control capabilities, enabling...

26 people are viewing this right now

Availability: In stock

SKU: 1746-HS
Vendor: Allen-Bradley
Category: Motion Controller Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-HS is a specialized Motion Controller Module designed for the SLC 500 programmable controller platform. Known as the IMC 110, this module provides high-speed motion control capabilities, enabling precise positioning and velocity control for industrial automation applications. Although now discontinued by the manufacturer, it remains a critical component for maintaining legacy SLC 500 control systems.

Features

  • High-speed motion control for SLC 500 systems.
  • Integrated IMC 110 functionality for motion profiling and positioning.
  • Supports 24 VDC input signals with frequencies up to 300 kHz.
  • Isolated user-side power outputs for flexible interface configurations.
  • Designed for direct integration into the SLC 500 I/O chassis backplane.

Applications

This module is typically utilized in industrial environments requiring precise motion control, such as packaging machinery, assembly lines, material handling systems, and specialized manufacturing equipment where the SLC 500 platform serves as the primary controller.

Technical Specifications

Product Model 1746-HS
Module Type IMC 110 Motion Controller
Backplane Current (5 VDC) 0.300 A
Backplane Current (24 VDC) 0.104 A
Isolated User Side (5 VDC) 0.150 A
Isolated User Side (15 VDC) 0.030 A / 0.20 A
Input Voltage 24 VDC
Max Input Frequency 300 kHz

Installation Guidelines

  • Ensure the SLC 500 chassis power is disconnected before inserting or removing the 1746-HS module.
  • Handle the module using proper ESD (Electrostatic Discharge) prevention measures to avoid damaging sensitive internal circuitry.
  • Verify that the module is fully seated in the chassis slot and that the retaining screws are tightened to ensure a secure connection to the backplane.
  • Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Ensure adequate ventilation within the enclosure to prevent overheating during operation.

FAQ

Is the 1746-HS still supported by Allen-Bradley?

No, the 1746-HS has been discontinued by the manufacturer. It is typically sourced through surplus or refurbished inventory for maintenance of existing systems.

What is the primary function of the 1746-HS?

The 1746-HS is an IMC 110 motion controller module that allows the SLC 500 PLC to manage motion control tasks, such as high-speed pulse outputs and position tracking.
