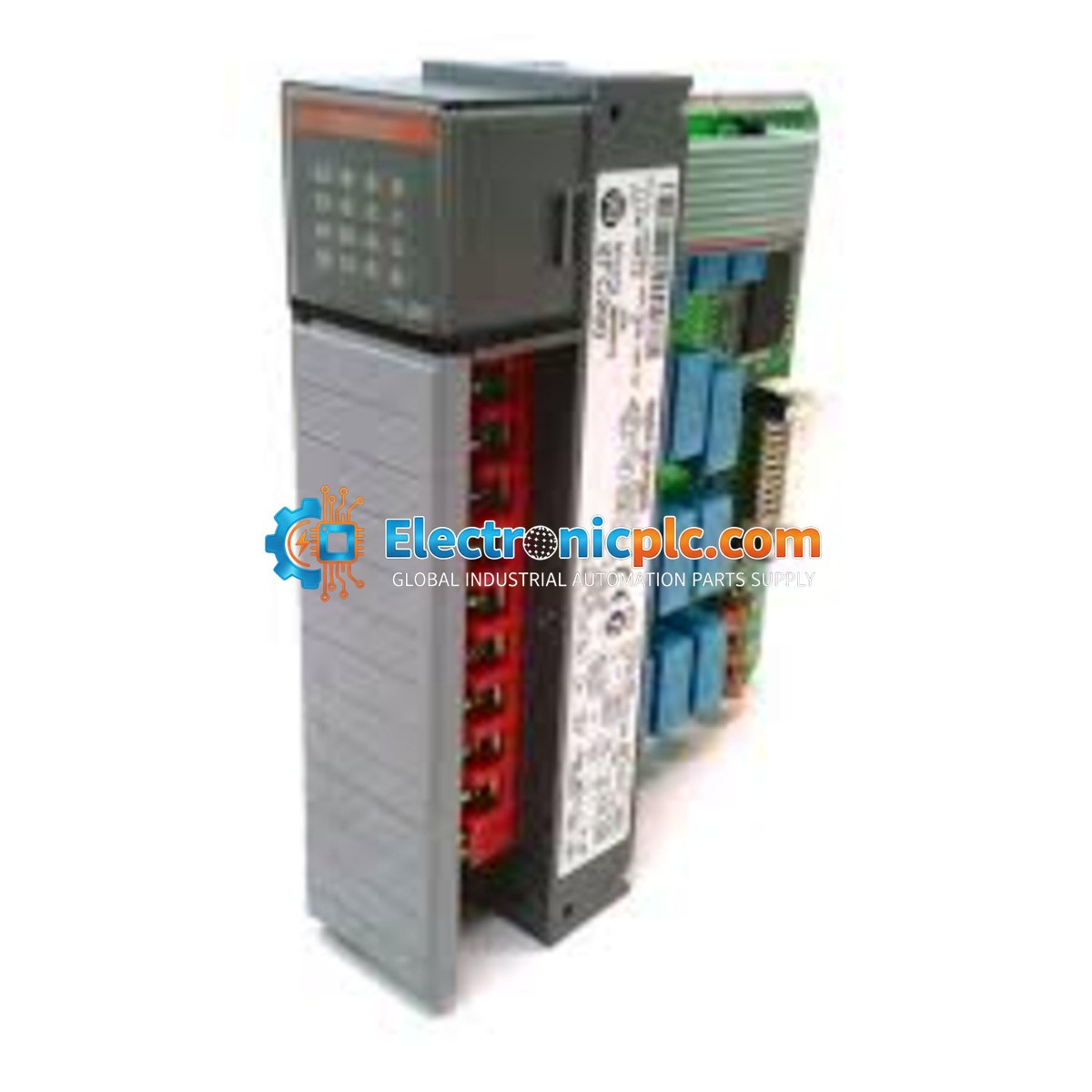

Allen-Bradley 1746-HSTP1 SLC 500 Stepper Control Module

Allen-Bradley 1746-HSTP1 SLC 500 Stepper Control Module

Description

The Allen-Bradley 1746-HSTP1 is a high-performance Stepper Control Module designed for the SLC 500 programmable logic controller platform. This module provides precise motion control by generating pulse trains to drive...

22 people are viewing this right now

Availability: Low stock: 3 left

SKU: 1746-HSTP1
Vendor: Allen-Bradley
Category: Stepper Control Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-HSTP1 is a high-performance Stepper Control Module designed for the SLC 500 programmable logic controller platform. This module provides precise motion control by generating pulse trains to drive stepper motor controllers, enabling accurate positioning and velocity control in industrial automation applications.

Features

  • Supports trapezoidal velocity profiles for smooth motion transitions.
  • Wide speed range from 1 to 250,000 pulses per second.
  • Fast acceleration step rate of 4 milliseconds or less.
  • Differential inputs for robust signal integrity in high-noise environments.
  • Compatible with standard stepper motor driver interfaces.

Applications

The 1746-HSTP1 is ideal for applications requiring precise point-to-point positioning, such as indexing tables, conveyor positioning, packaging machinery, and automated assembly equipment integrated within an SLC 500 control system.

Technical Specifications

Model 1746-HSTP1
Platform SLC 500
Speed Range 1 to 250,000 pulses per second
Acceleration Profile Trapezoidal
Acceleration Step Rate 4 ms or less
Input Type Differential
Output Type Digital
Input Frequency 250 kHz
Backplane Current (5V) 200 mA
Backplane Current (24V) 90 mA

Installation Guidelines

  • Ensure the SLC 500 chassis is powered down before inserting or removing the module to prevent electrical damage.
  • The module must be seated firmly in the chassis slot and secured with the integrated locking tabs.
  • Use shielded cabling for differential input connections to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the stepper motor driver and the PLC chassis to ensure system stability.
  • Keep the module away from high-heat sources and ensure adequate ventilation within the control cabinet.
  • Handle the module using ESD-safe practices to prevent damage to internal circuitry.

FAQ

What is the primary function of the 1746-HSTP1?

The 1746-HSTP1 acts as a motion control interface for the SLC 500 system, converting digital commands from the PLC into pulse train signals required to operate stepper motor drivers.

Is this module compatible with all SLC 500 chassis?

The 1746-HSTP1 is designed for standard SLC 500 I/O chassis. Please verify your specific chassis power supply capacity to ensure it can accommodate the 200mA (5V) and 90mA (24V) current draw of the module.
