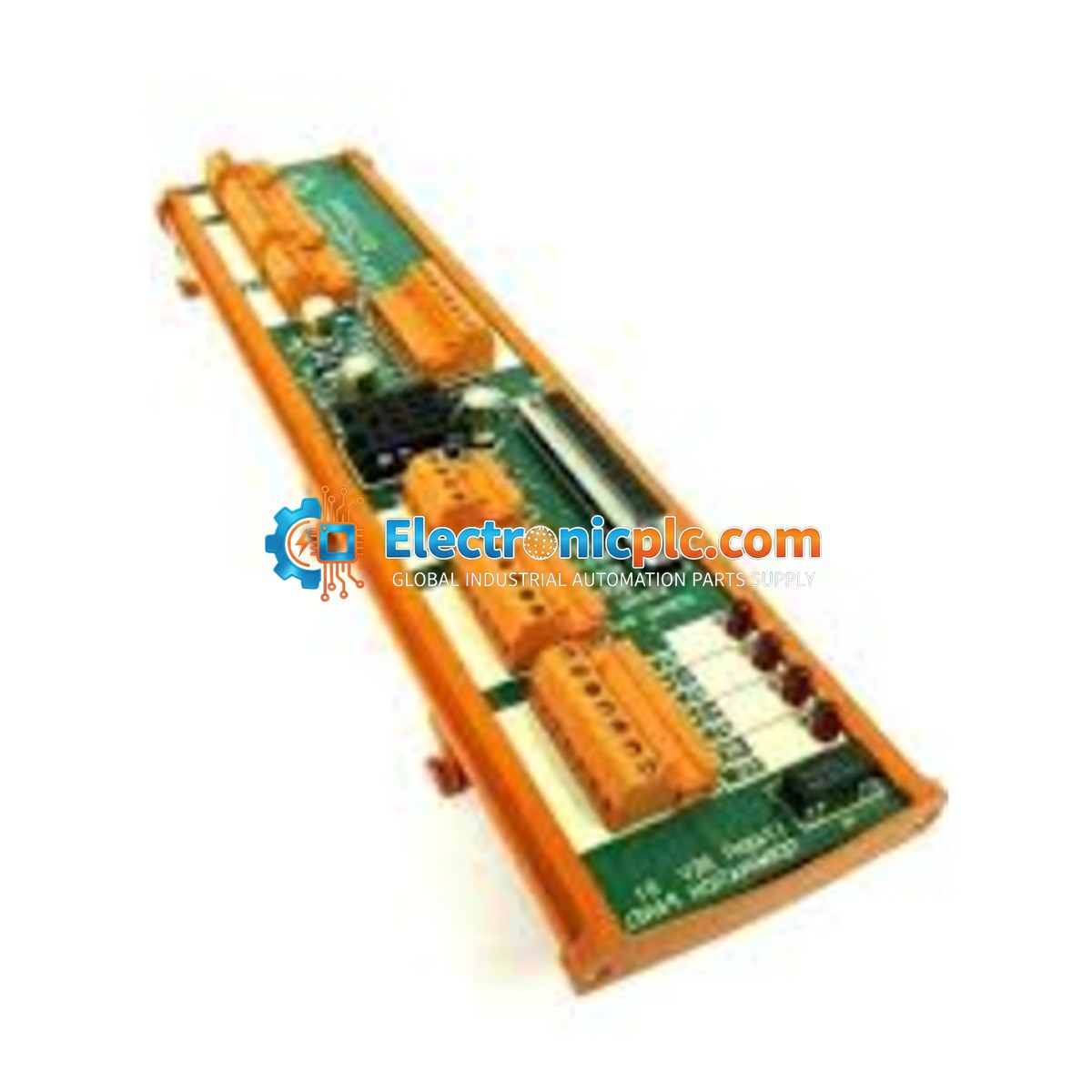

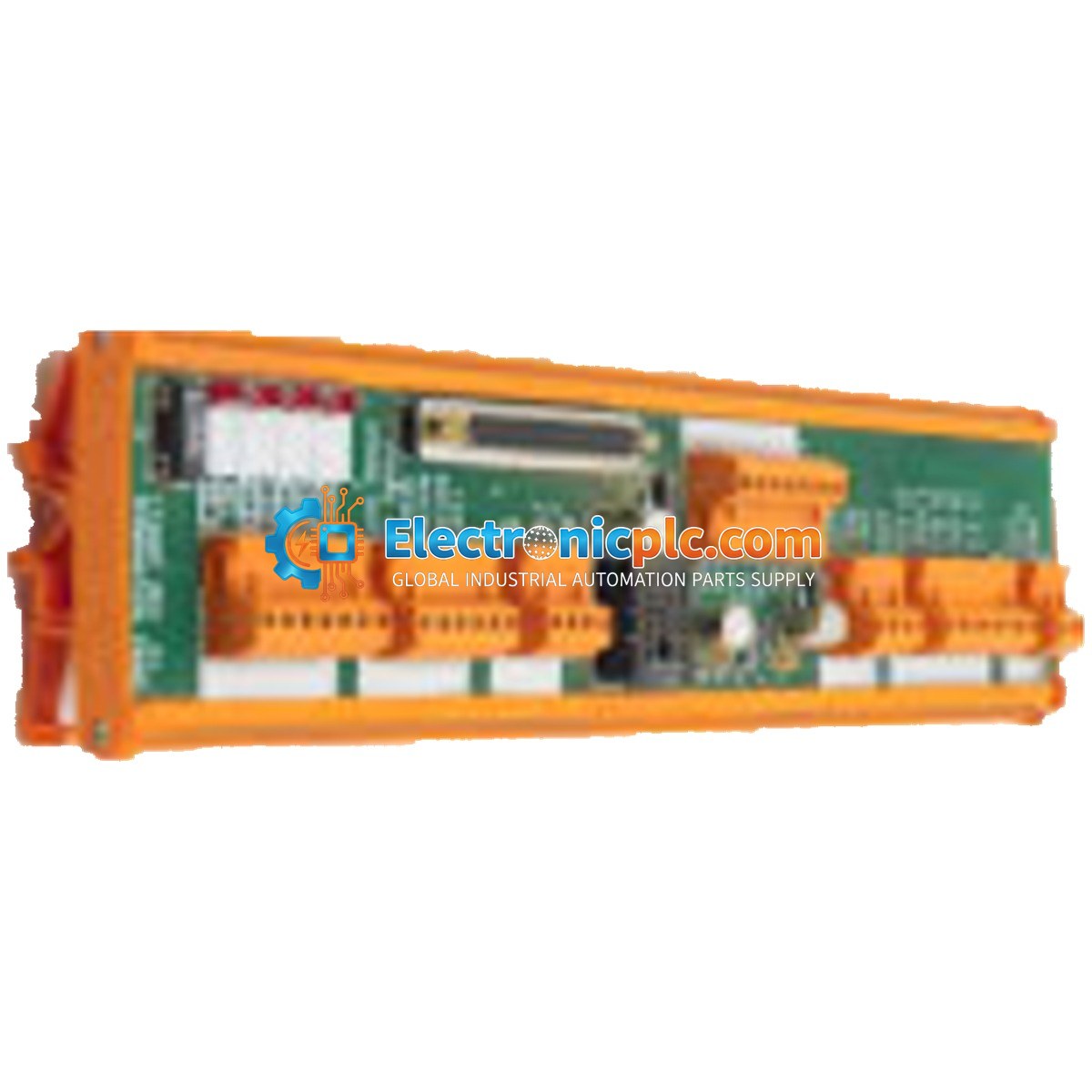

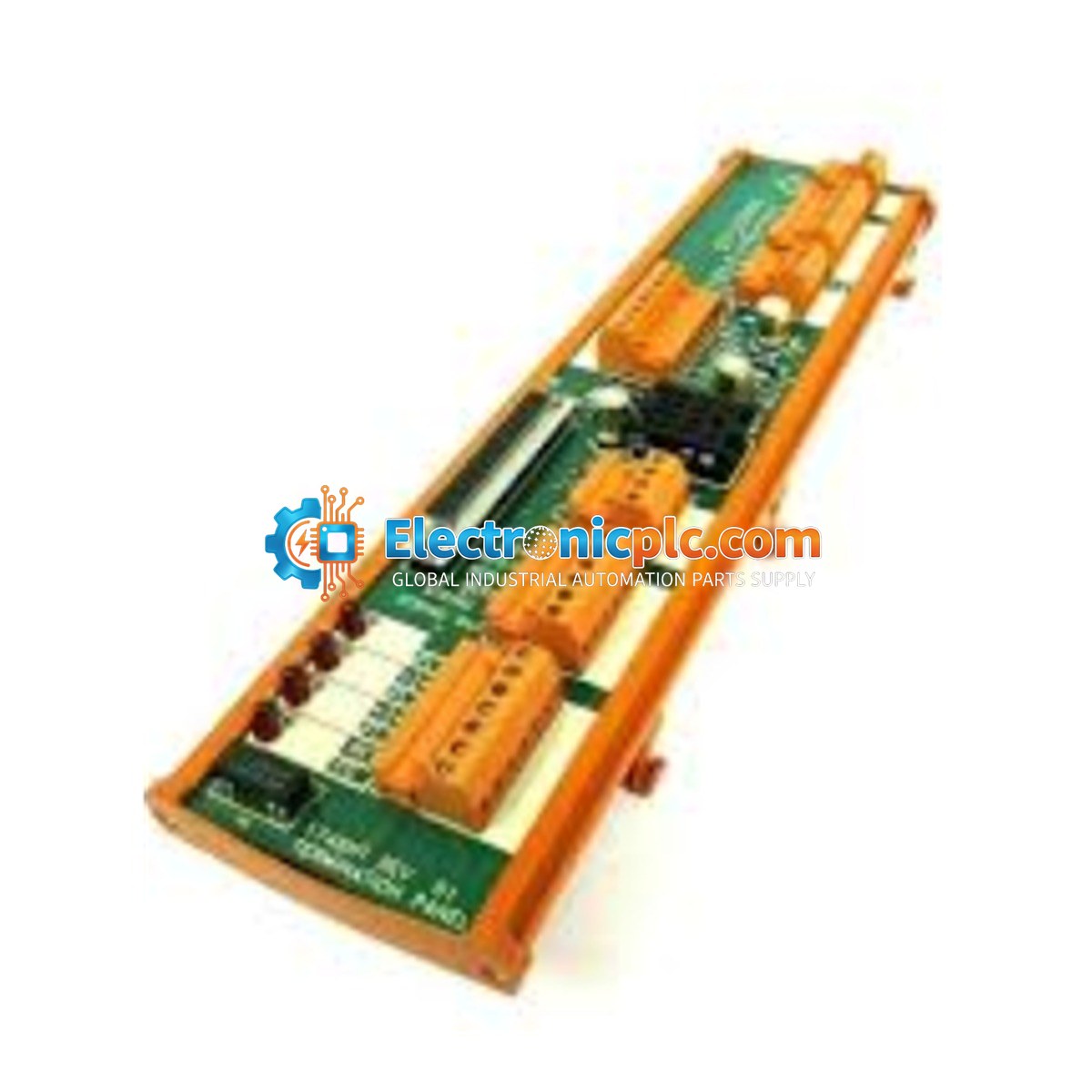

Allen-Bradley 1746-HT SLC 500 Termination Panel

Allen-Bradley 1746-HT SLC 500 Termination Panel

Description

The Allen-Bradley 1746-HT is a specialized termination panel designed for use within the SLC 500 programmable logic controller system. This module serves as a critical interface component, facilitating efficient wiring...

16 people are viewing this right now

Availability: Low stock: 1 left

SKU: 1746-HT
Vendor: Allen-Bradley
Category: Termination Panel
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-HT is a specialized termination panel designed for use within the SLC 500 programmable logic controller system. This module serves as a critical interface component, facilitating efficient wiring and signal distribution for high-speed I/O, encoder inputs, and drive control applications. It is engineered to support robust connectivity for industrial automation tasks requiring external power distribution and reliable signal termination.

Features

  • Designed for integration with SLC 500 I/O systems.
  • Supports high-speed input frequencies up to 250 kHz.
  • Provides dedicated terminal points for E-Stop, encoder, and drive control signals.
  • Includes support for external power distribution (5VDC, 15VDC, and 24VDC).
  • Designed for standard rack mounting configurations.

Technical Specifications

Product Model 1746-HT
Manufacturer Allen-Bradley
Input Frequency 250 kHz
Backplane Current (5V) 200 mA
Backplane Current (24V) 90 mA
Mounting Type Rack Mount
Output Type Digital

Installation Guidelines

  • Ensure the PLC system power is disconnected before installing or removing the 1746-HT module to prevent electrical damage.
  • Verify that the module is securely seated in the rack to ensure proper backplane communication.
  • Use appropriate shielded cabling for high-speed encoder and drive signals to minimize electromagnetic interference (EMI).
  • Maintain proper clearance around the module to ensure adequate ventilation and prevent overheating.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.

FAQ

What is the primary function of the 1746-HT?

The 1746-HT acts as a termination panel for the SLC 500 system, providing a centralized point for connecting high-speed inputs, encoders, and drive signals while distributing necessary auxiliary power.

Does this module require external power?

Yes, the module is designed to handle external power inputs of 5VDC, 15VDC, and 24VDC to support connected field devices.
