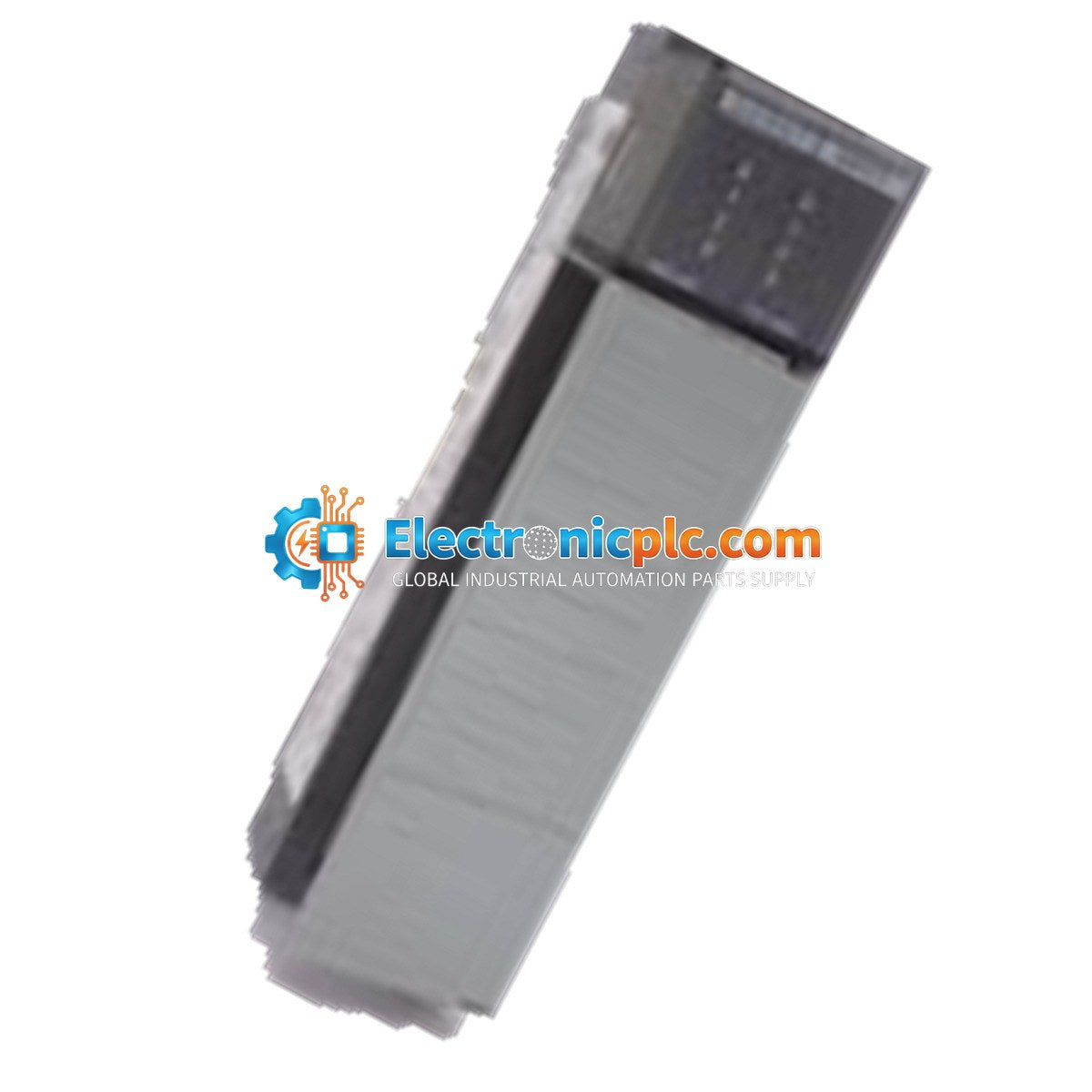

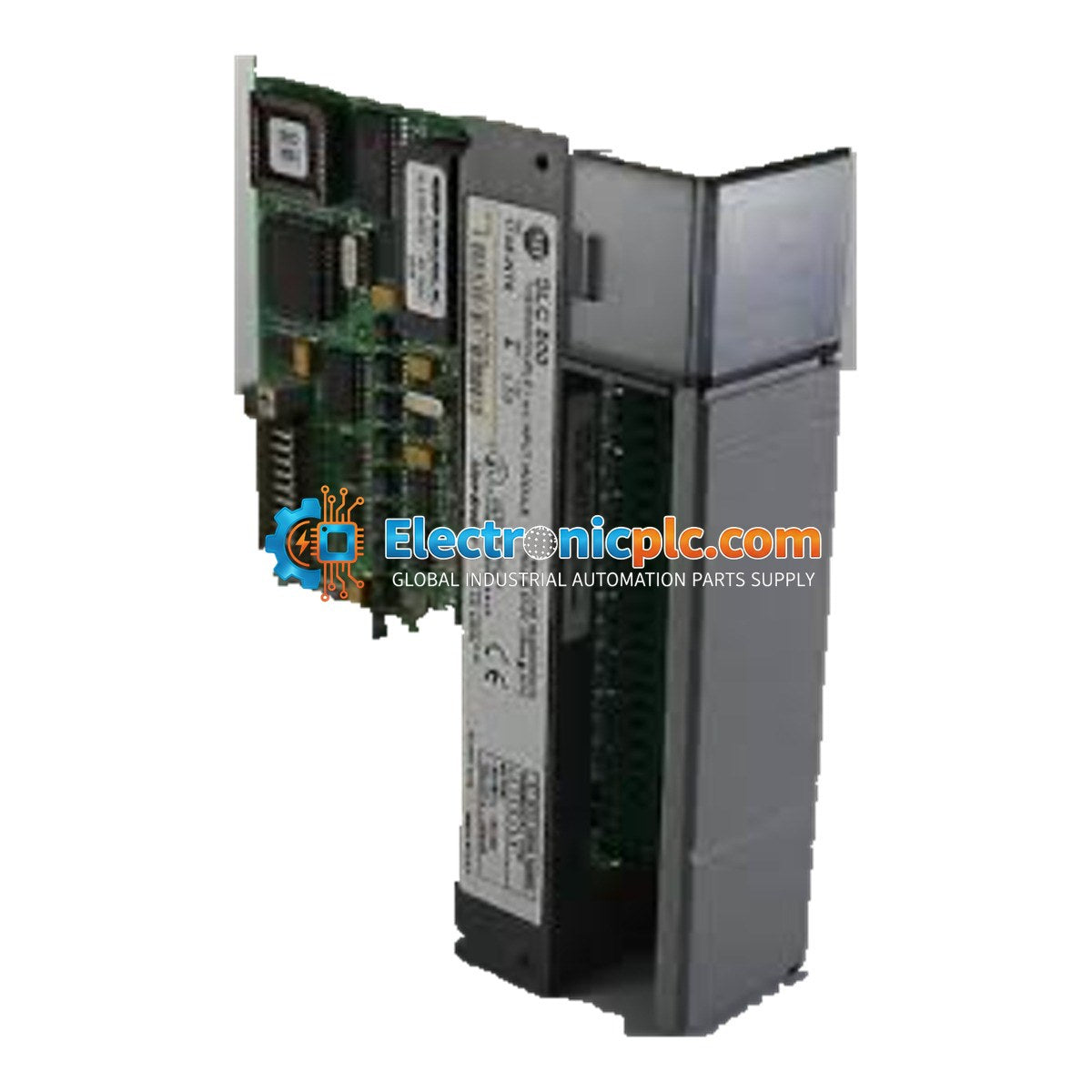

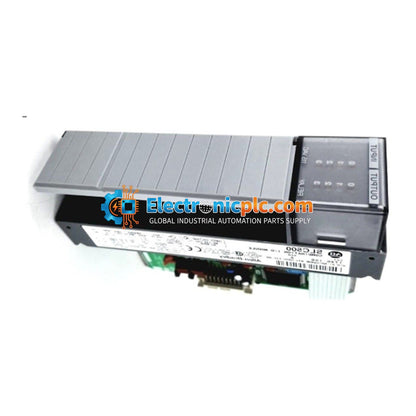

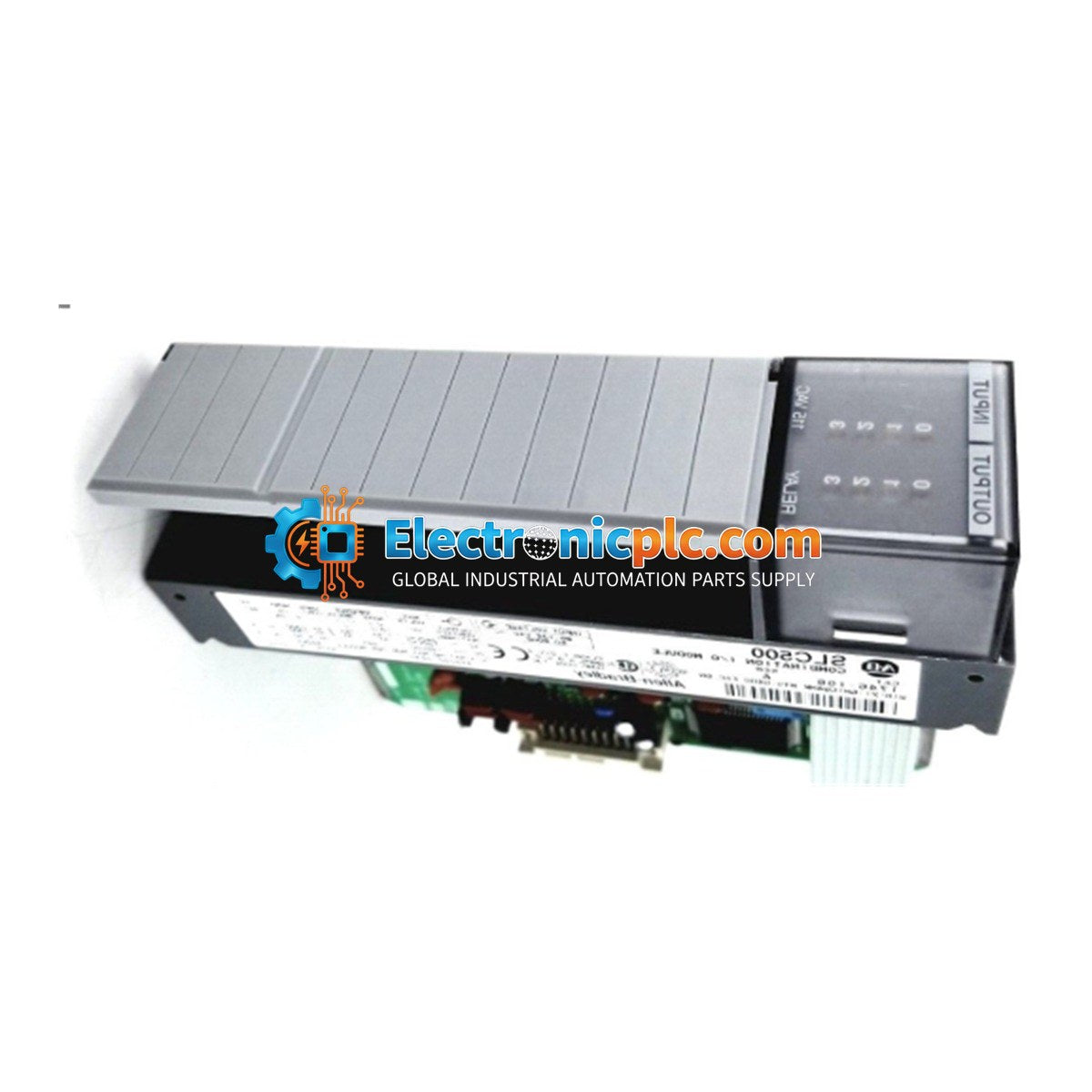

Allen-Bradley 1746-IO4 SLC 500 Combination I/O Module

Allen-Bradley 1746-IO4 SLC 500 Combination I/O Module

Description

The Allen-Bradley 1746-IO4 is a compact, entry-level combination I/O module designed for the SLC 500 series programmable controller family. This module provides a space-saving solution for small-scale automation tasks, featuring...

18 people are viewing this right now

Availability: In stock

SKU: 1746-IO4
Vendor: Allen-Bradley
Category: PLC I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-IO4 is a compact, entry-level combination I/O module designed for the SLC 500 series programmable controller family. This module provides a space-saving solution for small-scale automation tasks, featuring two 120V AC inputs and two relay contact outputs (Form A, Normally Open). It is an ideal choice for simple control loops or for expanding a chassis with minimal I/O requirements without occupying excessive slot space.

Features

  • Compact Design: Smallest combination I/O unit in the SLC 500 series.
  • Versatile Relay Outputs: Dry contacts support a wide range of switching voltages, including 5 to 265V AC or 5 to 125V DC.
  • Low Power Consumption: Minimal backplane current draw (30 mA at 5V DC) preserves the system power budget.
  • Flexible Input: Two integrated 120V AC inputs for standard industrial sensing.

Applications

The 1746-IO4 is commonly utilized in small machine control, auxiliary I/O expansion for SLC 500 chassis, and simple interlock or monitoring applications where only a few points of I/O are required.

Technical Specifications

Brand Allen-Bradley
Product Line SLC 500
Module Type Digital I/O Combination Module
Inputs 2 x 120V AC
Outputs 2 x Relay (Form A, Normally Open)
Input Voltage Range 85–132V AC (47–63 Hz)
Output Voltage Range 5–265V AC / 5–125V DC
Max. Continuous Current (Relay) 1.5A at 120V AC / 1.2A at 24V DC
Backplane Current (5V DC) 30 mA
Backplane Current (24V DC) 25 mA
Signal Delay 35 ms (ON) / 45 ms (OFF)
Operating Temperature -25 to 60 degC (-13 to 140 degF)

Installation Guidelines

  • Power Down: Always remove power from the SLC 500 chassis before inserting or removing any I/O module to prevent electrical damage or unexpected system behavior.
  • ESD Protection: Handle the module by its edges and avoid touching the backplane connector pins to prevent electrostatic discharge damage.
  • Mounting: Ensure the module is fully seated in the chassis slot and the top/bottom retaining screws are tightened to secure the module and ensure proper grounding.
  • Wiring: Use shielded cables for I/O signals to minimize EMI interference. Keep high-voltage AC wiring separate from low-voltage signal wiring.
  • Environment: Ensure the installation location provides adequate ventilation to maintain the operating temperature within the specified range.

FAQ

What is the primary function of the 1746-IO4?

The 1746-IO4 acts as a combination I/O module for the SLC 500 system, providing two AC inputs for sensors and two relay outputs for switching external devices.

Can the relay outputs switch DC loads?

Yes, the relay contacts are "dry" and can switch both AC and DC voltages within the specified ranges (5–265V AC or 5–125V DC).
