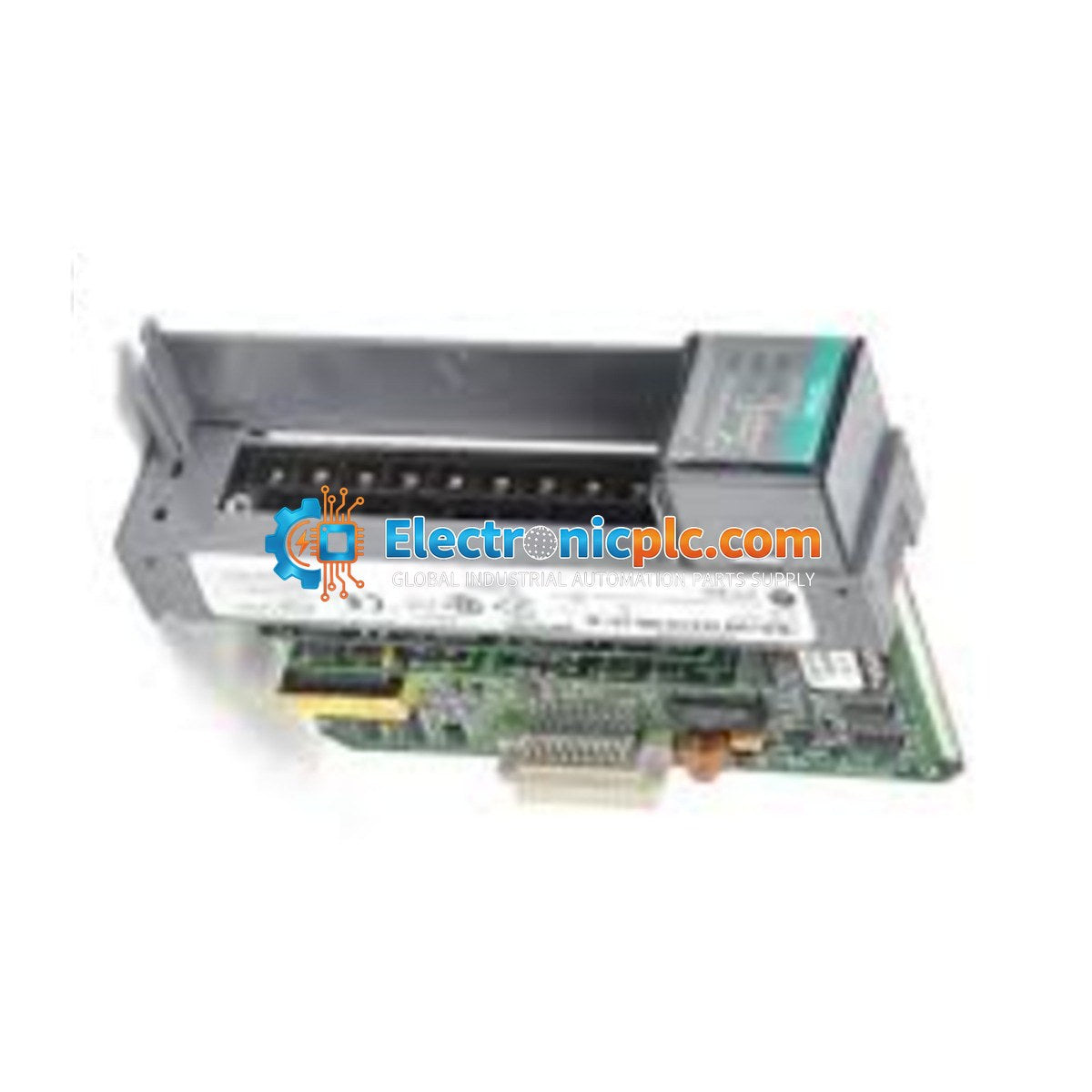

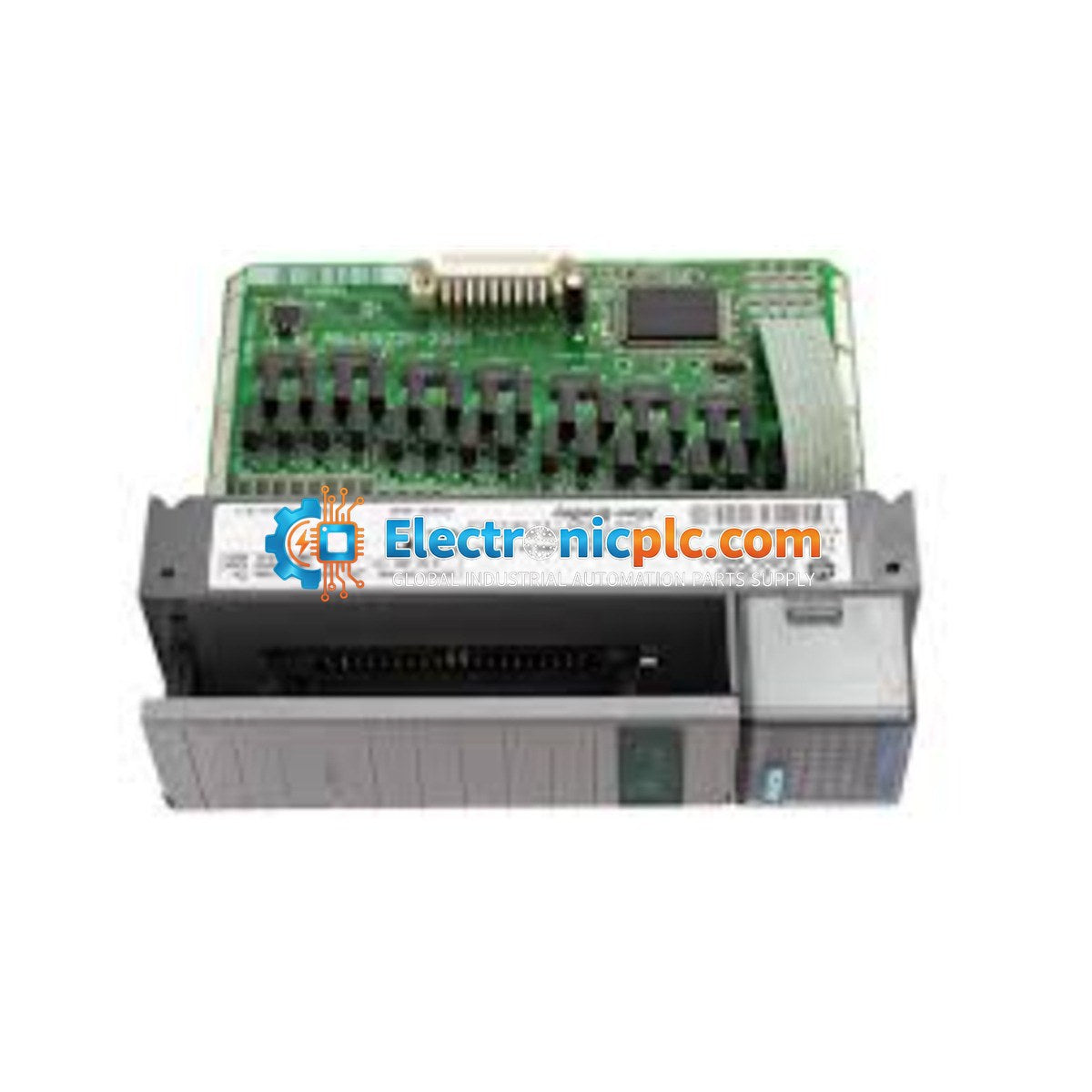

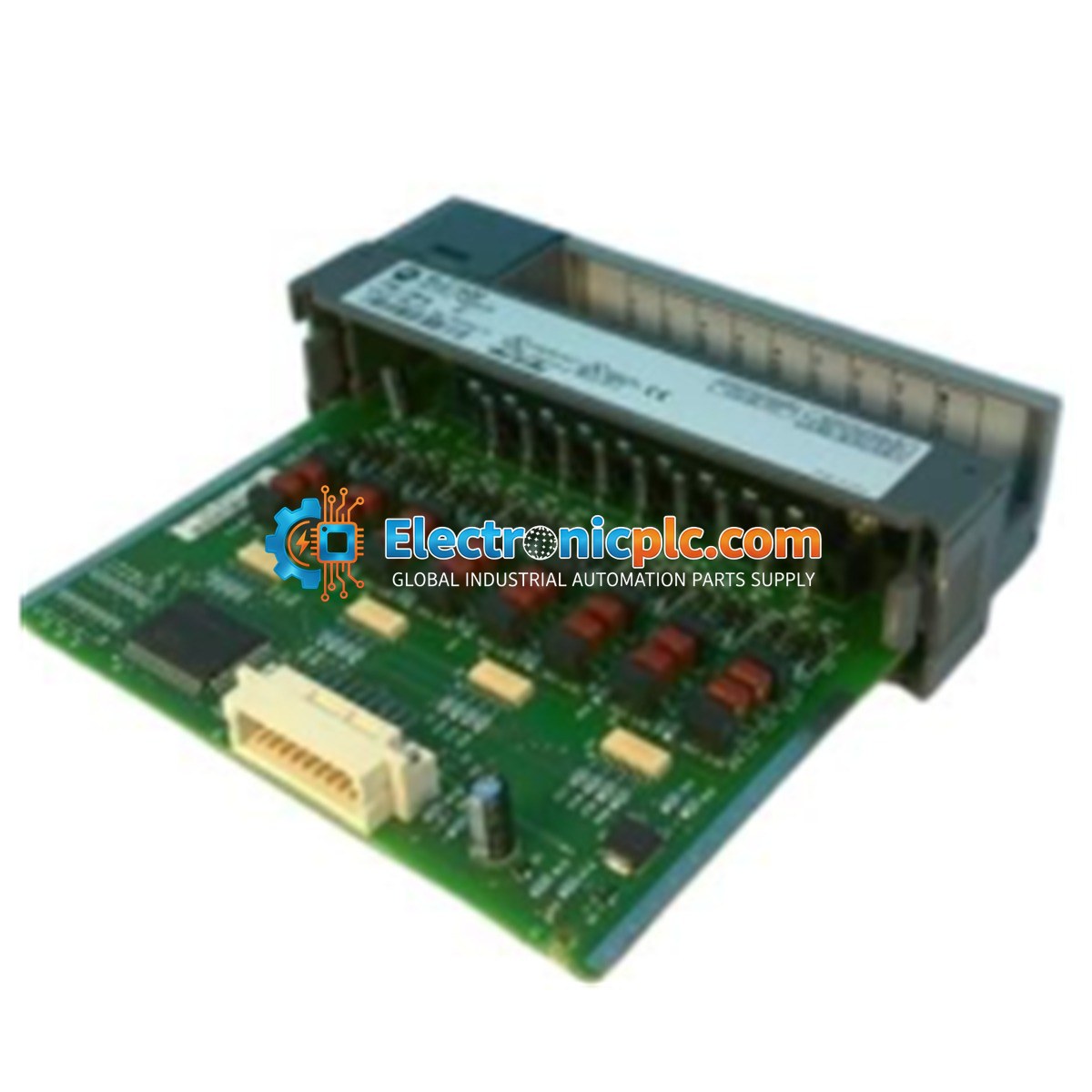

Allen-Bradley 1746-NIO4V SLC 500 High Resolution Analog I/O Module

Allen-Bradley 1746-NIO4V SLC 500 High Resolution Analog I/O Module

Description

The Allen-Bradley 1746-NIO4V is a high-resolution combination analog input and output module designed for the SLC 500 programmable logic controller system. This module provides a versatile solution for applications requiring...

29 people are viewing this right now

Availability: Low stock: 1 left

SKU: 1746-NIO4V
Vendor: Allen-Bradley
Category: Analog I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-NIO4V is a high-resolution combination analog input and output module designed for the SLC 500 programmable logic controller system. This module provides a versatile solution for applications requiring both analog signal monitoring and control within a single slot. It features two analog input channels and two analog output channels, supporting voltage and current signal ranges to interface with a variety of field devices such as sensors, transducers, and actuators.

Features

  • Integrated I/O: Combines 2 analog inputs and 2 analog outputs in one module.
  • High Resolution: Designed for precision control and monitoring tasks.
  • Voltage and Current Support: Compatible with -10 to +10V DC and -20 to +20 mA signal ranges.
  • SLC 500 Compatibility: Designed specifically for seamless integration into the Allen-Bradley SLC 500 chassis backplane.
  • Status Indicators: Includes front-panel LED indicators for module health and I/O status monitoring.

Applications

This module is widely used in industrial automation environments for process control, including temperature regulation, pressure monitoring, and variable speed drive control. It is suitable for applications where space in the SLC 500 chassis is limited, allowing for efficient use of rack slots by combining I/O types.

Technical Specifications

Product Model 1746-NIO4V
Manufacturer Allen-Bradley
Module Type Analog Input/Output (Combination)
Input Channels 2
Output Channels 2
Voltage Input Range -10 to +10V DC
Current Input Range -20 to +20 mA
Backplane Current (5.1V) 0.55 mA
Bandwidth 10 Hz

Installation Guidelines

  • Power Down: Always disconnect power from the SLC 500 chassis before inserting or removing any I/O module to prevent electrical damage.
  • ESD Protection: Use proper electrostatic discharge (ESD) grounding procedures when handling the module to protect sensitive internal circuitry.
  • Slot Placement: Ensure the module is fully seated in the chassis slot and secured with the top and bottom retaining screws.
  • Wiring: Use shielded twisted-pair cabling for analog signals to minimize noise interference. Ensure proper grounding of the shield at one end only to avoid ground loops.
  • Signal Routing: Keep analog signal wiring separate from high-voltage AC power lines to prevent EMI-induced signal degradation.

FAQ

Is the 1746-NIO4V still in production?

No, the Allen-Bradley 1746-NIO4V was officially discontinued by the manufacturer as of May 31, 2021. We provide refurbished or surplus units to support legacy systems.

What is the primary function of this module?

The 1746-NIO4V acts as an interface between analog field devices and the SLC 500 processor, converting analog signals to digital values for the PLC and vice versa for control outputs.
