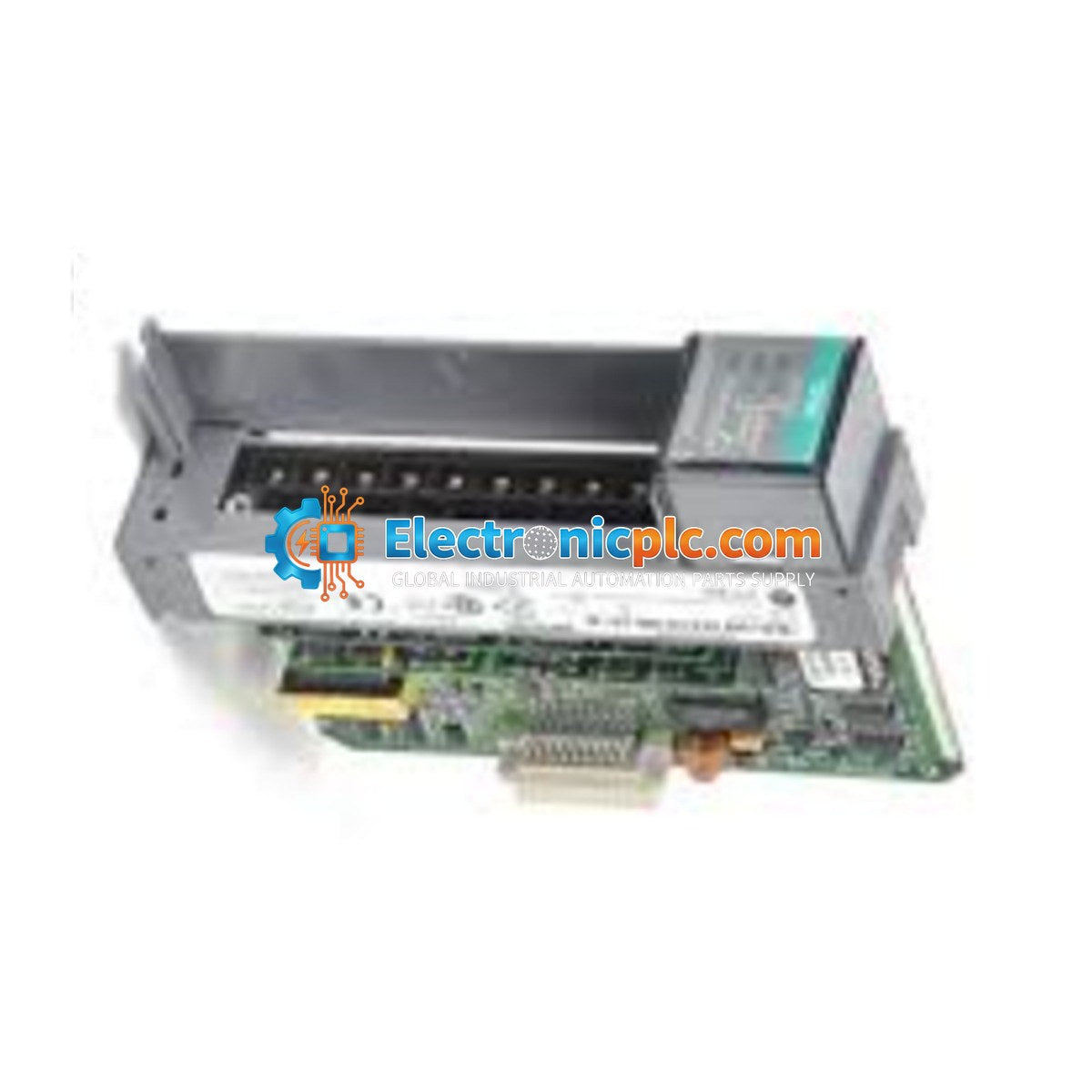

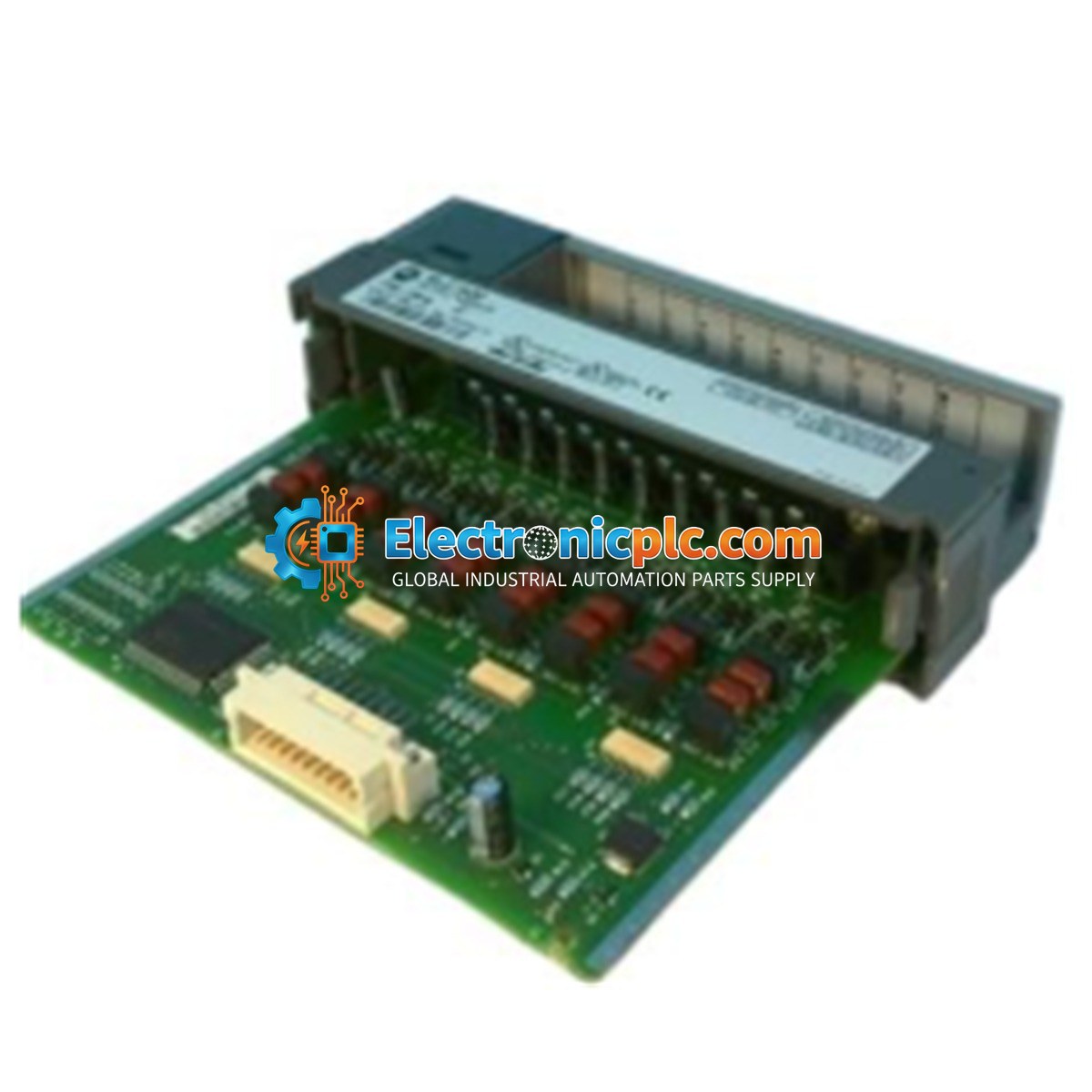

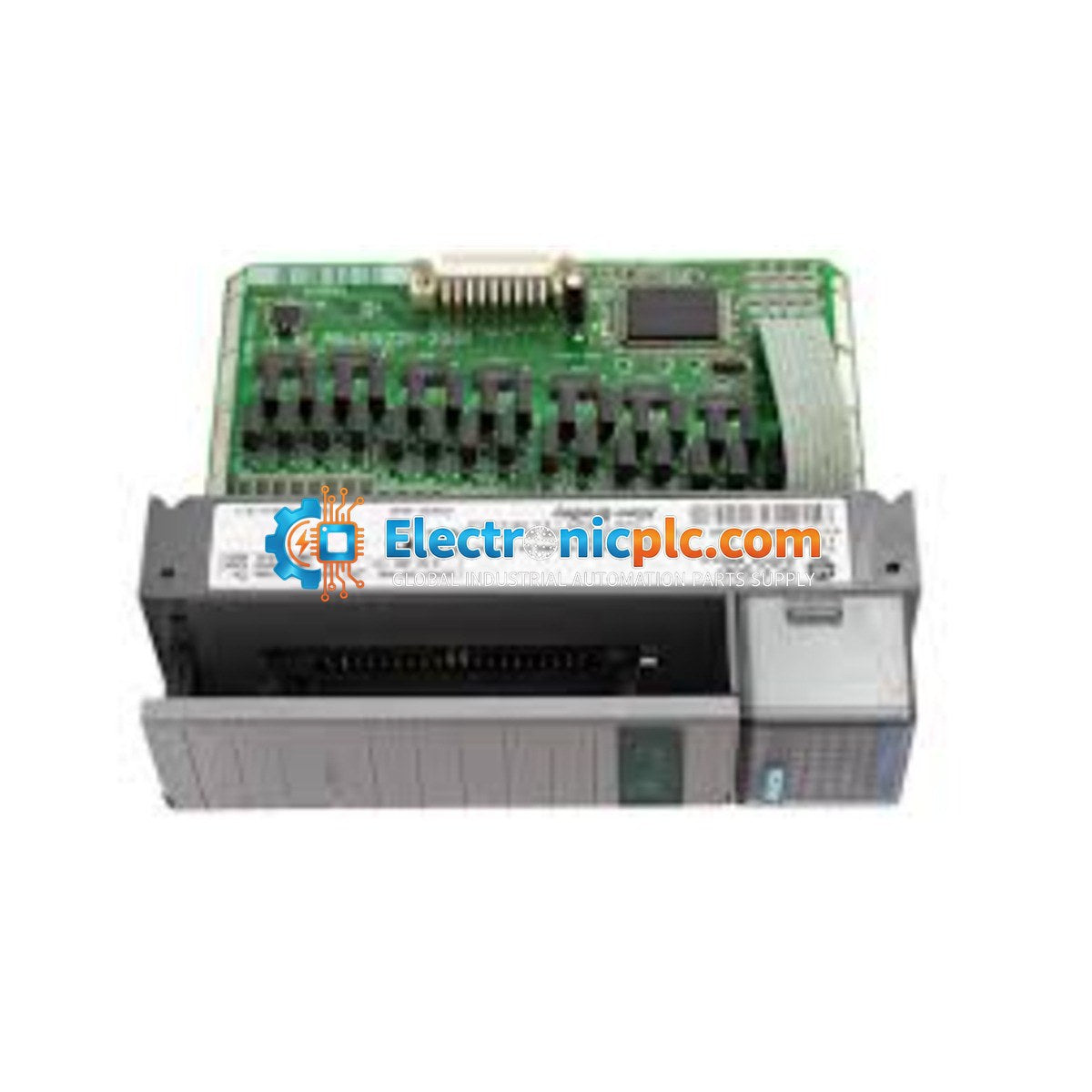

Allen-Bradley 1746-NO4I SLC 500 Analog Output Module

Allen-Bradley 1746-NO4I SLC 500 Analog Output Module

Description

The Allen-Bradley 1746-NO4I is a 4-channel analog output module designed for the SLC 500 programmable logic controller platform. This module provides four current-based output channels, specifically engineered for precision control...

15 people are viewing this right now

Availability: Low stock: 1 left

SKU: 1746-NO4I
Vendor: Allen-Bradley
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-NO4I is a 4-channel analog output module designed for the SLC 500 programmable logic controller platform. This module provides four current-based output channels, specifically engineered for precision control of external industrial devices such as actuators, valves, and variable frequency drives. It is optimized for integration within the 1746 chassis and features high-resolution output capabilities to ensure accurate process regulation.

Features

  • Four (4) independent current output channels
  • 14-bit high-resolution output for precise control
  • Configurable output ranges: 0 to 20 mA or 4 to 20 mA
  • Galvanic backplane isolation for signal integrity
  • Fast dynamic response times suitable for demanding control loops
  • Supports external power switching for application flexibility

Applications

  • Water and Wastewater Treatment: Controls dosing pumps and valves based on flow or level setpoints.
  • Food and Beverage Production: Manages pasteurization temperatures and conveyor speeds.
  • Chemical and Petrochemical: Provides high-precision PID control for reactor pressure and temperature.
  • HVAC and Climate Control: Regulates dampers and cooling tower fan speeds.
  • Metals and Mining: Controls hydraulic press pressure and positioning.

Technical Specifications

Parameter Specification
Product Model 1746-NO4I
Series SLC 500
Output Channels 4
Output Current Range 0 to 20 mA
Full Scale Output 21 mA
Overrange Capability 5% (0 to +21 mA - 1 LSB)
Backplane Current (5V) 55 mA
Backplane Current (24V DC) 195 mA
Operating Temperature 0 to 60 degC
Storage Temperature -40 to 85 degC
Field Wiring Isolation Up to 500V DC

Installation Guidelines

  • Ensure the SLC 500 chassis is powered down before inserting or removing the module to prevent electrical damage.
  • Use shielded cables, such as Belden #8761, to maintain signal integrity and minimize EMI interference.
  • Maximum permitted wire size for terminal connections is #14 AWG.
  • Ensure proper grounding of the cable shield at the source to prevent ground loops.
  • Maintain adequate ventilation within the enclosure to keep ambient temperatures within the 0 to 60 degC operating range.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the module circuitry.

FAQ

What is the Allen-Bradley 1746-NO4I?

The 1746-NO4I is a legacy 4-channel analog current output module for the SLC 500 PLC platform, designed to convert digital data into analog current signals for process control.

What type of signals does it output?

It provides four current-only output channels with a range of 0 to 20 mA.

What is the load resistance range?

The output circuits are designed to handle a load resistance of 0 to 500 ohms.
