Allen-Bradley 1746-NR8 SLC 500 8-Point RTD/Resistance Input Module

Allen-Bradley 1746-NR8 SLC 500 8-Point RTD/Resistance Input Module

Description

The Allen-Bradley 1746-NR8 is an 8-point RTD/Resistance input module designed for use within the SLC 500 programmable controller system. This module provides high-precision temperature and resistance monitoring, allowing for the...

28 people are viewing this right now

Availability: Low stock: 9 left

SKU: 1746-NR8
Vendor: Allen-Bradley
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

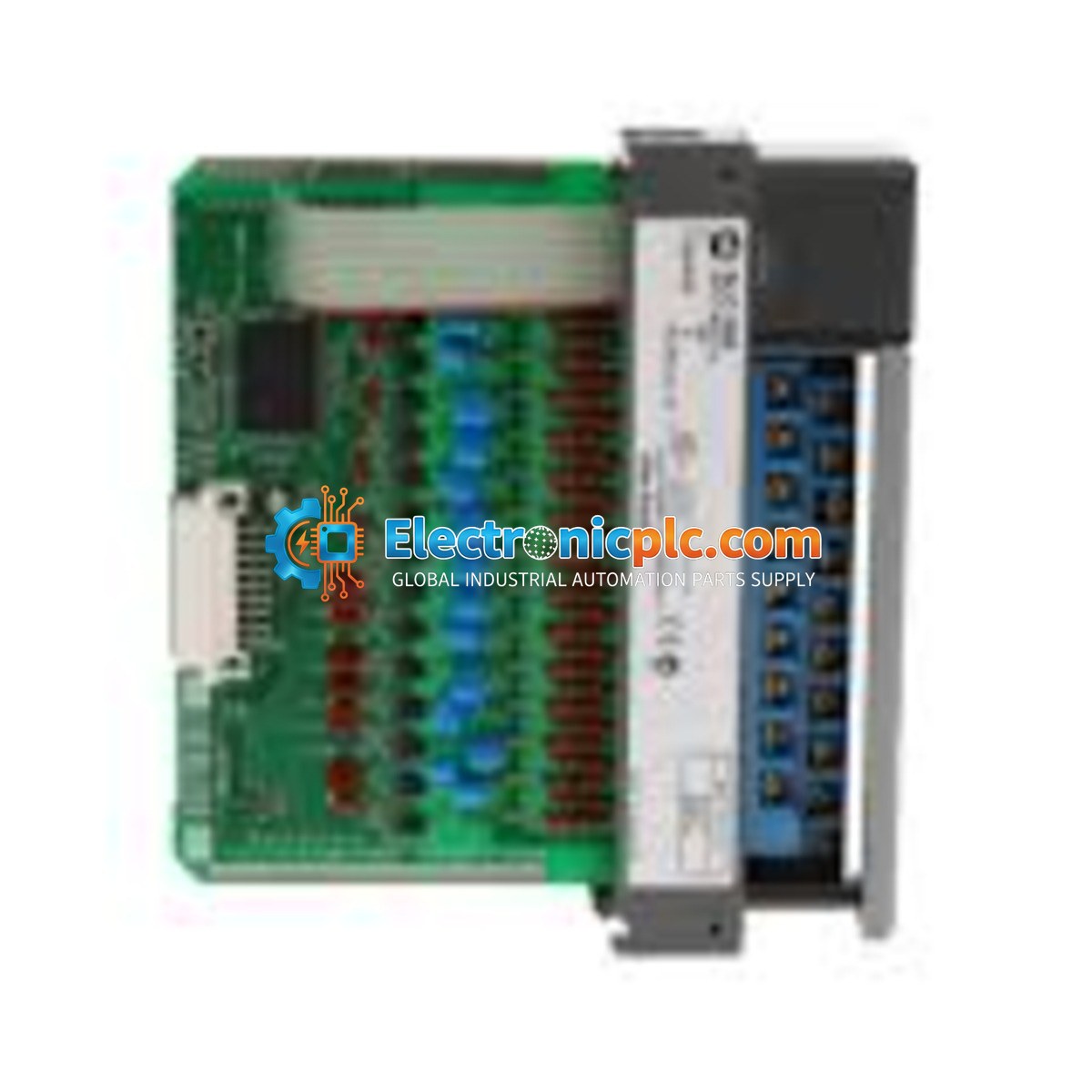

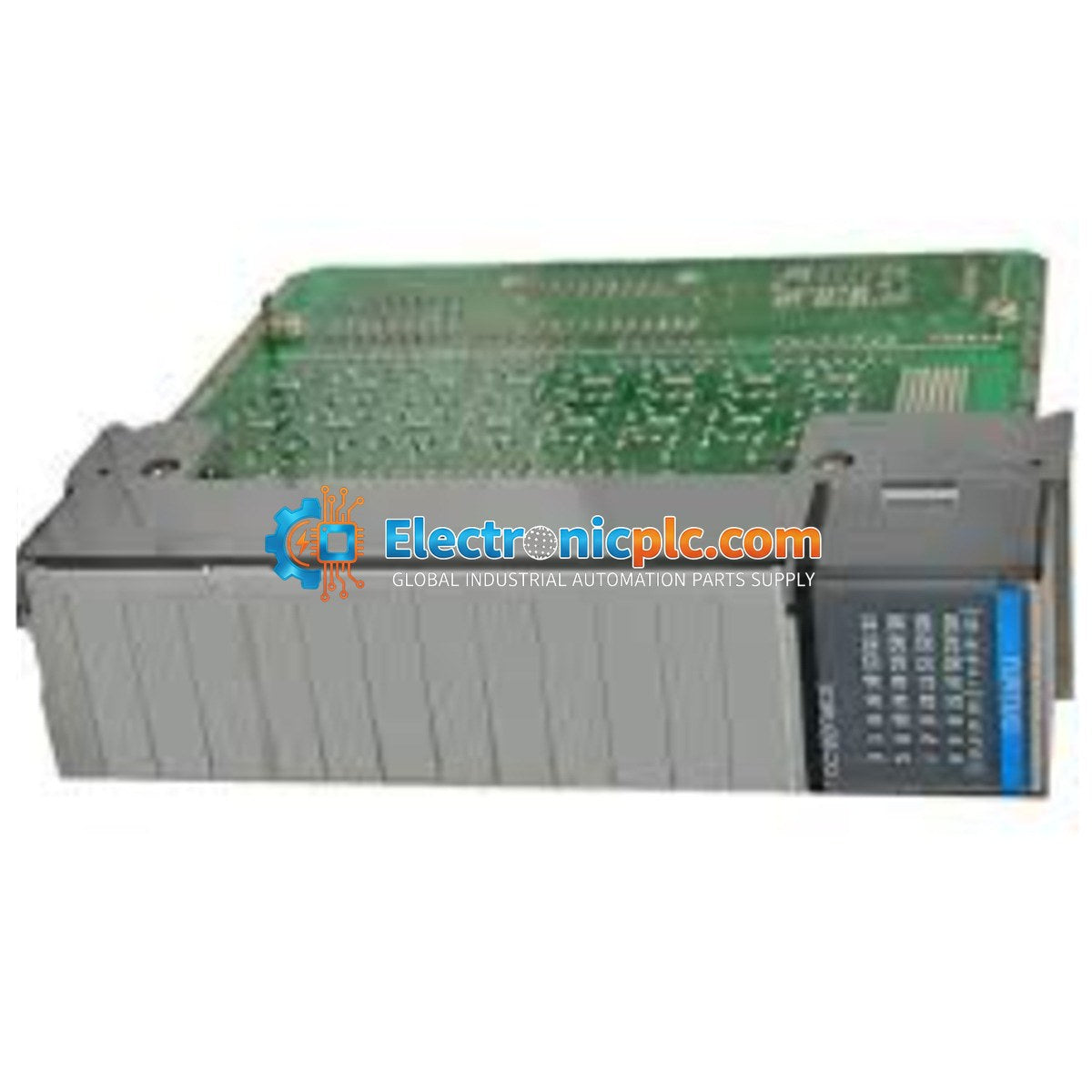

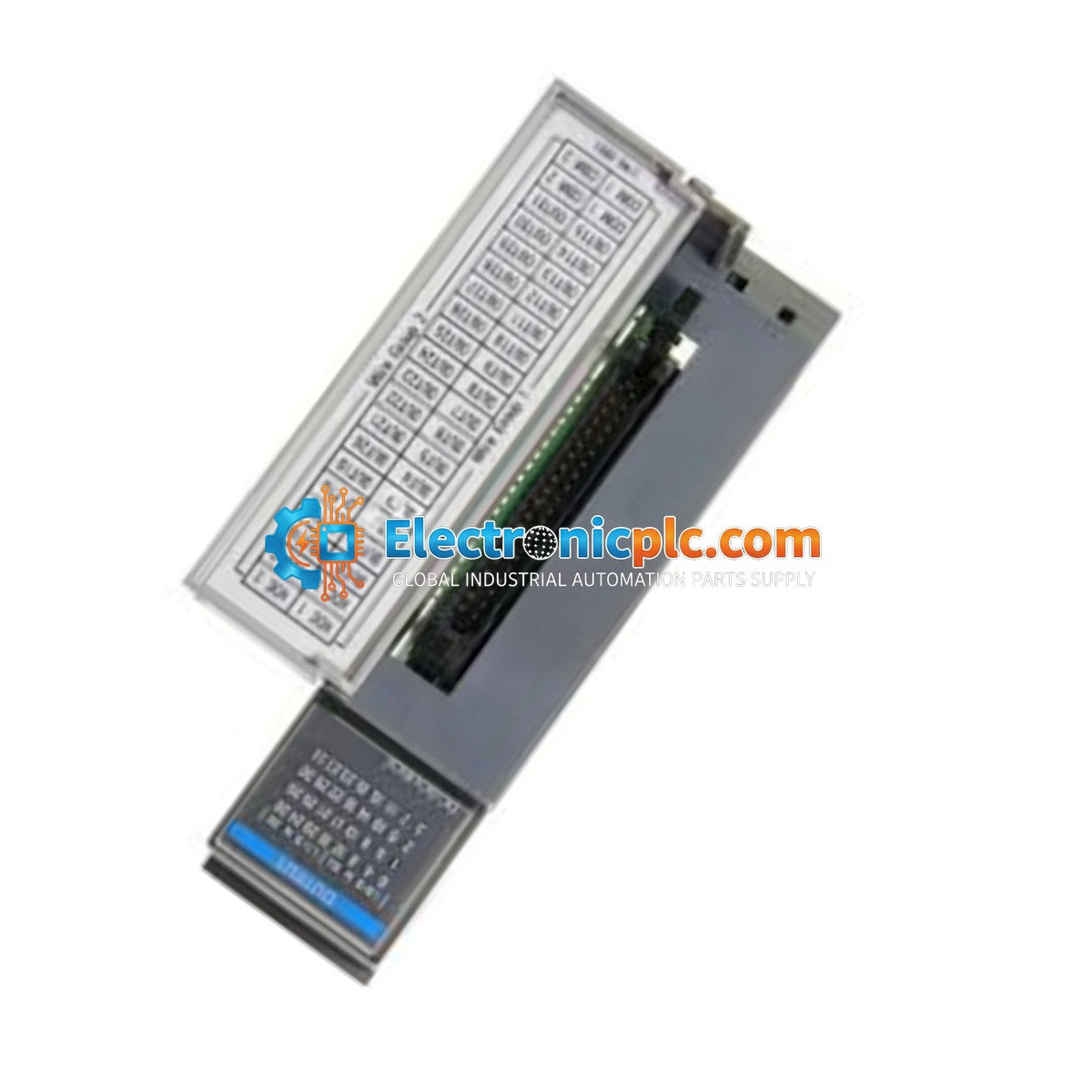

The Allen-Bradley 1746-NR8 is an 8-point RTD/Resistance input module designed for use within the SLC 500 programmable controller system. This module provides high-precision temperature and resistance monitoring, allowing for the direct connection of RTD sensors or resistance-based devices to the PLC backplane. It is engineered to deliver reliable signal conditioning and conversion for industrial process control applications.

Features

  • 8-point input density for multi-channel temperature monitoring.
  • Compatible with standard SLC 500 I/O chassis configurations.
  • Supports a variety of RTD types and resistance ranges.
  • Low power consumption profile for efficient rack operation.
  • Integrated signal filtering for improved noise immunity in industrial environments.

Applications

This module is typically utilized in process automation environments requiring precise temperature measurement, such as HVAC systems, chemical processing, food and beverage manufacturing, and thermal management systems within industrial machinery.

Technical Specifications

Product Model 1746-NR8
Module Type RTD/Resistance Input Module
Input Points 8
Backplane Current 100 mA @ 5V DC; 55 mA @ 24V DC
Power Consumption 1.82W maximum (0.5W @ 5V DC, 1.32W @ 24V DC)
Step Response 60 ms (in), 2.5 ms (out)
Operating Temperature 0 to 60 degC (32 to 140 degF)
Chassis Placement Any slot except Slot 0

Installation Guidelines

  • Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
  • The module can be installed in any available slot of the I/O chassis, with the exception of Slot 0.
  • Use appropriate shielded cabling for RTD inputs to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the chassis to maintain signal integrity and safety.
  • Handle the module using ESD-safe practices to prevent damage to internal circuitry.
  • Verify that the backplane power supply capacity is sufficient for the total load of all installed modules.

FAQ

What types of sensors can be connected to the 1746-NR8?

The 1746-NR8 is designed to interface with RTD (Resistance Temperature Detector) sensors and resistive inputs. Refer to the specific Allen-Bradley user manual for the 1746-NR8 for the list of supported RTD types (e.g., Pt100, Ni100) and resistance ranges.

Can this module be placed in any slot?

No, the 1746-NR8 can be placed in any slot of the SLC 500 I/O chassis except for Slot 0, which is reserved for the processor.
