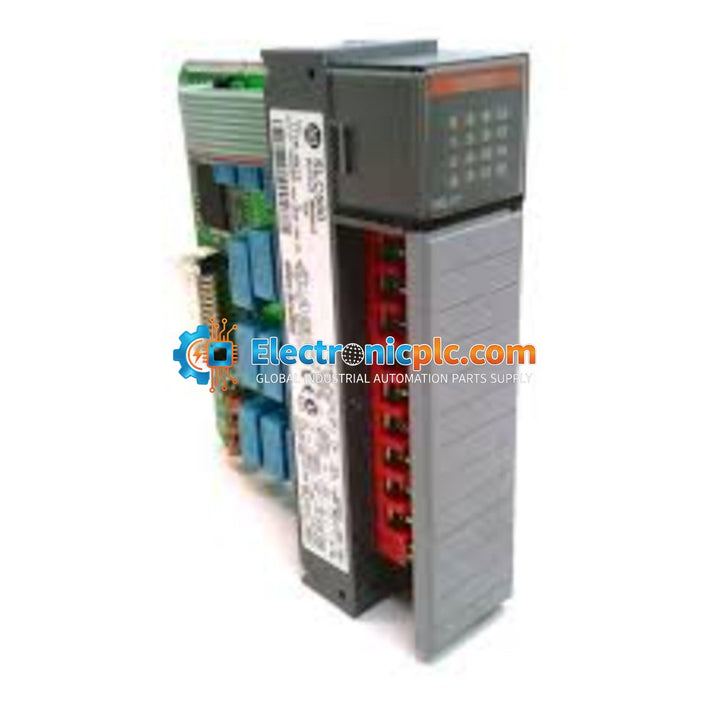

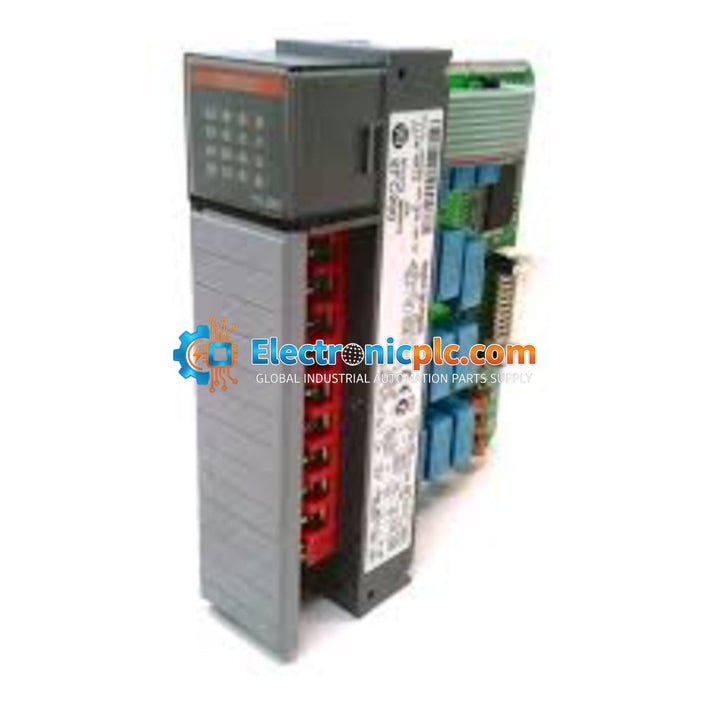

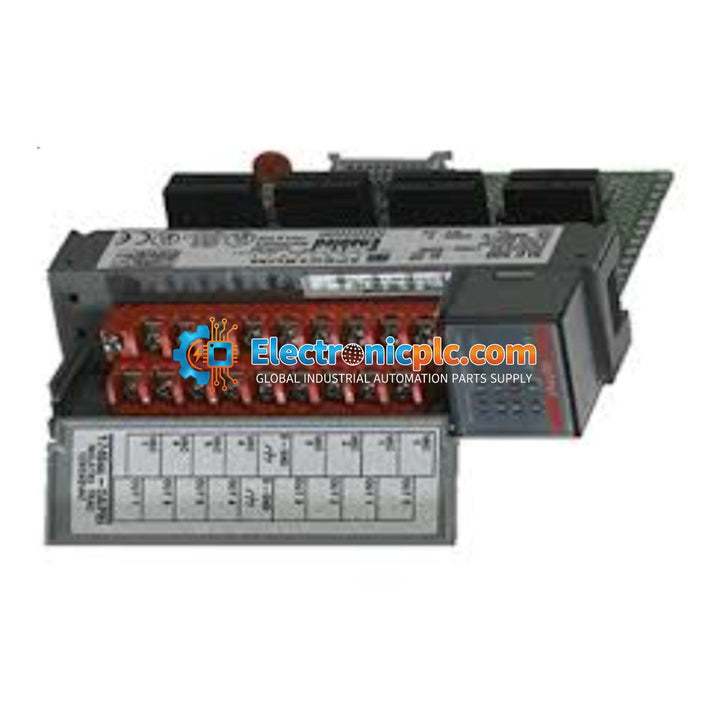

Allen-Bradley 1746-OAP12 SLC 500 High Current 120/240V AC Output Module

Allen-Bradley 1746-OAP12 SLC 500 High Current 120/240V AC Output Module

Description

The Allen-Bradley 1746-OAP12 is a high-current AC output module designed for the SLC 500 programmable logic controller system. This module provides 12 output points, capable of handling 120/240 VAC, and...

16 people are viewing this right now

Availability: Low stock: 5 left

SKU: 1746-OAP12
Vendor: Allen-Bradley
Category: PLC I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-OAP12 is a high-current AC output module designed for the SLC 500 programmable logic controller system. This module provides 12 output points, capable of handling 120/240 VAC, and is engineered for industrial applications requiring robust switching of AC loads. Please note that this product has been discontinued by the manufacturer as of December 31, 2015.

Features

  • 12-point high-current AC output configuration.
  • Compatible with standard SLC 500 chassis backplanes.
  • Supports a wide operating voltage range of 85-264 VAC.
  • Designed for reliable performance in demanding industrial control environments.

Technical Specifications

Product Model 1746-OAP12
Output Voltage 120/240 VAC
Operating Voltage Range 85-264 VAC
Number of Outputs 12
Output Delay (OFF to ON) 11 ms
Minimum Load Current 10 mA
Backplane Current (5.1V) 0.370 A

Installation Guidelines

  • Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
  • Verify that the module is fully seated in the chassis slot and secured with the top and bottom retaining screws.
  • Use appropriate shielded cabling for AC output connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the SLC 500 chassis to a common earth ground to maintain system integrity.
  • Maintain adequate clearance around the module to allow for proper airflow and cooling within the enclosure.

FAQ

Is the 1746-OAP12 still manufactured?

No, the 1746-OAP12 was officially discontinued by Allen-Bradley on December 31, 2015. Units currently available are typically refurbished or surplus stock.

What is the primary function of this module?

The 1746-OAP12 is an output module used to interface the SLC 500 controller with external AC-powered devices, such as contactors, solenoids, or indicator lamps, requiring higher current handling capabilities.
