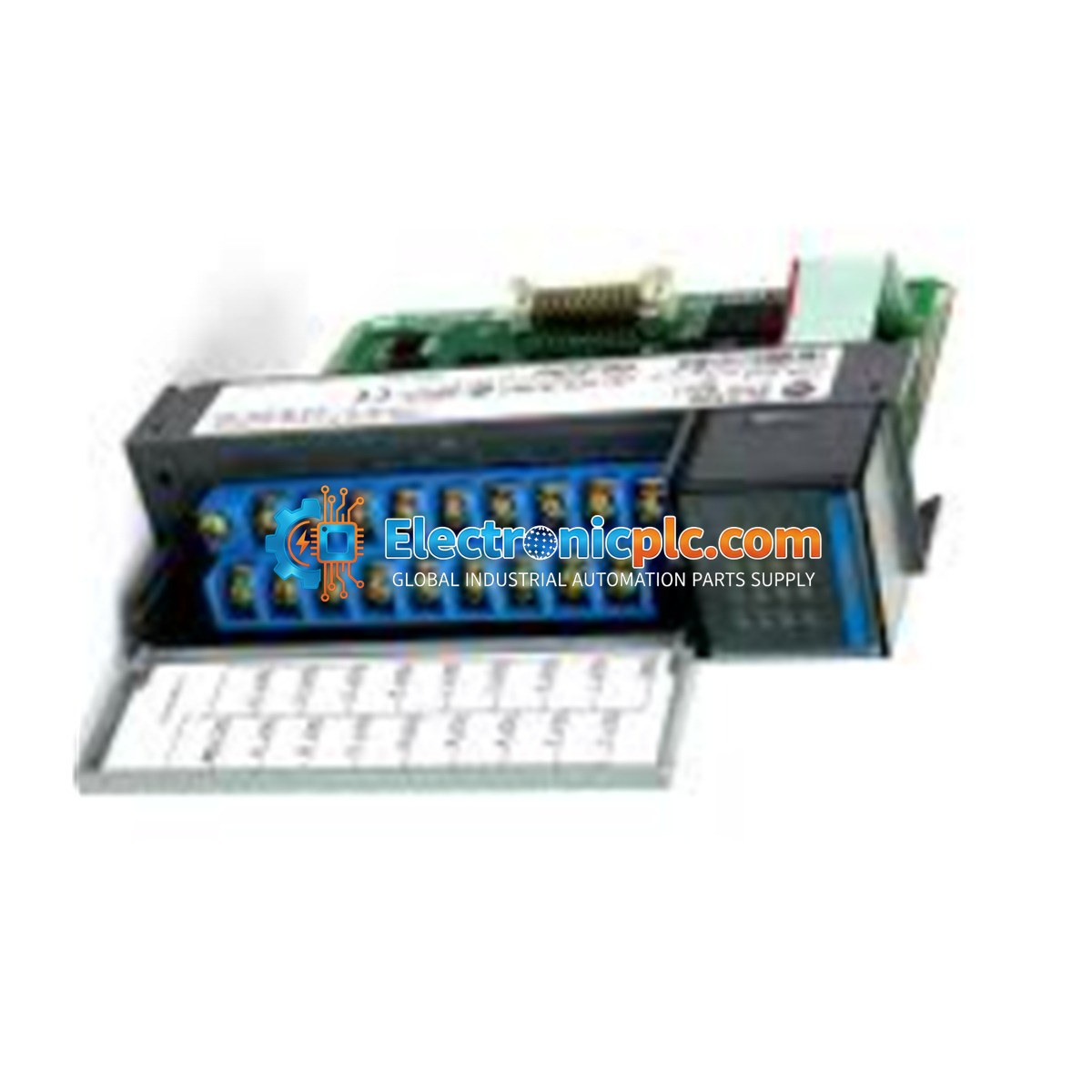

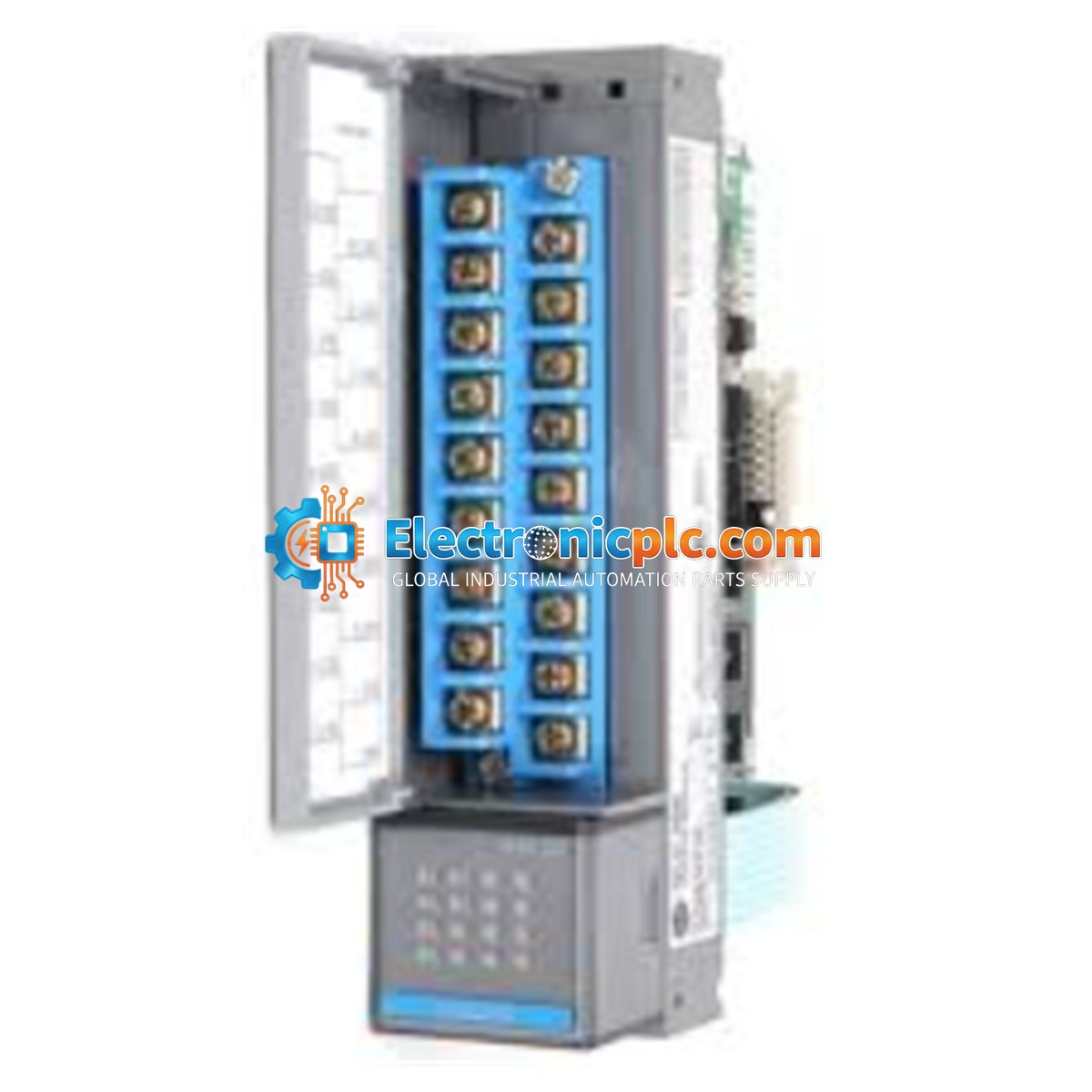

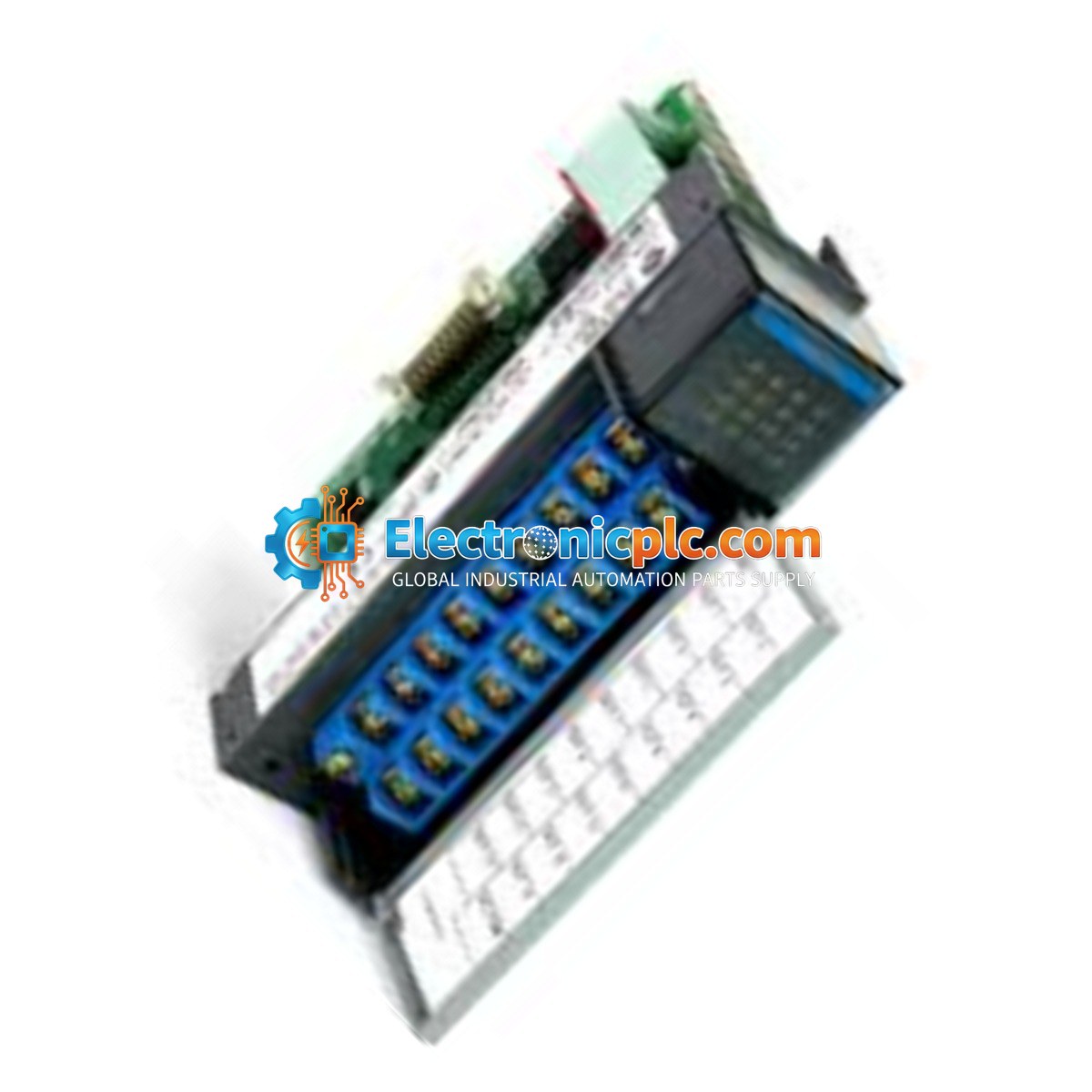

Allen-Bradley 1746-OV16 SLC 500 16-Point 24V DC Sinking Output Module

Allen-Bradley 1746-OV16 SLC 500 16-Point 24V DC Sinking Output Module

Description

The Allen-Bradley 1746-OV16 is a high-density discrete output module engineered for the SLC 500 programmable logic controller platform. This module provides sixteen (16) sinking DC outputs, allowing the PLC to...

29 people are viewing this right now

Availability: Low stock: 3 left

SKU: 1746-OV16
Vendor: Allen-Bradley
Category: Digital Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-OV16 is a high-density discrete output module engineered for the SLC 500 programmable logic controller platform. This module provides sixteen (16) sinking DC outputs, allowing the PLC to control 24V DC to 48V DC loads. As a sinking module, it functions by completing the ground (negative) side of the circuit, providing a reliable path to the common return for connected field devices.

Features

  • Sixteen (16) independent sinking output channels.
  • Fast switching performance with a 0.1 ms ON-signal delay.
  • Transistor-based output design for high-cycle, long-life operation.
  • Integrated surge current protection capable of handling 3.0 Amps for 10 ms per point.
  • Designed for seamless integration into the SLC 500 chassis backplane.

Applications

The 1746-OV16 is widely used in industrial automation environments for controlling DC-operated actuators, relays, solenoid valves, and indicator lamps. Its high-speed switching capability makes it suitable for time-critical control sequences and high-frequency cycling applications.

Technical Specifications

Brand Allen-Bradley
Product Line SLC 500
Module Type Digital DC Output (Sinking)
Number of Outputs 16
Operating Voltage Range 10-50V DC
Backplane Current (5V DC) 0.270 A (270 mA)
On-Signal Delay 0.1 ms (resistive load)
Off-Signal Delay 1.0 ms (resistive load)
Max On-State Voltage Drop 1.2V at 0.5 A
Surge Current 3.0 A for 10 ms (per point)
Operating Temperature 0 to 60 degC (32 to 140 degF)

Installation Guidelines

  • Ensure the SLC 500 chassis power is disconnected before installing or removing the module.
  • Insert the module into any available slot in the SLC 500 I/O chassis.
  • Ensure the module is fully seated and the top and bottom retaining screws are tightened to secure the module in the chassis.
  • Use shielded cables for field wiring to minimize electromagnetic interference (EMI).
  • Maintain proper ventilation in the control cabinet to ensure the ambient temperature remains within the 0 to 60 degC operating range.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the difference between a sinking and sourcing output?

A sinking output module (like the 1746-OV16) switches the negative (ground) side of the DC circuit, while a sourcing module switches the positive side. Ensure your field devices are compatible with sinking logic before installation.

Can this module be used with 48V DC loads?

Yes, the operating voltage range for this module is 10-50V DC, allowing it to interface with 24V DC and 48V DC systems.
