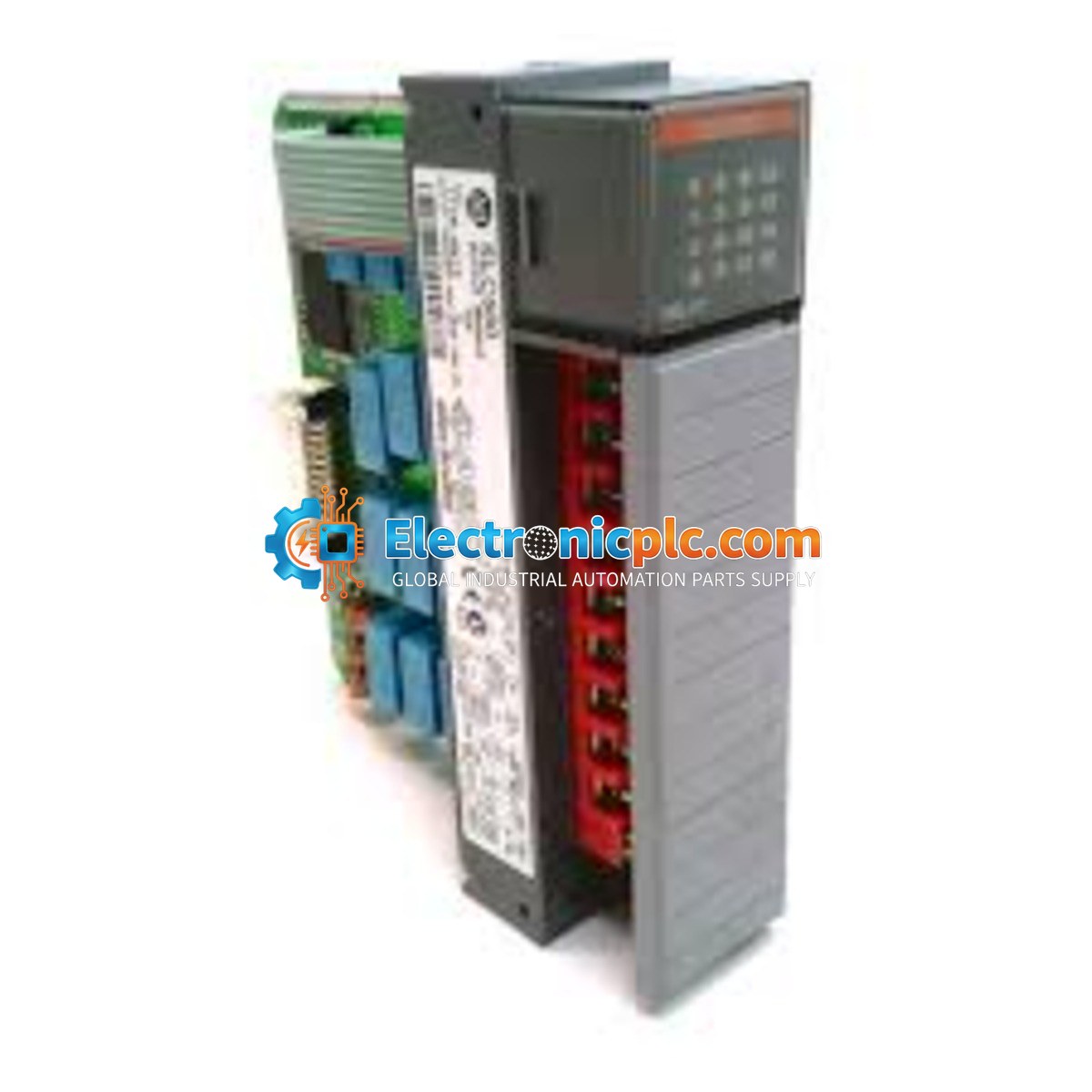

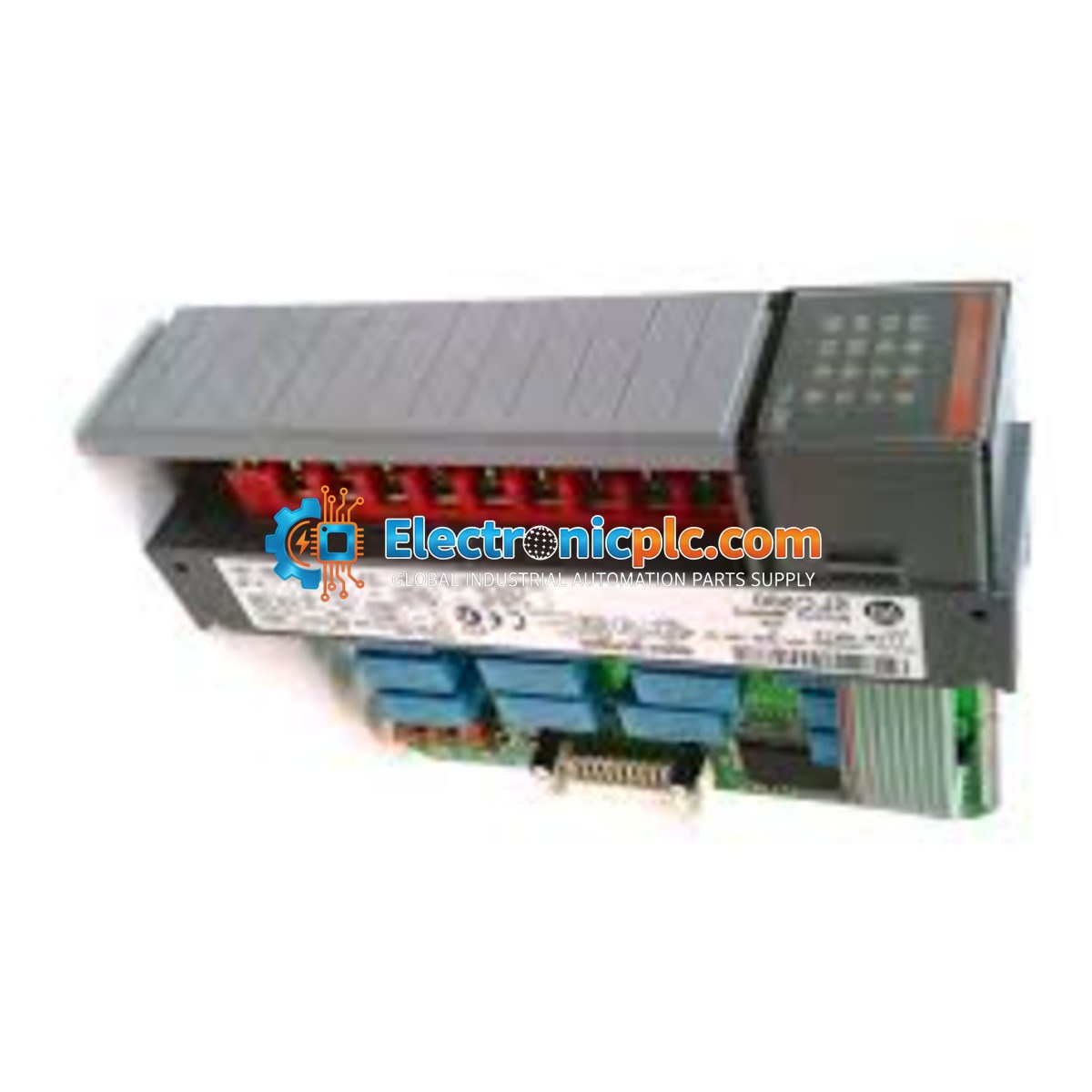

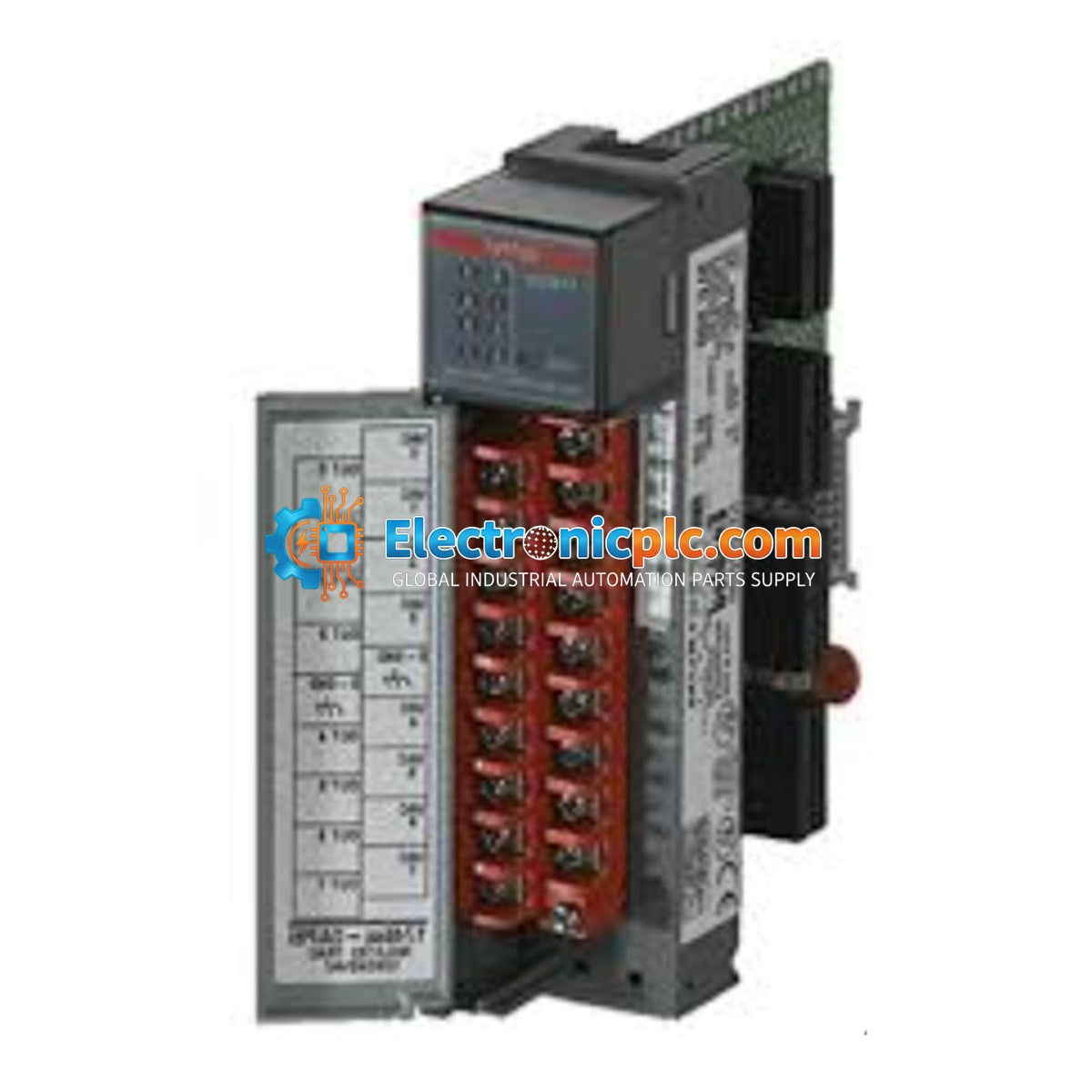

Allen-Bradley 1746-OX8 SLC 500 8-Point Relay Output Module

Allen-Bradley 1746-OX8 SLC 500 8-Point Relay Output Module

Description

The Allen-Bradley 1746-OX8 is a high-performance relay output module designed for the SLC 500 programmable logic controller system. This module provides 8 isolated relay contact outputs, allowing for the control...

21 people are viewing this right now

Availability: Low stock: 4 left

SKU: 1746-OX8
Vendor: Allen-Bradley
Category: Relay Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-OX8 is a high-performance relay output module designed for the SLC 500 programmable logic controller system. This module provides 8 isolated relay contact outputs, allowing for the control of various field devices such as motor starters, solenoids, and indicators. The 1746-OX8 is engineered to handle diverse voltage requirements, making it a versatile solution for industrial automation applications where electrical isolation between the controller and the load is required.

Features

  • 8 isolated N.O. (Normally Open) relay contact outputs.
  • Designed for seamless integration into the SLC 500 I/O chassis.
  • Provides electrical isolation between the PLC backplane and field devices.
  • Compatible with a wide range of AC and DC voltage applications.
  • Robust construction suitable for standard industrial environments.

Applications

This module is commonly utilized in industrial control systems for switching high-current or high-voltage loads that require galvanic isolation from the PLC processor. Typical applications include machine control, process automation, and interface logic for motor control centers.

Technical Specifications

Product Model 1746-OX8
Number of Outputs 8
Output Type N.O. Relay Contact
Current per Output (120 VAC) 3 Amps
Current per Output (24 VDC) 1.2 Amps
Operating Temperature 0 to 60 degC (32 to 140 degF)
Operating Humidity 5 to 95% (non-condensing)

Installation Guidelines

  • Ensure the SLC 500 chassis power is disconnected before installing or removing the module to prevent electrical shock or damage to the backplane.
  • Slide the module into the designated slot in the SLC 500 chassis and secure it using the top and bottom retaining screws.
  • Use appropriate wire gauges for the terminal block connections to ensure secure contact and prevent overheating.
  • Maintain proper grounding practices for the chassis to minimize EMI interference.
  • Ensure the operating environment remains within the specified temperature and humidity ranges to maintain module longevity.

FAQ

What is the primary function of the 1746-OX8?

The 1746-OX8 is an 8-point relay output module for the Allen-Bradley SLC 500 system, used to switch external field devices using isolated relay contacts.

Can this module be used with both AC and DC loads?

Yes, the 1746-OX8 is designed to support both AC and DC voltage loads, provided the current and voltage ratings specified in the technical documentation are not exceeded.
