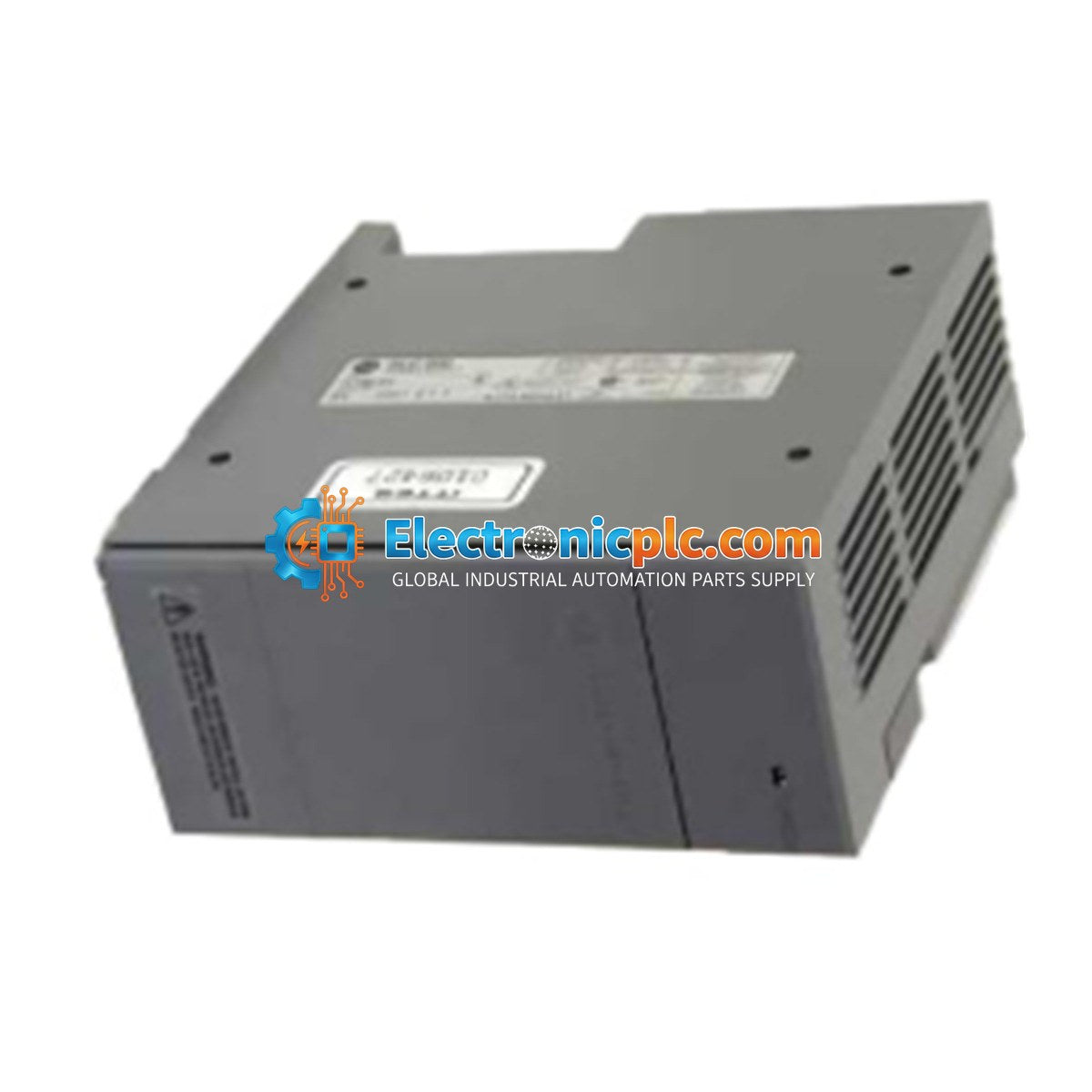

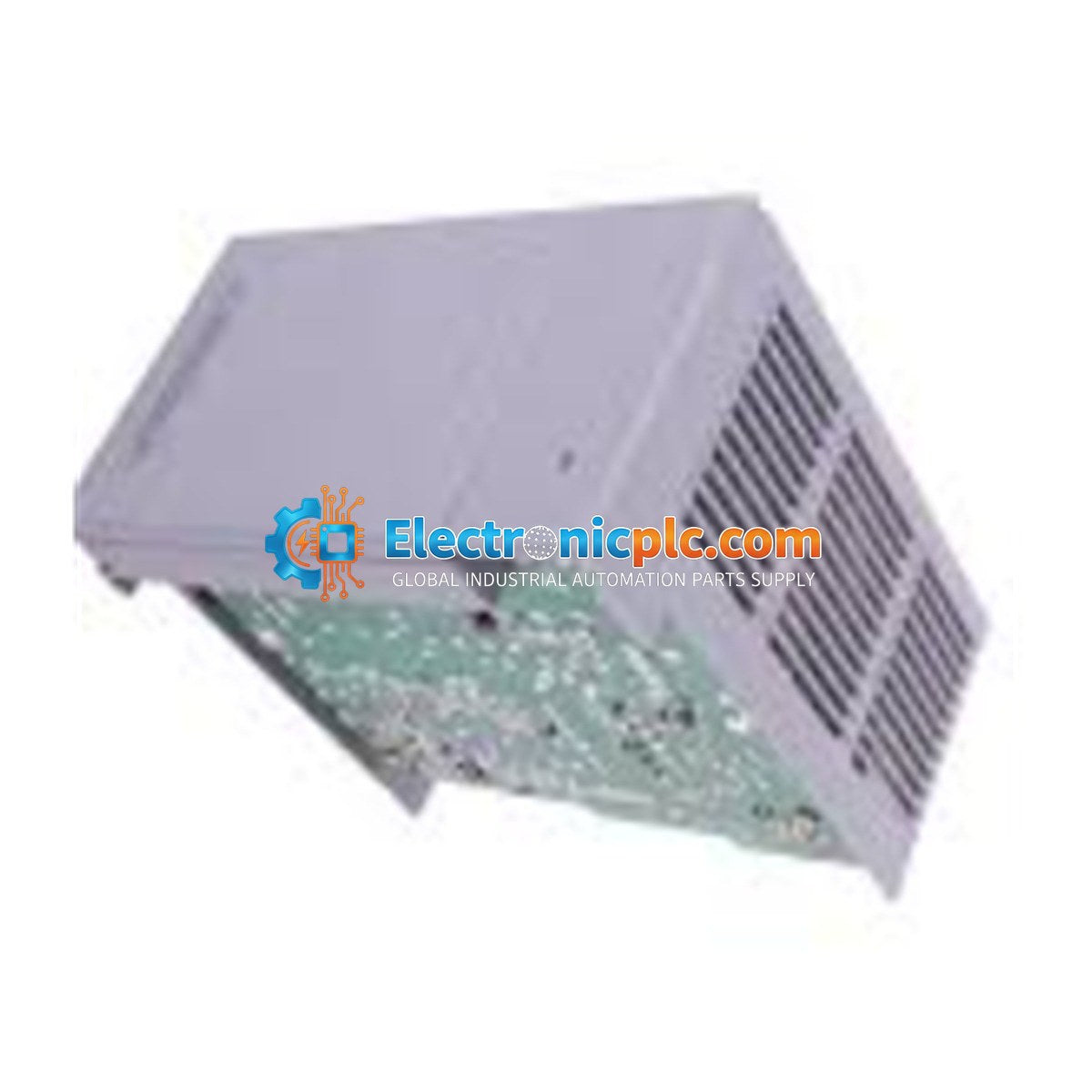

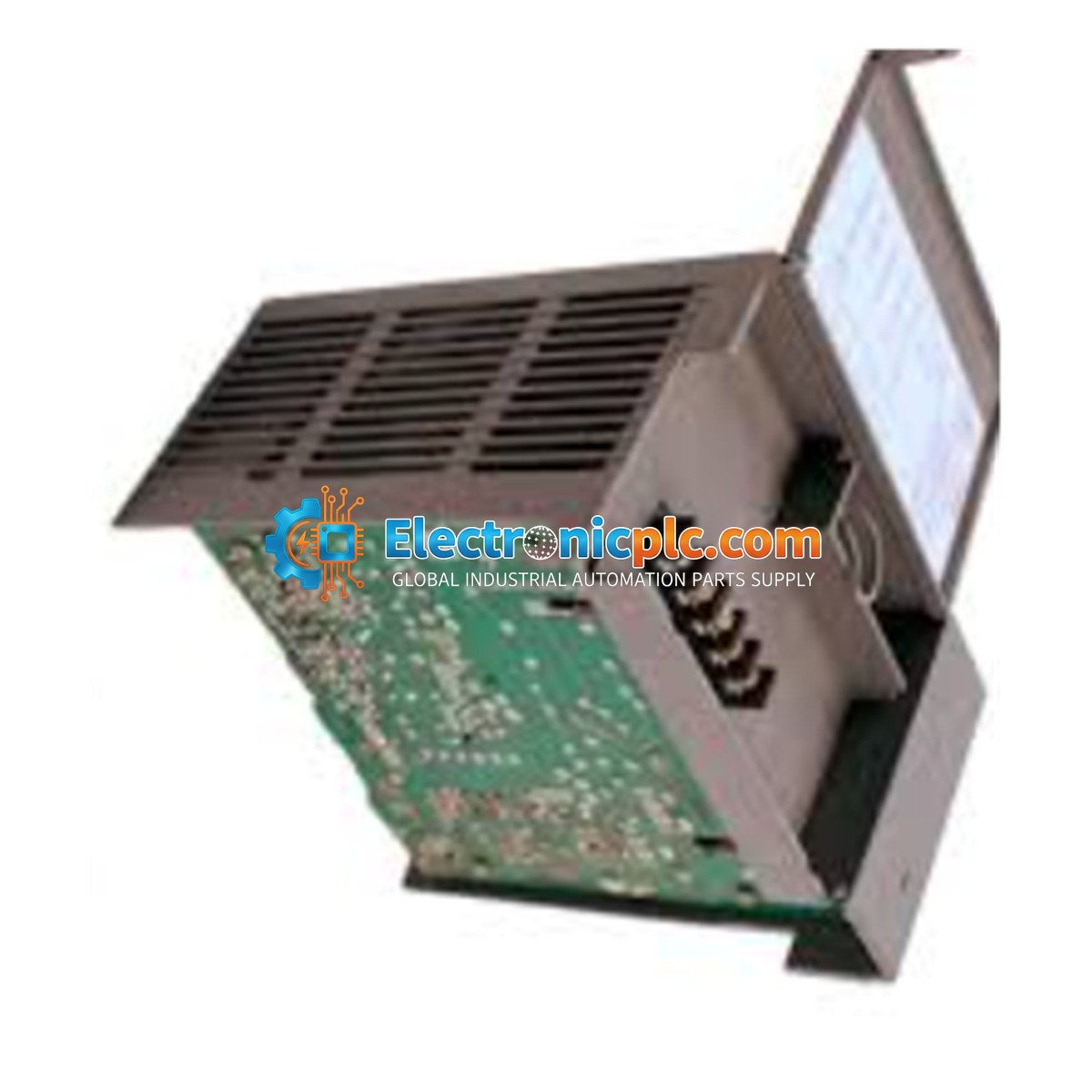

Allen-Bradley 1746-P6 SLC 500 48V DC Power Supply

Allen-Bradley 1746-P6 SLC 500 48V DC Power Supply

Description

The Allen-Bradley 1746-P6 is a specialized power supply module for the SLC 500 series, engineered to operate on a 48V DC nominal input. This module is specifically designed for applications...

15 people are viewing this right now

Availability: Low stock: 5 left

SKU: 1746-P6
Vendor: Allen-Bradley
Category: PLC Power Supply
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1746-P6 is a specialized power supply module for the SLC 500 series, engineered to operate on a 48V DC nominal input. This module is specifically designed for applications in telecommunications, solar power arrays, or industrial facilities that rely on 48V DC battery banks. It provides regulated DC backplane power to the SLC processor and associated I/O modules, ensuring stable system operation in isolated power environments.

Features

  • Designed for 48V DC nominal input (30-60V DC range).
  • Provides 5.0 Amps at 5V DC for logic circuitry.
  • Provides 0.96 Amps at 24V DC for backplane relay coils.
  • Includes a dedicated 24V DC User Power output (200 mA) for external field devices.
  • Robust 1800V AC RMS isolation between input terminals and the backplane.
  • High-efficiency design with integrated CPU hold-up capabilities.

Applications

The 1746-P6 is ideal for remote industrial sites where AC power is unavailable or unreliable, allowing the SLC 500 system to be powered directly from DC battery systems. It is commonly used in telecommunications infrastructure, renewable energy monitoring, and mobile or off-grid control systems.

Technical Specifications

Brand Allen-Bradley
Product Line SLC 500
Module Type DC System Power Supply
Nominal Input Voltage 48V DC
Input Voltage Range 30–60V DC
Inrush Current 20.0 Amps (max)
Backplane Output (5V DC) 5.0 Amps
Backplane Output (24V DC) 0.96 Amps (960 mA)
User Power Capacity 200 mA at 18–30V DC
CPU Hold-Up Time 5 ms (full load) / 1500 ms (no load)
Isolation Voltage 1800V AC RMS (1 second)
Operating Temperature 0 to 60 degC (32 to 140 degF)

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the power supply from the SLC 500 chassis.
  • The 1746-P6 must be installed in the leftmost slot of the chassis.
  • Ensure proper grounding of the chassis to minimize electrical noise and protect against surges.
  • Maintain adequate clearance around the module for proper ventilation and cooling.
  • Use appropriate wire gauges for the DC input terminals to minimize voltage drop.
  • Handle with care to avoid electrostatic discharge (ESD) damage to internal components.

FAQ

Is the 1746-P6 compatible with all SLC 500 chassis?

Yes, the 1746-P6 is designed to fit into the standard SLC 500 modular chassis series. It is always installed in the leftmost slot designated for the power supply.

Can I use this power supply with an AC input?

No, the 1746-P6 is specifically designed for DC input (30-60V DC). Connecting it to an AC power source will damage the unit.
