Allen-Bradley 1756-A10 ControlLogix 10-Slot Chassis

Allen-Bradley 1756-A10 ControlLogix 10-Slot Chassis

Description

The Allen-Bradley 1756-A10 is a 10-slot modular chassis designed for the ControlLogix programmable automation controller (PAC) platform. It serves as the physical foundation for ControlLogix systems, providing the backplane communication...

28 people are viewing this right now

Availability: Low stock: 2 left

SKU: 1756-A10
Vendor: Allen-Bradley
Category: PLC I/O Chassis
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

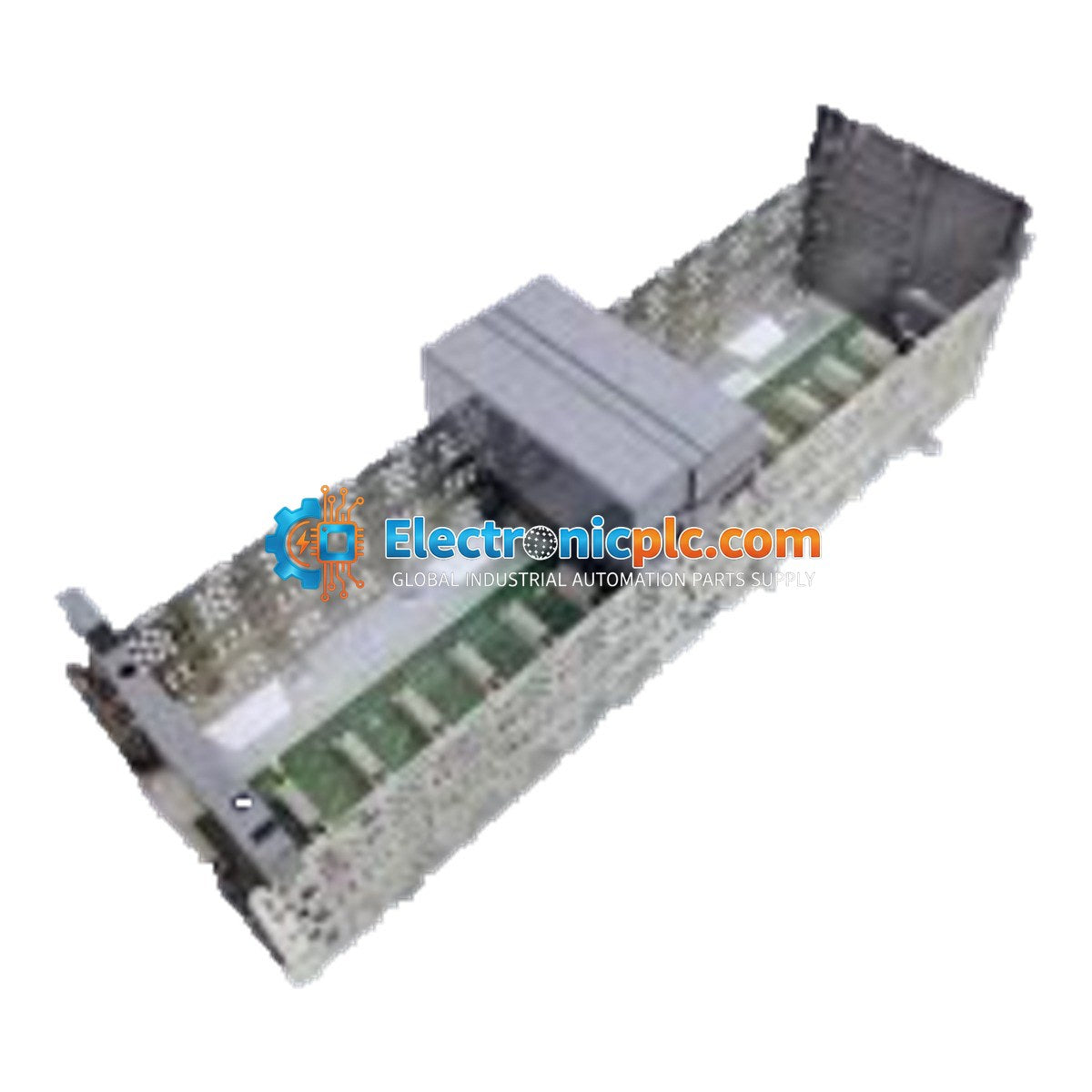

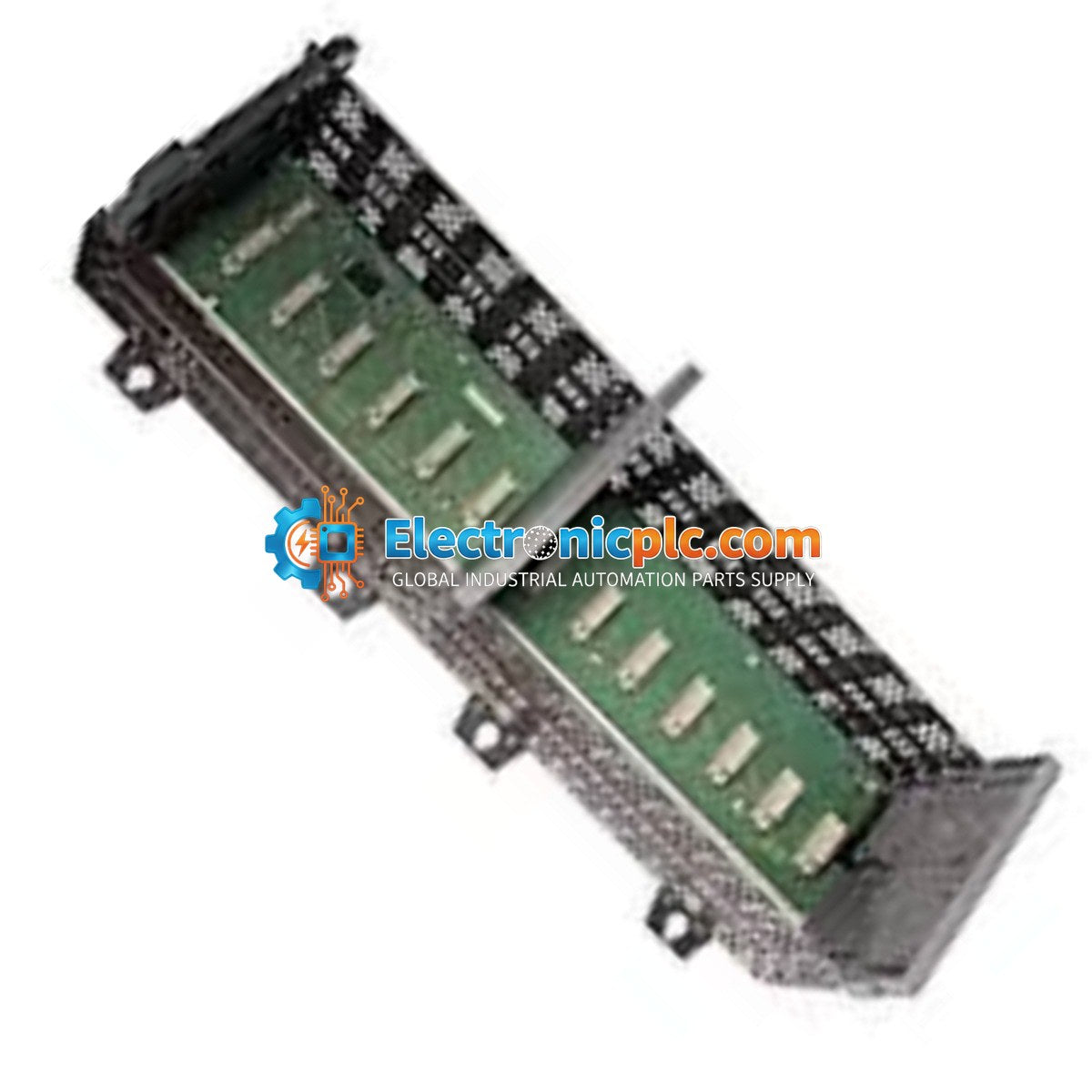

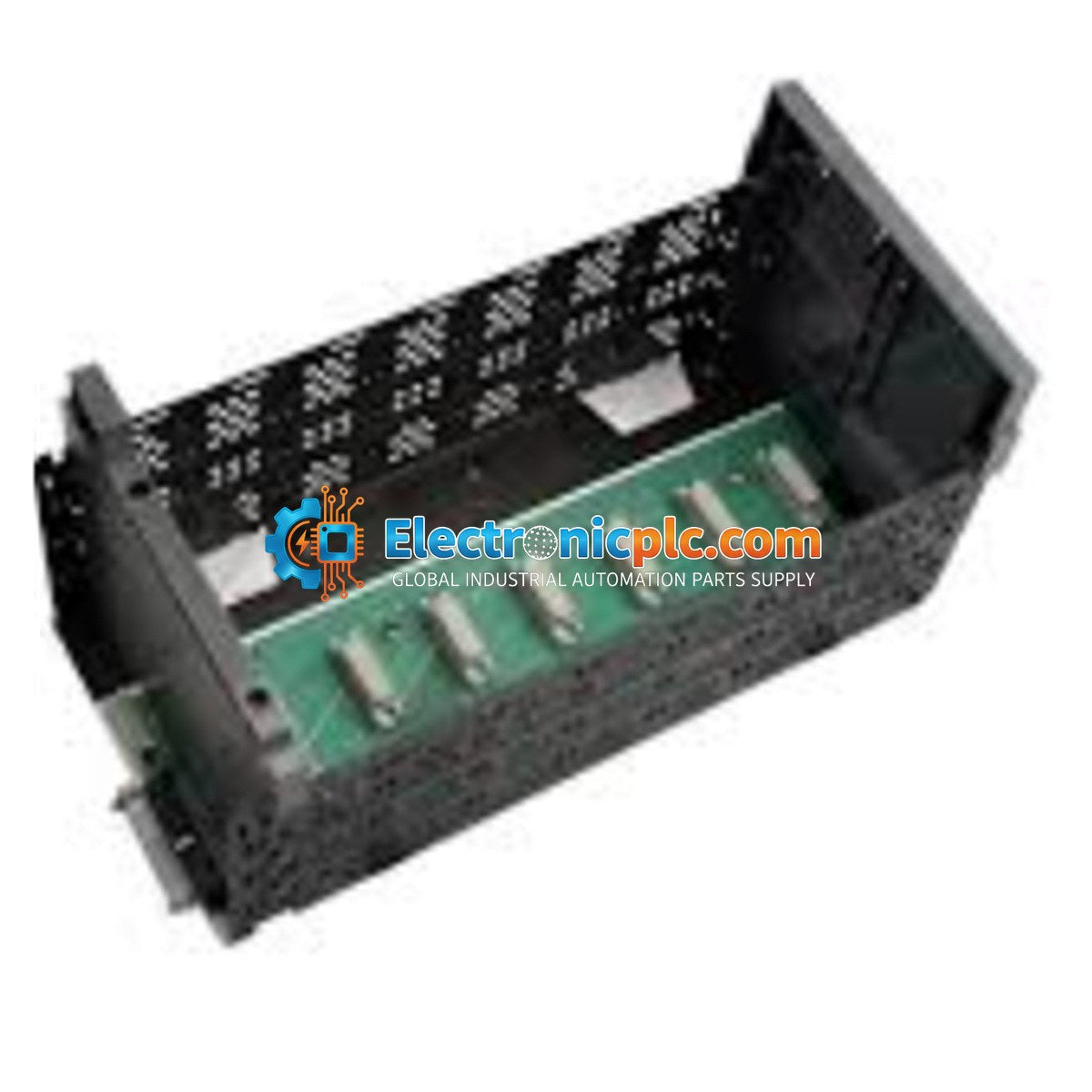

The Allen-Bradley 1756-A10 is a 10-slot modular chassis designed for the ControlLogix programmable automation controller (PAC) platform. It serves as the physical foundation for ControlLogix systems, providing the backplane communication bus and power distribution rails for controllers, I/O modules, communication adapters, and motion control modules. The chassis features a robust design suitable for industrial environments, supporting high-speed data exchange between installed modules.
