Allen-Bradley 1756-A13 ControlLogix 13-Slot Chassis

Allen-Bradley 1756-A13 ControlLogix 13-Slot Chassis

The Allen-Bradley 1756-A13 is a 13-slot chassis designed for the ControlLogix automation platform. It serves as the physical housing and backplane for ControlLogix controllers, communication adapters, and I/O modules. The...

26 people are viewing this right now

Availability: Low stock: 8 left

SKU: 1756-A13
Vendor: Allen-Bradley
Category: PLC Chassis
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

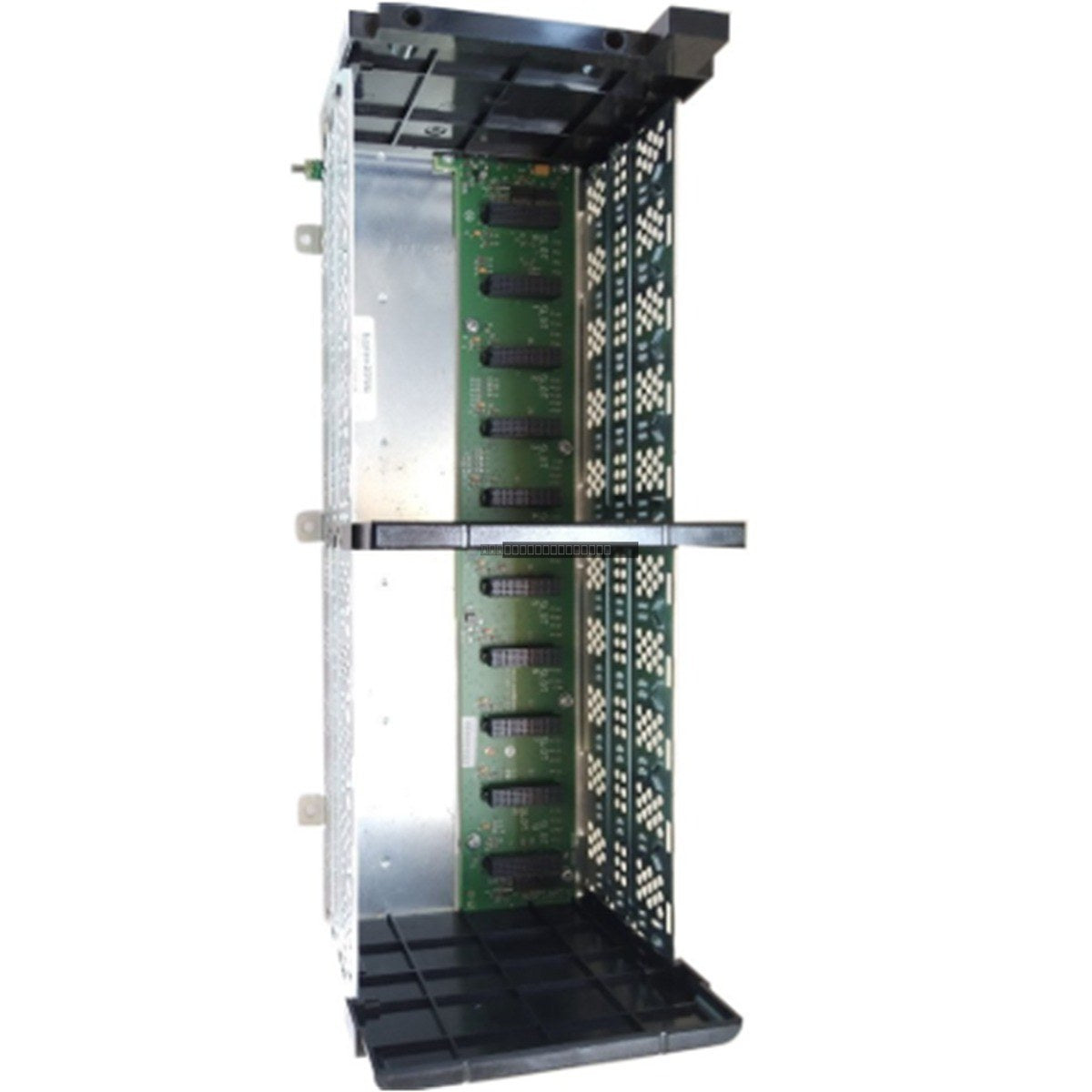

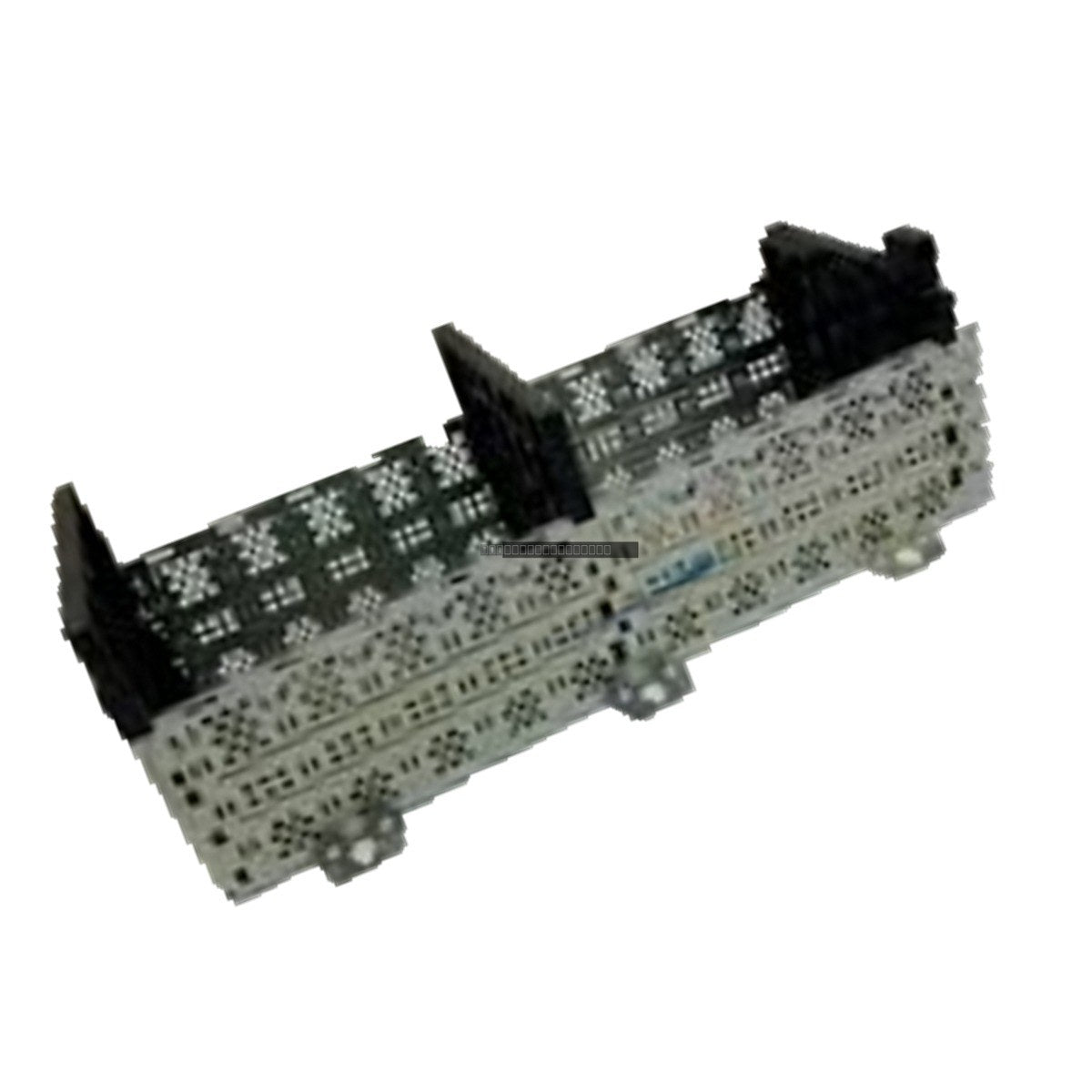

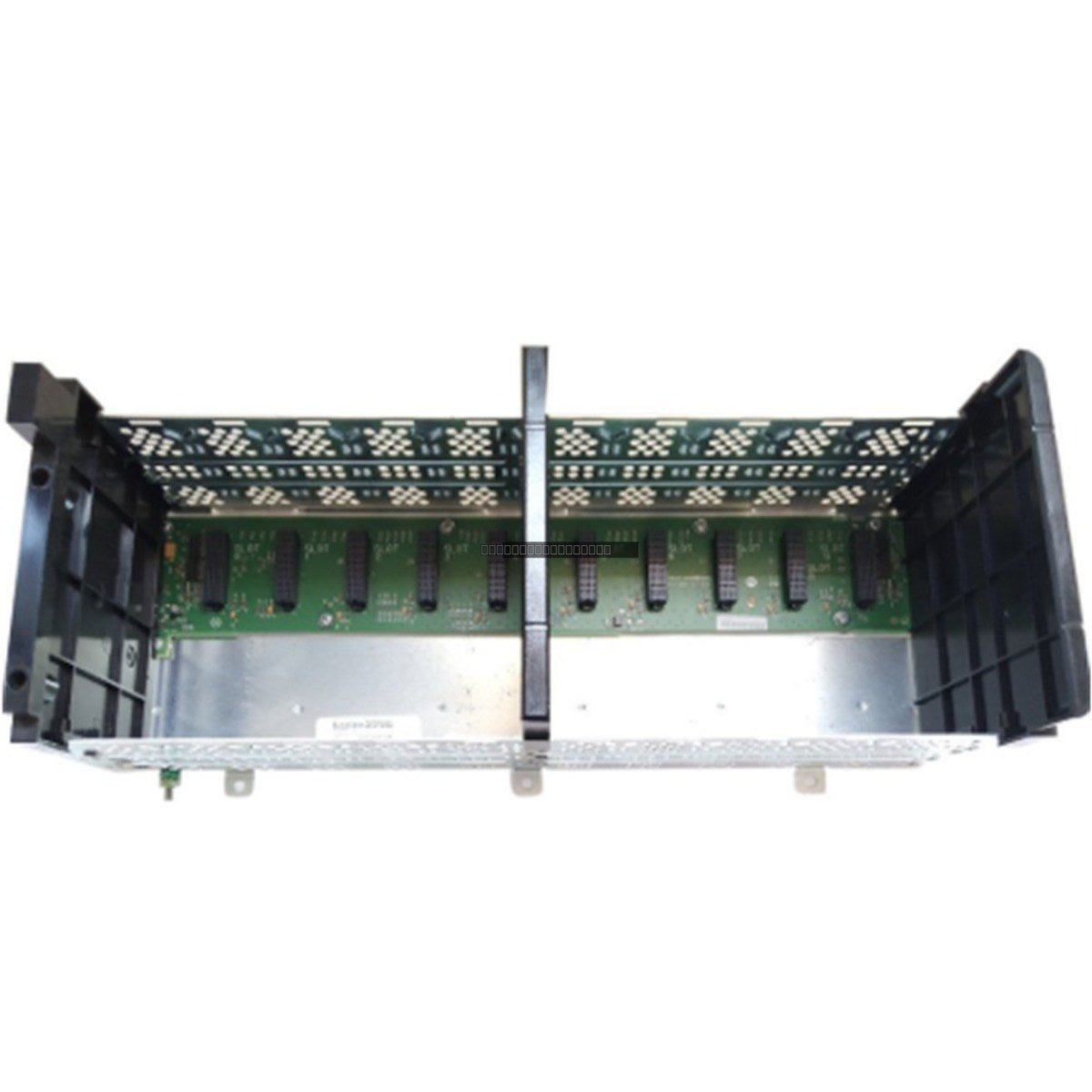

The Allen-Bradley 1756-A13 is a 13-slot chassis designed for the ControlLogix automation platform. It serves as the physical housing and backplane for ControlLogix controllers, communication adapters, and I/O modules. The chassis provides the necessary power distribution and high-speed communication bus required for module operation within a ControlLogix system.

Features

  • Thirteen (13) dedicated slots for module installation.
  • Supports Removal and Insertion Under Power (RIUP), allowing for module replacement without shutting down the entire system.
  • Integrated backplane for power distribution and inter-module communication.
  • Supports producer/consumer communication and system-wide time stamping.
  • Robust design for panel-mount installation in NEMA-rated enclosures.

Applications

This chassis is suitable for demanding industrial environments, including:

  • Energy and power generation, such as turbine control and auxiliary systems.
  • Oil and gas production, including refinery and chemical plant automation.
  • Infrastructure projects, such as tunnel ventilation and airport baggage handling systems.
  • Food, beverage, and pharmaceutical manufacturing requiring precise production control.

Technical Specifications

Model 1756-A13
Slots 13
Backplane Current @ 1.2VDC 1.5 A
Backplane Current @ 3.3VDC 4 A
Backplane Current @ 5.1VDC 15 A / 6 A
Mounting Tabs 8
Operating Temperature 0 degC to +60 degC (+32 degF to +140 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity 5 to 95% (non-condensing)

Installation Guidelines

  • Ensure the chassis is mounted on a flat, rigid surface within a NEMA-rated enclosure.
  • Maintain adequate clearance around the chassis to facilitate heat dissipation and airflow.
  • Use all eight mounting tabs to secure the chassis firmly to the backplane.
  • Ensure the system is properly grounded according to local electrical codes to minimize EMI/RFI interference.
  • Always power down the system before installing or removing the chassis itself, though individual modules support RIUP.
  • Verify that the power supply module is correctly seated in the designated slot to ensure proper backplane voltage distribution.

FAQ

What is the slot capacity of the 1756-A13?

The 1756-A13 features 13 slots, numbered 0 through 12, which can accommodate any combination of ControlLogix controllers, I/O, or communication modules.

Is this chassis designed for 19-inch rack mounting?

No, the 1756-A13 is designed for surface mounting on a back panel. It is not equipped with standard 19-inch rack-mounting ears.

What is the required enclosure size for this chassis?

The chassis is typically installed in an enclosure with a minimum recommended size of 24 in x 30 in x 8 in to ensure proper thermal management and clearance.
