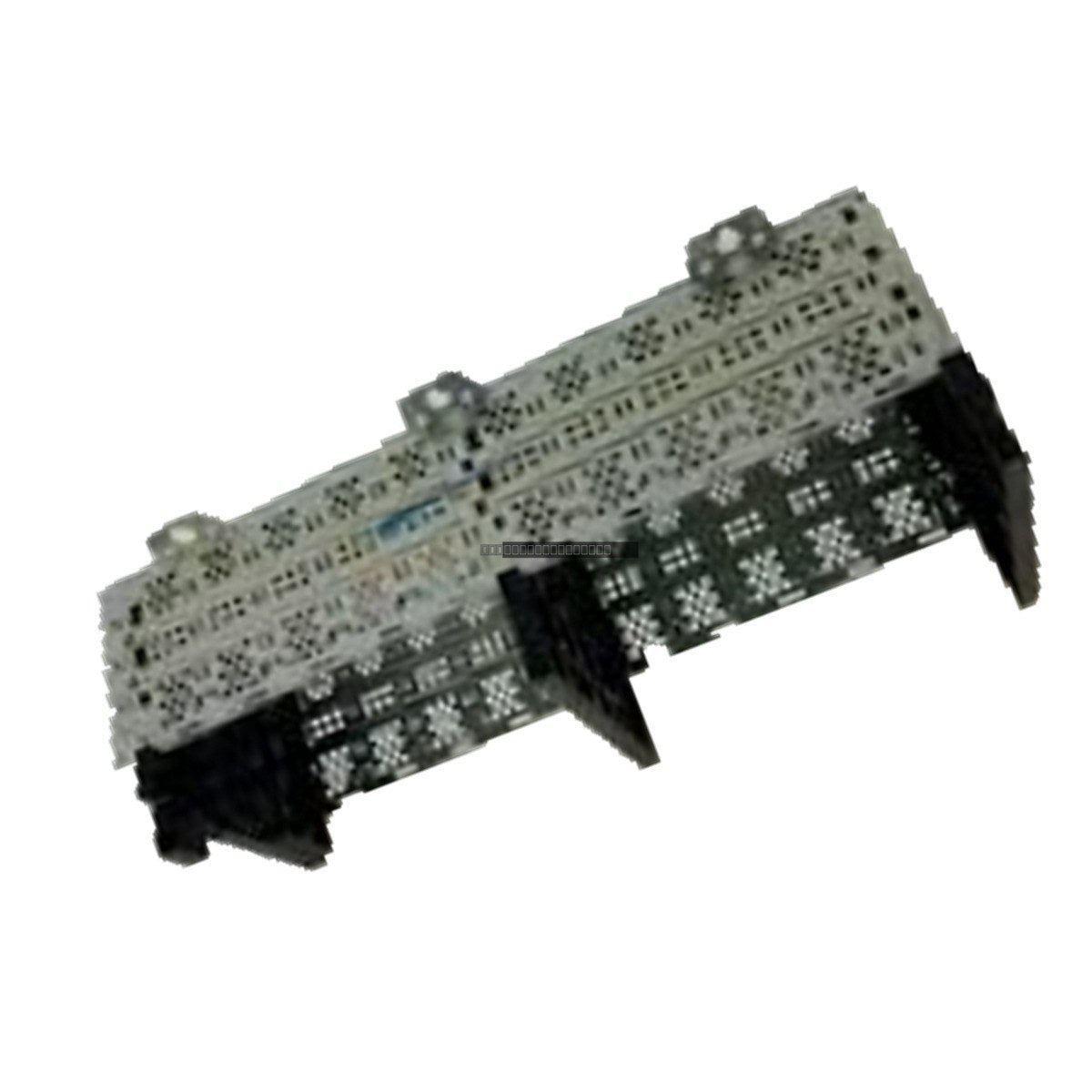

Allen-Bradley 1756-A7 ControlLogix 7-Slot Chassis

Allen-Bradley 1756-A7 ControlLogix 7-Slot Chassis

Description

The Allen-Bradley 1756-A7 is a 7-slot chassis designed for the ControlLogix platform. This chassis provides the mechanical and electrical backplane necessary for housing and interconnecting ControlLogix modules, including controllers, communication...

17 people are viewing this right now

Availability: Low stock: 2 left

SKU: 1756-A7
Vendor: Allen-Bradley
Category: PLC Chassis
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-A7 is a 7-slot chassis designed for the ControlLogix platform. This chassis provides the mechanical and electrical backplane necessary for housing and interconnecting ControlLogix modules, including controllers, communication interfaces, and I/O modules. It is engineered for industrial environments, ensuring reliable communication and power distribution across the backplane.

Features

  • Supports up to 7 ControlLogix modules in a single rack assembly.
  • Robust mechanical design for panel mounting in industrial control cabinets.
  • Optimized for high-speed data transfer between modules via the ControlLogix backplane.
  • Integrated power distribution to support various module power requirements.

Technical Specifications

Model 1756-A7
Slot Capacity 7 Slots
Max Power Dissipation 5 W
Operating Temperature 0 to 60 degC (32 to 140 degF)
Storage Temperature -40 to +85 degC (-40 to +185 degF)
Relative Humidity 5 to 95% noncondensing
Backplane Current (1.2V DC) 1.5 A
Backplane Current (3.3V DC) 4 A
Backplane Current (5.1V DC) 15 A (Total) / 6 A (Per Slot)
Backplane Current (24V DC) 2.8 A

Installation Guidelines

  • Ensure the chassis is mounted on a flat, rigid surface within a suitable industrial enclosure.
  • Maintain adequate clearance around the chassis to allow for proper airflow and cooling, as the maximum operating temperature is 60 degC.
  • Verify that the chassis is properly grounded to the enclosure backplane to minimize electromagnetic interference (EMI).
  • Power down the system before inserting or removing any ControlLogix modules to prevent electrical damage to the backplane connectors.
  • Ensure all modules are fully seated and secured with their respective mounting screws to maintain reliable backplane contact.

FAQ

Can I use this chassis with any ControlLogix module?
Yes, the 1756-A7 is compatible with all standard ControlLogix series modules that fit the 1756 form factor.

Does this chassis include a power supply?
No, the 1756-A7 is a passive backplane chassis. A separate ControlLogix power supply module must be installed to provide power to the backplane.
