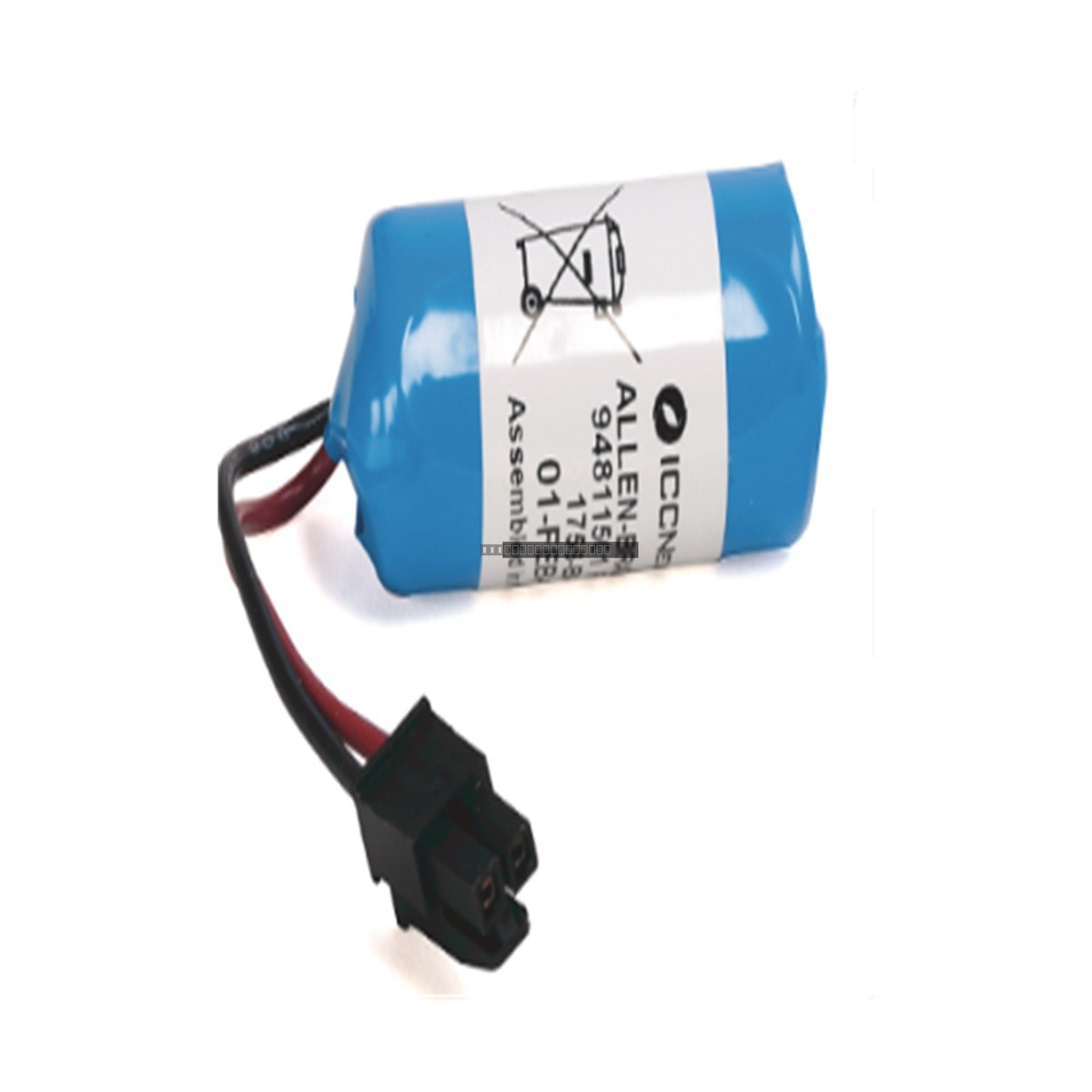

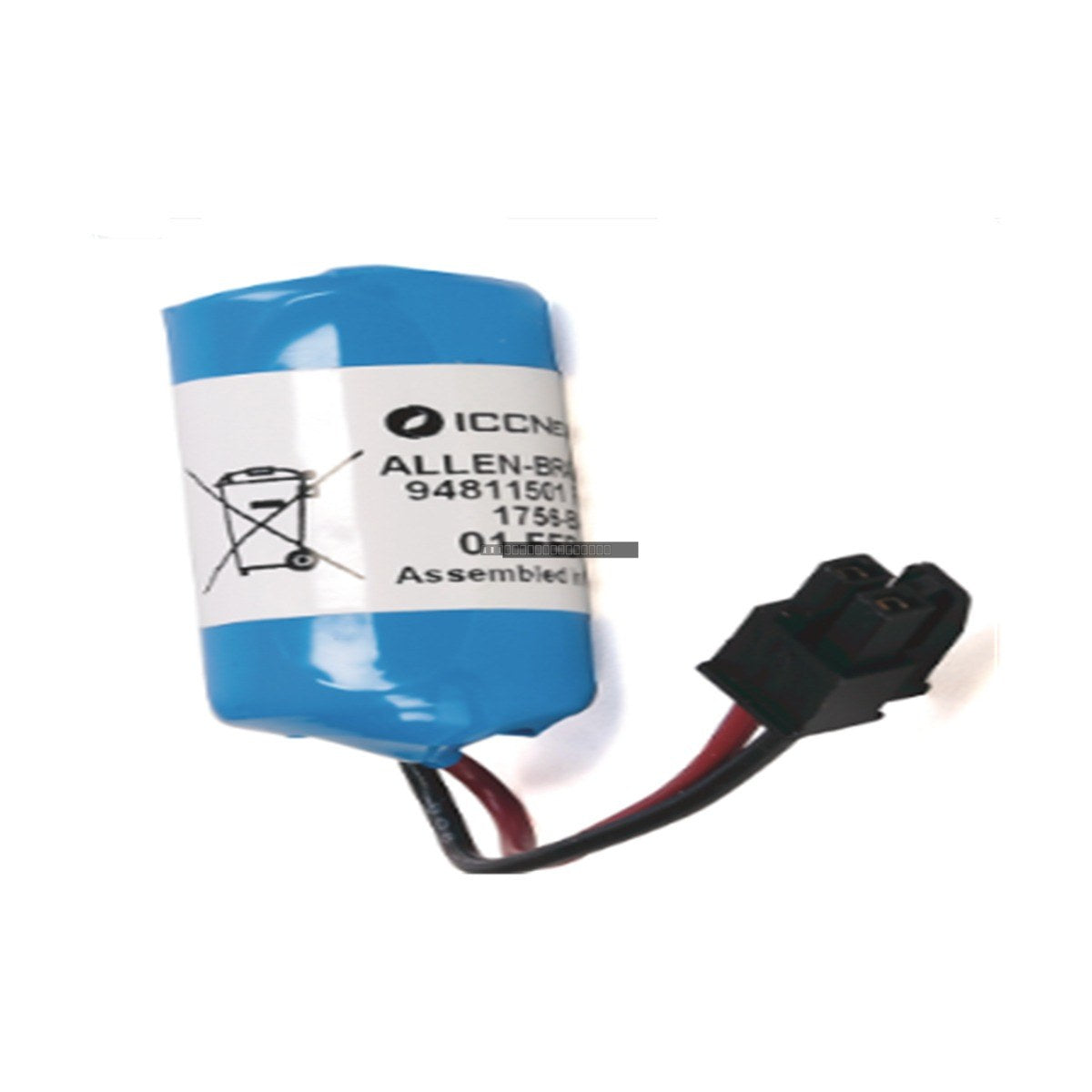

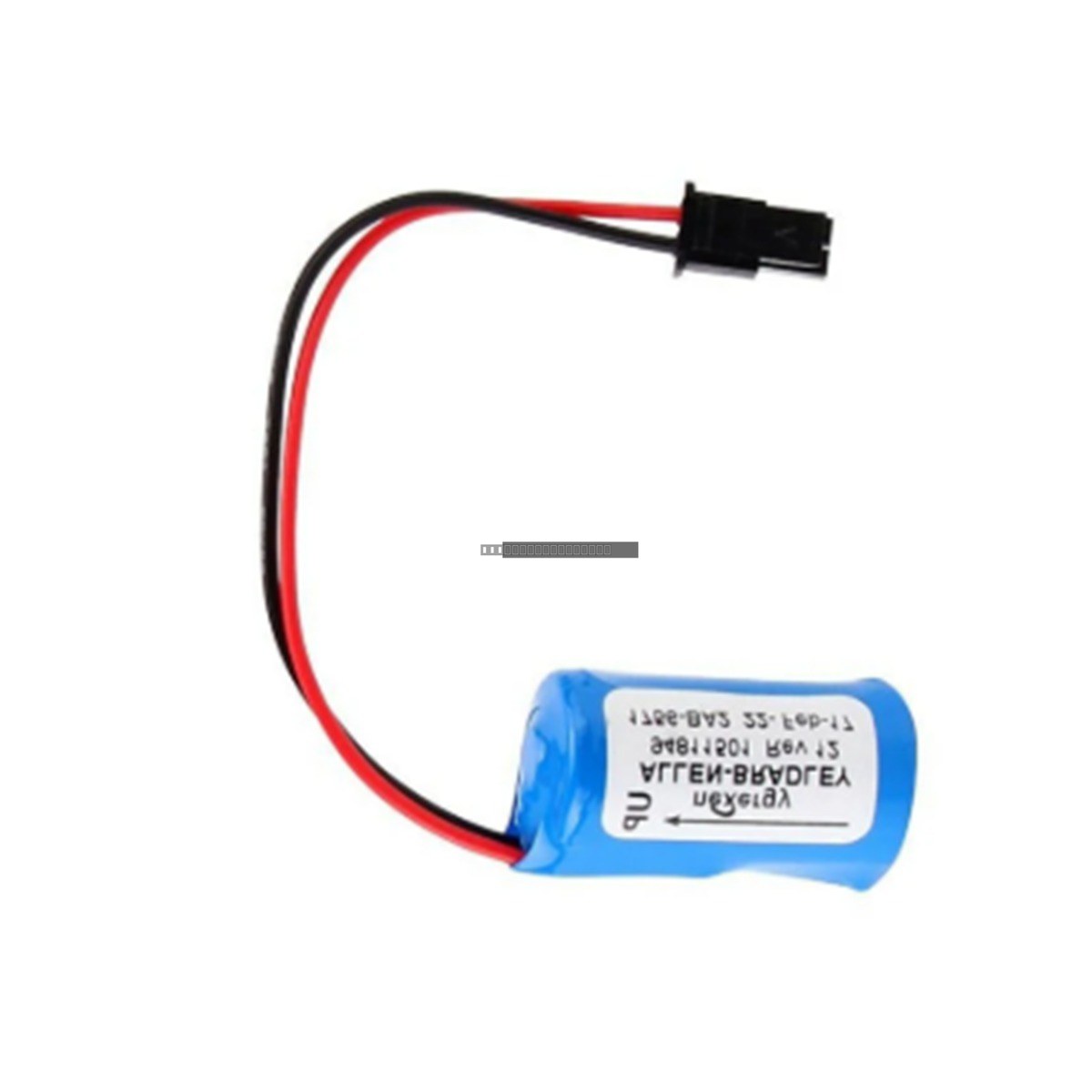

Allen-Bradley 1756-BA2 ControlLogix Lithium Battery Assembly

Allen-Bradley 1756-BA2 ControlLogix Lithium Battery Assembly

The Allen-Bradley 1756-BA2 is a dedicated lithium battery assembly designed to provide reliable backup power for Series B ControlLogix 5560 (1756-L6x) controllers. This 3V DC unit ensures the retention of...

18 people are viewing this right now

Availability: Low stock: 6 left

SKU: 1756-BA2
Vendor: Allen-Bradley
Category: PLC Battery Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 1756-BA2 is a dedicated lithium battery assembly designed to provide reliable backup power for Series B ControlLogix 5560 (1756-L6x) controllers. This 3V DC unit ensures the retention of controller memory and real-time clock functions during power outages, preventing the loss of critical logic routines and configuration data.

Features

  • Designed for Series B 1756-L61, 1756-L62, 1756-L63, 1756-L64, and 1756-L65 controllers.
  • Compatible with GuardLogix 1756-L61S, 1756-L62S, and 1756-L63S safety controllers.
  • Nominal output of 3V DC with a 1200 mAh capacity.
  • Equipped with pre-attached wire leads and a secure connector for simple installation.
  • Long-term backup capability with a shelf life of up to 10 years at 25 degC.

Applications

This battery assembly is essential for maintaining operational continuity in industrial environments where PLC memory retention is critical, including:

  • Factory automation and control panel logic protection.
  • Continuous process industries such as chemical, refining, and food processing.
  • CNC machining for safeguarding axis positions and cutting routines.
  • Data logging systems requiring preservation of alarm history and runtime metrics.

Technical Specifications

Model 1756-BA2
Voltage 3V DC
Capacity 1200 mAh
Operating Temperature 0 to 60 degC (32 to 140 degF)
Relative Humidity 5 to 80% (non-condensing)
Manufacturer Allen-Bradley

Installation Guidelines

  • Chassis Power: Keep the chassis backplane power turned ON during a live battery swap to ensure the controller's memory remains powered by the backplane.
  • Safety: Do not connect or disconnect the battery in hazardous locations. Breaking connections under power can cause an electrical arc.
  • ESD Precautions: Use an approved, grounded wrist strap and avoid touching circuit boards or exposed pins within the chassis.
  • Backup: Always verify that a current copy of the PLC program is saved to an offline storage medium before performing maintenance.

FAQ

Which controllers are compatible with the 1756-BA2?

This battery is designed exclusively for Series B ControlLogix 5560 (1756-L6x) controllers. It is not compatible with Series A controllers, which typically require the 1756-BA1 assembly.

Can I use a 1756-BA1 instead of a 1756-BA2?

No. These batteries are not interchangeable due to different connector types and specific current management requirements of the Series B processors. Using an incorrect battery can lead to equipment failure.

Is the 1756-BA2 battery rechargeable?

No. This is a non-rechargeable lithium battery. Attempting to recharge this unit creates a severe risk of fire, explosion, or thermal runaway.
