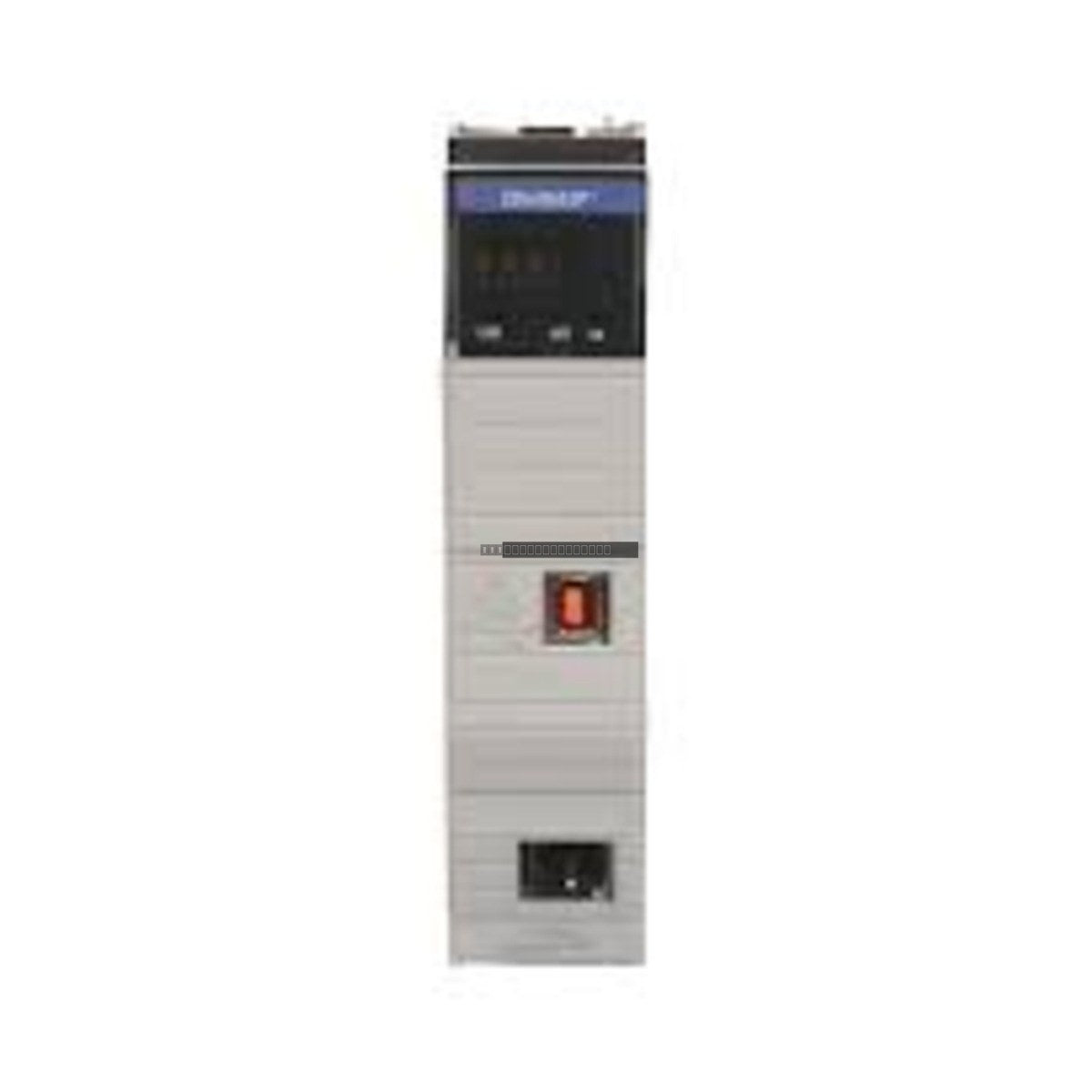

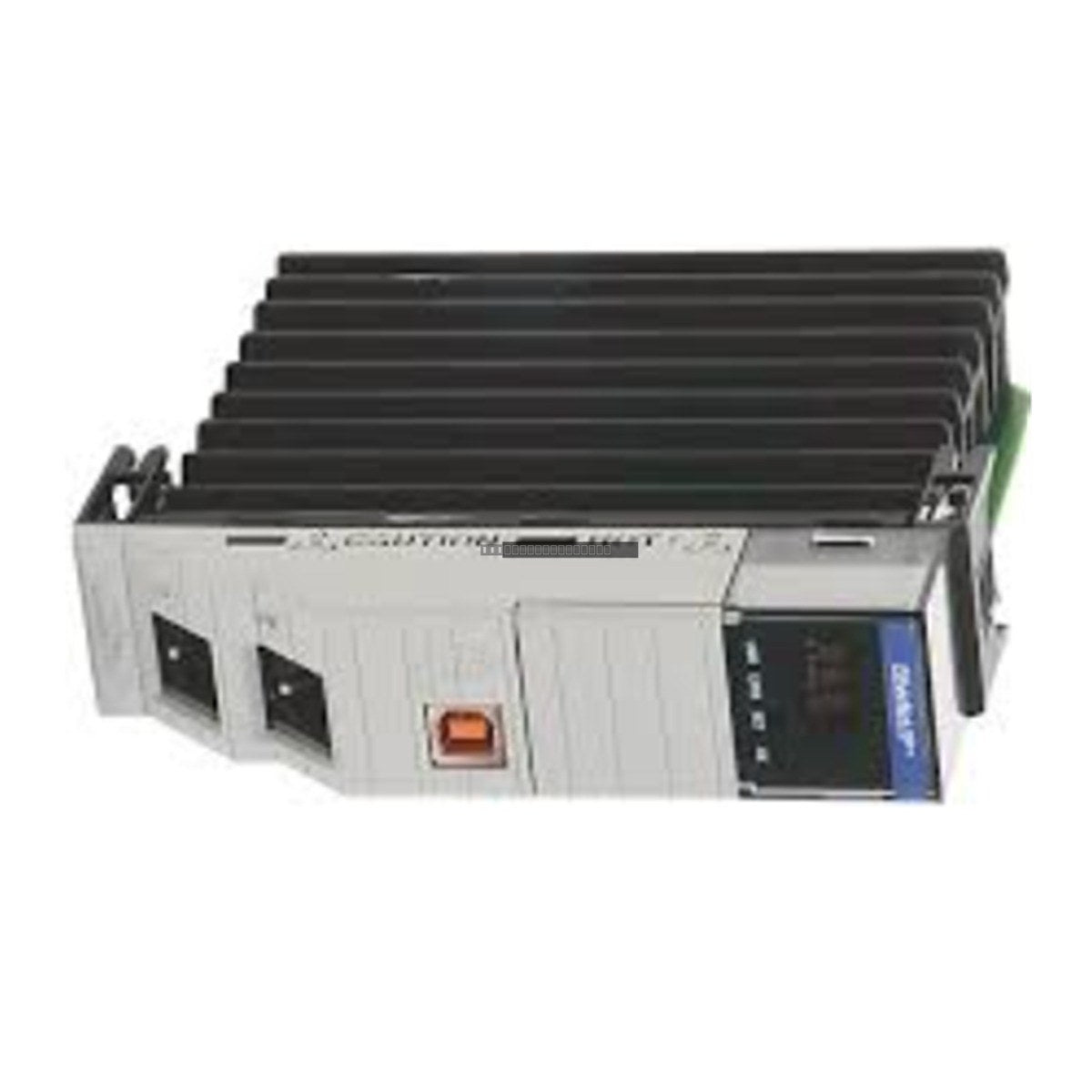

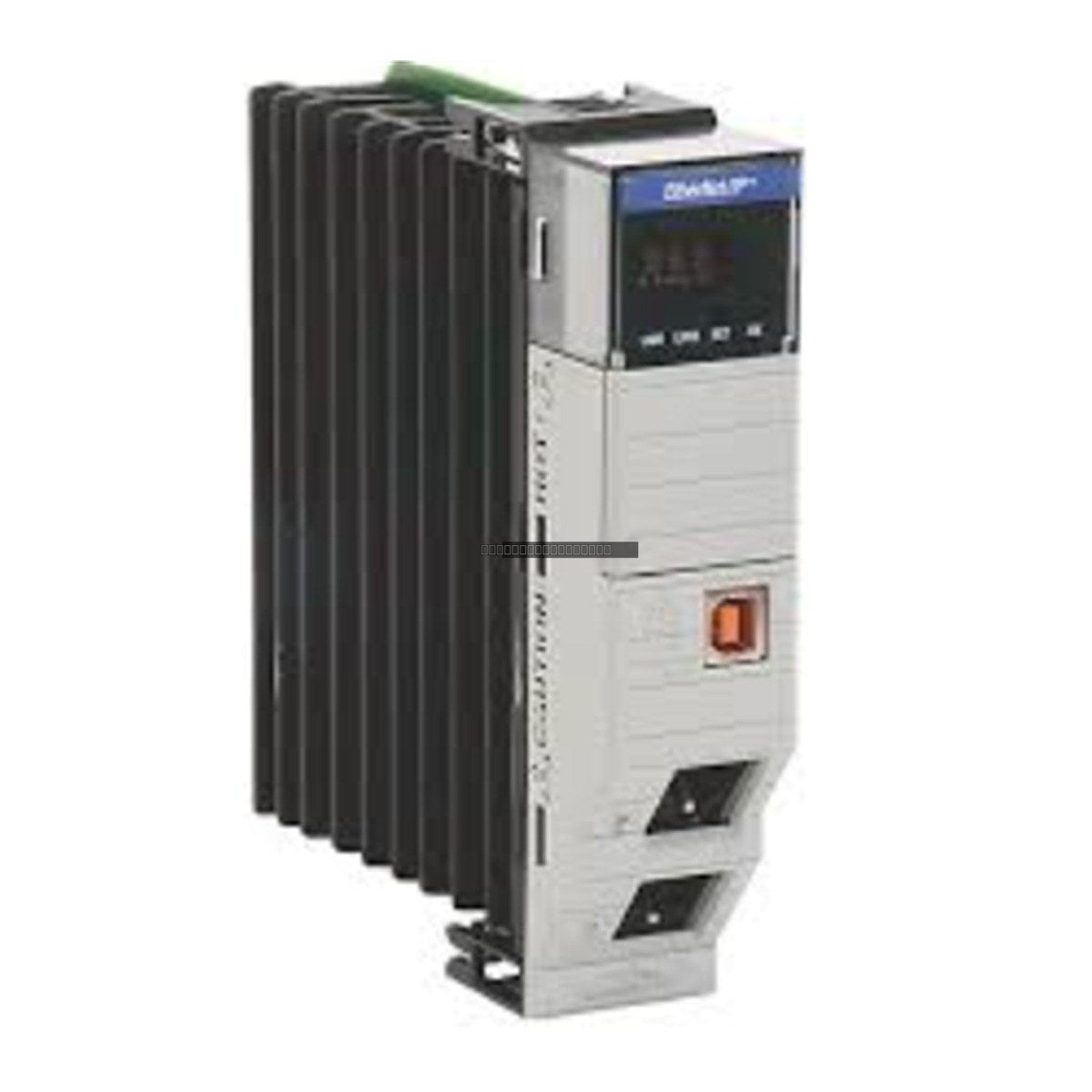

Allen-Bradley 1756-CN2 ControlLogix ControlNet Communication Module

Allen-Bradley 1756-CN2 ControlLogix ControlNet Communication Module

The Allen-Bradley 1756-CN2 is a high-performance communication module designed for the ControlLogix platform, specifically engineered to interface with ControlNet networks. This module facilitates reliable, deterministic data exchange between controllers, I/O...

27 people are viewing this right now

Availability: Low stock: 8 left

SKU: 1756-CN2
Vendor: Allen-Bradley
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 1756-CN2 is a high-performance communication module designed for the ControlLogix platform, specifically engineered to interface with ControlNet networks. This module facilitates reliable, deterministic data exchange between controllers, I/O devices, and other network nodes within an industrial automation environment.

Features

  • Supports standard media for ControlNet connectivity.
  • Data transmission rate of 5 Mbps.
  • Provides 128 Logix connections for robust system integration.
  • Supports up to 99 nodes on a single network segment.
  • Designed for seamless integration into existing ControlLogix chassis architectures.

Applications

This module is primarily utilized in large-scale industrial control systems where synchronized, real-time communication is required. It is commonly found in manufacturing, process control, and material handling applications that rely on the ControlNet protocol for deterministic I/O updates and peer-to-peer messaging.

Technical Specifications

Product Model 1756-CN2
Communication Protocol ControlNet
Data Rate 5 Mbps
Max Logix Connections 128
Max Nodes 99
Manufacturer Allen-Bradley

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
  • Slide the module into any available slot in the ControlLogix chassis, ensuring the backplane connectors are properly aligned.
  • Secure the module using the top and bottom latching mechanisms to maintain a firm connection and proper grounding.
  • Use appropriate ControlNet cabling and ensure proper termination at both ends of the network segment to maintain signal integrity.
  • Avoid routing communication cables near high-voltage power lines or sources of significant electromagnetic interference (EMI).

FAQ

What is the primary function of the 1756-CN2?
The 1756-CN2 acts as a bridge between the ControlLogix controller and the ControlNet network, allowing for deterministic data communication between distributed automation components.

Does this module support redundant media?
The 1756-CN2 is designed for standard media configurations; please consult your specific system design documentation to ensure compatibility with your network topology.
