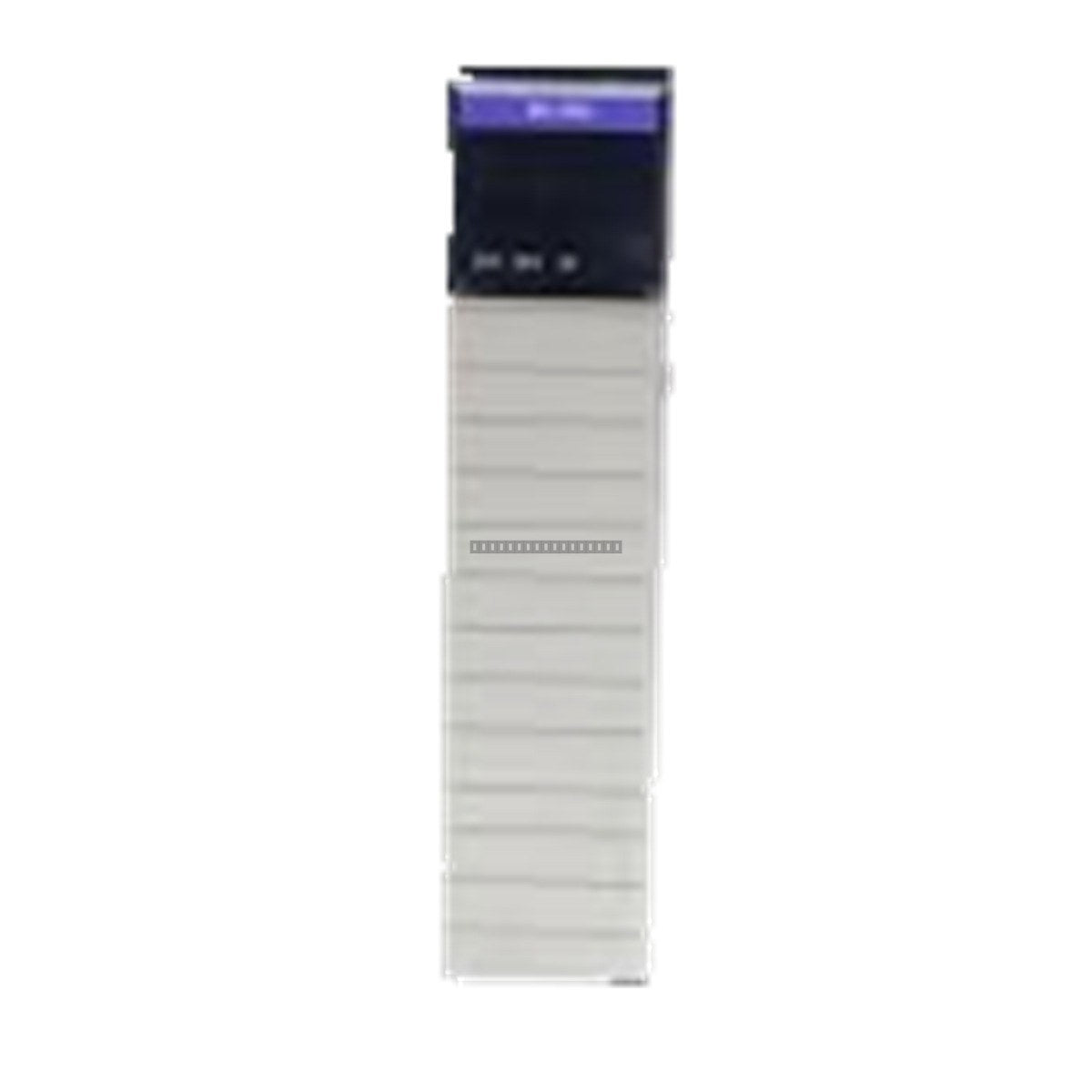

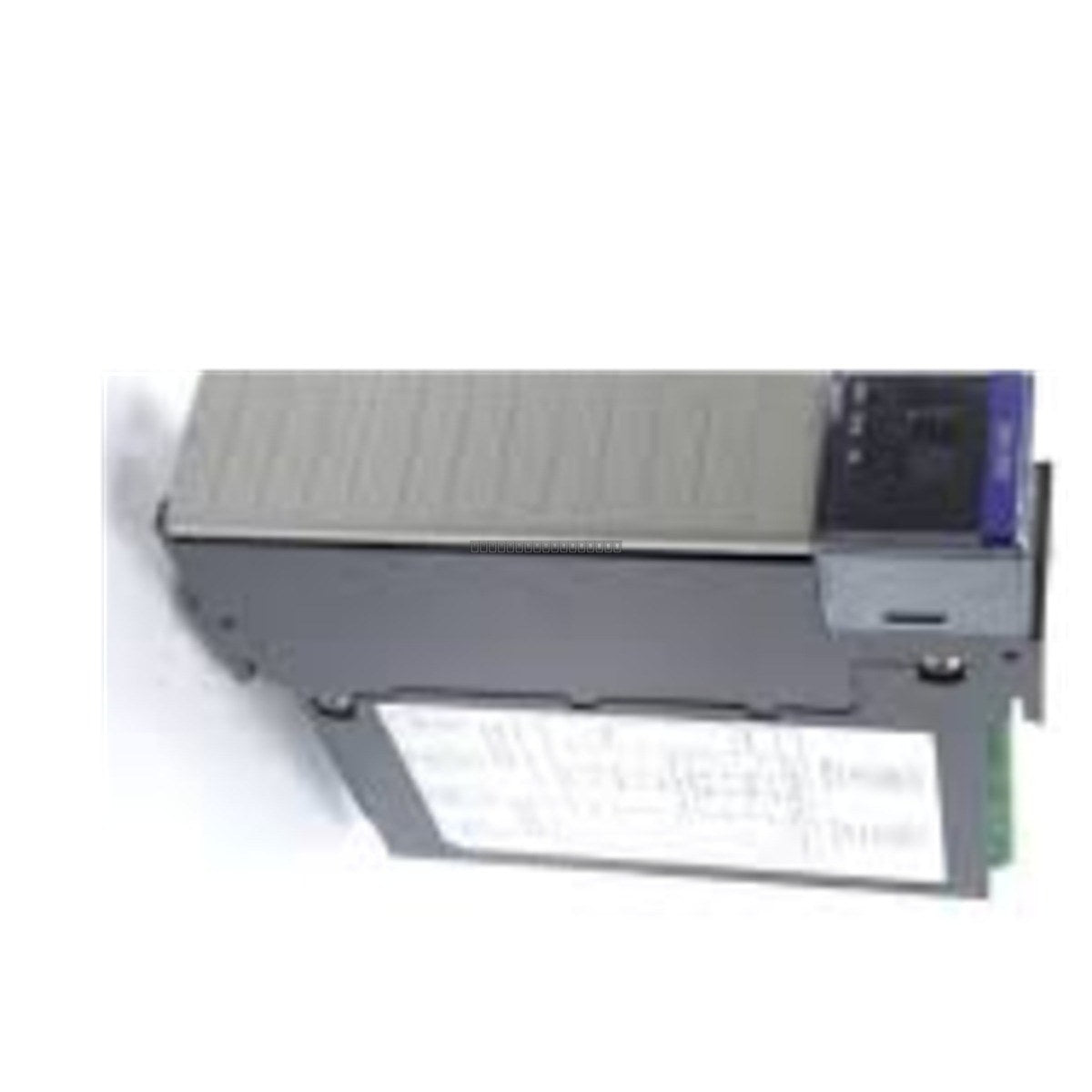

Allen-Bradley 1756-DHRIO ControlLogix Data Highway Plus / Remote I/O Scanner Module

Allen-Bradley 1756-DHRIO ControlLogix Data Highway Plus / Remote I/O Scanner Module

Description

The Allen-Bradley 1756-DHRIO is a ControlLogix communication interface module designed to provide connectivity between ControlLogix controllers and Data Highway Plus (DH+) networks or Remote I/O (RIO) networks. This module functions...

23 people are viewing this right now

Availability: Low stock: 2 left

SKU: 1756-DHRIO
Vendor: Allen-Bradley
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-DHRIO is a ControlLogix communication interface module designed to provide connectivity between ControlLogix controllers and Data Highway Plus (DH+) networks or Remote I/O (RIO) networks. This module functions as a bridge, allowing for seamless data exchange and device management across legacy and modern industrial communication architectures.

Features

  • Dual-channel communication interface for versatile network integration.
  • Supports Data Highway Plus (DH+) communication protocol.
  • Functions as a Remote I/O (RIO) scanner for distributed control applications.
  • Selectable communication speeds: 57.6 Kbaud, 115.2 Kbaud, and 230.4 Kbaud.
  • Designed for seamless integration into the ControlLogix chassis backplane.

Applications

The 1756-DHRIO is typically utilized in industrial automation environments requiring the integration of legacy DH+ networks or RIO-based field devices into a modern ControlLogix platform. It is commonly found in manufacturing, process control, and material handling systems where legacy infrastructure must be maintained alongside newer control hardware.

Technical Specifications

Module Type Communication Interface Module
Communication Channels 2
Communication Speeds 57.6 Kbaud, 115.2 Kbaud, 230.4 Kbaud
Current Draw 850 mA @ 24 VDC
Recommended Cable Belden 89463 twinaxial (0.52 mm2 / 20 AWG)
Max Cable Length Up to 3048 m (10,000 ft) depending on baud rate

Installation Guidelines

  • Ensure the ControlLogix chassis power is disconnected before installing or removing the module.
  • Slide the module into the designated chassis slot and secure it using the top and bottom latching mechanisms.
  • Use shielded twinaxial cable (e.g., Belden 89463) for all DH+ and RIO connections to minimize EMI interference.
  • Maintain proper grounding practices for the communication shield to prevent noise-related communication errors.
  • Verify that the baud rate settings on the module match the existing network configuration before commissioning.

FAQ

What is the primary function of the 1756-DHRIO module?

The module acts as a communication bridge, enabling a ControlLogix controller to communicate with devices on a Data Highway Plus network or to act as a scanner for Remote I/O networks.

Can this module be used for both DH+ and RIO networks?

Yes, the 1756-DHRIO is designed to support both DH+ and Remote I/O communication protocols, providing flexibility for legacy system integration.
