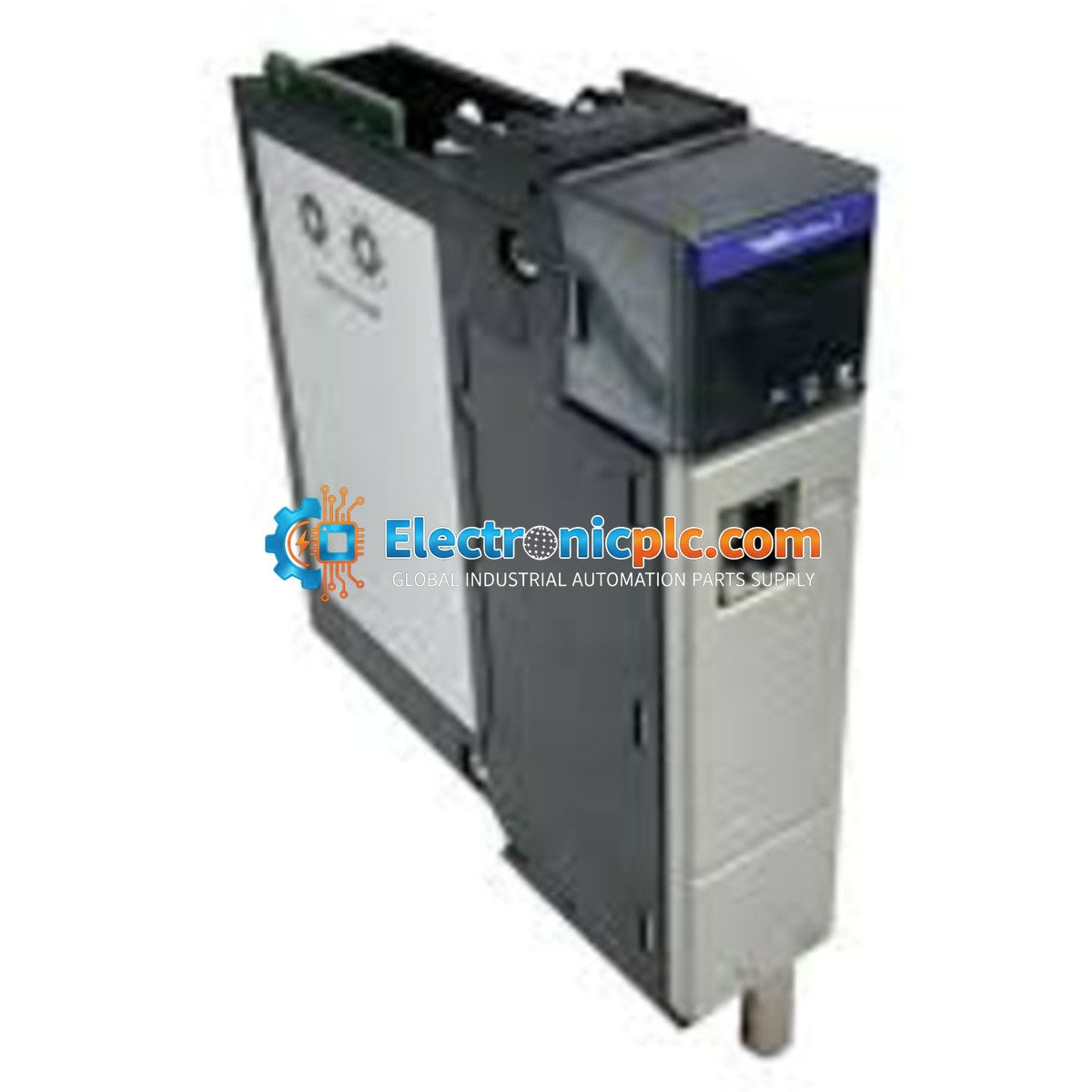

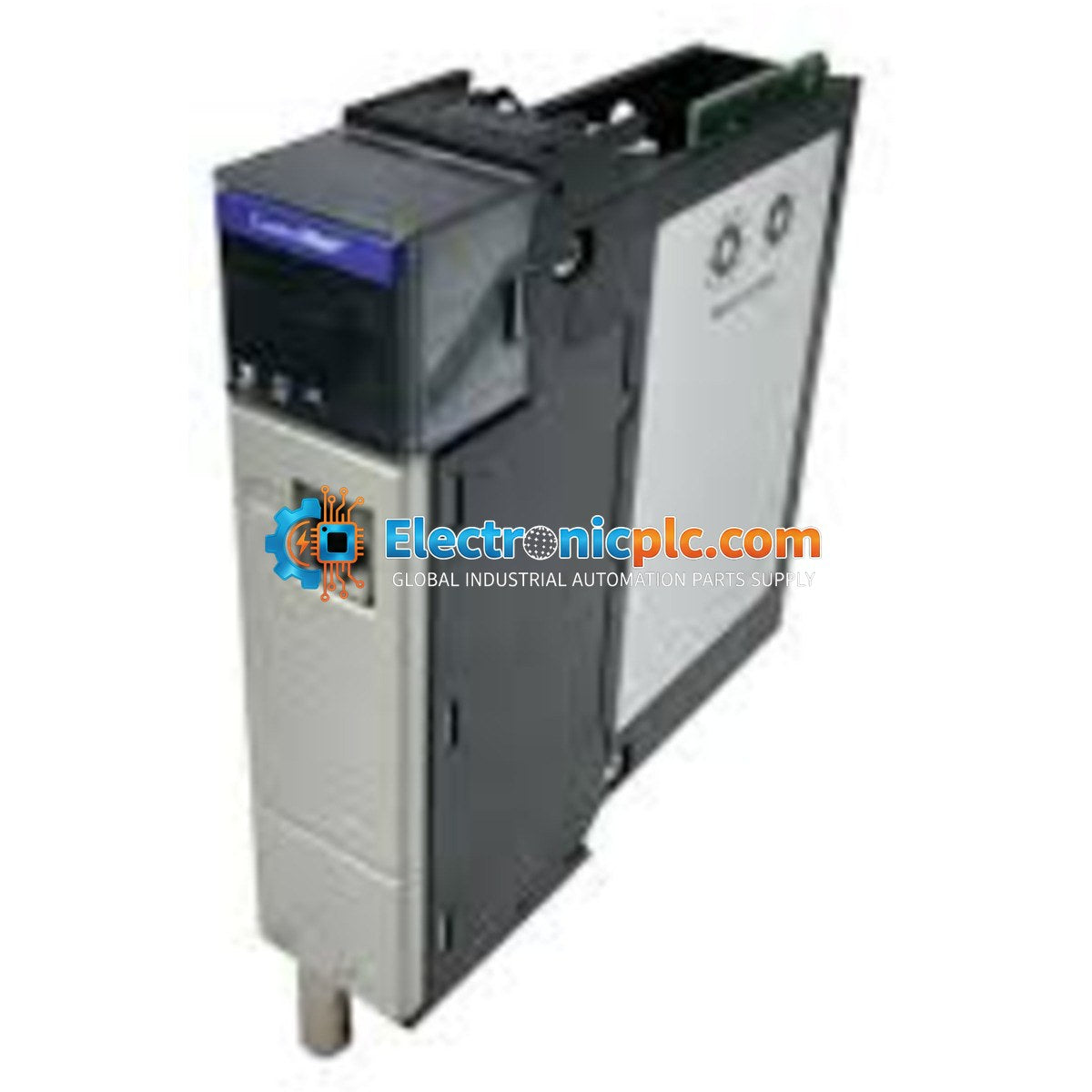

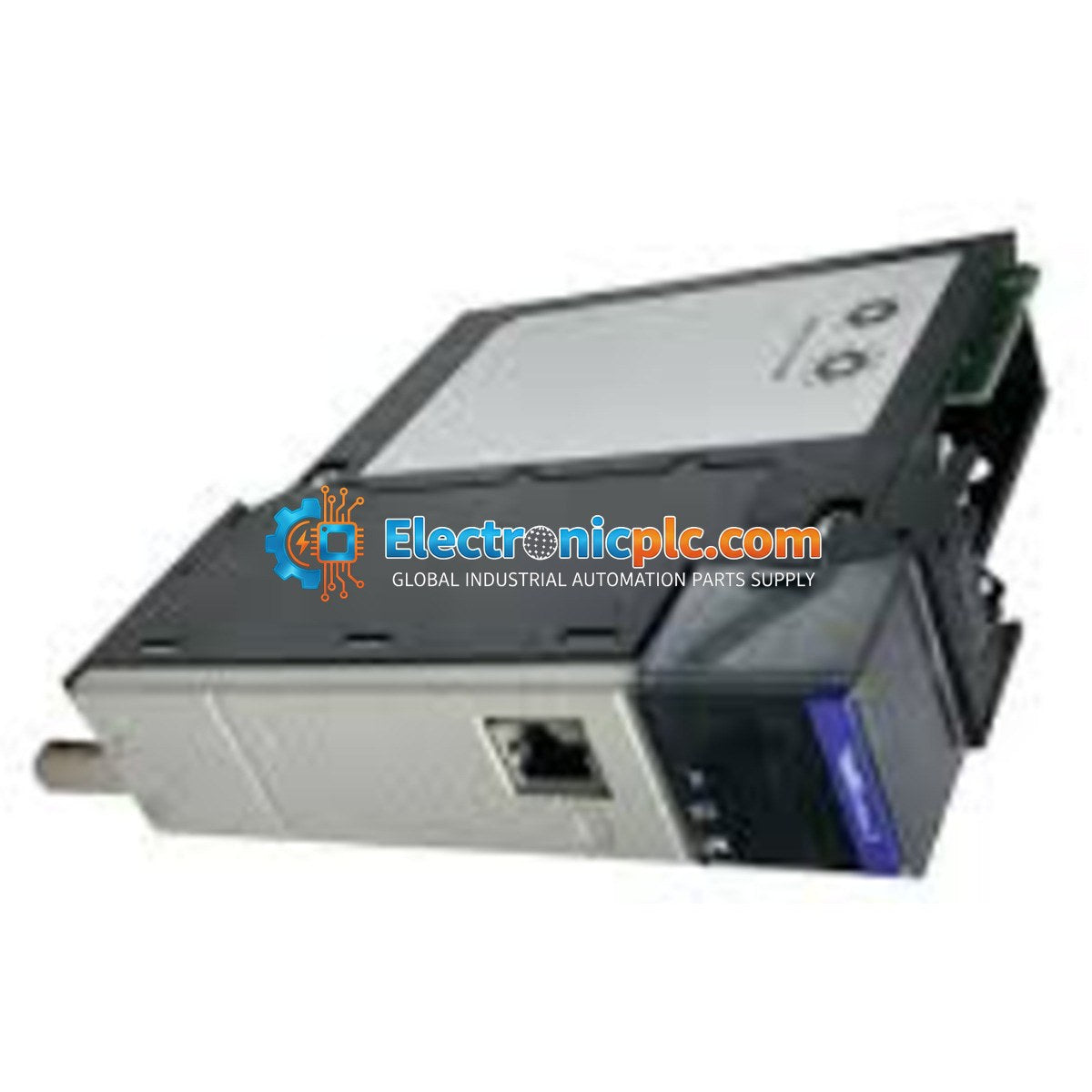

Allen-Bradley 1756-EN2T/B ControlLogix Ethernet/IP Bridge Module

Allen-Bradley 1756-EN2T/B ControlLogix Ethernet/IP Bridge Module

Description

The Allen-Bradley 1756-EN2T/B is a high-performance Ethernet/IP communication bridge module designed for the ControlLogix platform. As a Series B module, it serves as a robust interface between the ControlLogix backplane...

27 people are viewing this right now

Availability: Low stock: 10 left

SKU: 1756-EN2T/B
Vendor: Allen-Bradley
Category: Ethernet/IP Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-EN2T/B is a high-performance Ethernet/IP communication bridge module designed for the ControlLogix platform. As a Series B module, it serves as a robust interface between the ControlLogix backplane and industrial Ethernet networks. It facilitates high-speed data exchange, supporting I/O control, messaging, and system programming across plant-wide network architectures.

Features

  • Supports 10/100 Mbps communication rates with auto-negotiation.
  • Optimized for high-speed messaging and I/O packet throughput.
  • Compatible with Ethernet/IP Device Level Ring (DLR) topologies for enhanced network resilience.
  • Integrated support for advanced security protocols and diagnostic monitoring.
  • Designed for seamless integration with ControlLogix controllers, HMIs, and distributed I/O systems.

Applications

This module is typically utilized in industrial automation environments requiring reliable, high-speed communication between PLC controllers and networked devices. Common applications include distributed control systems, machine-to-machine communication, and remote monitoring of industrial processes.

Technical Specifications

Brand Allen-Bradley
Product Line ControlLogix
Module Type Ethernet/IP Communication Bridge
Communication Rate 10/100 Mbps
Backplane Current (5.1V DC) 1.0 Amp
Backplane Current (24V DC) 3 mA
Power Dissipation 5.1 Watts (Maximum)
Isolation Voltage 30V (Continuous)
Operating Temperature 0 to 60 degC (32 to 140 degF)
Relative Humidity 5% to 95% (non-condensing)

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module.
  • Seat the module firmly into the designated chassis slot and secure it using the top and bottom latching mechanisms.
  • Use shielded twisted-pair Ethernet cabling to minimize EMI interference in industrial environments.
  • Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range.
  • Follow standard ESD precautions when handling the module to prevent damage to internal circuitry.

FAQ

What is the difference between the 1756-EN2T and the Series B version?

The Series B version (1756-EN2T/B) includes hardware and firmware enhancements that provide improved performance, better support for DLR (Device Level Ring) topologies, and updated security features compared to earlier hardware revisions.

Does this module support auto-negotiation?

Yes, the 1756-EN2T/B supports 10/100 Mbps communication with auto-negotiation, allowing it to automatically detect the speed of the connected network device.
