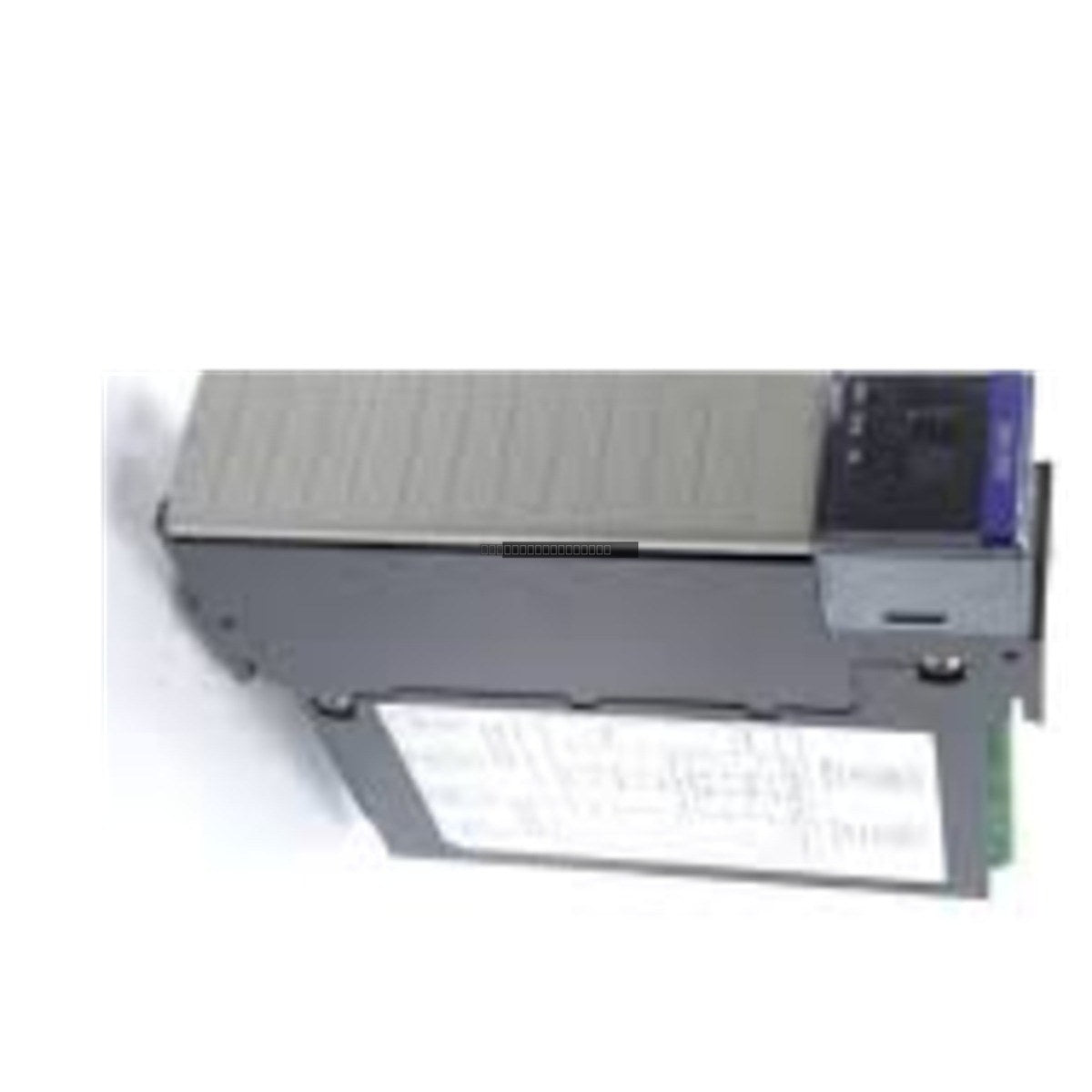

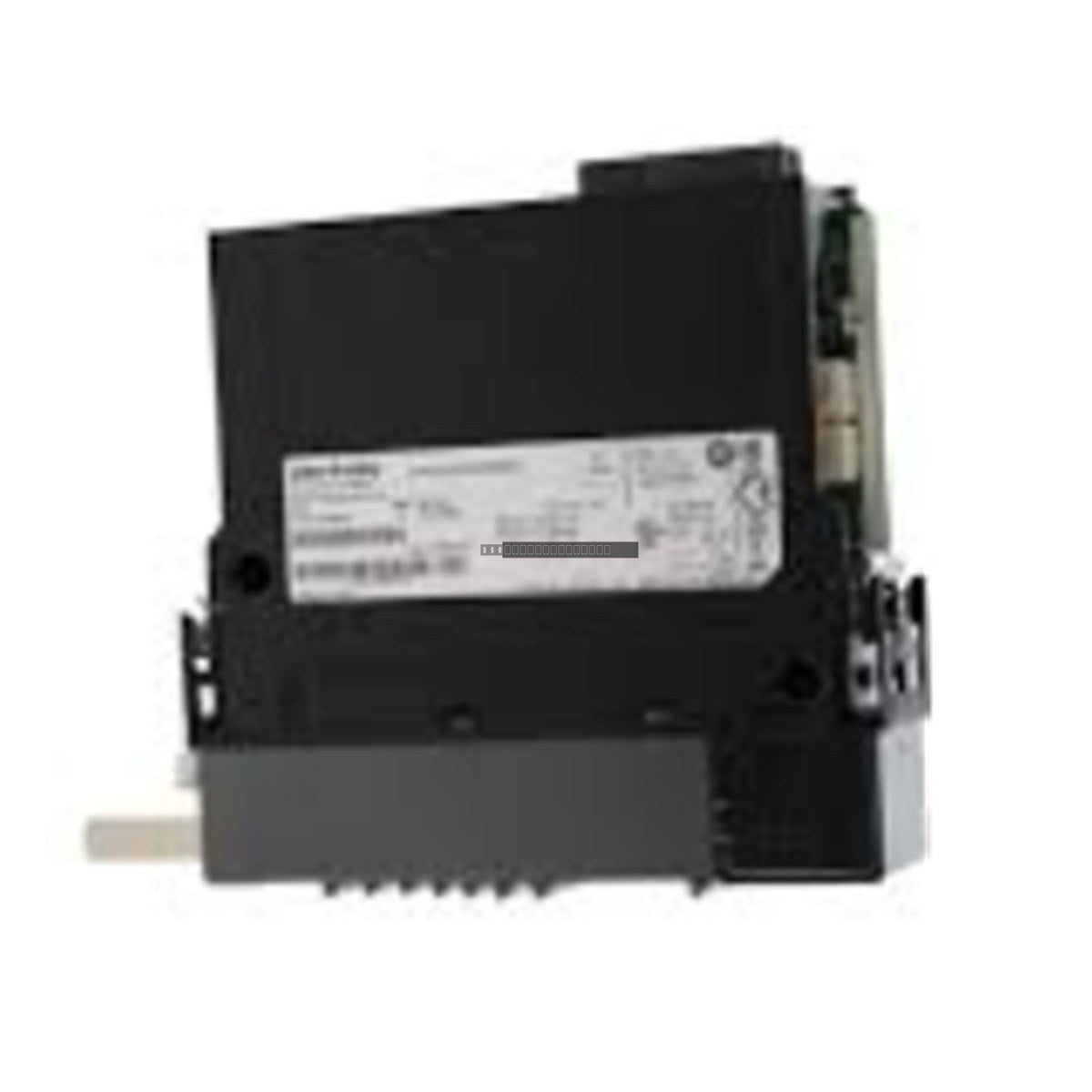

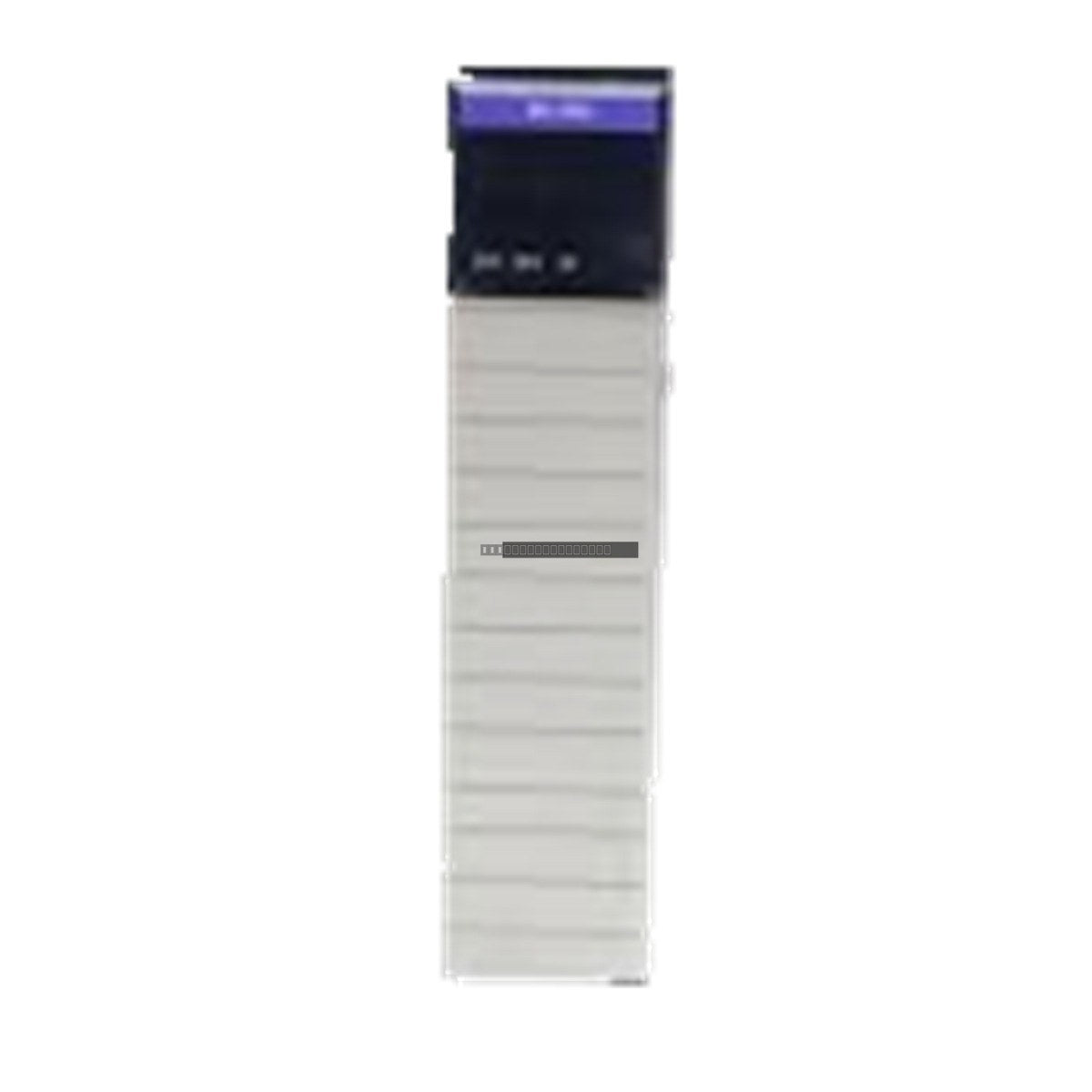

Allen-Bradley 1756-EN2TRK ControlLogix EtherNet/IP Communication Module

Allen-Bradley 1756-EN2TRK ControlLogix EtherNet/IP Communication Module

Description

The Allen-Bradley 1756-EN2TRK is a high-performance EtherNet/IP communication bridge module designed for the ControlLogix platform. This specific variant features factory-applied conformal coating, providing enhanced protection for internal circuitry against harsh...

27 people are viewing this right now

Availability: Low stock: 7 left

SKU: 1756-EN2TRK
Vendor: Allen-Bradley
Category: EtherNet/IP Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-EN2TRK is a high-performance EtherNet/IP communication bridge module designed for the ControlLogix platform. This specific variant features factory-applied conformal coating, providing enhanced protection for internal circuitry against harsh environmental factors such as humidity, corrosive gases, and airborne contaminants. It serves as a robust network interface for real-time I/O control, safety messaging, and controller-to-controller communication, making it suitable for demanding industrial sectors including mining, water treatment, and chemical processing.

Features

  • Conformal Coating: Specialized protection for internal electronic assemblies against chemical exposure and condensation.
  • Dual-Port Architecture: Two RJ45 Ethernet ports supporting linear, star, and Device Level Ring (DLR) network topologies.
  • Network Resilience: Supports DLR to maintain network integrity and prevent communication loss during cable failures.
  • High-Speed Communication: 10/100 Mbps Ethernet with automatic negotiation for seamless integration into existing plant networks.
  • Diagnostic Support: Includes a dedicated USB port for local configuration and troubleshooting.

Applications

This module is intended for use in ControlLogix chassis-based systems where network reliability is critical. It is frequently deployed in applications requiring redundant network paths, high-speed data exchange between controllers, and operation in environments where standard electronic components might be susceptible to atmospheric degradation.

Technical Specifications

Model 1756-EN2TRK
Communication Rate 10/100 Mbps
Power Consumption 5.1 Watts
Backplane Current 1.0 A @ 5.0 VDC / 3 mA @ 24 VDC
Thermal Dissipation 21.28 BTU/hr
Operating Temperature 0 to 60 deg C
Humidity 5% to 95% non-condensing
Isolation Voltage 30 V (continuous)

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module.
  • The module occupies one standard slot in the chassis; it can be placed in any available slot.
  • Use shielded Ethernet cabling to minimize EMI interference in high-noise industrial environments.
  • Verify that the module is properly seated and the locking mechanism is engaged to ensure a secure backplane connection.
  • Maintain proper ventilation within the cabinet to stay within the 0 to 60 deg C operating temperature range.

FAQ

Q: Does this module require a managed switch?
A: No, the 1756-EN2TRK features built-in dual-port architecture that supports DLR and linear topologies, eliminating the need for external managed switches in many configurations.

Q: Can this module be used in standard ControlLogix chassis?
A: Yes, it is fully compatible with standard ControlLogix chassis and occupies a single slot.
