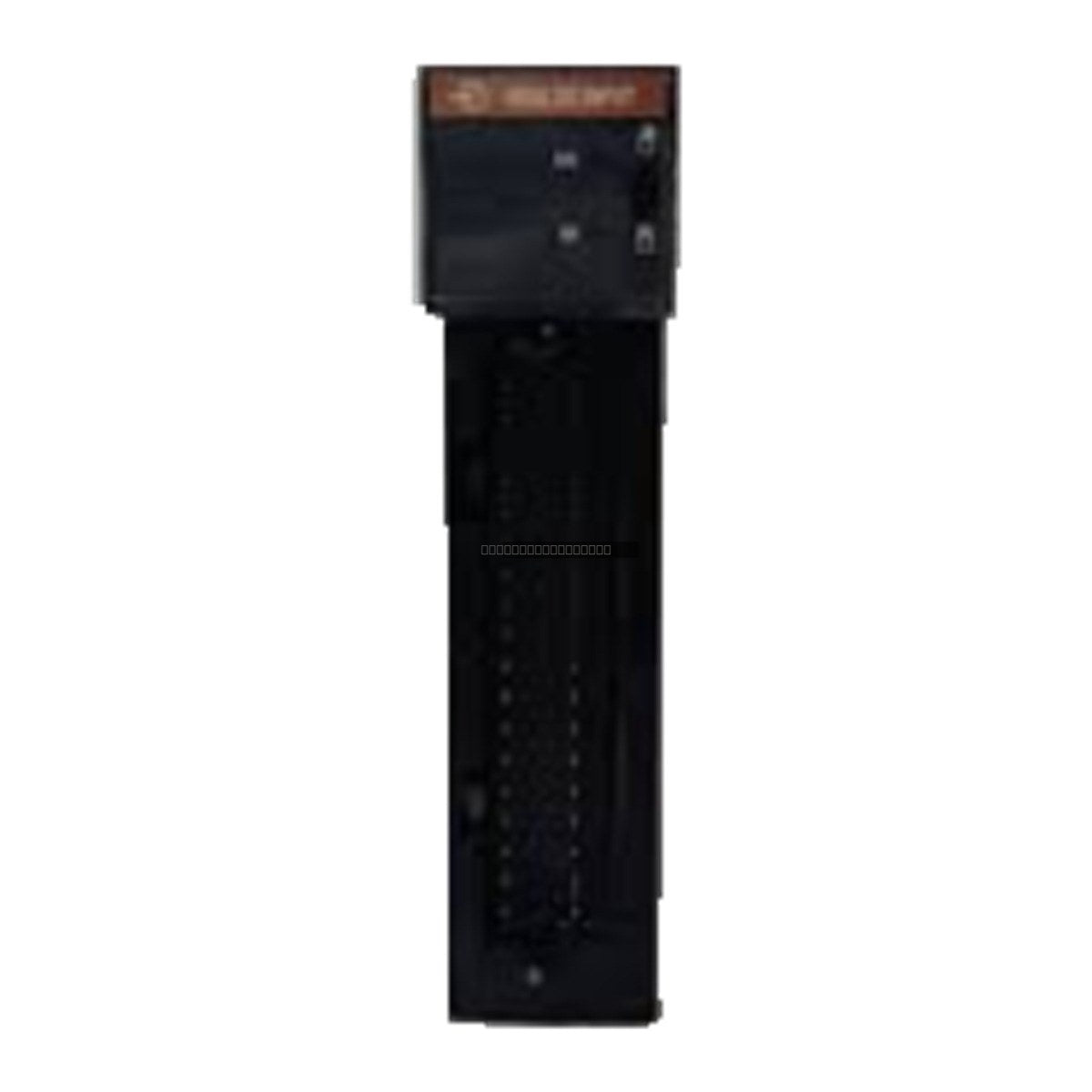

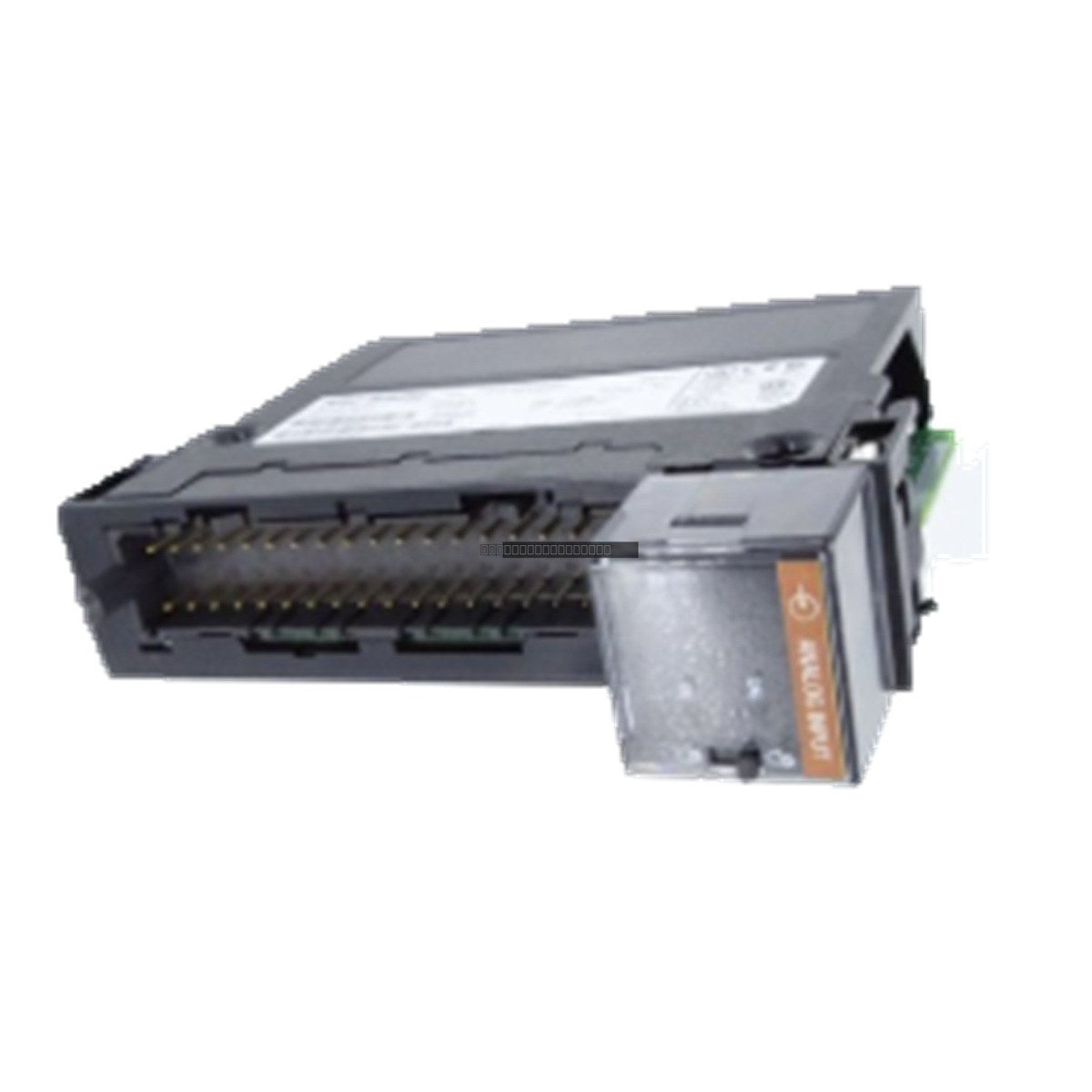

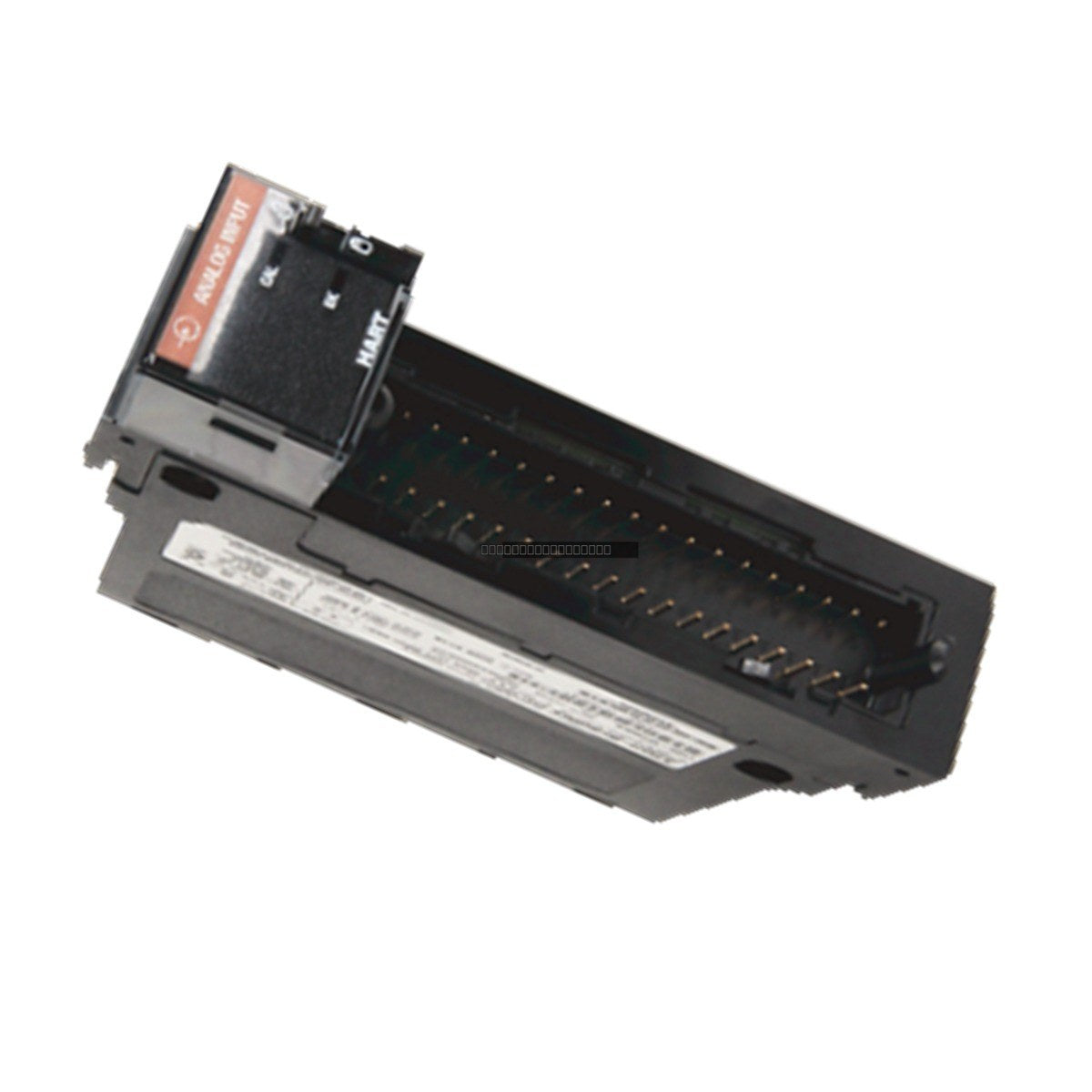

The Allen-Bradley 1756-IF16 is a high-performance 16-channel analog input module designed for the ControlLogix platform. It provides precise acquisition of voltage and current signals, facilitating robust monitoring and process control across diverse industrial environments. The module supports flexible input configurations including 16 single-ended channels, 8 differential channels, or 4 high-speed differential channels.

Features

• 16-bit resolution for high-accuracy measurement of analog process variables.
• Software-configurable input ranges including ±10.25 V DC, 0–20.5 mA, and 4–20.5 mA.
• Selectable data formats: IEEE 32-bit floating-point and 16-bit integer (2's complement).
• Integrated diagnostic features including open-circuit detection and channel-level status monitoring.
• Sigma-Delta A/D conversion for superior noise immunity and signal stability.
• Support for real-time channel sampling and configurable engineering unit scaling.

Applications

This module is engineered for demanding automation tasks in sectors such as oil and gas, chemical processing, power generation, and water treatment. It is commonly utilized for:

• Monitoring pressure, temperature, flow, and level sensors.
• Interface with vibration monitoring systems and valve positioners.
• Integration into PID control loops for precise process management.
• Data acquisition for high-speed diagnostic systems.

Technical Specifications

Installation Guidelines

• Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
• Use 1756-TBCH or 1756-TBS6H removable terminal blocks for secure field wiring.
• Always utilize shielded, twisted-pair cabling (22–14 AWG) to minimize EMI; terminate drain wires to a dedicated chassis ground.
• Verify the wiring mode (single-ended vs. differential) in the module configuration within the controller software before applying power.
• The module does not provide internal loop power; ensure external power supplies are correctly integrated for 2-wire transmitter loops.

FAQ

What is the primary function of the 1756-IF16?

The 1756-IF16 is an analog input module that converts field-level voltage or current signals into digital data for processing by a ControlLogix controller.

Can I change the wiring mode after configuration?

No, the wiring mode (single-ended or differential) is defined in the module's communication format within the I/O tree. Changing this requires deleting and re-adding the module in the project file.

Does this module provide excitation power to sensors?

No, this module does not provide loop power. External power sources are required for transmitters that need excitation.

How are 4-20mA signals measured?

The module measures voltage. For 4-20mA signals, the current is routed through an internal 250-ohm resistor (via correct terminal wiring) to create a measurable voltage drop.
