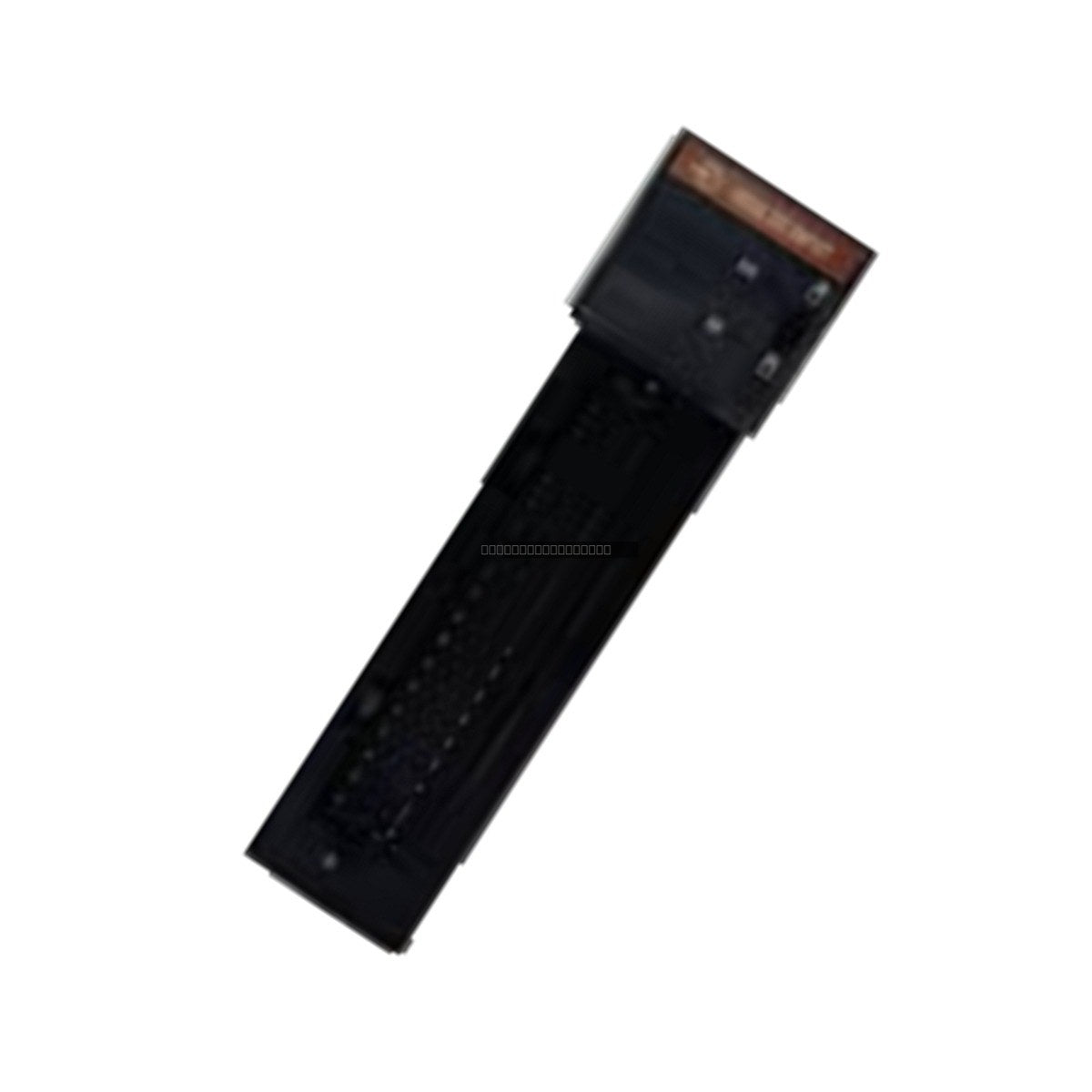

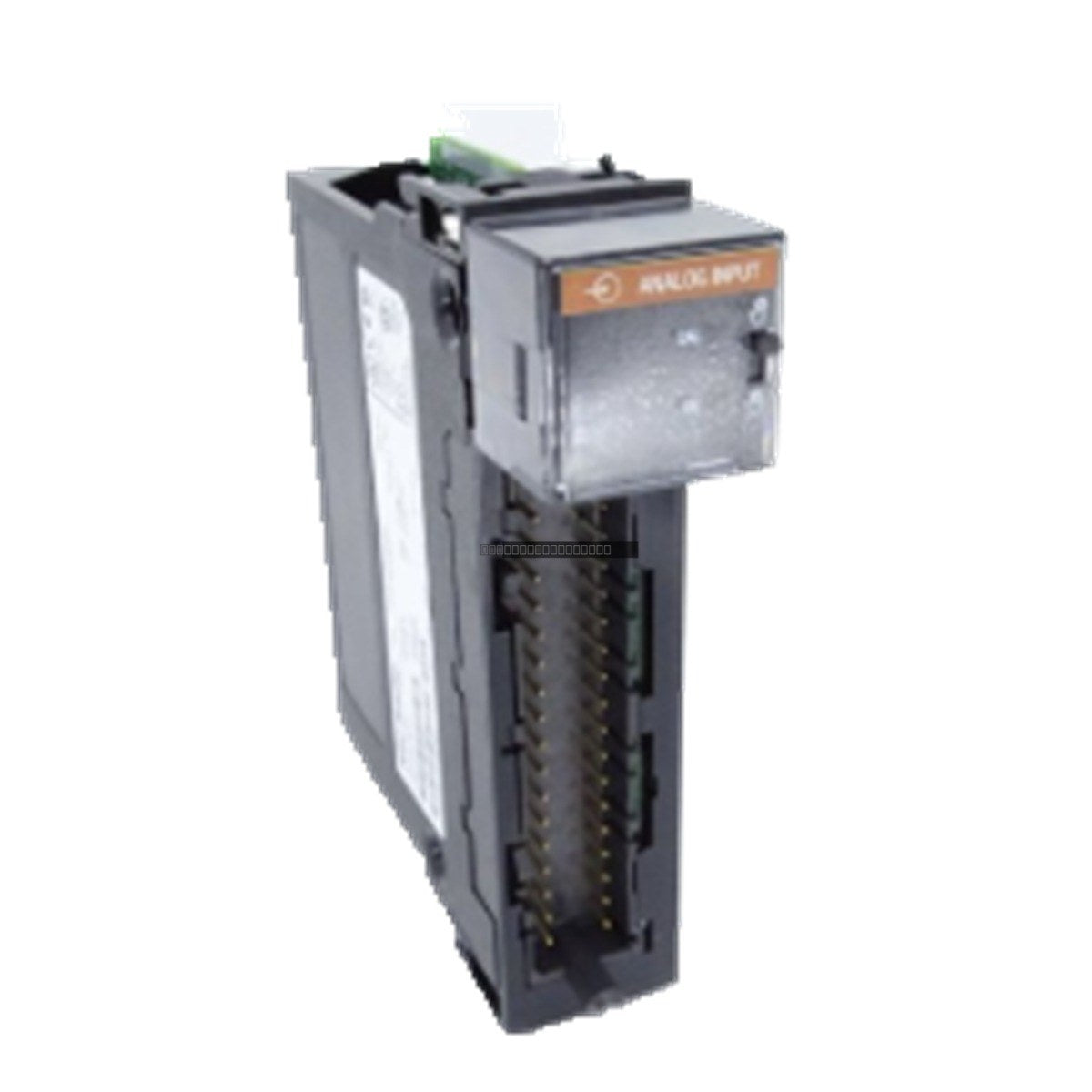

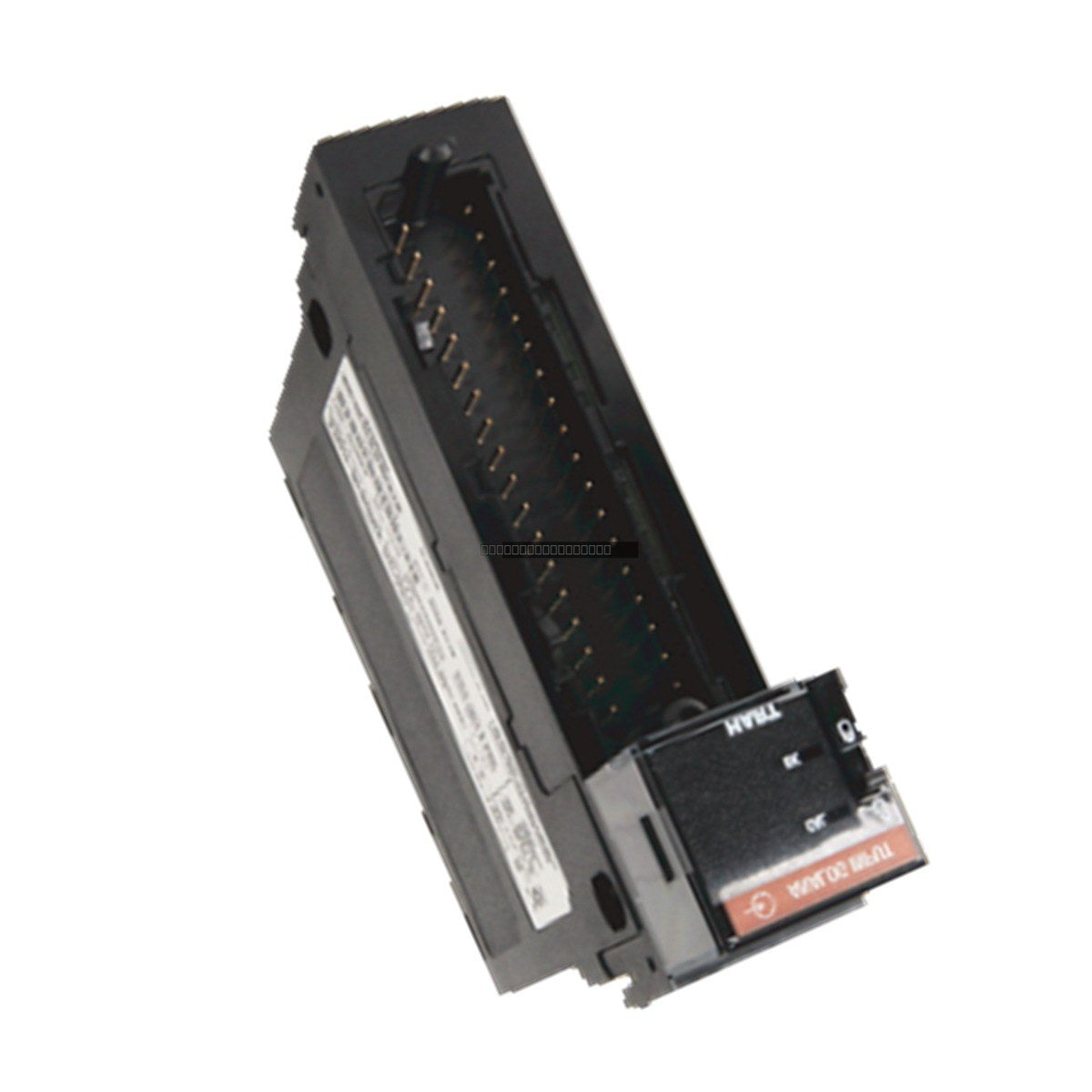

The Allen-Bradley 1756-IF8 is a high-performance analog input module designed for the ControlLogix automation platform. It provides eight input channels capable of processing voltage or current signals from various industrial sensors, such as pressure transmitters, flow meters, and temperature probes. By converting these continuous analog signals into 16-bit digital data, the module enables precise monitoring and control within complex industrial processes.

Features

• Versatile 8-channel input configuration supporting both single-ended and differential modes.
• Flexible signal range support including +/-10V, 0-10V, 0-5V, and 0-20mA (4-20mA).
• High-resolution data acquisition using Sigma-Delta conversion.
• Integrated digital filtering to reduce noise and improve signal stability.
• Comprehensive diagnostic capabilities for monitoring module health and input status.

Applications

• Filtration Systems: Monitoring differential pressure for maintenance cycles.
• Injection Molding: Tracking temperature and pressure transducers for quality control.
• Water Treatment: Measuring pH, turbidity, and chemical concentrations.
• Hydraulic Systems: Providing feedback for consistent force and motion control.
• Dosing and Metering: Integrating flow transmitter data for precise chemical injection.

Technical Specifications

Installation Guidelines

• The 1756-IF8 is open-type equipment and must be mounted within a NEMA or IEC-rated enclosure to prevent accidental contact with live electrical components.
• Ensure the ControlLogix chassis is properly grounded before installing the module.
• While the module supports Removal and Insertion Under Power (RIUP), exercise caution; disconnecting the Removable Terminal Block (RTB) while field-side power is active may cause electrical arcing.
• Route signal wiring away from high-voltage cables and sources of electromagnetic interference (EMI) to maintain signal integrity.
• Verify that the module is fully seated in the chassis slot and the RTB is securely locked before applying power.

FAQ

What is the primary function of the 1756-IF8?

The 1756-IF8 acts as an interface between field sensors and the ControlLogix controller, converting analog voltage or current inputs into digital values for processing.

Is this module isolated?

The 1756-IF8 is a non-isolated module. If channel-to-channel isolation is required for your specific application, consider the 1756-IF8I model.

What are the wiring configurations?

The module supports 8 single-ended inputs or 4 differential inputs, depending on your noise immunity requirements and sensor output type.
