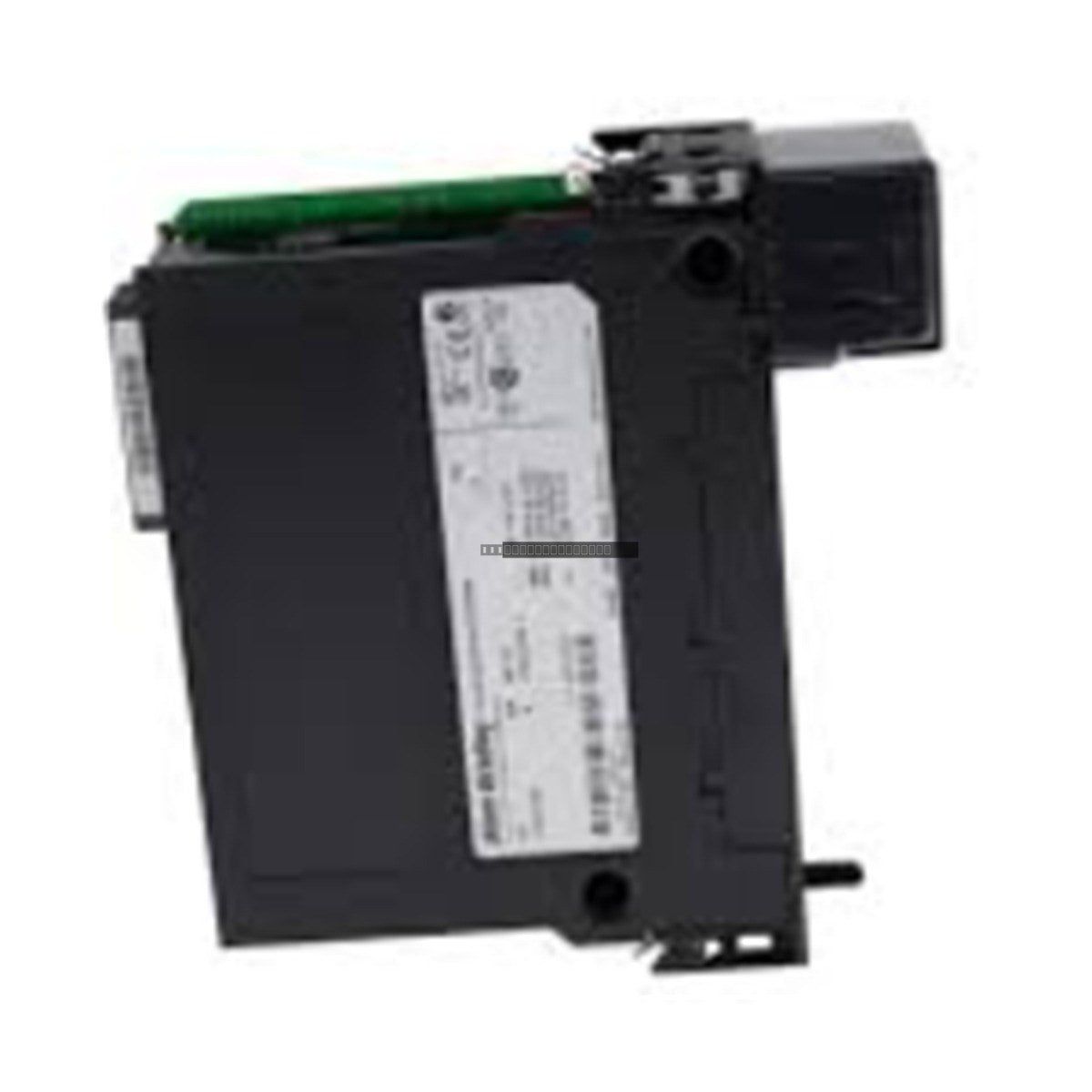

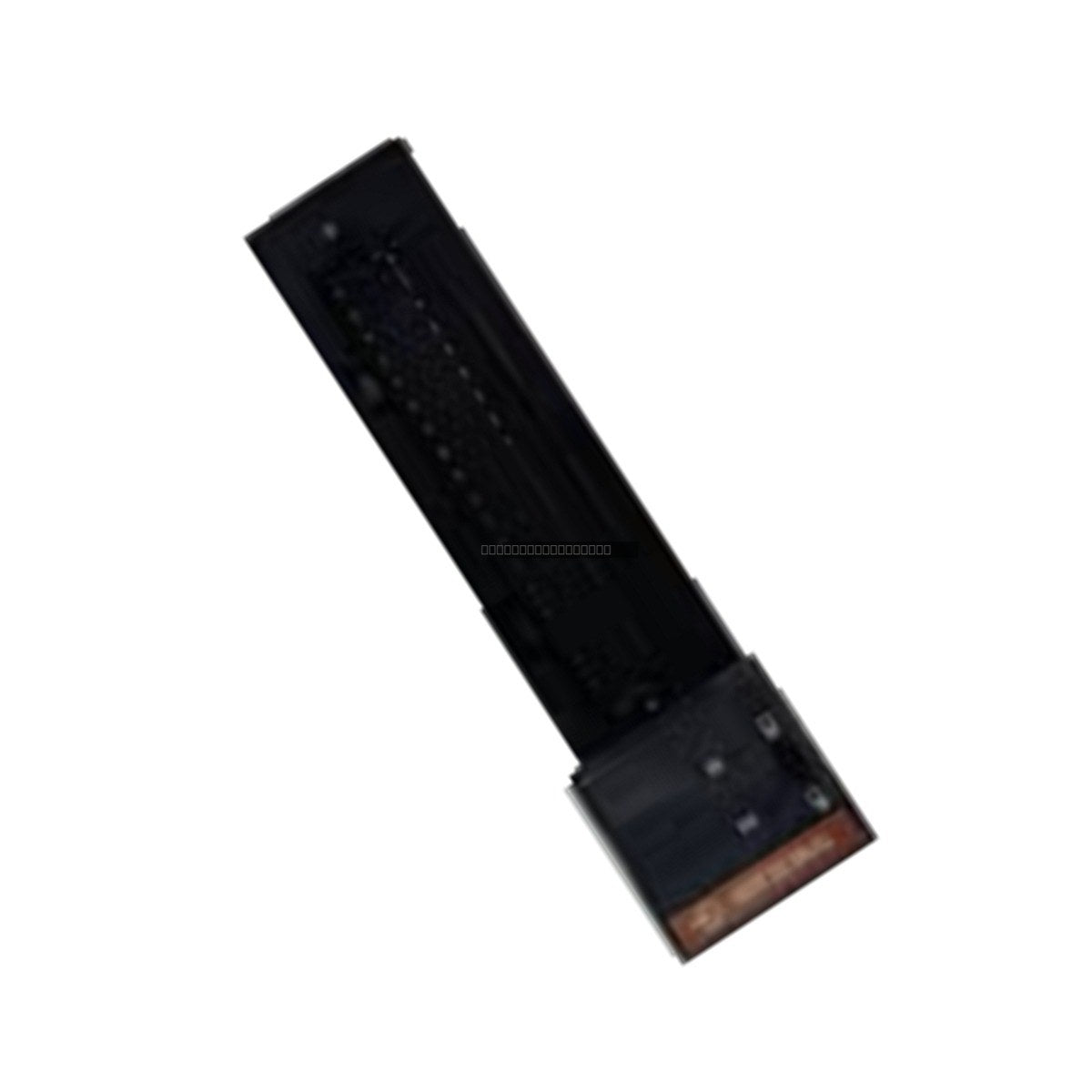

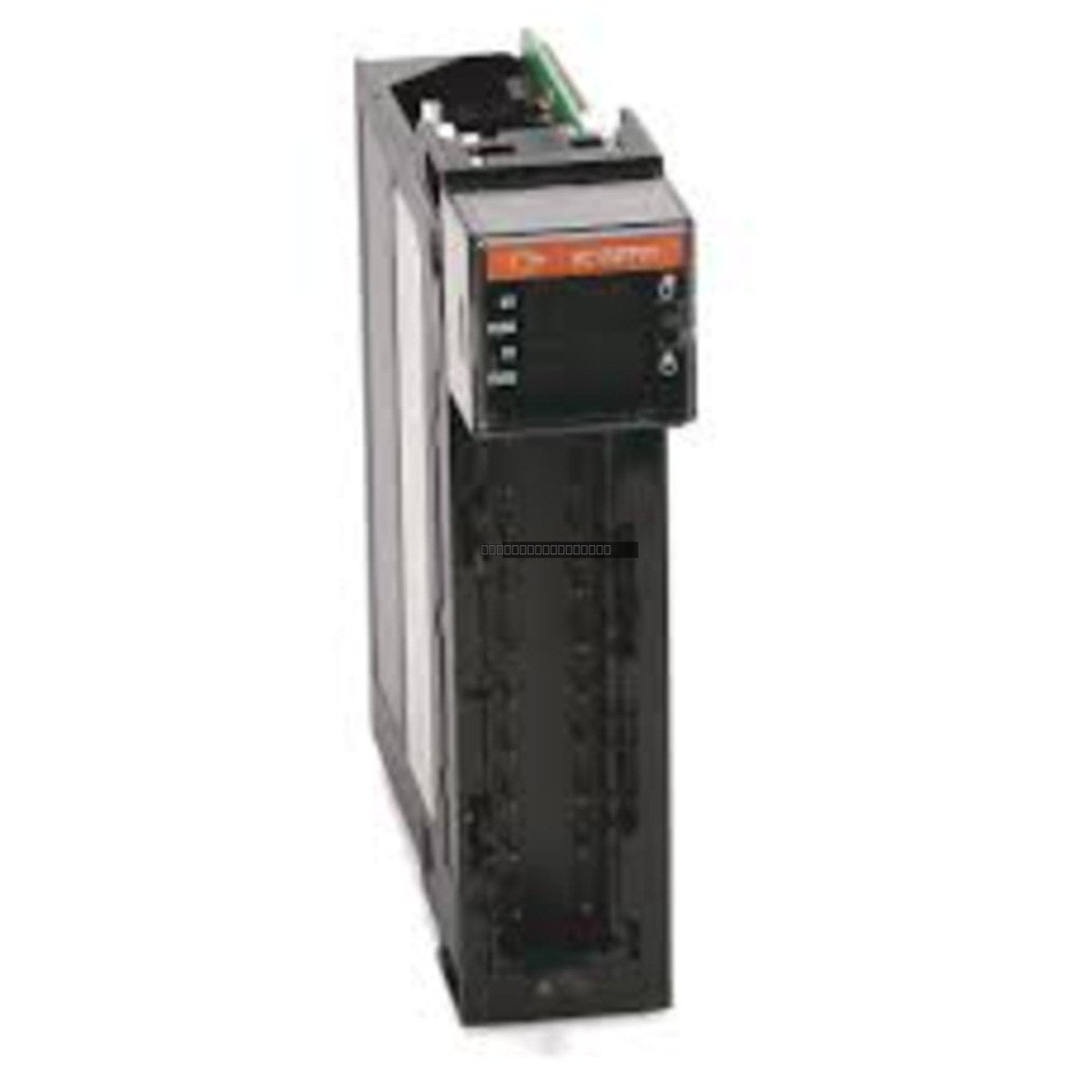

Allen-Bradley 1756-IF8H ControlLogix Analog Differential Input Module with HART

Allen-Bradley 1756-IF8H ControlLogix Analog Differential Input Module with HART

The Allen-Bradley 1756-IF8H is a high-performance analog input module designed for the ControlLogix platform. It provides 8 differential input channels specifically engineered to support HART (Highway Addressable Remote Transducer) protocol...

25 people are viewing this right now

Availability: Low stock: 3 left

SKU: 1756-IF8H
Vendor: Allen-Bradley
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 1756-IF8H is a high-performance analog input module designed for the ControlLogix platform. It provides 8 differential input channels specifically engineered to support HART (Highway Addressable Remote Transducer) protocol communication, allowing for advanced diagnostics and configuration of field devices alongside standard process variable monitoring.

Features

  • 8 differential analog input channels.
  • Integrated HART protocol support for intelligent field device management.
  • Supports both current and voltage input signal ranges.
  • Designed for seamless integration into the ControlLogix chassis.
  • Includes open-circuit detection capabilities for enhanced system reliability.

Applications

This module is ideal for process control environments where HART-enabled instrumentation is utilized. It is commonly deployed in chemical processing, oil and gas, and water treatment facilities to monitor pressure, temperature, flow, and level sensors while simultaneously accessing device-level diagnostic data.

Technical Specifications

Model 1756-IF8H
Module Type Analog Differential Input (HART)
Input Points 8 Differential
Current Draw (5.1 VDC) 300 mA
Current Draw (24 VDC) 135 mA
Thermal Dissipation 13.7 BTU/hr
Open Circuit Detection Positive full-scale reading within 5 seconds

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
  • Ensure the module is fully seated in the chassis slot and secured with the top and bottom latches.
  • Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for signal shields to avoid ground loops.
  • Operate the module within the specified environmental temperature ratings to ensure long-term reliability.

FAQ

Does the 1756-IF8H support standard analog signals?
Yes, the module is compatible with standard current and voltage analog inputs while providing the added functionality of HART communication for compatible devices.

What is the primary advantage of the HART protocol on this module?
The HART capability allows for bi-directional communication with smart field instruments, enabling remote configuration, calibration, and access to secondary diagnostic data without requiring additional hardware.
