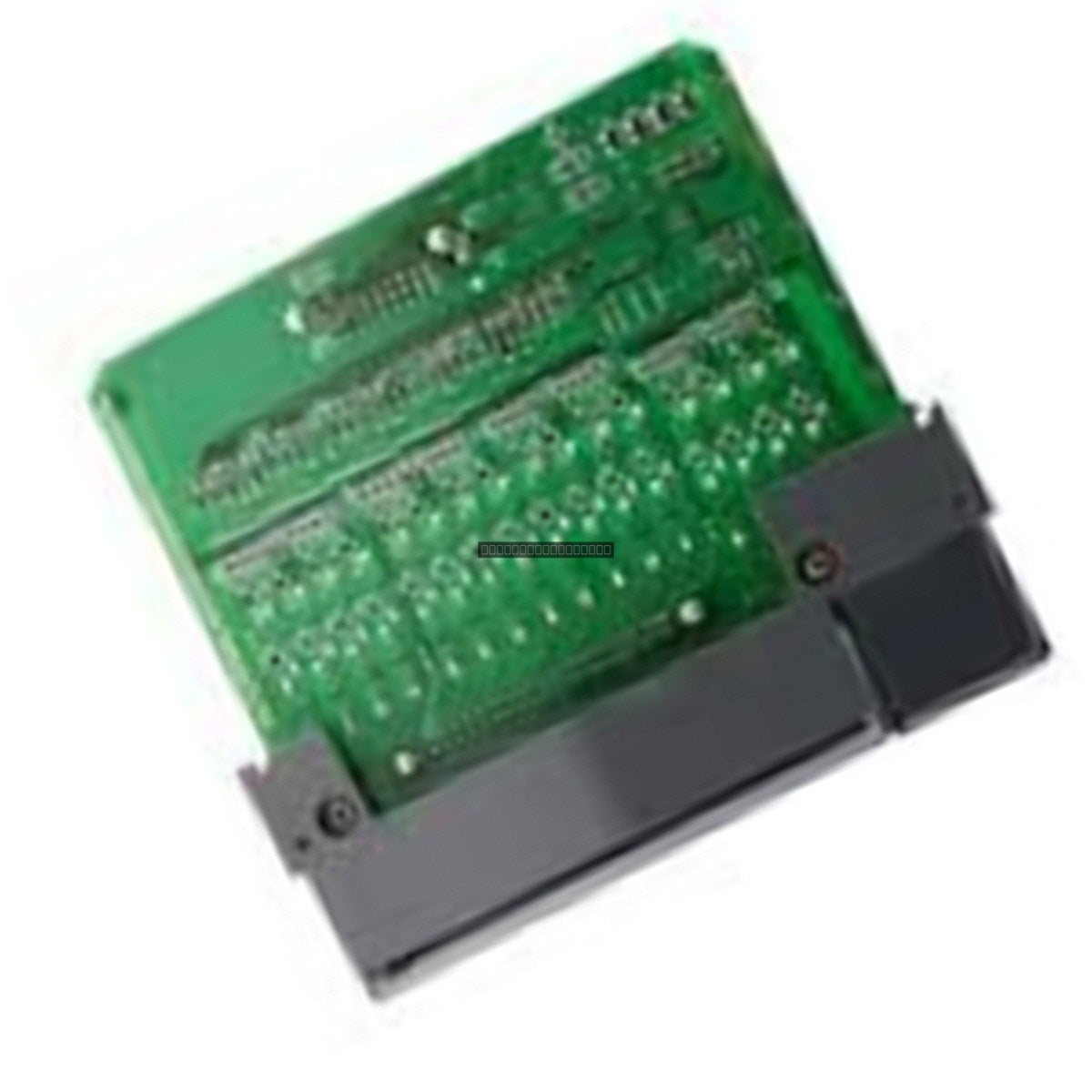

Allen-Bradley 1756-IN16 ControlLogix 16-Point 24V AC Digital Input Module

Allen-Bradley 1756-IN16 ControlLogix 16-Point 24V AC Digital Input Module

The Allen-Bradley 1756-IN16 is a high-performance digital AC input module designed for integration within the ControlLogix platform. This module provides 16 isolated input points, specifically engineered to interface with 24V...

18 people are viewing this right now

Availability: Low stock: 4 left

SKU: 1756-IN16
Vendor: Allen-Bradley
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Allen-Bradley 1756-IN16 is a high-performance digital AC input module designed for integration within the ControlLogix platform. This module provides 16 isolated input points, specifically engineered to interface with 24V AC field devices in industrial automation environments. It offers reliable signal monitoring and is fully compatible with the standard ControlLogix chassis architecture.

Features

  • 16-point digital AC input configuration.
  • Designed for 24V AC nominal input voltage operations.
  • Programmable input delay times of 9 or 18 milliseconds to filter noise and bounce.
  • Wide operating voltage range from 10 to 30V AC.
  • Robust, industry-standard ControlLogix form factor for seamless rack mounting.

Applications

This module is widely utilized in manufacturing and process control systems where AC-based sensors, limit switches, or pushbuttons require integration into a programmable logic controller. Its programmable delay feature makes it particularly effective in environments with electrical noise or mechanical contact bounce.

Technical Specifications

Catalog Number 1756-IN16
Module Type Digital AC Input
Number of Inputs 16
Input Voltage 24V AC
Operating Range 10-30V AC
Input Delay Time 9 or 18 ms (Programmable)
Min. Operating Current 5 mA at 10V AC (60 Hz)
Max. Operating Current 1.2 mA at 30V AC (60 Hz)
Off-State Current (Max) 2.75 mA

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
  • Ensure the module is fully seated in the chassis slot and secured with the top and bottom latching mechanisms.
  • Use appropriate shielded cabling for field wiring to minimize electromagnetic interference (EMI).
  • Verify that the input voltage levels do not exceed the 10-30V AC operating range specified for this unit.
  • Maintain proper ventilation around the chassis to ensure optimal operating temperatures.

FAQ

What is the primary function of the 1756-IN16?
This module serves as a bridge between 24V AC field devices and the ControlLogix PLC system, converting AC signals into logic-level data for the controller.

Can I adjust the input response time?
Yes, the module supports programmable input delay settings of either 9 or 18 milliseconds, allowing for flexibility based on the specific requirements of your application.
