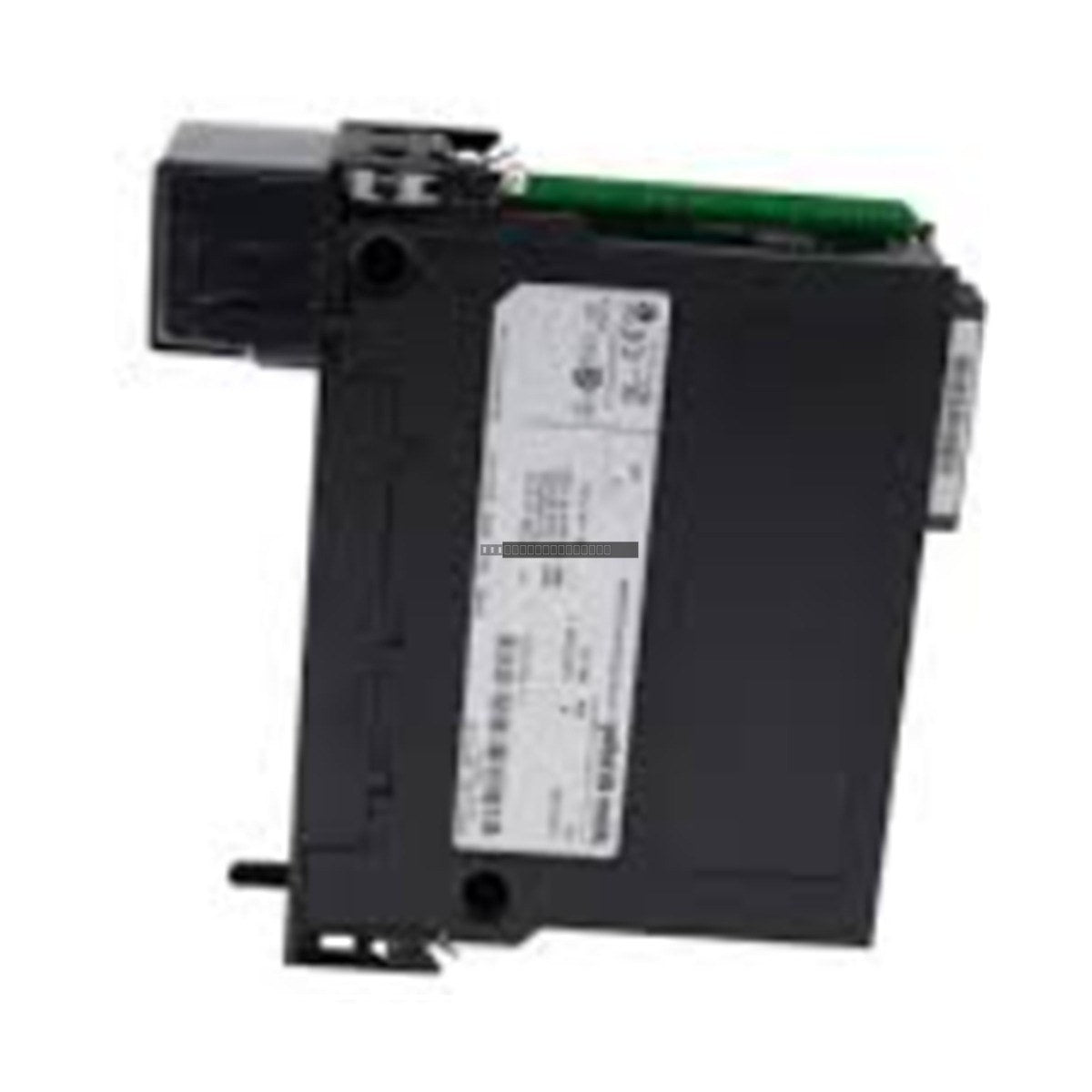

Allen-Bradley 1756-IT6I ControlLogix 6-Point Isolated Thermocouple Input Module

Allen-Bradley 1756-IT6I ControlLogix 6-Point Isolated Thermocouple Input Module

Description

The Allen-Bradley 1756-IT6I is a high-performance analog input module designed for the ControlLogix platform. This module provides six isolated channels specifically engineered for thermocouple signal processing. It offers precise temperature...

29 people are viewing this right now

Availability: In stock

SKU: 1756-IT6I
Vendor: Allen-Bradley
Category: Analog Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Allen-Bradley 1756-IT6I is a high-performance analog input module designed for the ControlLogix platform. This module provides six isolated channels specifically engineered for thermocouple signal processing. It offers precise temperature monitoring capabilities, supporting a wide range of standard thermocouple types to ensure compatibility with diverse industrial sensing requirements.

Features

  • Six isolated thermocouple input channels for noise immunity and signal integrity.
  • Integrated Cold Junction Compensation (CJC) for accurate temperature readings.
  • Supports a broad array of thermocouple types including B, C, E, J, K, N, R, S, and T.
  • Designed for seamless integration into the ControlLogix backplane.
  • Low power dissipation design suitable for high-density chassis configurations.

Technical Specifications

Module Type Isolated Thermocouple Input
Number of Inputs 6 Isolated Points
Backplane Current (5V) 250 mA
Backplane Current (24V) 2 mA
Power Dissipation (Max) 4.3 Watts
Compatible RTB 1756-TBNH, 1756-TBSH

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module to prevent electrical damage.
  • Use shielded thermocouple extension wire to minimize electromagnetic interference (EMI) in industrial environments.
  • Verify that the Removable Terminal Block (RTB) is securely seated and locked into the module housing.
  • Maintain adequate spacing within the chassis to allow for proper airflow and heat dissipation.
  • Follow standard ESD (electrostatic discharge) precautions when handling the module to protect internal circuitry.

FAQ

What types of thermocouples are supported by the 1756-IT6I?
The module supports types B, C, E, J, K, N, R, S, and T.

Does this module require a specific terminal block?
Yes, the 1756-IT6I is compatible with the 1756-TBNH and 1756-TBSH removable terminal blocks.

What is the maximum power dissipation for this unit?
The maximum power dissipation is 4.3 Watts.
